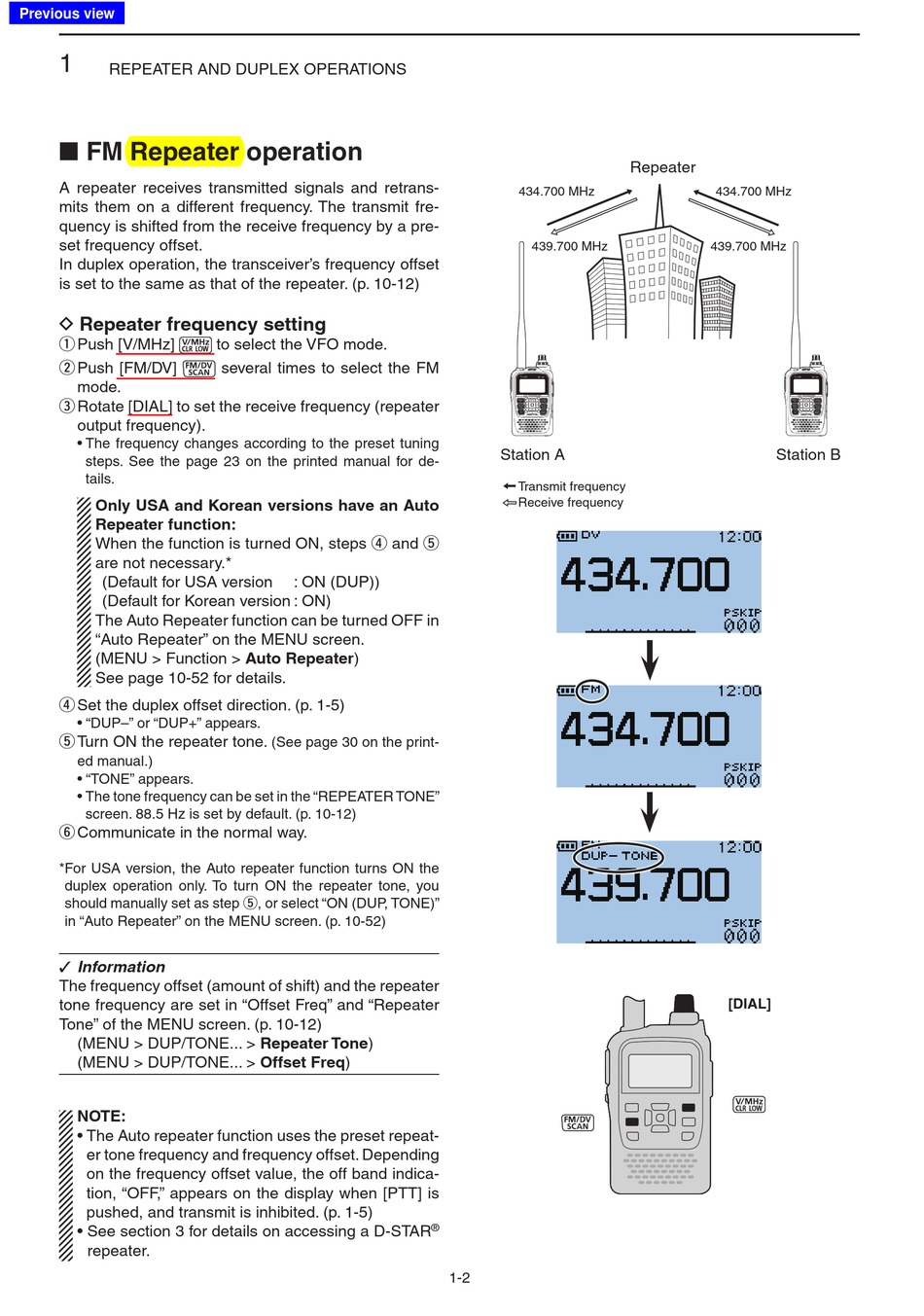

REPEATER AND DUPLEX OPERATIONS

■ FM Repeater operation

A repeater receives transmitted signals and retrans-
mits them on a different frequency. The transmit fre-
quency is shifted from the receive frequency by a pre-
set frequency offset.
In duplex operation, the transceiver's frequency offset
is set to the same as that of the repeater. (p. 10-12)

D Repeater frequency setting

Push [V/MHz]
q
Push [FM/DV]
w
mode.
Rotate [DIAL] to set the receive frequency (repeater
e
output frequency).
• The frequency changes according to the preset tuning
steps. See the page 23 on the printed manual for de-
tails.
Only USA and Korean versions have an Auto
Repeater function:
When the function is turned ON, steps r and t
are not necessary.*
(Default for USA version
(Default for Korean version : ON)
The Auto Repeater function can be turned OFF in
"Auto Repeater" on the MENU screen.
(MENU > Function > Auto Repeater)
See page 10-52 for details.
Set the duplex offset direction. (p. 1-5)
r
• "DUP–" or "DUP+" appears.
Turn ON the repeater tone.
t
ed manual.)
• "TONE" appears.
• The tone frequency can be set in the "REPEATER TONE"
screen. 88.5 Hz is set by default. (p. 10-12)
Communicate in the normal way.
y
* For USA version, the Auto repeater function turns ON the
duplex operation only. To turn ON the repeater tone, you
should manually set as step t, or select "ON (DUP, TONE)"
in "Auto Repeater" on the MENU screen. (p. 10-52)
Information
✓
The frequency offset (amount of shift) and the repeater
tone frequency are set in "Offset Freq" and "Repeater
Tone" of the MENU screen. (p. 10-12)
(MENU > DUP/TONE... > Repeater Tone)
(MENU > DUP/TONE... > Offset Freq)
NOTE:
• The Auto repeater function uses the preset repeat-
er tone frequency and frequency offset. Depending
on the frequency offset value, the off band indica-
tion, "OFF," appears on the display when [PTT] is
pushed, and transmit is inhibited. (p. 1-5)
• See section 3 for details on accessing a D-STAR
repeater.
to select the VFO mode.
several times to select the FM
: ON (DUP))
(See page 30 on the print-
434.700 MHz
439.700 MHz
Station A
Transmit frequency
Receive frequency
®
1-2
Repeater
434.700 MHz
439.700 MHz
Station B
[DIAL]
