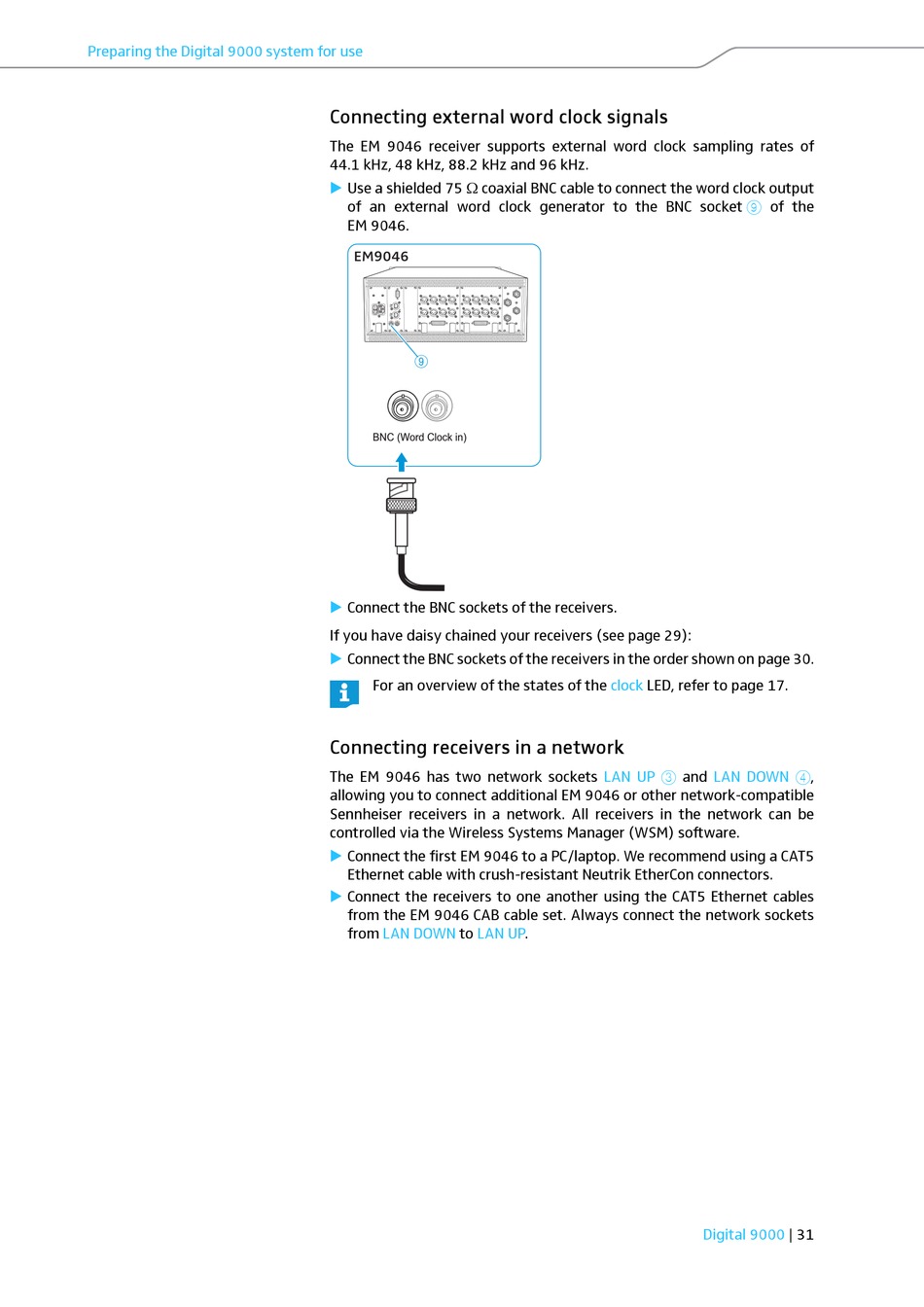

Preparing the Digital 9000 system for use

Connecting external word clock signals

The EM 9046 receiver supports external word clock sampling rates of
44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz.
Use a shielded 75 coaxial BNC cable to connect the word clock output
of an external word clock generator to the BNC socket
EM 9046.
EM9046
A B C D E F
9
BNC (Word Clock in)
Connect the BNC sockets of the receivers.
If you have daisy chained your receivers (see page 29):
Connect the BNC sockets of the receivers in the order shown on page 30.
For an overview of the states of the

Connecting receivers in a network

The EM 9046 has two network sockets
allowing you to connect additional EM 9046 or other network-compatible
Sennheiser receivers in a network. All receivers in the network can be
controlled via the Wireless Systems Manager (WSM) software.
Connect the first EM 9046 to a PC/laptop. We recommend using a CAT5
Ethernet cable with crush-resistant Neutrik EtherCon connectors.
Connect the receivers to one another using the CAT5 Ethernet cables
from the EM 9046 CAB cable set. Always connect the network sockets
from LAN DOWN to LAN
clock LED, refer to page 17.
LAN UP 3
and
UP.
9
of the
4,
LAN DOWN
