Sennheiser EW 100 G2 Operating Instructions

EW100ENGG2
Wireless | Systems

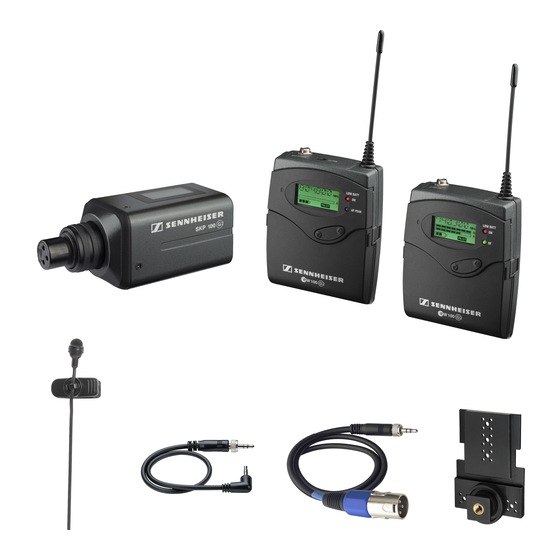

Kit Includes:
1 EK100G2 camera-mount receiver
1 SK100G2 bodypack transmitter
1 ME2 clip-on microphone (omnidirectional pick-up pattern)
1 SKP100G2 plug on transmitter
1 CL 1 jack cable
6 AA batteries
Operating instructions
1 camera adapter
1 CL100 XLR cable
General Description
The EW 100-ENG G2 system is ideal for video recording in the most varied record-
ing situations. The ME 2 clip-on microphone is virtually invisible. The extremely
small SK 100 G2 bodypack transmitter and the SKP 100 G2 plug-on transmitter
as well as the EK 100 G2 camera receiver feature nine frequency banks with four
directly accessible presets each – ready for immediate use..
Features
• 1,440 tunable UHF frequencies for interference-free reception
• Absolutely reliable transmission and extended range due to high RF
output power
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Transmitter and receiver with rugged metal housings
• Receiver features user-friendly menu operation via backlit display
• Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter and receiver feature "Low Battery" indicators
• Mute function for the transmitter
• Wide range of accessories adapts the system to any requirement
EK100G2
Fixed
Antenna
Backlit Display
Battery
Door
Belt clip
EK100G2—Portable non-diversity receiver. 1/8" locking connector, and auto
scan feature.
* Illustrations do not show cables
63.000"
(1600.20 mm)
1/8" TRS Connector
ø 0.13"
(3.4 mm)
ø 0.08"
(2.2 mm)
Power &
Battery Status
Peak light for input
Channel Select &
Programming
e
2.50"
(63.7 mm)
1/8" audio output
unbalanced"
Power ON
Low Battery Status
RF Status
Channel select
1.000"
& program setting
(25.40 mm)
Battery
Door
Channel Select &
Battery
Programming
Door
Program
Mute Switch
ON/OFF
Button
4.06"
EK100G2, SK100G2, ME2, SKP100G2
(103.26 mm)
2.91"
(74.02 mm)
SKM135G2
Backlit
Display
Fixed
Antenna
Backlit
Display
2.50"
(63.7 mm)
Belt clip
SK100G2—Bodypack transmitter with 30mw out put power.
1/8" locking connector for lavalier mic or instrument cable.
EW100ENGG2
Antenna
Backlit Display
Power &
Battery Status
Peak light for input
Channel Select &
Programming
Belt clip
Female 3 pin XLR Audio
Input mic or Line
Locking Ring for XLR Input
1.67"
(42.5 mm)
ø 0.13" Battery
(3.4 mm) Door
ø 0.08"
(2.2 mm)
MIC or
line input
1/8" TRS jack
MUTE Switch
Fixed
(
Backlit
Display
Belt clip
