Product overview
1
A1.7
2
3
4
5
HD
fs
6
7
3:10
8
9
CH3
473
0
800
16 |
Digital 9000

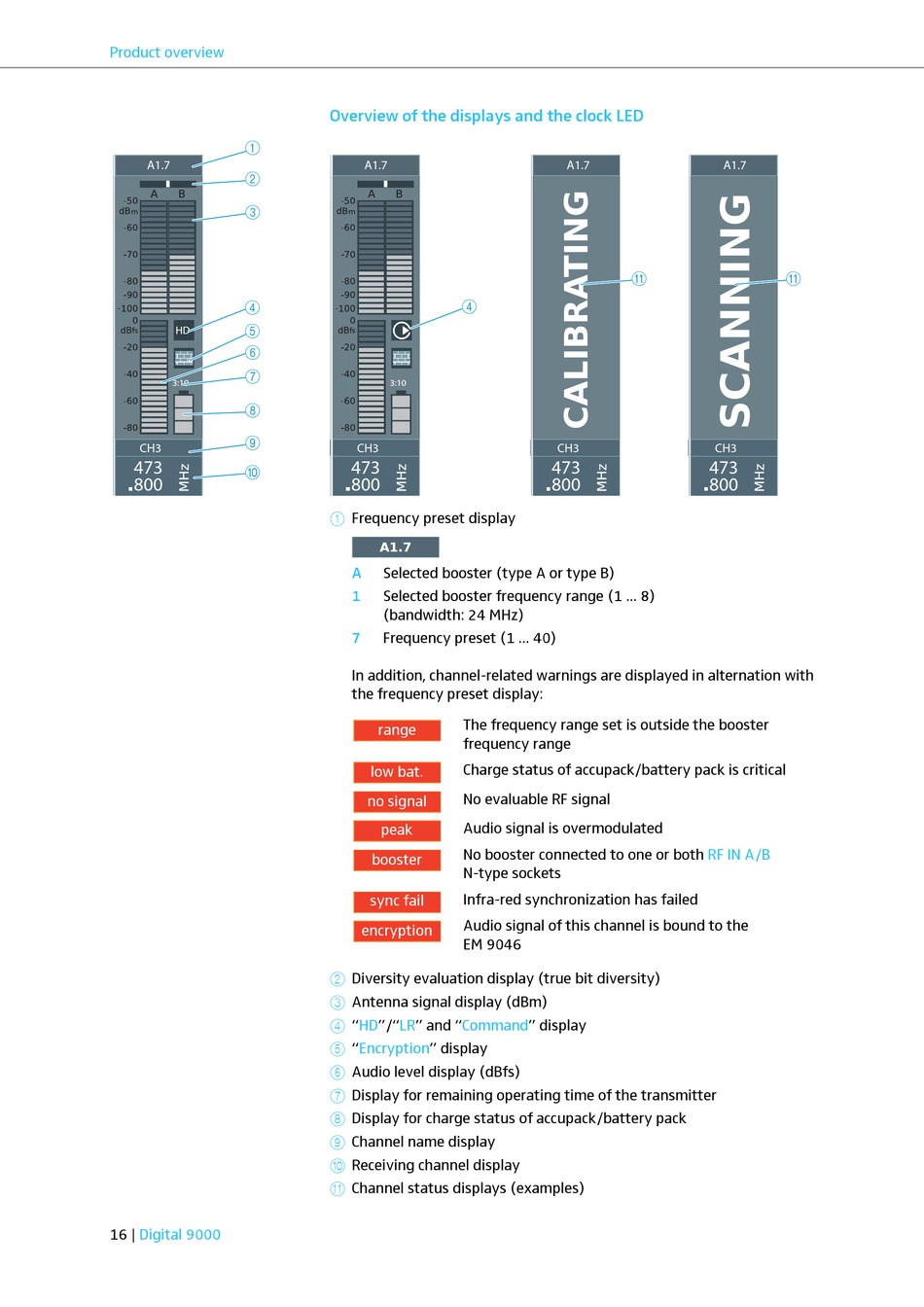

Overview of the displays and the clock LED
A1.7
4
fs
3:10
CH3
473
800
1
Frequency preset display
A1.7
A
Selected booster (type A or type B)
1
Selected booster frequency range (1 ... 8)
(bandwidth: 24 MHz)
7
Frequency preset (1 ... 40)
In addition, channel-related warnings are displayed in alternation with
the frequency preset display:
The frequency range set is outside the booster
range
frequency range
Charge status of accupack/battery pack is critical
low bat.
No evaluable RF signal
no signal
Audio signal is overmodulated
peak
No booster connected to one or both
booster
N-type sockets
Infra-red synchronization has failed
sync fail
Audio signal of this channel is bound to the
encryption
EM 9046
2
Diversity evaluation display (true bit diversity)
3
Antenna signal display (dBm)
4
"HD"/"LR" and "Command" display
5
"Encryption" display
6
Audio level display (dBfs)
7
Display for remaining operating time of the transmitter
8
Display for charge status of accupack/battery pack
9
Channel name display
0
Receiving channel display
A
Channel status displays (examples)
A1.7
A1.7
A
CH3
CH3
473
473
800
800
RF IN A/B
A
