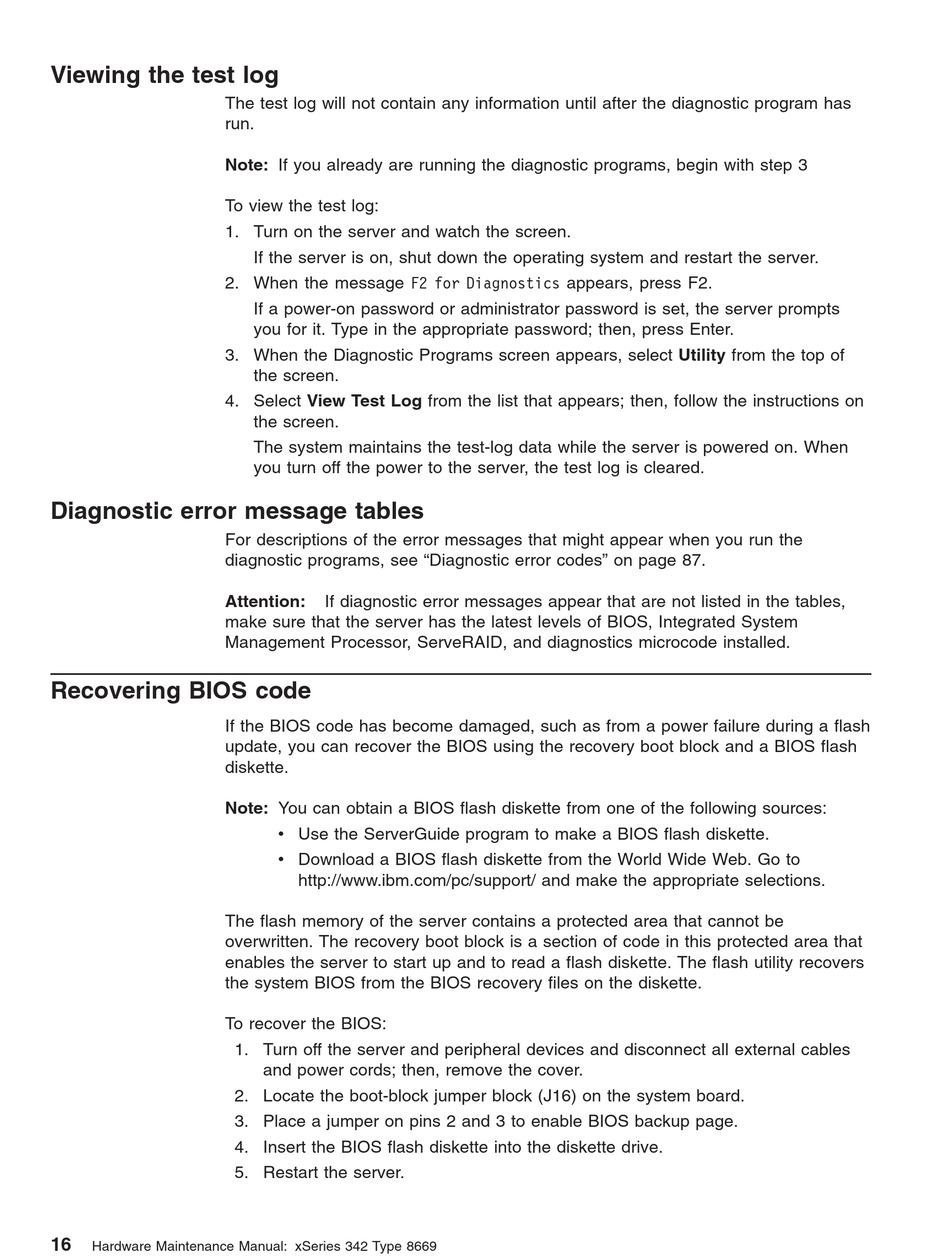

Viewing the test log

The test log will not contain any information until after the diagnostic program has
run.
Note: If you already are running the diagnostic programs, begin with step 3
To view the test log:
1. Turn on the server and watch the screen.
2. When the message F2 for Diagnostics appears, press F2.
3. When the Diagnostic Programs screen appears, select Utility from the top of
4. Select View Test Log from the list that appears; then, follow the instructions on

Diagnostic error message tables

For descriptions of the error messages that might appear when you run the
diagnostic programs, see "Diagnostic error codes" on page 87.
Attention:
make sure that the server has the latest levels of BIOS, Integrated System
Management Processor, ServeRAID, and diagnostics microcode installed.

Recovering BIOS code

If the BIOS code has become damaged, such as from a power failure during a flash
update, you can recover the BIOS using the recovery boot block and a BIOS flash
diskette.
Note: You can obtain a BIOS flash diskette from one of the following sources:
The flash memory of the server contains a protected area that cannot be
overwritten. The recovery boot block is a section of code in this protected area that
enables the server to start up and to read a flash diskette. The flash utility recovers
the system BIOS from the BIOS recovery files on the diskette.
To recover the BIOS:
16
Hardware Maintenance Manual: xSeries 342 Type 8669
If the server is on, shut down the operating system and restart the server.
If a power-on password or administrator password is set, the server prompts
you for it. Type in the appropriate password; then, press Enter.
the screen.
the screen.
The system maintains the test-log data while the server is powered on. When
you turn off the power to the server, the test log is cleared.
If diagnostic error messages appear that are not listed in the tables,
v Use the ServerGuide program to make a BIOS flash diskette.
v Download a BIOS flash diskette from the World Wide Web. Go to
http://www.ibm.com/pc/support/ and make the appropriate selections.
1. Turn off the server and peripheral devices and disconnect all external cables
and power cords; then, remove the cover.
2. Locate the boot-block jumper block (J16) on the system board.
3. Place a jumper on pins 2 and 3 to enable BIOS backup page.
4. Insert the BIOS flash diskette into the diskette drive.
5. Restart the server.
