Summary of Contents for IBM ThinkCentre 8131
-
Page 1: User Guide

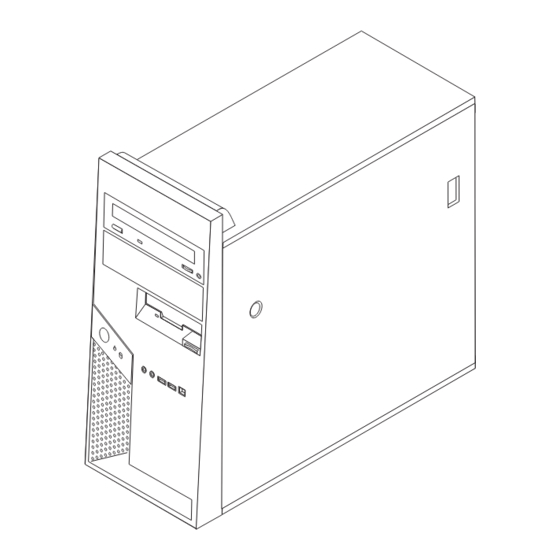

™ ThinkCentre User Guide Types 8131, 8137, 8138 Types 8122, 8123, 8124... - Page 3 ™ ThinkCentre User Guide Types 8131, 8137, 8138 Types 8122, 8123, 8124...
- Page 4 Before using this information and the product it supports, be sure to read the “Important safety information” on page v and Appendix D, “Notices,” on page 43. First Edition (March 2005) © Copyright International Business Machines Corporation 2005. All rights reserved. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.
-
Page 5: Table Of Contents
. 21 Identifying security locks . . 22 Index ....45 Padlock . . 22 Integrated cable lock . . 23 © Copyright IBM Corp. 2005... - Page 6 User Guide...
-
Page 7: Important Safety Information
Follow and retain all information included with your IBM computer. The information in this document does not alter the terms of your purchase agreement or the IBM Statement of Limited Warranty. Customer safety is important to IBM. Our products are developed to be safe and effective. -
Page 8: General Safety Guidelines
Always observe the following precautions to reduce the risk of injury and property damage. Service Do not attempt to service a product yourself unless instructed to do so by the IBM Support Center. Use only an IBM authorized service provider who is approved to repair your particular product. -
Page 9: Power Cords And Power Adapters
Power cords and power adapters Use only the power cords and power adapters supplied by the product manufacturer. Never wrap a power cord around the power adapter or other object. Doing so can stress the cord in ways that can cause the cord to fray, crack or crimp. This can present a safety hazard. -
Page 10: Batteries
In addition many mobile products such as Thinkpad notebook PCs utilize a rechargeable battery pack to provide system power when in portable mode. Batteries supplied by IBM for use with your product have been tested for compatibility and should only be replaced with IBM approved parts. -
Page 11: Additional Safety Information
CAUTION: Danger of explosion if battery is incorrectly replaced. When replacing the battery, use only IBM Part Number 33F8354 or an equivalent type battery recommended by the manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of. -
Page 12: Modem Safety Information
Do not use the telephone to report a gas leak in the vicinity of the leak. Laser compliance statement Some IBM Personal Computer models are equipped from the factory with a CD-ROM drive or a DVD-ROM drive. CD-ROM drives and DVD-ROM drives are also sold separately as options. -
Page 13: Power Supply Statement
Power supply statement Never remove the cover on a power supply or any part that has the following label attached. Hazardous voltage, current, and energy levels are present inside any component that has this label attached. There are no serviceable parts inside these components. If you suspect a problem with one of these parts, contact a service technician. - Page 14 User Guide...
-
Page 15: Overview
It also includes basic troubleshooting information, software recovery procedures, help and service information, and warranty information. Access IBM, on your desktop, provides a link to more information about your computer. If you have Internet access, the most up-to-date information for your computer is available from the World Wide Web. - Page 16 User Guide...
-
Page 17: Chapter 1. Installing Options
Before you install or remove any option, read “Important safety information” on page v. These precautions and guidelines will help you work safely. Note: Use only the parts provided by IBM. Features This section provides an overview of the computer features and preinstalled software. - Page 18 Memory v Support for four double data rate 2 (DDR2) dual inline memory modules (DIMM) v 512 KB flash memory for system programs Internal drives v 3.5-inch, slim, 1.44 MB diskette drive v Serial Advanced Technology Attachment (SATA) internal hard disk drive v Optical drive (some models) Video subsystem v An integrated graphics controller for a Video Graphics Array (VGA) monitor...
- Page 19 1. The operating systems listed here are being certified or tested for compatibility at the time this publication goes to press. Additional operating systems might be identified by IBM as compatible with your computer following the publication of this booklet. Corrections and additions to this list are subject to change. To determine if an operating system has been certified or tested for compatibility, check the Web site of the operating system vendor.
-
Page 20: Specifications
Specifications This section lists the physical specifications for your computer. Dimensions Heat output (approximate) in British thermal units (Btu) per hour: Height: 432 mm (17.0 in.) Minimum configuration: 256 Btu/hr (75 watts) Width: 178 mm (7.0 in.) Maximum configuration: 1058 Btu/hr (310 watts) Depth: 450 mm (17.7 in.) Airflow Weight... -
Page 21: Available Options
Within the United States, call 1-800-IBM-2YOU (1-800-426-2968), your IBM reseller, or IBM marketing representative. v Within Canada, call 1-800-565-3344 or 1-800-IBM-4YOU. v Outside the United States and Canada, contact your IBM reseller or IBM marketing representative. Tools required To install some options in your computer, you might need a flat-blade or Phillips screwdriver. -
Page 22: Handling Static-Sensitive Devices
Handling static-sensitive devices Static electricity, although harmless to you, can seriously damage computer components and options. When you add an option, do not open the static-protective package containing the option until you are instructed to do so. When you handle options and other computer components, take these precautions to avoid static electricity damage: v Limit your movement. -
Page 23: Locating The Connectors On The Front Of Your Computer
Locating the connectors on the front of your computer The following illustration shows the locations of the connectors on the front of the computer. Note: Not all computer models will have the following connectors. IEEE 1394 connector (some models) Microphone connector USB connector Headphone connector USB connector... -
Page 24: Locating The Connectors On The Rear Of Your Computer
Locating the connectors on the rear of your computer The following illustration shows the locations of the connectors on the rear of the computer. Diagnostic LEDs Ethernet connector Voltage selection switch USB connectors (2) Power connector Keyboard connector Audio line in connector Mouse connector Audio line out connector PCI Express (x16) graphics adapter... -
Page 25: Obtaining Device Drivers
USB devices. Obtaining device drivers You can obtain device drivers for operating systems that are not preinstalled at http://www.ibm.com/pc/support/ on the World Wide Web. Installation instructions are provided in README files with the device-driver files. Chapter 1. Installing options... -
Page 26: Removing The Cover
Removing the cover Important Read “Important safety information” on page v and “Handling static-sensitive devices” on page 6 before removing the cover. To remove the cover: 1. Shut down your operating system, remove any media (diskettes, CDs, or tapes) from the drives, and turn off all attached devices and the computer. 2. -
Page 27: Locating Components
Locating components The following illustration will help you locate the various components in your computer. Optical drive Memory modules Power supply PCI adapter connector PCI adapter card System board Hard disk drive Internal speaker Diskette drive Chapter 1. Installing options... -
Page 28: Identifying Parts On The System Board
The system board (sometimes called the planar or motherboard) is the main circuit board in your computer. It provides basic computer functions and supports a variety of devices that are IBM-installed or that you can install later. The following illustration shows the locations of parts on the system board. -
Page 29: Installing Memory
Installing memory Your computer has four connectors for installing dual inline memory modules (DIMMs) that provide up to a maximum of 4.0 GB of system memory. When installing DDR2 type memory modules, the following rules apply: v Use 1.8 V, 240-pin DDR2 synchronous dynamic random access memory (SDRAM). -
Page 30: Installing Adapters
Installing adapters This section provides information and instructions for installing and removing adapters. Your computer has two expansion slots for PCI adapters, one for a PCI Express (x1) adapter, and one for a PCI Express (x16) adapter. To install an adapter: 1. -
Page 31: Installing Internal Drives
What to do next v To work with another option, go to the appropriate section. v To complete the installation, go to “Replacing the cover and connecting the cables” on page 25. Installing internal drives This section provides information and instructions for installing and removing internal drives. - Page 32 4 Bay 4 - Maximum height: 25.8 mm (1.0 in.) 3.5-inch SATA hard disk drive (preinstalled) * You can obtain a Universal Adapter Bracket, 5.25 to 3.5-inch from a local computer retailer or by contacting the IBM Support Center. User Guide...
-
Page 33: Installing A Drive In Bay 1 Or Bay 2
Installing a drive in bay 1 or bay 2 To install a drive in bay 1 or bay 2, follow these steps: 1. Remove the cover. See “Removing the cover” on page 10. 2. Remove the front bezel by pressing downward on the plastic tabs 1 and pulling the bezel as shown. - Page 34 Refer to the documentation that comes with your drive for master/slave jumper information. 6. For the 5.25-inch drive, install a retainer bracket on the side of the drive. 7. For the 3.5-inch drive, install the drive into the Universal Adapter Bracket, 5.25 to 3.5-inch.
-
Page 35: Connecting Drives
Connecting drives The steps to connect a drive are different depending on the type of drive. Use one of the following procedures for your drive connection. Connecting the first optical drive 1. The drive requires two cables; a power cable that connects to the power supply and a signal cable that connects to the system board. -
Page 36: Connecting An Additional Optical Drive, Or Parallel Ata Hard Disk Drive
5. Locate the extra four-wire power connector labelled P4 and connect it to the drive. Connecting an additional optical drive, or parallel ATA hard disk drive 1. Locate the extra connector on the three-connector signal cable that is attached to the PATA IDE connector on the system board. See “Identifying parts on the system board”... -
Page 37: Installing Security Features
4. Locate one of the extra five-wire power connectors and connect it to the drive. What to do next v To work with another option, go to the appropriate section. v To complete the installation, go to “Replacing the cover and connecting the cables”... -
Page 38: Identifying Security Locks
Identifying security locks The following illustration shows the locations of the security locks on the rear of the computer. Padlock Your computer is equipped with a padlock loop such that the cover cannot be removed when a padlock is installed. User Guide... -
Page 39: Integrated Cable Lock
The cable lock attaches to a security slot at the rear of your computer and is operated with a key. This is the same type of lock used with many laptop computers. You can order a cable lock directly from IBM. Go to http://www.ibm.com.pc/support and search on Kensington. -
Page 40: Erasing A Lost Or Forgotten Password (Clearing Cmos)
Erasing a lost or forgotten password (clearing CMOS) This section applies to lost or forgotten passwords. For more information about lost or forgotten passwords, see Access IBM on your desktop. To erase a forgotten password: 1. Turn off the computer and all attached devices. -
Page 41: Replacing The Cover And Connecting The Cables
5. Move the jumper from the standard position (pins 1 and 2) to the maintenance or configure position (pins 2 and 3). 6. Replace the cover and connect the power cord. See “Replacing the cover and connecting the cables.” 7. Restart the computer, leave it on for approximately ten seconds. Turn off the computer by holding the power switch for approximately five seconds. - Page 42 User Guide...
-
Page 43: Chapter 2. Using The Setup Utility Program
User Password v Administrator Password You do not have to set any passwords to use your computer. However, if you decide to set any passwords, read the following sections. © Copyright IBM Corp. 2005... -
Page 44: User Password
User Password When a User Password is set, the user is prompted to type a valid password each time the computer is turned on. The computer cannot be used until a valid password is typed from the keyboard. Administrator Password Setting an Administrator Password deters unauthorized persons from changing configuration settings. -
Page 45: Selecting A Startup Device
Selecting a startup device If your computer does not start up (boot) from a device such as the CD-ROM, diskette, or hard disk as expected, use one of the following procedures to select a startup device. Selecting a temporary startup device Use this procedure to startup from any boot device. - Page 46 User Guide...
-
Page 47: Appendix A. Updating System Programs
IBM might make changes and enhancements to the system programs. When updates are released, they are available as downloadable files on the World Wide Web (see the Quick Reference). Instructions for using the system program updates are available in a .txt file that is included with the update files. -
Page 48: Updating (Flashing) Bios From Your Operating System
8. Follow the instructions on the screen to complete the update. Updating (flashing) BIOS from your operating system Note: Due to constant improvements being made to the IBM Web site, Web page content (including the links referenced in the following procedure) is subject to change. -
Page 49: Appendix B. Cleaning The Mouse
To clean a mouse with a ball: 1. Turn off your computer. 2. Turn the mouse over, with the top side down, and look carefully at the bottom. Twist the retainer ring 1 to the unlocked position to remove the ball. © Copyright IBM Corp. 2005... - Page 50 3. Place your hand over the retainer ring and ball 2 , and then turn the mouse over, top side up, so that the retainer ring and ball fall out into your hand. 4. Wash the ball in warm, soapy water then dry it with a clean cloth. Blow air carefully into the ball cage 4 to dislodge dust and lint.
-
Page 51: Appendix C. Manual Modem Commands
Dial one of the four telephone numbers (n=0-3) stored in the modem non-volatile memory. Commands are not echoed Commands are echoed Escape Characters - Switch from Data Mode to Command Mode (T.I.E.S. Command) Force modem on-hook (hang up) © Copyright IBM Corp. 2005... - Page 52 Command Function Force modem off-hook (make busy) Note: H1 command is not supported for Italy Display product-identification code Factory ROM checksum test Internal memory test Firmware ID Reserved ID Low speaker volume Low speaker volume Medium speaker volume High speaker volume Internal speaker off Internal speaker on until carrier detected Internal speaker always on...
-
Page 53: Extended At Commands
Extended AT commands Command Function &C_ &C0 Force Carrier Detect Signal High (ON) &C1 Turn on CD when remote carrier is present &D0 &D_ Modem ignores the DTR signal &D1 Modem returns to Command Mode after DTR toggle &D2 Modem hangs up, returns to the Command Mode after DTR toggle &D3 Resets modem after DTR toggle... -
Page 54: Mnp/V.42/V.42Bis/V.44 Commands
Command Function &V1 Display Last Connection Statistics &W_ &W0 Stores the active profile as Profile 0 &W1 Stores the active profile as Profile 1 Disable auto-retrain Enable auto-retrain +MS? Displays the current Select Modulation settings +MS=? Displays a list of supported Select Modulation options +MS=a,b,c,e,f Select modulation where: a=0, 1, 2, 3, 9, 10, 11,... -
Page 55: Fax Class 1 Commands
Fax Class 1 commands +FAE=n Data/Fax Auto Answer +FCLASS=n Service Class +FRH=n Receive data with HDLC framing Receive data +FRM=n +FRS=n Receive silence +FTH=n Transmit data with HDLC framing +FTM=n Transmit data +FTS=n Stop transmission and wait Fax Class 2 commands +FCLASS=n Services class. -
Page 56: Voice Commands
+FPHCTO Phase C time out. +FPOLL Indicates polling request. +FPTS: Page transfer status. +FPTS= Page transfer status. +FREV? Identify revision. +FSPT Enable polling. +FTSI: Report the transmit station ID. Voice commands Select Baud Rate #BDR #CID Enable Caller ID detection and reporting format Select Data, Fax or Voice/Audio #CLS #MDL? - Page 57 Attention Switzerland User: If your Swisscom phone line does not have Taxsignal switched OFF, modem function may be impaired. The impairment may be resolved by a filter with the following specifications: Telekom PTT SCR-BE Taximpulssperrfilter-12kHz PTT Art. 444.112.7 Bakom 93.0291.Z.N Appendix C.
- Page 58 User Guide...
-
Page 59: Appendix D. Notices
Web sites. The materials at those Web sites are not part of the materials for this IBM product, and use of those Web sites is at your own risk. -
Page 60: Television Output Notice
vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment. -
