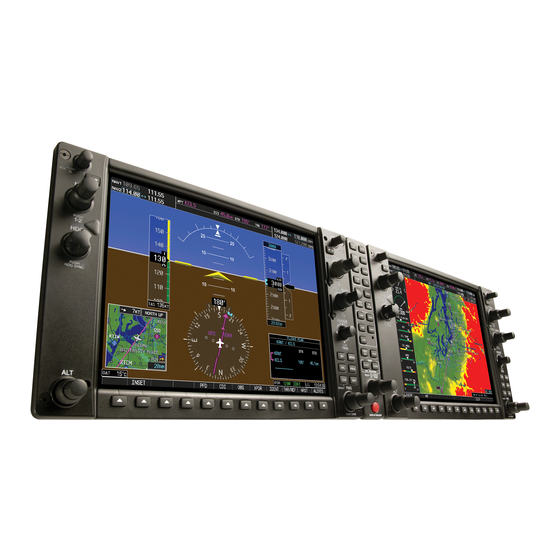

Page 1 ® G1000 Integrated Flight Deck ® Pilot’s Guide Diamond DA42NG...
Page 3 SYSTEM OVERVIEW FLIGHT INSTRUMENTS AUDIO PANEL & CNS FLIGHT MANAGEMENT HAZARD AVOIDANCE AFCS ADDITIONAL FEATURES APPENDICES INDEX...
Page 4 AC-U-KWIK Organizations from any cause of action, claims or losses related to any actual or alleged inaccuracies in the information arising out of Garmin’s use of the information in the datasets. Some jurisdictions do not allow the limitation or exclusion of implied warranties or liability for incidental or consequential damages so the above limitations or exclusions may not apply to licensee.
Page 5 Do not use terrain avoidance displays as the sole source of information for maintaining separation WARNING: from terrain and obstacles. Garmin obtains terrain and obstacle data from third party sources and cannot independently verify the accuracy of the information. Always refer to current aeronautical charts and NOTAMs for verification of displayed aeronautical WARNING: information.
Page 6 Use appropriate primary systems for navigation, and for terrain, obstacle, and traffic avoidance. WARNING: Garmin SVT is intended as an aid to situational awareness only and may not provide either the accuracy or reliability upon which to solely base decisions and/or plan maneuvers to avoid terrain, obstacles, or traffic.
Page 7 Do not clean display surfaces with abrasive cloths or cleaners containing ammonia. They will CAUTION: harm the anti-reflective coating. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or CAUTION: modifications could void both the warranty and affect the airworthiness of the aircraft.
Page 8 ‘Type 2 LOA Status.’ • Use of a current Garmin or Jeppesen database in your Garmin equipment is required for compliance with established FAA regulatory guidance, but does not constitute authorization to fly any and all terminal procedures that may be presented by the system.
Page 9 Lamp(s) inside this product contain mercury (HG) and must be recycled or disposed of according to NOTE: local, state, or federal laws. For more information, refer to our website at www.garmin.com/aboutGarmin/ environment/disposal.jsp When using Stormscope, there are several atmospheric phenomena in addition to nearby thunderstorms NOTE: that can cause isolated discharge points in the strike display mode.
Page 10 WARNINGS, CAUTIONS, AND NOTES lank Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 11 Added Support for FIS-B Weather Added Bluetooth connectivity ® Updated Warnings, Cautions, and Notes Added other GDU 15.11 parameters Added Support for GSR 56 Iridium Transceiver Added Wi-Fi connectivity 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 12: Table Of Contents
Split COM .......... 75 Low Altitude Annunciation ..........129 Entertainment Inputs ..76 Minimum Descent Altitude/Decision Height Alerting 4.6 Audio Panel Preflight Procedure ....... 130 ............77 Radar Altimeter viii Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 13 6.5 WX-500 Stormscope ........... 401 ............221 Parallel Track ... 401 Setting Up Stormscope on the Navigation Map ........224 Activating a Flight Plan Leg ........405 Selecting the Stormscope Page 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 14 Pitch Hold Mode (PIT) ..... 546 ChartView Cycle Number and Expiration Date ....... 465 Selected Altitude Capture Mode (ALTS) 8.4 FliteCharts ............549 .......... 466 Altitude Hold Mode (ALT) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 15 ....... 649 SVS Terrain Status Annunciations ......... 650 ADS-B Alerts and Annunciations ....651 Weather Radar Alerts and Annunciations .. 652 GDL 69A/GDL 69A SXM Data Link Receiver Messages 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 16 TABLE OF CONTENTS lank Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 17: Section 1 System Overview
Figure 1-1 shows interactions between the LRUs. Additional/optional equipment are shown in Figure 1-2. The Diamond DA42NG may be optionally equipped with a Garmin AFCS Automated Flight Control System, providing flight director (FD), autopilot (AP), and manual electric trim (MET) functions of the G1000 System. 190-00962-04 Rev. A...
Page 18: Line Replaceable Units
PFD. Each GIA 63W contains a GPS SBAS receiver, VHF COM/NAV/GS receivers, a flight director (FD; if Garmin AFCS is installed), and system integration microprocessors. Each GIA 63W is paired with the on-side display via an HSDB connection. The IAUs are not paired together and do not communicate with each other directly.
Page 19 • GSR 56 (optional) – The Iridium Transceiver provides voice communication by means of pilot and copilot headsets. The unit can also send and receive data over the Iridium satellite network. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 20 Pitch Servo Pitch Trim Servo Roll Servo Yaw Damper Servo Autopilot Calculations Autopilot Calculations Autopilot Calculations Yaw Damper Calculations (optional) (optional) (optional) (optional) Figure 1-1 G1000 System Block Diagram Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 21 For information on additional equipment shown in Figure 1-2, consult the applicable optional interface NOTE: user’s guide. This document assumes that the reader is already familiar with the operation of this additional equipment. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 22: Secure Digital (Sd) Cards
SYSTEM OVERVIEW 1.2 SECURE DIGITAL (SD) CARDS Ensure the G1000 System is powered off before inserting an SD card. NOTE: Refer to the Appendix for instructions on updating databases. NOTE: The PFD and MFD data card slots use Secure Digital (SD) cards and are located on the upper right side of the display bezels.
Page 23: System Power-Up
Refer to the Appendix for system-specific annunciations and alerts. NOTE: The G1000 System is integrated with the aircraft electrical system and receives power directly from electrical busses. The PFD, MFD, and supporting sub-systems include both power-on and continuous built-in test features that exercise the processor, RAM, ROM, external inputs, and outputs to provide safe operation.
Page 24: System Operation
(EIS; see the EIS Section). Both displays offer control for COM and NAV frequency selection. Figure 1-6 G1000 Normal Operation In the event of a display failure, the G1000 System automatically switches to reversionary (backup) mode. In Reversionary Mode, all important flight information from the PFD is presented on the remaining display in the same format as in normal operating mode, with the addition of the EIS.
Page 25: G1000 System Annunciations
When an LRU or an LRU function fails, a large red ‘X’ is typically displayed over the instrument experiencing failed data (Figure 1-8 displays all possible flags and responsible LRUs). The G1000 System alerts the pilot when backup paths are utilized by the LRUs. Upon G1000 power-up, certain instruments remain invalid as equipment begins to initialize.
Page 26 GIA 63W, PFD and MFD or ECU GIA 63W or DME/ADF Source GIA 63W GDC 74A GIA 63W GTX 33 or GIA 63W Figure 1-8 G1000 System Failure Annunciations Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 27: System Status
With ‘Select LRU Window’ highlighted, press the ENT Key. 3) Use the FMS Knob to scroll through the box to view LRU status information. Figure 1-9 Example System Status Page 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 28 3) Use the FMS Knob to scroll through the box to view database status information. The G1000 uses aural tones to convey the priority of airframe-specific alerts. The alerting system’ s annunciation tone may be tested from the System Status Page. Refer to the Appendices for airframe-specific alerts.
Page 29: Ahrs Operation
The Attitude and Heading Reference System (AHRS) performs attitude, heading, and vertical acceleration calculations for the G1000 System, utilizing GPS, magnetometer, and air data in addition to information from its internal sensors. Attitude and heading information are updated on the PFD while the AHRS receives appropriate combinations of information from the external sensor inputs.
Page 30: Gps Receiver Operation
Use the FMS Knob to highlight the receiver which is not selected and press the ENT Key. Satellite Constellation Satellite Signal GPS Receiver Status Diagram Information RAIM Availability Prediction Satellite Signal Strength Bars Figure 1-11 GPS Status Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 31 3) Press the FMS Knob, and turn the large FMS Knob to hightlight ‘EGNOS’, ‘MSAS’, or ‘WAAS’. 4) Press the ENT Key to uncheck the box. 5) Press the FMS Knob to remove the cursor. Figure 1-12 Enable/Disable SBAS 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 32 Because of the tighter protection limit on approaches, there may be times when RAIM is not available. The G1000 automatically monitors RAIM and warns with an alert message when it is not available. If RAIM is not predicted to be available for the final approach course, the approach does not become active, as indicated by the message “Approach is not active”.
Page 33 95% confidence horizontal and vertical accuracy values reported by the GPS receiver Refer to the Airplane Flight Manual (AFM) to determine whether SBAS functionality is approved. NOTE: 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 34: G1000 Controls
SYSTEM OVERVIEW 1.5 G1000 CONTROLS The G1000 controls have been designed to simplify operation of the system and minimize workload and the time required to access sophisticated functionality. Controls are located on the PFD and MFD bezels and Audio Panel. PFD and MFD controls and softkeys are discussed in this section. See the Audio Panel and CNS Section for more information about Audio Panel and NAV/COM controls.
Page 35 PROC Key Gives access to IFR departure procedures (DPs), arrival procedures (STARs), and approach procedures (IAPs) for a flight plan or selected airport ENT Key Validates/confirms selection or data entry 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 36: Softkey Function
(optional). Each softkey sublevel has a BACK Softkey which can be selected to return to the previous level. The ALERTS Softkey is visible at all softkey levels (label changes if messages are issued). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 37 TERRAIN STRMSCP NEXRAD XM LTNG METAR BACK ALERTS Press the OFF or BACK Softkey DCLTR-1 TRFC-1 to return to the top-level softkeys. DCLTR-2 TRFC-2 DCLTR-3 Figure 1-17 INSET Softkeys 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 38 Cycles CDI through GPS, NAV1 (VOR/LOC), and NAV2 (VOR/LOC) navigation sources • ADF/DME Displays/removes ADF/DME Radio Tuning Window (optional; may appear as ADF, DME, or ADF/DME depending on installation) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 39 - ADF OPTN1 OPTN2 OPTN3 BACK ALERTS 360 HSI ARC HSI BACK ALERTS METERS BACK ALERTS PATHWAY SYN TERR HRZN HDG APTSIGNS BACK ALERTS Figure 1-18 PFD Configuration Softkeys 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 40 Press the BACK Softkey to return to the top-level softkeys. IDENT BKSP BACK ALERTS Press the IDENT or BACK Softkey to return to the top- level softkeys. Figure 1-19 XPDR Softkeys Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 41 Decreases displayed fuel remaining in 1-gal increments INC FUEL Increases displayed fuel remaining in 1-gal increments RST FUEL Resets displayed fuel remaining to maximum fuel capacity for aircraft and fuel used to zero 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 42 • SHW CHRT Displays optional Flite Charts or Chart View charts (optional) • CHKLIST Displays the Checklist Page DONE Selects the highlighted checklist item EXIT Returns to the top-level softkeys EMERGCY Immediately accesses the emergency procedures Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 43: Accessing G1000 Functionality
G1000 In some instances, such as when entering an identifier, the G1000 tries to predict the desired identifier based on the characters being entered. In this case, if the desired identifier appears, use the ENT Key to confirm the entry without entering the rest of the identifier manually.
Page 44 Press the ENT Key to confirm entry. 4) Press the FMS Knob or CLR Key to cancel data entry (the field reverts back to its previous information). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 45: Page Groups
(or from the page menu). In this case, the page remains set to the selected page until a different page softkey is selected, even if a different page group is selected. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 46 (APR Softkey) - Weather Information (optional) (WX Softkey) Intersection Information NDB Information Airport, VOR Information Procedures and Weather VRP Information Information Pages User Waypoint Information Figure 1-24 Waypoint Pages Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 47 - XM Information (INFO Softkey) Satellite Phone - Telephone Pages (TEL Softkey) - SMS (SMS Softkey) Wi-Fi Setup System Status Video (optional) ADS-B Status Bluetooth Management Figure 1-25 Auxiliary Pages 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 48 FMS Knob. • Flight Plan Page Group (FPL) Active Flight Plan Flight Plan Catalog - Stored Flight Plan (NEW Softkey) Figure 1-27 Flight Plan Pages Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 49 Figure 1-28 Procedure Loading Pages Information on optional electronic checklist pages is offered later in this section. Checklist pages may be accessed from any page on the MFD using the CHKLIST Softkey. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 50: System Settings
SYSTEM OVERVIEW SYSTEM SETTINGS G1000 system settings are managed from the System Setup Page. The following settings can be changed: • Date/time • MFD Data Bar Fields (see Flight Management Section) • Display Units (see Flight Instruments Section) • CDI scaling for GPS navigation source (see Flight Instruments Section) •...
Page 51 SYSTEM OVERVIEW DATE/TIME The G1000 obtains the current Universal Coordinated Time (UTC) date and time directly from the GPS satellite signals (shown on the AUX - GPS Status Page, Figure 1-11). System time (displayed in the lower right corner of the PFD) can be displayed in three formats: local 12-hr, local 24-hr, or UTC. Local time is set by adding/subtracting an offset (hours:minutes) to/from UTC.
Page 52 SYSTEM OVERVIEW DISPLAY UNITS Units in which various quantities are displayed on the G1000 screens are listed on the System Setup Page. The Navigation Angle reference can be set from here (refer to the Flight Instruments Section). Figure 1-32 Display Unit Settings...
Page 53 Engine Indication System (EIS) Fuel Flow Imp Gallons Kilograms Liters Pounds Weight Pounds Kilograms Position HDDD°MM.MM’ All positions HDDD°MM’SS.S” MGRS UTM/UPS Table 1-1 Display Units Settings (AUX - System Setup Page) 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 54 System settings may be saved under a pilot profile. When the system is powered on, the last selected pilot profile is shown on the MFD Power-up Screen (Figure 1-5). The G1000 can store up to 25 profiles; the currently active profile, the amount of memory used, and the amount of memory available are shown at the top of the System Setup Page in the box labeled ‘Pilot Profile’.
Page 55 3) Turn the large FMS Knob to highlight the active profile field in the Pilot Profile Box. 4) Turn the small FMS Knob to display the pilot profile list and highlight the desired profile. 5) Press the ENT Key. The G1000 loads and displays the system settings for the selected profile. Renaming a profile: 1) Use the FMS Knob to select the AUX - System Setup Page.
Page 56: Timers
8) To reset the timer, press the ENT Key with ‘RESET?’ highlighted. The field changes back to ‘START?’ and the digits are reset. 9) To remove the window, press the CLR Key or the TMR/REF Softkey. Figure 1-34 Generic Timer (Timer/References Window) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 57 Resetting the flight timer: 1) Use the FMS Knob to select the AUX - Utility Page. 2) Press the MENU Key. 3) With ‘Reset Flight Timer’ highlighted, press the ENT Key. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 58: Electronic Checklists
The MFD is able to display optional electronic checklists which allow a pilot to quickly find the proper procedure on the ground and during each phase of flight. The G1000 accesses the checklists from an SD card inserted into the bezel slot (see Figure 1-3). If the SD card contains an invalid checklist file or no checklist, the Power-up Screen displays ‘Invalid Checklist File’...
Page 59 The next item is automatically highlighted for selection. Press the CLR Key to remove a check mark from an item. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 60 9) Press the EXIT Softkey or hold down the CLR Key momentarily to exit the Checklist Page and return to the page last viewed. Immediately accessing emergency procedures: 1) From any page, press the CHKLIST Softkey. 2) Press the EMERGCY Softkey. Figure 1-37 Sample Checklist Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 61: Display Backlighting
9) Turn the small FMS Knob in the direction of the green arrowhead to display ‘MFD KEY’ and repeat steps 4-7. 10) To remove the menu, press the CLR or MENU Key. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 62 SYSTEM OVERVIEW Figure 1-38 PFD Setup Menu Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 63: Section 2 Flight Instruments
FLIGHT INSTRUMENTS SECTION 2 FLIGHT INSTRUMENTS The Garmin G1000 includes an easy-to-scan Primary Flight Display (PFD) that features a large horizon, airspeed, attitude, altitude, vertical speed, and course deviation information. In addition to the flight instruments, navigation, communication, terrain, traffic, and weather information are also presented on the PFD and explained in other sections of this Pilot’...
Page 64 Selected Altitude Outside Air Temperature (OAT) COM Frequency Box Softkeys Navigation Status Box System Time Slip/Skid Indicator Transponder Data Box Attitude Indicator Heading Bug Figure 2-1 Primary Flight Display (Default) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 65 DME Information Window (optional) Vertical Deviation Indicator Bearing Information Windows VNV Target Altitude Barometric Minimum Descent Radar Altimeter (optional) Altitude / Decision Height AFCS Status Annunciation Figure 2-2 Additional PFD Information 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 66: Flight Instruments
The trend vector is absent if the speed remains constant or if any data needed to calculate airspeed is not available. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 67 4) To remove all Vspeed bugs, turn the FMS Knob to highlight All References Off and press the ENT Key. Restoring all Vspeed defaults: 1) Press the TMR/REF Softkey. 2) Press the MENU Key. 3) Turn the FMS Knob to highlight Restore Defaults and press the ENT Key. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 68: Attitude Indicator
When the optional Garmin Electronic Stability and Protection (Garmin ESP) system is available, additional indications may appear on the pitch and roll scales; refer to the Additional Features and AFCS Sections for more information about Garmin ESP.
Page 69: Altimeter
Indicated Altitude (Meters) Indicated Altitude Altitude Trend Vector Selected Minimum Descent Altitude Bug Altitude/Decision Height Bug Barometric Setting Barometric (Hectopascals) Setting Figure 2-7 Altimeter Figure 2-8 Altimeter (Metric Units) 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 70 3) Press the IN Softkey to display the barometric pressure setting in inches of mercury (in Hg). Or , press the HPA Softkey to display the barometric pressure setting in hectopascals (hPa). 4) Press the BACK Softkey to return to the top-level softkeys. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 71: Vertical Speed Indicator (Vsi)
100 fpm. If the rate of ascent/descent exceeds 4000 fpm, the pointer appears at the edge of the tape and the rate appears inside the pointer. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 72: Vertical Deviation
Indicator Glideslope GIidepath Vertical Indicator Indicator Speed Pointer Required Vertical Speed Figure 2-11 Vertical Speed and Figure 2-12 Glideslope Figure 2-13 Glidepath Deviation Indicator (VSI and VDI) Indicator Indicator Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 73: Horizontal Situation Indicator (Hsi)
Aircraft Symbol Turn Rate and Heading Trend Vector Course Deviation Indicator Current Heading (CDI) Rotating Compass Card Lubber Line OBS Mode Active Figure 2-14 Horizontal Situation Indicator (360˚ HSI) 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 74 Press the CRS Knob to re-center the CDI and return the course pointer to the bearing of the active waypoint or navigation station. Current Heading Heading Bug Selected Selected Heading Course Figure 2-16 Heading and Course Indications (Magnetic) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 75 • TRUE - References angles to true north (T) • MAGNETIC - Angles corrected to the computed magnetic variation (Mag Var) Figure 2-18 Navigation Angle Settings (AUX - System Setup Page) 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 76 Station Bearing Source Identifier Frequency Bearing Source Pointer 1 Pointer 2 Bearing Source Bearing 1 Information Window Bearing 2 Information Window Figure 2-20 HSI with Bearing and Distance Information Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 77 Displaying the DME Information Window: 1) Press the PFD Softkey. 2) Press the DME Softkey to display the DME Information Window. 3) To remove the DME Information Window, press the DME Softkey again. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 78: Course Deviation Indicator (Cdi)
CDI. If the CDI exceeds the maximum deviation on the scale (two dots) while navigating with GPS, the crosstrack error (XTK) is displayed below the white aircraft symbol. Figure 2-22 Navigation Sources Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 79 Final Approach Fix (FAF) for an ILS approach, or until GPS information becomes invalid. Activating a Vector-to-Final (VTF) also causes the CDI to switch to LOC navigation source. GPS steering guidance is not provided after this switch. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 80 4) Turn the small FMS Knob to highlight the desired setting and press the ENT Key. 5) To cancel the selection, press the FMS Knob or the CLR Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 81 • At 30 nm from the departure airport, the enroute phase of flight is automatically entered and CDI scaling changes to 2.0 nm over a distance of 1.0 nm, except under the following conditions: 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 82 - The next leg in the missed approach procedure is not a CA, CD, CF, CI, CR, DF, FA, FC, FD, FM, IF, or TF - After any leg in the missed approach procedure that is not a CA or FA Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 83 OBS Mode. The flight plan on the moving map retains the modified course line. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 84 Figure 2-30. Pressing the SUSP Softkey deactivates the suspension and resumes automatic sequencing of approach waypoints. SUSP SUSP Softkey Annunciation Figure 2-30 Suspending Automatic Waypoint Sequencing Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 85: Supplemental Flight Data
PFD under normal display conditions. Temperature is displayed below the true airspeed in reversionary mode. Normal Display Reversionary Mode Figure 2-31 Outside Air Temperature 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 86 4) Turn the small FMS Knob to highlight either CELSIUS or FAHRENHEIT and press the ENT Key to confirm the selection. 5) To cancel the selection, press the FMS Knob or the CLR Key. Figure 2-32 Temperature Selection (AUX-System Setup Page) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 87: Wind Data
• OPTN 2: Wind direction arrow and numeric speed • OPTN 3: Total wind direction arrow with numeric headwind or tailwind and crosswind speed components 4) To remove the window, press the OFF Softkey. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 88: Vertical Navigation (Vnv) Indications
Current crosstrack or track angle error has exceeded limit Active altitude-constrained waypoint can not be reached within maximum allowed flight path angle and vertical speed Table 2-2 VNV Indication Removal Criteria Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 89: Pfd Annunciations And Alerting Functions
Messages appear in the Alerts Window in the lower right corner of the PFD when a warning, caution, advisory alert, or G1000 message advisory occurs. System alert messages are provided for awareness of G1000 system problems or status and may or may not require pilot action. The Alerts Window allows system alerts to be displayed simultaneously.
Page 90: Marker Beacon Annunciations
TAS documentation for alerts generated by TAS equipment. If additional TAs appear, new aural and visual alerts are generated. Traffic Symbols Figure 2-37 Traffic Annunciation and Inset Map with TAS Traffic Displayed Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 91: Altitude Alerting
Altitude Alerting provides the pilot with a visual alert when approaching the Selected Altitude. Whenever the Selected Altitude is changed, the Altitude Alerter is reset. The Altitude Alerter is independent of the Garmin AFCS, but alerting tones and visual indications are only provided when the Garmin AFCS is installed. The following occur when approaching the Selected Altitude: •...
Page 92: Minimum Descent Altitude/Decision Height Alerting
5) If using temperature compensated (TEMP COMP). use the small FMS Knob to enter destination air temperature. 5) To remove the window, press the CLR Key or the TMR/REF Softkey. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 93: Radar Altimeter
Radar Height Range Shown to Nearest 0 to 200 feet 5 feet 200 to 1500 feet 10 feet 1500 to 2500 feet 50 feet Table 2-3 Radar Altimeter Sensitivity 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 94 FAIL” is displayed in amber in the RA box (Figure 2-46). Radar Ground Altimeter Line Radar Altimeter Minimums Box Figure 2-45 Altimeter Displaying the Ground Line (RAD ALT) Figure 2-46 Radar Altimeter with Invalid Data Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 95: Abnormal Operations
It is important to note that estimated navigation data supplied by the system in DR Mode may become increasingly unreliable and must not be used as a sole means of navigation. Refer to the Flight Management Section for more information on DR Mode 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 96: Unusual Attitudes
• Selected Heading Readout – Procedures • Marker Beacon Indicator • Selected Course Readout • Minimum Descent Altitude/ • Metric Altitude Display • Transponder Status Box Decision Height Readout • System Time Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 97: Section 3 Engine Indication System (Eis)
Refer to the Airplane Flight Manual (AFM) for limitations. NOTE: The G1000 Engine Indication System (EIS) for the Diamond DA42NG displays critical engine, electrical, fuel, and other system parameters on the left side of the Multi Function Display (MFD) during normal operations (Figure 3-1).
Page 98 In Reversionary Display mode, the operating display is configured to present PFD symbology with the EIS Display (Figure 3-2). When a G1000 display enters Reversionary Mode, each EIS Display (Engine, System, Fuel) and the softkey functionality remains the same (refer to the System Overview for information about display Reversionary Mode).
Page 99 Decreases displayed fuel remaining in 1-gal increments INC FUEL Increases displayed fuel remaining in 1-gal increments RST FUEL Resets displayed fuel remaining to maximum fuel capacity for aircraft and fuel used to zero 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 100: Engine Display
L and R indicate the fuel quantity in each tank Indicator ranges from 0 to 25 gal per side with tick marks every 5 gal; the red range indicates 1 gal of unusable fuel Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 101 ENGINE INDICATION SYSTEM Figure 3-4 Engine Display 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 102: System Display
Oil Pressure Indicator Displays oil pressure in bars (OIL BAR) Deice Fluid Indicator Displays the quantity of deice fluid; tick marks are located at quarter (DEICE FLUID) intervals (Optional) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 103 ENGINE INDICATION SYSTEM Figure 3-5 System Display 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 104: Fuel Display
Displays aircraft range in nautical miles (nm) based on the calculated fuel (RANGE NM) remaining Total Time in Service Displays the aircraft’ s total flight hours (hrs); activated when the aircraft (TTL TIME IN SVC) becomes airborne Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 105 From the Fuel Display, press the RST FUEL Softkey. This resets the displayed fuel remaining (GAL REM) to 50 gallons (or 76.4 gallons if optional aux fuel tanks are installed). The fuel used (GAL USED) is reset to zero. Figure 3-6 Fuel Display 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 106 ENGINE INDICATION SYSTEM lank Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 107: Section 4 Audio Panel And Cns
(PFD). The Transponder Data Box is located to the left of the System Time Box. The data box displays the active four-digit code, mode, and reply status (Figure 4-1). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 108: Mfd/Pfd Controls And Frequency Display
AUDIO PANEL AND CNS MFD/PFD CONTROLS AND FREQUENCY DISPLAY Figure 4-1 MFD/PFD Controls, NAV/COM Frequency Tuning Boxes, and ADF/DME Tuning Window (PFD Shown) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 109 The small knob selects individual characters for the highlighted cursor location. Transponder Data Box – Indicates the selected transponder code, operating mode, reply, and ident status for the transponder. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 110: Audio Panel Controls
#2 COM receiver to be heard. COM1 receive can be added by pressing the COM1 Key. COM2 – When selected, audio from the #2 COM receiver can be heard. COM3 MIC – Not used in DA42NG aircraft. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 111 PASS Knob – Turn to adjust Copilot/Passenger intercom volume or squelch. The MAN SQ Key must be selected to allow squelch adjustment. DISPLAY BACKUP Button – Manually selects Reversionary Mode. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 112: Com Operation
AUDIO PANEL AND CNS 4.2 COM OPERATION COM TRANSCEIVER SELECTION AND ACTIVATION When turning on the G1000 for use, the system remembers the last frequencies used and the active NOTE: COM transceiver state prior to shutdown. The COM Frequency Box is composed of four fields; the two active frequencies are on the left side and the two standby frequencies are on the right.
Page 113: Com Transceiver Manual Tuning
Automatic Squelch On or Off Key to Transfer COM Frequencies Between Active and Standby Frequency Boxes Turn the COM Knob to Tune the Frequency in the Tuning Box Figure 4-5 COM Frequency Tuning Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 114: Quick-Tuning And Activating 121.500 Mhz
In the example shown, pressing the Audio Panel COM2 MIC Key activates the transceiver. Press for Two Seconds to Load 121.500 MHz Figure 4-7 Quickly Tuning 121.500 MHz Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 115: Auto-Tuning The Com Frequency
4) Press the Frequency Transfer Key to transfer the frequency to the COM Active Frequency Field. Press the NRST Softkey to Open the Nearest Airports Window Figure 4-8 Nearest Airports Window (PFD) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 116 6) Press the Frequency Transfer Key to transfer the frequency to the COM Active Frequency Field. Nearest Airports Menu Nearest Frequencies Menu Nearest Airspaces Menu Figure 4-10 Nearest Pages Menus Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 117 Press ENT Key to Load Frequency into COM Standby Field. Cursor then Advances to Next Frequency. Press INFO-x Softkey for AIRPORT, RUNWAYS, FREQUENCIES, and AOPA Data Figure 4-11 WPT – Airport Information Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 118 NRST – Nearest Airports Pages on the MFD in a similar manner using the appropriate softkeys or MENU Key, the FMS Knob, and the ENT Key. Figure 4-12 NRST – Nearest Airspaces, NRST – Nearest Airports, and NRST – Nearest Frequencies Pages Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 119: Frequency Spacing
AUDIO PANEL AND CNS FREQUENCY SPACING The G1000 COM radios can tune either 25-kHz spacing (118.000 to 136.975 MHz) or 8.33-kHz spacing (118.000 to 136.990 MHz) for 760-channel or 3040-channel configuration. When 8.33-kHz channel spacing is selected, all of the 25-kHz channel spacing frequencies are also available in the complete 3040-channel list.
Page 120: Automatic Squelch
Volume level indication remains for two seconds after the change. COM Volume Level Remains for Two Seconds Figure 4-16 COM Volume Level Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 121: Nav Operation
Figure 4-17 Selecting a NAV Radio for Navigation See the Flight Instruments Section for selecting the DME and Bearing Information windows and using VOR or ADF as the source for the bearing pointer. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 122: Nav Receiver Manual Tuning
Press the Frequency Transfer Key to Transfer NAV Frequencies Between Active and Standby Frequency Fields Turn the NAV Knob to Tune the Frequency in the Tuning Box Figure 4-19 NAV Frequency Tuning Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 123 When adjusting, the level is displayed in place of the standby frequencies. Volume level indication remains for two seconds after the change. NAV Volume Level Remains for Two Seconds Figure 4-22 NAV Volume Levels Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 124: Auto-Tuning A Nav Frequency From The Mfd
Key to Load a Highlighted Frequency into the NAV Standby Turn the FMS Frequency Box Knob to Scroll Through a List of Frequencies Figure 4-23 NAV Frequency Auto-Tuning from the MFD Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 125 6) Press the Frequency Transfer Key to transfer the frequency to the NAV Active Frequency Field. Nearest Airports Menu Nearest VOR Menu Nearest Frequencies Menu Nearest Airspaces Menu Figure 4-24 Nearest Pages Menus Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 126 Softkey to Place Softkey to Place the Cursor on the the Cursor on the VOR Identifier VOR Frequency Figure 4-25 Loading the NAV Frequency from the NRST – Nearest VOR Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 127 MENU Key, the FMS Knob, and the ENT Key. Figure 4-26 NRST – Nearest Frequencies, WPT – VOR Information, WPT – Airport Information, and NRST – Nearest Airports Pages Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 128 • If the current CDI navigation source is NAV1 or NAV2, the approach frequency is transferred to the standby frequency fields of the selected CDI NAV radio. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 129: Marker Beacon Receiver
(annunciator illuminated) is used to provide an earlier indication when nearing a marker during an approach. The LO SENS function (annunciator extinguished) results in a narrower marker dwell while over a station. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 130: Adf/Dme Tuning
ADF as the source for the bearing pointer. The G1000 system tunes the ADF receiver (optional) and DME transceiver (optional). The ADF is tuned by entering the frequency in the ADF standby frequency field of the ADF/DME Tuning Window. (The softkey may be labeled ADF/DME, ADF, or DME, depending on installed equipment.)
Page 131 ADF TUNING ADF frequencies in the 190.0-kHz to 1799.5-kHz range are entered in the standby ADF frequency field of the ADF/DME Tuning Window. The G1000 System does not tune the ADF emergency frequency, 2182.0-kHz. Tuning an ADF frequency: 1) Press the ADF/DME Softkey to display the ADF/DME Tuning Window.
Page 132 1) Turn the large FMS Knob to place the selection cursor over the ADF volume field. 2) Turn the small FMS Knob to adjust volume as desired. Turn the Small FMS Knob to Select the Volume Figure 4-33 Adjusting ADF Receiver Volume Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 133 AUDIO PANEL AND CNS DME TUNING When turning on the G1000 for use, the system remembers the last frequency used for DME tuning NOTE: and the NAV1 NAV2, or HOLD state prior to shutdown. The DME transceiver is tuned by selecting NAV1, NAV2, or HOLD in the ADF/DME Tuning Window.
Page 134: Gtx 33 Mode S Transponder
Pressing the IDENT Softkey while in Mode or Code Selection initiates the ident function and reverts to the top-level softkeys. After 45 seconds of transponder softkey inactivity, the system reverts back to the top-level softkeys. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 135: Transponder Mode Selection
STBY indication and transponder code appear in the mode field of the Transponder Data Box. STBY Mode (White Code Number and Mode) Figure 4-36 Standby Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 136 Transponder Data Box, and all transponder replies requesting altitude information are provided with pressure altitude information. ALT Mode (Mode C Altitude Reporting) Figure 4-39 Altitude Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 137: Entering A Transponder Code
Pressing the CLR Key or small FMS Knob before code entry is complete cancels code entry and restores the previous code. Waiting for 10 seconds after code entry is finished activates the code automatically. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 138: Ident Function
After the IDENT Softkey is pressed while in Mode or Code Selection, the system reverts to the top-level softkeys. IDNT Indication Press the IDENT Softkey to Initiate the ID Function Figure 4-44 IDENT Softkey and Indication Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 139: Ads-B Tx
Even with the ADS-B TX enabled, transmission of extended squitters containing ADS-B out information will vary based on the current mode of the transponder. ADS-B Transmission Enabled Figure 4-45 ADS-B TX Enabled Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 140: Flight Id Reporting
AUDIO PANEL AND CNS FLIGHT ID REPORTING If the Flight ID is required but the system is not configured for it, contact a Garmin-authorized service NOTE: center for configuration. When the Flight ID must be entered before flight operation, the identifier is placed in the Timer/References Window on the PFD.
Page 141: Additional Audio Panel Functions
Speaker audio is muted when the PTT is pressed. Certain aural alerts and warnings (autopilot, traffic, altitude) are always heard on the speaker, even when the speaker is not selected. The speaker volume is adjustable within a nominal range. Contact a Garmin-authorized service center for volume adjustment.
Page 142: Intercom
When both the PILOT and COPLT Annunciators are extinguished, everyone hears the selected radios, aural alerts, and is able to communicate with everyone else. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 143 VOL and SQ. Turn Copilot/Passenger to adjust Squelch when SQ Volume or Annunciation is lit, Volume Manual Squelch when VOL Annunciation is lit. Volume Annunciation Squelch Annunciation Figure 4-49 Volume/Squelch Control Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 144: Clearance Recorder And Player
PLAY Key selects the previously recorded memory block. Powering off the unit automatically clears all recorded blocks. MKR/MUTE Key Stops Play PLAY Key Controls the Play Function Figure 4-50 Marker Mute and Play Keys Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 145: Split Com
XM Radio audio from the Data Link Receiver may be heard by the pilot and passengers simultaneously (optional: requires subscription to XM Radio Service). Refer to the Additional Features Section for more details on the Data Link Receiver. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev A...
Page 146: Audio Panel Preflight Procedure
ICS system as well as during COM transmissions. After powering up the G1000 System, the following steps aid in maximizing the use of the Audio Panel as well as preventing pilot and copilot induced issues. These preflight procedures should be performed each time a pilot boards the aircraft to insure awareness of all audio levels in the Audio Panel and radios.
Page 147: Abnormal Operation
AUDIO PANEL AND CNS 4.7 ABNORMAL OPERATION Abnormal operation of the G1000 includes equipment failures of the G1000 components and failure of associated equipment, including switches and external devices. STUCK MICROPHONE If the push-to-talk (PTT) Key becomes stuck, the COM transmitter stops transmitting after 35 seconds of continuous operation.
Page 148 AUDIO PANEL AND CNS lank Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 149: Section 5 Flight Management
Pilot’ s Guide explains flight management using the G1000. The most prominent part of the G1000 are the two full color displays: a Primary Flight Display (PFD) and a Multi Function Display (MFD). The information to successfully navigate the aircraft using the GPS sensors is displayed on the PFD and the MFD.
Page 150: Navigation Status Box
Figure 5-2 GPS Navigation Information on the MFD Navigation Page NAVIGATION STATUS BOX The Navigation Status Box located at the top of the PFD contains two fields displaying the following information: PFD Navigation Status Box Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 151 4) Turn the small FMS Knob to display and scroll through the data options list. 5) Select the desired data. 6) Press the ENT Key. Pressing the DFLTS Softkey returns all fields to the default setting. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 152: Using Map Displays
FLIGHT MANAGEMENT 5.2 USING MAP DISPLAYS Map displays are used extensively in the G1000 to provide situational awareness in flight. Most G1000 maps can display the following information: • Airports, NAVAIDs, airspaces, airways, • Map Pointer information (distance and land data (highways, cities, lakes, rivers, bearing to pointer, location of pointer, borders, etc.) with names...
Page 153 4) Turn the small FMS Knob to select the desired orientation. 5) Press the ENT Key to select the new orientation. 6) Press the FMS Knob to return to the base page. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 154: Map Range
When the map range is decreased to a point that exceeds the capability of the G1000 to accurately represent the map, a magnifying glass icon is shown to the left of the map range. To change the map range turn the Joystick counter-clockwise to decrease the range, or clockwise to increase the range.
Page 155 1) Press the MENU Key with the Navigation Map Page displayed. The cursor flashes on the ‘Map Setup’ option. 2) Press the ENT Key. The Map Setup Menu is displayed. 3) Select the ‘Map’ group. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 156: Map Panning
Map Pointer Information Map Pointer Figure 5-8 Navigation Map - Map Pointer Activated Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 157 When any map feature or object is selected on the map display, pertinent information is displayed. Information about Point of Interest Map Pointer on Figure 5-9 Navigation Map - Map Pointer on Point of Interest 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 158 2) Move the Joystick to move the Map Pointer around the map. 3) Press the Joystick to remove the Map Pointer and recenter the map on the aircraft’s current position. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 159 3) Press the GO BACK Softkey, the CLR Key, or the ENT Key to exit the Waypoint Information Page and return to the Navigation Map showing the selected waypoint. NAVAID Information GO BACK Softkey Figure 5-11 Navigation Map - Information Window - NAVAID 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 160 Information Page for the selected airspace. 4) Press the CLR or ENT Key to exit the Airspace Information Page. Airspace Information Figure 5-12 Navigation Map - Information Window - Airspace Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 161: Measuring Bearing And Distance
5) To exit the Measure Bearing/Distance option, press the Joystick; or select ‘Stop Measuring’ from the Page Menu and press the ENT Key. Measurement Pointer Lat/Long Information Measurement Line Figure 5-13 Navigation Map - Measuring Bearing and Distance 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 162: Topography
1) Press the MENU Key with the Navigation Map Page displayed. The cursor flashes on the ‘Map Setup’ option. 2) Press the ENT Key. The Map Setup Menu is displayed. 3) Select the ‘Map’ group. 4) Press the ENT Key. 5) Highlight the ‘TOPO DATA’ field. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 163 In addition, the Navigation Map can display a topographic scale (located in the lower right hand side of the map) showing a scale of the terrain elevation and current elevation values. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 164 5) Select ‘On’ or ‘Off’. 6) Press the FMS Knob to return to the Navigation Map Page. TOPO SCALE On/Off Figure 5-17 Navigation Map Setup Menu - TOPO SCALE Setup Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 165: Map Symbols
LARGE CITY (> 200,000) 1500 MEDIUM CITY (> 50,000) SMALL CITY (> 5,000) States and Provinces (STATE/PROV) 1500 Rivers and Lakes (RIVER/LAKE) USER WAYPOINT Table 5-1 Land Symbol Information 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 166 Class C Airspace/TCA (CLASS C/TCA) Class D Airspace (CLASS D) Restricted Area (RESTRICTED) Military Operations Area [MOA(MILITARY)] Other/Air Defense Interdiction Zone (OTHER/ADIZ) Temporary Flight Restriction (TFR) 2000 Table 5-2 Aviation Symbol Information Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 167 4) Press the ENT Key. The cursor flashes on the first field. 5) Select the desired land option. 6) Select the desired text size. 7) Press the ENT Key to accept the selected size. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 168 PFD Inset Map two range levels smaller than the range selected in the Map Setup pages (e.g., a setting of 100 nm removes the item at ranges above 100 nm on MFD navigation maps, while the PFD Inset Map removes the same item at 50 nm). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 169 Decluttering the PFD Inset Map: 1) Press the INSET Softkey. 2) Press the DCLTR Softkey. The current declutter level is shown. With each selection, another level of map information is removed. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 170 Intersections (does not declutter if used to define airway) Class B Airspaces/TMA Class C Airspaces/TCA Class D Airspaces Other Airspaces/ADIZ Obstacles Cities Roads Railroads State/Province Boundaries Table 5-3 Navigation Map Items Decluttered for each Detail Level Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 171: Airways
When airways are selected for display on the map, the airway waypoints (VORs, NDBs and Intersections) are also displayed. Low Altitude Low Altitude Airway Airway (T-Route) (Victor Airway) High Altitude Airway (Jet Route) High Altitude Airway (Q-Route) Figure 5-22 Airways on MFD Navigation Map 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 172 5) To change the range setting, turn the small FMS Knob to display the range list. 6) Select the desired range using the small FMS Knob. 7) Press the ENT Key. 8) Press the FMS Knob to return to the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 173: Track Vector
6) Select ‘On’ or ‘Off’. Press the ENT Key to accept the selected option. The flashing cursor highlights the look ahead time field. Use the FMS Knob to select the desired time. Press the ENT Key. 7) Press the FMS Knob to return to the Navigation Map Page. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 174: Wind Vector
3) Select the ‘Map’ group. 4) Press the ENT Key. 5) Highlight the ‘WIND VECTOR’ field. 6) Select ‘On’ or ‘Off’. 7) Press the FMS Knob to return to the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 175: Nav Range Ring
7) Press the FMS Knob to return to the Navigation Map Page. The Nav Range Ring is referenced to either magnetic or true north, based on the selection on the AUX NOTE: - System Setup Page. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 176: Fuel Range Ring
8) To change the reserve fuel time, enter a time (00:00 to 23:59; hours:minutes). The default setting is 00:45 minutes. 9) Press the ENT Key. 10) Press the FMS Knob to return to the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 177: Field Of View (Svs)
5) Highlight the ‘FIELD OF VIEW’ field. 6) Select ‘On’ or ‘Off’. 7) Press the ENT Key. 8) Press the FMS Knob to return to the Navigation Map Page. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 178: Selected Altitude Intercept Arc
4) Press the ENT Key. 5) Highlight the ‘SEL ALT ARC’ field. 6) Select ‘On’ or ‘Off’. 7) Press the FMS Knob to return to the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 179: Waypoints
Waypoints can be selected by entering the ICAO identifier, entering the name of the facility, or by entering the city name. See the System Overview section for detailed instructions on entering data in the G1000. As a waypoint identifier, facility name, or location is entered, the G1000’ s Spell’N’Find™ feature scrolls through the database, displaying those waypoints matching the characters which have been entered to that point.
Page 180: Airports
Page displays airport information in three boxes labeled ‘AIRPORT’, ‘RUNWAYS’, and ‘FREQUENCIES’. For airports with multiple runways, information for each runway is available. This information is viewed on the Airport Information Page by pressing the INFO softkey until INFO-1 is displayed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 181 • Runway lighting type: No Lights, Part Time, Full Time, Unknown, or PCL Freq (for pilot-controlled lighting) • COM Availability: TX (transmit only), RX (receive only), PT (part time), i (additional information available) 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 182 Transportation Type Available Procedures High/Med/Low Clicks/Second • Approach: Approach Facility • Charts: Low Altitude Chart • FBO: Type, Frequencies, Name, Frequency, Frequency Number Services, Fees, Fuel, Credit Parameter Cards, Phone/Fax Numbers Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 183 Hazard Avoidance section for details about weather). The G1000 provides a NRST Softkey on the PFD, which gives the pilot quick access to nearest airport information (very useful if an immediate landing is required). The Nearest Airports Window displays a list of up to the 25 nearest airports (three entries can be displayed at one time).
Page 184 Up to five nearest airports, one runway, up to five frequencies, and up to five approaches are visible at one time. If there are more than can be shown, each list can be scrolled. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 185 4) Turn the FMS Knob to highlight the desired airport. (Pressing the ENT Key also moves to the next airport.) 5) Press the FMS Knob to remove the flashing cursor. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 186 5) Press the FMS Knob to remove the flashing cursor. Nearest Airport Criteria - Type of Runway Surface - Minimum Runway Length Figure 5-38 System Setup Page - Nearest Airport Selection Criteria Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 187: Intersections
2) Press the ENT Key or turn either FMS Knob to select an identifier in the Nearest Intersection Box. 3) Press the FMS Knob to remove the flashing cursor. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 188 Showing Nearest intersection from Intersection aircraft position Intersection Lat/Long Reference VOR Info - Identifier/Type (symbol) - VOR Frequency Nearest - Bearing/Distance to VOR Intersection Figure 5-40 Nearest Intersections Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 189: Ndbs
2) Press the ENT Key or turn either FMS Knob to select an identifier in the Nearest NDB Box. 3) Press the FMS Knob to remove the flashing cursor. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 190 Navigation Map - Bearing/Distance to NDB from aircraft Showing Selected position Nearest NDB NDB Information - Facility Name/City - Type - Lat/Long NDB Frequency Figure 5-42 Nearest NDB Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 191: Vors
2) Press the ENT Key or turn either FMS Knob to select an identifier in the Nearest VOR Box. 3) Press the FMS Knob to remove the flashing cursor. Or : 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 192 Navigation Map - Bearing/Distance to VOR Showing Nearest from aircraft position VOR Information - Facility Name/City - Class/Magnetic Variation - Lat/Long VOR Frequency Nearest VOR Figure 5-44 Nearest VOR Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 193: Vrps
2) Press the ENT Key or turn either FMS Knob to select an identifier in the Nearest VRP Box. 3) Press the FMS Knob to remove the flashing cursor. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 194 Navigation Map Showing Nearest VOR Nearest VRP VRP Identifier/Symbol - Bearing/Distance to VRP from aircraft position VRP Information - VRP Name - Country - Lat/Long Figure 5-46 Nearest VRP Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 195: User Waypoints
FLIGHT MANAGEMENT USER WAYPOINTS The G1000 can create and store up to 1,000 user-defined waypoints. User waypoints can be created from any map page (except PFD Inset Map, AUX-Trip Planning Page, or Procedure Pages) by selecting a position on the map using the Joystick, or from the User Waypoint Information Page by referencing a bearing/distance from an existing waypoint, bearings from two existing waypoints, or latitude and longitude.
Page 196 6) If desired, change the storage method of the waypoint to “TEMPORARY” or “NORMAL” by moving the cursor to “TEMPORARY” and pressing the ENT Key to check or uncheck the box. 7) Press the FMS Knob to remove the flashing cursor. Or : Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 197 2) a menu pops up allowing a choice between ‘Review Airspaces’ or ‘Create User Waypoint’, or 3) a new waypoint is initiated with the default name being the selected map item. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 198 3) Press the ENT Key. The message ‘Do you want to rename the user waypoint AAAAAA to BBBBBB?’ is displayed. 4) With ‘YES’ highlighted, press the ENT Key. 5) Press the FMS Knob to remove the flashing cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 199 3) Select ‘NORMAL’ or ‘TEMPORARY’ as desired, and press the ENT Key. 4) Press the FMS Knob to remove the flashing cursor and return to the User Waypoint Information Page. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 200 2) Press the MENU Key. 3) Select ‘Delete All User Waypoints’. 4) Press the ENT Key twice to confirm the selection. 5) Press the FMS Knob to remove the flashing cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 201: Airspaces
FLIGHT MANAGEMENT 5.4 AIRSPACES The G1000 can display the following types of airspaces: Class B/TMA, Class C/TCA, Class D, Restricted, MOA (Military), Other Airspace, Air Defense Interdiction Zone (ADIZ), and Temporary Flight Restriction (TFR). Class D Airspace MOA (Military) Class B Airspace...
Page 202 Map ranges for the airspace boundaries are selected from the Aviation Group in the Map Setup Menu. See Table 5-2 for the default and maximum ranges for each type of airspace and the symbol used to define the airspace area. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 203 ENT Key. The cursor is placed in the ‘AIRSPACE ALERTS’ Box. 3) Select the desired airspace. 4) Press the FMS Knob to remove the flashing cursor. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 204 5) Turn the small FMS Knob clockwise to turn smart airspace On or counterclockwise to turn smart airspace Off 6) Press the FMS Knob to remove the flashing cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 205: Direct-To-Navigation
Once a direct-to is activated, the G1000 establishes a point-to-point course line from the present position to the selected direct-to destination.
Page 206 2) Select the desired waypoint. 3) Press the Direct-to Key. 4) Press the ENT Key. The cursor is now displayed on ‘ACTIVATE?’. 5) Press the ENT Key again to activate the direct-to. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 207 2) Move the Joystick to place the pointer at the desired destination location. 3) If the pointer is placed on an existing airport, NAVAID, or user waypoint, the waypoint name is highlighted. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 208 1) Press the Direct-to Key to display the Direct-to Window. 2) Press the MENU Key. 3) With ‘Cancel Direct-To NAV’ highlighted, press the ENT Key. If a flight plan is still active, the G1000 resumes navigating the flight plan along the closest leg.
Page 209 2) Press the MENU Key. 3) With ‘Clear Vertical Constraints’ highlighted, press the ENT Key. Page Menu - Clear Vertical Navigation Constraints Figure 5-58 Direct-to Window - Clearing Vertical Constraints 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 210: Flight Planning
FLIGHT MANAGEMENT 5.6 FLIGHT PLANNING Flight planning on the G1000 consists of building a flight plan by entering waypoints one at a time, adding waypoints along airways, and inserting departures, airways, arrivals, or approaches as needed. The G1000 allows flight planning information to be entered from either the MFD or PFD. The flight plan is displayed on maps using different line widths, colors, and types, based on the type of leg and the segment of the flight plan currently being flown (departure, enroute, arrival, approach, or missed approach).
Page 211: Flight Plan Creation
- Vertical Speed Target Non-Active, - Flight Path Angle Flight Plan Leg - Vertical Speed Target - Time to Top of Descent - Vertical Deviation Figure 5-59 Active Flight Plan Page 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 212 The active flight plan is listed on the active Flight Plan Page on the MFD, and in the Active Flight Plan Window on the PFD. It is the flight plan to which the G1000 is currently providing guidance, and is shown on the navigation maps.
Page 213 6) Repeat step numbers 4 and 5 to enter each additional flight plan waypoint. 7) When all waypoints have been entered, press the FMS Knob to return to the Flight Plan Catalog Page. The new flight plan is now in the list. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 214 9) Press the ENT Key again to confirm the import. Import/Export Softkeys List of Flight Plans to Import & Import Successful Details for the Selected File Figure 5-62 Flight Plan Import Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 215 The exported flight plan will not contain any procedures or airways. NOTE: Import/Export Softkeys Stored Flight Plan to be Exported & Export Successful Exported Flight Plan Name Figure 5-63 Flight Plan Export 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 216 Flight Plan Catalog page. Pending Connext Action Annunciator Pending Flight Plan Pending Flight Plan Pop-Up Alert IGNORE Softkey PREVIEW Softkey Figure 5-64 Pending Flight Plan Transfer Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 217 2) Press the FMS Knob to activate the cursor, and turn the FMS Knob to highlight the pending flight plan. 3) Press the ENT Key to display the Preview Flight Plan Page on the MFD. 4) Select the ACTIVATE Softkey to activate the flight plan. Or : 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 218: Adding Waypoints To An Existing Flight Plan
100 waypoints (including waypoints within airways and procedures). If the number of waypoints in the flight plan exceeds 100, the message “Flight plan is full. Remove unnecessary waypoints.” appears and the new waypoint(s) are not added to the flight plan. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 219 3) Press the EDIT Softkey; or press the ENT Key, turn the large FMS Knob clockwise to select “EDIT” and press the ENT Key. The Stored Flight Plan Page is displayed. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 220 2) Press the LD WPT Softkey; or press the MENU Key, select ‘Load Waypoint’, and press the ENT Key. The user waypoint is created with a name of USRxxx (using the next available in sequence) and is added to the end of the active flight plan. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 221: Adding Airways To A Flight Plan
The G1000 also anticipates the desired airway and exit point based on loaded flight plan waypoints. Airway Entry Waypoint...
Page 222 MTD-ABB-BNE-DEVAL. Airway “UR975” in North Africa has more complicated directional restrictions within the list of airway waypoints AMANO, VAKOR, LIBRO, NELDA, DIRKA, GZO, KOSET, and SARKI: Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 223: Adding Procedures To A Stored Flight Plan
ADDING PROCEDURES TO A STORED FLIGHT PLAN The G1000 allows the pilot to insert pre-defined instrument procedures from the navigation database into a flight plan. The procedures are designed to facilitate routing of traffic leaving an airport (departure), arriving at an airport (arrival), and landing at an airport (approach).
Page 224 5) Select a runway served by the selected departure, if required. Press the ENT Key. 6) Select a transition for the selected departure. Press the ENT Key. 7) Press the ENT Key to load the selected departure procedure. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 225 Figure 5-74 Departure Loading Page - Selecting Transition Inserted Departure Header - Departure Identifier: [departure airport]-[departure runway]. [departure transition]. [departure end point] (e.g., KMKC-ALL.WLDCT2.SLN) Figure 5-75 Stored Flight Plan Page - Departure Inserted 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 226 5) Select a transition for the selected arrival. Press the ENT Key. 6) Select a runway served by the selected arrival, if required. Press the ENT Key. 7) Press the ENT Key to load the selected arrival procedure. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 227 Figure 5-77 Arrival Loading Page - Selecting the Transition Inserted Arrival Header - Arrival Identifier: [arrival airport]-[arrival transition]. [arrival].[arrival runway] (e.g., KCOS-TBE.DBRY1.ALL) Figure 5-78 Stored Flight Plan Page - Arrival Inserted 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 228 The airport and approach are selected. 5) Select a transition for the selected approach. Press the ENT Key. 6) Press the ENT Key to load the selected approach procedure. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 229 Figure 5-80 Approach Loading Page - Selecting the Transition Inserted Approach Header - Approach Identifier: [approach airport].[runway and approach type] LPV) (e.g., KCOS-RNAV 35R Figure 5-81 Stored Flight Plan Page - Approach Inserted 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 230: Flight Plan Storage
FLIGHT PLAN STORAGE The G1000 can store up to 99 flight plans, numbered 1 through 99. The active flight plan is erased when the G1000 is powered off or when another flight plan is activated. Details about each stored flight plan can be viewed on the Flight Plan Catalog Page and on the Stored Flight Plan Page.
Page 231 COPY A FLIGHT PLAN The G1000 allows copying a flight plan into a new flight plan memory slot, allowing editing, etc., without affecting the original flight plan. This can be used to duplicate an existing stored flight plan for use in creating a modified version of the original stored flight plan.
Page 232: Flight Plan Editing
The active flight plan or any stored flight plan can be edited. The edits made to the active flight plan affect navigation as soon as they are entered. DELETING THE ACTIVE FLIGHT PLAN The G1000 allows deleting an active flight plan. Deleting the active flight plan suspends navigation by the G1000. Deleting the active flight plan: 1) Press the FPL Key to display the Active Flight Plan Page (MFD) or the Active Flight Plan Window (PFD).
Page 233 2) Turn the small FMS Knob clockwise one click to display the Flight Plan Catalog Page. 3) Press the FMS Knob to activate the cursor and turn the FMS Knob to highlight the flight plan to be edited. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 234 2) Turn the small FMS Knob clockwise one click to display the Flight Plan Catalog Page. 3) Press the FMS Knob to activate the cursor and turn the FMS Knob to highlight the flight plan to be edited. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 235: Along Track Offsets
Multiple offset waypoints are allowed. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 236 5) Press the ENT Key to create the offset waypoint. 6) Turn the small FMS Knob to enter the desired altitude for the offset. 7) Press the FMS Knob to remove the flashing cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 237: Parallel Track
4) Turn the small FMS Knob to enter a distance from 1-99 nm and press the ENT Key. ‘ACTIVATE PARALLEL TRACK’ is highlighted. 5) Press the ENT Key to activate parallel track. Press the FMS Knob or the CLR Key to cancel the parallel track activation. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 238 Approach Leg Active’. If the offset direction and distance results in an unreasonable route geometry the status indicates that the system is unable to activate the parallel track because of invalid geometry. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 239 2) Press the MENU Key, highlight ‘Parallel Track’, and press the ENT Key. The Parallel Track Window is displayed with ‘CANCEL PARALLEL TRACK?’ highlighted. 3) Press the ENT Key. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 240: Activating A Flight Plan Leg
FLIGHT MANAGEMENT ACTIVATING A FLIGHT PLAN LEG The G1000 allows selection of a highlighted leg as the “active leg” (the flight plan leg which is currently used for navigation guidance). Activating a flight plan leg: 1) Press the FPL Key to display the Active Flight Plan Page (MFD) or the Active Flight Plan Window (PFD).
Page 241: Inverting A Flight Plan
The ‘Invert and activate stored flight plan?’ window is displayed. 4) With ‘OK’ highlighted, press the ENT Key. To cancel the request, press the CLR Key, or highlight ‘CANCEL’ and press the ENT Key. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 242: Flight Plan Views
3) Press the WIDE Softkey to display the wide view, or press the NARROW Softkey to display the narrow view. 4) Press the BACK Softkey to return to the top level active flight plan softkeys. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 243 Figure 5-92 Active Flight Plan - Wide vs. Narrow View COLLAPSING AIRWAYS The G1000 allows airways on the active flight plan to be collapsed or expanded from the Active Flight Plan Page/Window. When airways have been collapsed, it is indicated on the airway heading.
Page 244: Closest Point Of Fpl
3) Enter the identifier of the reference waypoint and press the ENT Key. The G1000 displays the bearing (BRG) and distance (DIS) to the closest point along the flight plan to the selected reference waypoint and creates a user waypoint at this location.
Page 245 (RIGHT or LEFT) Map of Hold Location Expect Further Clearance Time Load Hold in Active Flight Plan Figure 5-94 Creating a User Defined Holding Pattern at an Active Flight Plan Waypoint 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 246 4) Select ‘OK’ and press the ENT Key. The holding pattern is removed from the active flight plan. Select ‘CANCEL’ and press the ENT Key to cancel the removal of the holding pattern. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 247 (Time in nm or Distance in minutes) Turn Direction (RIGHT or LEFT) Map of Hold Location Expect Further Clearance Time Activate Hold Figure 5-95 Creating a User Defined Holding Pattern at the Aircraft Present Position 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 248 Expect Further Clearance Time Load Hold and Activate Direct To Hold At Direct To Waypoint Selection Figure 5-96 Creating a User Defined Holding Pattern at a Direct To Waypoint Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 249: Vertical Navigation
CD, CF, CI, CR, DF, FC, FD, PI, RF, and TF. Altitude constraints are not retained in stored flight plans. The G1000 system Vertical Navigation (VNV) feature provides vertical profile guidance during the enroute and terminal phases of flight. Guidance based on specified altitudes at waypoints in the active flight plan or to a direct-to waypoint is provided.
Page 250 Vertical guidance in reversionary mode can only be enabled for a direct-to waypoint. The G1000 allows a vertical navigation direct-to to any waypoint in the active flight plan with an altitude constraint “designated” for vertical guidance. Pressing the VNV Direct-to Softkey on the Active Flight Plan Page allows the flight plan to be flown, while vertical guidance based on the altitude constraint at the VNV direct-to waypoint is provided.
Page 251: Altitude Constraints
4) Press the FMS Knob to remove the flashing cursor. ALTITUDE CONSTRAINTS The G1000 system can use altitude constraints associated with lateral waypoints to give guidance for vertical navigation. These altitudes are, depending on the specific instance, manually entered or retrieved from the published altitudes in the navigation database.
Page 252 2) Press the FMS Knob, and turn to highlight the desired waypoint altitude. 3) Press the ENT Key. The altitude is now shown in cyan, indicating it is usable for vertical guidance. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 253 G1000 displays the altitude restriction from the database provided no predicted altitude can be provided. The G1000 also provides a way to reinstate a published altitude constraint that has been edited.
Page 254 4) Select ‘EDIT’ and press the ENT Key. 5) Edit the value using the FMS Knobs, and press the ENT Key. 6) Press the FMS Knob to remove the flashing cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 255: Procedures
FLIGHT MANAGEMENT 5.8 PROCEDURES The G1000 can access the whole range of instrument procedures available. Departures (DPs), arrivals (STARs), and non-precision and precision approaches (APPRs) are stored within the database and can be loaded using the Procedures (PROC) Key. The selected procedure for the departure or arrival airport is added to the active flight plan. No waypoints are required to be in the active flight plan to load procedures;...
Page 256: Departures
7) Select a transition (if required) and press the ENT Key. ‘LOAD?’ is highlighted. 8) Press the ENT Key to load the departure procedure. Available Procedure Actions Departure Airport Loaded Procedures Departure Preview Departure Choices Figure 5-101 Departure Selection Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 257 6) Turn the small FMS Knob to view the available transitions. Press the ENT Key to select the transition. The cursor moves to the Sequence box. The departure is previewed on the map. 7) Press the INFO-1/2 Softkey to return to the Airport Information Page. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 258 4) With ‘OK’ highlighted, press the ENT Key. To cancel the removal request, highlight ‘CANCEL’ and press the ENT Key. 5) Press the FMS Knob to remove the flashing cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 259: Arrivals
7) Select a runway (if required) and press the ENT Key. ‘LOAD?’ is highlighted. 8) Press the ENT Key to load the arrival procedure. Available Procedure Actions Destination Airport Loaded Procedures Arrival Preview Arrival Choices Figure 5-103 Arrival Selection 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 260 6) Turn the small FMS Knob to view the available runways. Press the ENT Key to select the runway. The cursor moves to the Sequence box. The arrival is previewed on the map. 7) Press the INFO-1 Softkey or the INFO-2 Softkey to return to the Airport Information Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 261 4) With ‘OK’ highlighted, press the ENT Key. To cancel the removal request, highlight ‘CANCEL’ and press the ENT Key. 5) Press the FMS Knob to remove the flashing cursor. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 262: Approaches
NAV receiver on the CDI. The G1000 SBAS GPS allows for flying LNAV, LNAV+V, LNAV/VNAV, LP, LP+V and LPV approach service levels according to the published chart. The ‘+V’ designation adds advisory vertical guidance for assistance in maintaining a constant vertical glidepath similar to an ILS glideslope on approach.
Page 263 If ‘TEMP COMP’ was selected, the cursor moves to the temperature field. Turn the small FMS Knob to select the temperature, and press the ENT Key. Or : 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 264 Destination Airport Loaded Procedures Approach Preview Approach Choices Figure 5-105 Approach Selection Selected Approach Loaded Approach Procedure Loading Page Selection Softkeys LOAD or ACTIVATE? Annunciation Figure 5-106 Approach Loading Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 265 If ‘TEMP COMP’ was selected, the cursor moves to the temperature field. Turn the small FMS Knob to select the temperature, and press the ENT Key. Or : 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 266 2) Press the FMS Knob, and turn to highlight the approach header in the active flight plan. 3) Press the CLR Key. A confirmation window is displayed listing the approach procedure. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 267 ’. Again, if the aircraft altitude is lower than the prescribed altitude, a direct-to is established on a Course to Altitude leg when the missed approach procedure is activated. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 268 6) Press the ENT Key. The compensated altitudes for the approach are shown in the flight plan. Selected Temperature FAF Altitude Temperature Compensation Compensated Selected Altitude Figure 5-108 Temperature Compensation Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 269 5) Press the ENT Key. The temperature compensated altitude at the FAF is cancelled. Activating/cancelling temperature compensation for the loaded approach altitudes does not select/ NOTE: deselect temperature compensated minimums (MDA/DH), nor does selecting/deselecting temperature compensated minimums activate/cancel temperature compensated approach altitudes. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 270: Trip Planning
FLIGHT MANAGEMENT 5.9 TRIP PLANNING The G1000 allows the pilot to view trip planning information, fuel information, and other information for a specified flight plan or flight plan leg based on automatic data, or based on manually entered data. Weight planning is also available, based on manually entered fuel data and the active flight plan (to estimate remaining fuel).
Page 271 • Enroute safe altitude (ESA) - The ESA is shown as nnnnnFT • Destination sunrise and sunset times (SUNRISE, SUNSET) - These times are shown as hours:minutes and are the local time at the destination. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 272 Figure 5-112 Trip Planning Page - Flight Plan Mode Selected Flight Plan Selected Leg(s) Not Available Not Available Selected Starting and Ending Waypoints Figure 5-113 Trip Planning Page - Waypoint Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 273 2) Turn the FMS Knobs to move the cursor onto the DEP TIME field and enter the desired value. Press the ENT Key. The statistics are calculated using the new value and the cursor moves to the next entry field. Repeat until all desired values have been entered. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 274: Raim Prediction
RAIM PREDICTION Box - Prediction Waypoint - Arrival Time - Arrival Date - RAIM Status RAIM Softkey SBAS Softkey (displays RAIM (displays SBAS Selection) PREDICTION) Figure 5-114 RAIM Prediction Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 275 • ‘RAIM NOT AVAILABLE’ - RAIM is predicted to be unavailable. The Satellite Based Augmentation System (SBAS) provides increased navigation accuracy when available. SBAS can be enabled or disabled manually on the GPS Status Page. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 276 SBAS Status SBAS SELECTION Box - EGNOS Enable/Disable - MSAS Enable/Disable - WAAS Enable/Disable RAIM Softkey SBAS Softkey (displays RAIM (displays SBAS Selection) PREDICTION) Figure 5-116 SBAS Display - Disabled Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 277: Navigating A Flight Plan
The following discussion is an example of navigating a flight plan with the SBAS capable GPS system while the G1000 provides vertical guidance through descents. A lateral flight plan (LNAV) would be navigated in much the same way, but would not include vertical guidance when the final approach course is active.
Page 278 3) ATC now assigns routing to join V4. A heading of 290º is assigned to intercept V4. The aircraft turns to heading 290° as seen in Figure 5-118. Figure 5-118 Assigned Heading of 290º 4) Enter V4 into the flight plan. a) Press the FMS Knob to activate the cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 279 Turn the small FMS Knob to display the Waypoint Information Window. Enter the desired entry point for V4, Topeka VOR (TOP), as shown in Figure 5-120. Figure 5-120 Entering V4 Entry Point 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 280 Press the LD AIRWY Softkey to display the list of available airways for TOP as seen in Figure 5-122. Figure 5-122 List of Available Airways for TOP g) Turn either FMS Knob to highlight V4 in the list as seen in Figure 5-122. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 281 Press the ENT Key. The selected airway and exit are displayed, and the prompt “LOAD?” highlighted as in Figure 5-124. Figure 5-124 Ready to Load V4 k) Press the ENT Key. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 282 Press the ACT LEG Softkey. The confirmation window is now displayed as in Figure 5-126. Note the TOP to SLN leg is actually part of V4. Figure 5-126 Comfirm Active Leg Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 283 6) The aircraft continues on heading 290º. When crosstrack distance is less than 2.0 nm, the XTK disappears from the HSI and the CDI is positioned on the last dot indicating a 2.0 nm distance from the centerline of the next course. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 284 8) At SLN, Victor Airway 244 (V244) is intercepted. Turn prompts are displayed in the PFD Navigation Status Box as seen in Figure 5-129. Figure 5-129 Turn to Intercept V244 Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 285 FLIGHT MANAGEMENT 9) As seen in Figure 5-130, V244 is now the active flight plan leg. Figure 5-130 V244 Now Active Leg 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 286 Turn the large FMS Knob to select OPSHN in the flight plan list. c) Press the Direct-to ( ) Key. The Direct-to Window is now displayed as shown in Figure 5-132. Figure 5-132 Direct To OPSHN Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 287 Enter the offset, or distance from the waypoint at which to reach the selected altitude. In this case, three miles prior to OPSHN is entered. In other words, the G1000 gives vertical guidance so the aircraft arrives at an altitude of 10,000 feet three miles prior to OPSHN.
Page 288 12) The aircraft is proceeding to OPSHN. The expected approach is the RNAV LPV approach to runway 35R, so it is selected. a) Press the PROC Key to display the Procedures Window. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 289 Press the ENT Key. A list of available approaches for the destination airport is displayed as in Figure 5-137. Figure 5-137 List of Available Approaches d) Turn either FMS Knob to select the RNAV LPV approach for 35R as shown in Figure 5-137. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 290 To set ‘MINIMUMS’, turn the small FMS Knob to select ‘BARO’, and press the ENT Key. Turn the small FMS Knob to select the altitude, and press the ENT Key. Or : To skip setting minimums, press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 291 Figure 5-139 Barometric Minimums Set With ‘LOAD?’ highlighted, again press the ENT Key. The selected approach is added to the flight plan as seen in Figure 5-140. Figure 5-140 Loaded Approach 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 292 Figure 5-141. Vertical guidance from the FAF and on to the Missed Approach Point (MAP) is given using the WAAS GPS altitude source, therefore, the displayed altitude values are for reference only. Figure 5-141 Vertical Guidance is Active to the FAF Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 293 In this example, vertical guidance is provided at the TOD that results in a -3.0 degree FPA descent to an altitude of 10,000 feet upon reaching the offset waypoint. Figure 5-142 Adjusting the Descent c) Press the ENT Key. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 294 Figure 5-143 Approaching Top of Descent (TOD) Target Altitude Vertical Deviation Indicator (VDI) Required Vertical Speed Indicator (RVSI) Figure 5-144 VDI & RVSI Upon Reaching Top of Descent (TOD) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 295 17) When the aircraft is one minute from the bottom of descent (BOD) it is annunciated as shown in Figure 5-146. Upon reaching the offset waypoint for OPSHN, the aircraft is at 10,000 feet. Figure 5-146 Approaching Bottom of Descent (BOD) at OPSHN Offset Waypoint 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 296 PFD as seen in Figure 5-147. Initiate the turn and maneuver the aircraft on a track through the turn radius to intercept the magenta line for the OPSHN to FSHER leg and center the CDI. Figure 5-147 Turn to intercept OPSHN to FSHER Leg Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 297 A descent to HABUK is in the next leg. Note the TOD point on the map. Annunciations for the upcoming turn and descent, as well as the VDI and RVSI, appear on the PFD as the flight progresses. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 298 FLIGHT MANAGEMENT Figure 5-149 Approaching PYNON Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 299 Turn the large FMS Knob to highlight ‘ACTIVATE APPROACH’ as shown in Figure 5-151. c) Press the ENT Key to activate the approach. Figure 5-151 Manually Activate Approach 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 300 22) The IAF is the next waypoint. At the TOD, establish a descent vertical speed as previously discussed in Step 16. The aircraft altitude is 9,000 feet upon reaching HABUK. Figure 5-152 Descending Turn to the Initial Approach Fix (IAF) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 301 “AT” 7,800 feet at the FAF. Note the altitude restriction lines over and under (At) the altitude in the ‘ALT’ field in Figure 5-153. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 302 ’. Again, if the aircraft altitude is lower than the prescribed altitude, a direct-to is established on a Course to Altitude leg when the missed approach procedure is activated. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 303 A direct-to is initiated to MOGAL, which is the Missed Approach Hold Point (MAHP) as seen in Figure 5-155. The aircraft is climbing to 10,000 feet. The CDI flight phase now changes from LPV to MAPR as seen on the HSI. Figure 5-155 Missed Approach Active 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 304 MAHP (MOGAL) as shown in Figure 5-156. Figure 5-156 Establishing the Holding Pattern 27) The aircraft maintains 10,000 feet while following the magenta line through the hold as in Figure 5-157. Figure 5-157 Hold Established Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 305: Abnormal Operation
GPS. While in Enroute or Oceanic phase of flight, if the G1000 detects an invalid GPS solution or is unable to calculate a GPS position, the system automatically reverts to Dead Reckoning (DR) Mode. In DR Mode, the G1000 uses its last-known position combined with continuously updated airspeed and heading data (when available) to calculate and display the aircraft’...
Page 306 The Inset Map is removed from the PFD any time aircraft pitch is greater than +30° or less than –20°, NOTE: or when a 65° bank angle is reached. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 307: Section 6 Hazard Avoidance
HAZARD AVOIDANCE SECTION 6 HAZARD AVOIDANCE Hazard avoidance features available for the G1000 are designed to aid situational awareness and provide advisory information with regard to potential hazards to flight safety associated with weather, terrain, and air traffic. Weather • Garmin GDL 69/69A or 69/69A SXM SiriusXM Weather and Temporary Flight Restrictions (Optional) •...
Page 308: Siriusxm Weather
4) Contact SiriusXM Customer Service using the phone number listed on its website, www.siriusxm.com. 5) Provide SiriusXM Customer Service the Audio and/or Data Radio IDs, payment information, and the desired weather product subscription package. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 309: Using Siriusxm Weather Products
3) Press the MENU Key. 4) Turn the large FMS Knob to highlight ‘Display XM Weather’ and press the ENT Key. SiriusXM is now the selected data link weather source. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 310 It does not represent the rate at which the weather information is updated or when the Data Link Receiver receives new data. SiriusXM and its weather data suppliers define and control the data update intervals, which are subject to change. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 311 No Radar Coverage no product image Temporary Flight Restrictions no product image (TFRs) Terminal Aerodrome Reports no product image (TAFs) Table 6-1 SiriusXM Weather Product Symbols and Data Timing Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 312: Siriusxm Weather Product Symbol
Turbulence (TURB) No Radar Coverage TFRs TAFs * Winds Aloft data is available inside Profile View when enabled on the Navigation Map Page. Table 6-2 Sirius Weather Product Display Maps Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 313 The menus also provide a means in addition to the softkeys for enabling/disabling display of weather products. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 314 4) Highlight the individual setting or product group name to restore to default values, then press the MENU Key. 5) Highlight ‘Restore Selection Default’ or ‘Restore All Defaults’, as applicable, then press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 315 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-6 Navigation Map Page Menu Figure 6-7 Navigation Map Page Setup Menu Figure 6-8 Navigation Map Page Setup Menu, Weather Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 316 4) To remove the XM Weather Legends Window, select the LEGEND Softkey, the ENT or the CLR Key, or press the FMS Knob. Viewing legends for displayed weather products on the Navigation Map Page: 1) Select the Navigation Map Page with the FMS Knob. 2) Press the MAP Softkey. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 317 Joystick. If the map range is adjusted while panning is enabled, the map is re-centered on the Map Pointer. Additional Information about Item Selected with Map Pointer Available TFR Selected with Map Pointer Figure 6-9 Panning on the Weather Data Link (XM) Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 318 The display of the information is color-coded to indicate the intensity of the echoes and the type of precipitation, if known. No Radar Coverage Figure 6-10 NEXRAD Data on the Weather Data Link (XM) Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 319 (designated by the letter Z). The value of Z increases as the returned signal strength increases. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 320 • Sun strobes (when the radar antenna points directly at the sun) • Interference from buildings or mountains, which may cause shadows • Metallic dust (chaff) from military aircraft, which can cause alterations in radar scans Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 321 • Any precipitation displayed between 52ºN and 55ºN is displayed as mixed regardless of actual precipitation type. No Coverage Above 55ºN Precipitation Above 52ºN Displays as Mixed Figure 6-13 NEXRAD Data - Canada Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 322 Since Echo Tops and Cloud Tops use the same color scaling to represent altitude, display of these weather products is mutually exclusive. When Echo Tops is activated, NEXRAD and Cloud Tops data are removed. No Radar Coverage Figure 6-15 Echo Tops Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 323 Since Cloud Tops and Echo Tops use the same color scaling to represent altitude, display of these weather products is mutually exclusive. When Cloud Tops is activated, Echo Tops data is removed. Figure 6-17 Cloud Tops Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 324 To display the SiriusXM Lightning legend on the Weather Data Link (XM) Page (Figure 6-19), press the LEGEND Softkey when SiriusXM Lightning is selected for display. Figure 6-19 SiriusXM Lightning Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 325 To display the Cell Movement legend on the Weather Data Link (XM) Page, (Figure 6-21), press the LEGEND Softkey when Cell Movement is selected for display. Figure 6-21 Cell Movement Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 326 To display the SIGMET and AIRMET legend (Figure 6-24), press the LEGEND Softkey when SIGMETs and AIRMETs are selected for display. Figure 6-23 Sample SIGMET Text Figure 6-24 SIGMET/AIRMET Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 327 Note the original text may contain additional information not found in the decoded text. TAF information is displayed only in its original form, when a TAF is available. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 328 In addition, METAR flags and their associated text are displayed on the Active Flight Plan Page on the MF.D. A METAR flag is shown next to waypoint(s) in the flight plan with an available METAR. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 329 Surface Analysis and City Forecast information (Figure 6-28) is available for current and forecast weather conditions. Forecasts are available for intervals of 12, 24, 36, and 48 hours. Figure 6-28 Current Surface Analysis and City Forecast Weather Products Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 330 When no data is displayed for a given altitude, the data for that altitude has not been received, or is out of date and has been removed from the display. Figure 6-30 Freezing Level Data Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 331 4) Select the desired altitude level: SFC (surface) up to 42,000 feet. Press the NEXT or PREV Softkey to cycle through the altitude softkeys. The WIND Softkey label changes to reflect the altitude selected. Figure 6-32 Winds Aloft Weather Product at 9,000 Feet Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 332 Table 6-4. Headwind Tailwind Headwind/Tailwind Component Symbol Symbol None None Less than 5 knots 5 knots 10 knots 50 knots Table 6-4 Profile View Headwind/Tailwind Component Symbols Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 333 7) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-35 Navigation Map Page Menu Figure 6-36 Navigation Map Page Setup Menu Figure 6-37 Navigation Map Page Setup Menu, Weather Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 334 2) Press the MORE WX Softkey. 3) Press the COUNTY Softkey. To display the County Warnings legend (Figure 6-39), press the LEGEND Softkey when County Warnings are displayed. Figure 6-39 County Warnings Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 335 2) Press the MORE WX Softkey. 3) Press the CYCLONE Softkey. To display the Cyclone legend (Figure 6-41), press the LEGEND Softkey when Cyclone data is displayed. Figure 6-41 Cyclone Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 336: Icing Potential (Cip And Sld) (Icng)
Figure 6-42 Icing Data at 6,000 Feet To display the Icing Potential legend (Figure 6-43), press the LEGEND Softkey when Icing data is displayed. Figure 6-43 Icing Potential Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 337 Figure 6-44 Turbulence Weather Product at 21,000 Feet To display the Turbulence legend (Figure 6-45), press the LEGEND Softkey when Turbulence is selected for display. Figure 6-45 Turbulence Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 338 6) Use the FMS Knob or the ENT Key to scroll through the PIREP or AIREP text. 7) Press the FMS Knob or the CLR Key to return to the Weather Data Link (XM) Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 339 TFRs may be issued at any time, and TFR data displayed on the G1000 is only intended to supplement official TFR information obtained from official sources including Flight Service Stations (FSS), and air traffic control.
Page 340 If a map range larger than the TFR product map range setting is selected, the TFR product data is removed from the map. Maps other than the Navigation Map Page use settings based on those selected for the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 341 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-51 Navigation Map Page Menu Figure 6-52 Navigation Map Page Setup Menu Figure 6-53 Navigation Map Page Setup Menu, Aviation Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 342: Garmin Connext Weather
Before setting up an Iridium account, obtain the serial number of the Iridium Transceiver (GSR1) and the System ID by selecting the AUX-System Status Page as shown in Figure 6-54. Contact Garmin at 1-866-739-5687 in the United States or 913-397-8200, ext. 1135.
Page 343: Registering Garmin Connext Weather
Figure 6-54 Identification Needed for Iridium Registration REGISTERING GARMIN CONNEXT WEATHER When an account is established, Garmin provides an Access Code which must be entered on the system in order to complete the registration process. Registering the system to receive Garmin Connext Weather: 1) With the aircraft outside and having a clear view of the sky, turn the large FMS Knob on the MFD to select the MAP page group.
Page 344 5) Press the ENT Key. The Connext Registration Window appears as shown in Figure 6-56. Figure 6-56 Enter Access Code 6) Enter the access code provided by Garmin in the ‘ACCESS CODE’ field. Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 345: Accessing Garmin Connext Weather Products
HAZARD AVOIDANCE 7) Press the ENT Key. ‘REGISTER’ is highlighted as in Figure 6-56. 8) Press the ENT Key. The system contacts Garmin through the Iridium network. System registration is complete when ‘REGISTERED’ appears in the STATUS field. ACCESSING GARMIN CONNEXT WEATHER PRODUCTS The principal map for viewing Garmin Connext weather information is the Weather Data Link (CNXT) Page in the Map Page Group (Figure 6-57).
Page 346 For each enabled Garmin Connext weather product, with the exception of TAFs and TFRs, discussed later, the system displays a weather product icon and product age. The product age is the elapsed time (in minutes) since the weather data provider compiled the weather product.
Page 347: Pilot Weather Report (Pireps)
Canadian radar precipitation data provided by Environment Canada. † ˆ Australian radar precipitation data provided by the Australian Bureau of Meteorology. Table 6-5 Garmin Connext Weather Product Symbols and Data Timing Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 348 HAZARD AVOIDANCE Table 6-6 shows which Garmin Connext Weather products can be displayed (indicated with a ‘+’ symbol) on specific G1000 maps. Garmin Connext Weather Product Precipitation (PRECIP) Infrared Satellite (IR SAT) Datalink Lightning (LTNG) SIGMETs/AIRMETs (SIG/AIR) METARs Winds Aloft (WIND)
Page 349 If multiple weather data link services are installed, customizing the display settings for the corresponding weather products shown in Table 6-3 will result in identical settings for a comparable weather product from another service provider. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 350 6) Turn the small FMS Knob to scroll through options for each product (ON/OFF, range settings). 7) Press the ENT Key to select an option. 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 351 4) To remove the Legend Window, select the LEGEND Softkey, the ENT or the CLR Key, or press the FMS Knob. When a Garmin Connext weather product is enabled for display on the PFD Inset Map, the weather product information box (with the product icon and age) can be displayed inside the PFD Inset Map.
Page 352: Connext Data Requests
The status of the Garmin Connext data request process is also displayed. Before a Garmin Connext data request can occur, a valid request coverage area must be defined from which all currently available Garmin Connext weather products will be retrieved. At a minimum, either the aircraft’ s present position or a waypoint (as part of a flight plan or entered directly in the ‘WAYPOINT’...
Page 353 FMS Knob to return to the Weather Data Link (CNXT) Page without requesting weather data. Figure 6-65 Weather Data Link (CNXT) Page Menu Figure 6-66 Connext Data Request Window Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 354 Iridium signal connection quality. The system retrieves all available Garmin Connext Weather products within the selected coverage area during an initial Connext Data Request, regardless of which products (if any) are currently enabled for display. On...
Page 355 Press the ENT Key to immediately send an immediate Connext Data Request. Or : Press the FMS Knob to return to the Weather Data Link (CNXT) Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 356: Garmin Connext Weather Products
Each radar site or source may provide weather data at differing rates and times. Periodically, the Garmin Connext service compiles the available information to form a composite image, and assigns a single time to indicate when it created the image. This image becomes the Precipitation weather product.
Page 357 • Radar base reflectivity does not provide sufficient information to determine precipitation characteristics (wet hail vs. rain). For example, it is not possible to distinguish between wet snow, wet hail, and rain. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 358 • Sun strobes (when the radar antenna points directly at the sun) • Interference from buildings or mountains, which may cause shadows • Metallic dust (chaff) from military aircraft, which can cause alterations in radar scans Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 359 2) Press the IR SAT Softkey. To display the Infrared Satellite legend (Figure 6-72), press the LEGEND Softkey when Infrared Satellite data is selected for display. Figure 6-72 Infrared Satellite Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 360 To display the Connext Data Link Lightning legend on the Weather Data Link (CNXT) Page (Figure 6-74), select the LEGEND Softkey when Connext Data Link Lightning is selected for display. Figure 6-74 Connext Data Link Lightning Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 361 To display the SIGMET and AIRMET legend (Figure 6-77), press the LEGEND Softkey when SIGMETs and AIRMETs are selected for display. Figure 6-77 SIGMET/AIRMET Legend Figure 6-76 Sample SIGMET Text Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 362 4) Use the FMS Knob or the ENT Key to scroll through the METAR and TAF text. METAR text must be completely scrolled through before scrolling through the TAF text. 5) Press the FMS Knob or the CLR Key to return to the Weather Data Link (CNXT) Page. Or : Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 363 4) When finished, press the FMS Knob to remove the cursor or press the FPL Key to exit the Active Flight Plan Page. To display the METAR legend on the Weather Data Link (CNXT) Page, press the LEGEND Softkey when METARs are selected for display. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 364 The WIND Softkey label changes to reflect the altitude selected. Figure 6-81 Winds Aloft Data at 9,000 Feet To display the Winds Aloft legend (Figure 6-82), press the LEGEND Softkey when Winds Aloft is selected for display. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 365 (Figure 6-83). The displayed components are relative to current aircraft altitude and track, but not to aircraft speed. Headwind Tailwind Headwind/Tailwind Symbol Symbol Component None None Less than 5 knots 5 knots 10 knots 50 knots Table 6-8 Profile View Headwind/Tailwind Component Symbols Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 366 7) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-84 Navigation Map Page Menu Figure 6-85 Navigation Map Page Setup Menu Figure 6-86 Navigation Map Page Setup Menu, Weather Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 367 6) Use the FMS Knob or the ENT Key to scroll through the PIREP text. 7) Press the FMS Knob or the CLR Key to close the PIREP text window and return to the Weather Data Link (CNXT) Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 368 TFRs may be issued at any time, and TFR data displayed on the G1000 is only intended to supplement official TFR information obtained from Flight Service Stations (FSS), and air traffic control.
Page 369 If a map range larger than the TFR product map range setting is selected, the TFR product data is removed from the map. Maps other than the Navigation Map Page use settings based on those selected for the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 370 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-92 Navigation Map Page Menu Figure 6-94 Navigation Map Page Setup Menu, Weather Group Figure 6-93 Navigation Map Page Setup Menu Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 371: Abnormal Operations
HAZARD AVOIDANCE ABNORMAL OPERATIONS If the G1000 cannot complete a Connext Data Request, one or more messages will appear in the request status window. Weather Request Status Description Message Auto requests inhibited The system has disabled automatic weather data requests due to excessive errors.
Page 372 GARMIN CONNEXT WEATHER IN REVERSIONARY MODE When the G1000 is operating in Reversionary Mode, only those weather products which can be displayed on the PFD Inset map will be available for display (see Table 6-6 for a list of weather products and their associated map availability).
Page 373: Fis-B Weather
The optional Garmin GDL 88 is a Universal Access Transceiver (UAT). It receives Flight Information Services - Broadcast (FIS-B) weather data from a network of UAT ground-based transceivers (GBTs). The system displays FIS-B graphical weather information and associated text on the Multi Function Display (MFD) and the Primary Flight Display (PFD) Inset Map.
Page 374 FIS-B GBTs broadcast new signals that may or may not contain new weather data. It does not represent the rate at which weather data is updated or new content is received by the UAT. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 375: No Product Image
No Radar Coverage SIGMETs/AIRMETs (SIG/AIR) TAFs TFRs Winds Aloft* (WIND) * Winds Aloft information appears inside Profile View window on the Navigation Map Page. Table 6-11 FIS-B Weather Product Display Maps Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 376 6) Turn the small FMS Knob to scroll through options for each product (ON/OFF, range settings). 7) Press the ENT Key to select an option. 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 377 7) Press the ENT Key to select an option. 8) Press the FMS Knob or CLR Key to return to the Weather Data Link (FIS-B) Page with the changed settings. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 378 7) Turn the large FMS Knob if needed to highlight ‘Restore Selection Default’ (to restore only the highlighted field) or ‘Restore All Defaults’ (to restore all products within the selected product group to their default settings), and press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 379 Select ‘Weather Legend’ and press the ENT Key. 3) To remove the Legend Window, press the LEGEND Softkey, the ENT or the CLR Key, or press the FMS Knob. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 380 This image becomes the NEXRAD weather product. Individual Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 381 NEXRAD coverage being displayed. The system shows composite radar data from all available NEXRAD sites inside of this boundary area. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 382 The display of no radar coverage is enabled when NEXRAD is selected for display. Areas where radar data is not currently available, has not yet been received, or is not being collected are indicated in gray shade of purple. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 383 A Convective SIGMET is issued for hazardous convective weather such as severe or widespread thunderstorms. A localized SIGMET can be displayed when significant weather conditions are not widespread. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 384 To display the SIGMET and AIRMET legend (Figure 6-108), press the LEGEND Softkey when SIGMETs and AIRMETs are selected for display. Figure 6-108 SIGMET/AIRMET Legend Figure 6-107 Convective SIGMET Text Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 385 Note the original text may contain additional information not found in the decoded version. TAF information, when available, appears only in its original text. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 386 In addition, METAR flags and their associated text are displayed on the Active Flight Plan Page on the MFD. METAR flags appears next to waypoints in the flight plan with an associated METAR. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 387 4) Press the softkey for the desired altitude. Press the NEXT or PREV Softkey to cycle through the altitude softkeys. The WIND Softkey label changes to reflect the altitude selected. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 388 Headwind and tailwind components aloft are available inside the Profile View on the Navigation Map Page (Figure 6-114). The displayed components are relative to current aircraft altitude and track, but not to aircraft speed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 389 1) Press the MENU Key. 2) Turn the large FMS Knob to highlight ‘Show Profile View’ or ‘Hide Profile View’ (choice dependent on current state) and press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 390 7) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-115 Navigation Map Page Menu Figure 6-116 Navigation Map Page Figure 6-117 Navigation Map Page Setup Menu, Setup Menu Weather Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 391 6) Use the FMS Knob or the ENT Key to scroll through the PIREP text. 7) Press the FMS Knob or the CLR Key to close the PIREP text window and return to the Weather Data Link (FIS-B) Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 392 The age of TFR data is not shown; however, if TFR data is not available or has expired, the system displays ‘TFR N/A’ in the upper-left corner of maps on which TFRs can be displayed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 393 If a map range larger than the TFR product map range setting is selected, the TFR product data is removed from the map. Maps other than the Navigation Map Page use settings based on those selected for the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 394 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-123 Navigation Map Page Menu Figure 6-125 Navigation Map Page Setup Menu, Figure 6-124 Navigation Map Page Aviation Group Setup Menu Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 395: Fis-B Weather Status
AWAITING DATA The system is receiving the FIS-B weather service, and is waiting to receive the NOTAM/TFR weather product from the FIS-B data broadcast. PIREP REGIONAL NEXRAD SIGMET WINDS/TEMPS ALOFT Table 6-14 AUX-ADS-B Status Page Messages for FIS-B Weather Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 396: Airborne Color Weather Radar
6.4 AIRBORNE COLOR WEATHER RADAR SYSTEM DESCRIPTION The optional Garmin GWX 68 Airborne Color Weather Radar is a four-color digital pulsed radar with 6.5 kilowatts of output power. The Garmin GWX 70 Airborne Color Weather Radar is a solid-state pulsed radar with forty watts of output power.
Page 397 Both systems use colors to identify the different echo intensities, but the colors are not interchangeable. Airborne color radar values used by Garmin Airborne Color Weather Radar should not be confused with NEXRAD radar values. ANTENNA BEAM ILLUMINATION The radar beam is much like the beam of a spotlight.
Page 398 Additionally, a cloud that contains only small raindrops, such as fog or drizzle, does not reflect enough radar energy to produce a measurable target return. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 399 A large incident angle gives the radar system a smaller detectable range and lower display intensity due to minimized reflection of the radar energy. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 400: Safe Operating Distance
9.16 feet from the 10-inch antenna. All personnel must remain outside of this zone. With a scanning or rotating beam, the averaged power density at the MPEL boundary is significantly reduced. MPEL Boundary 9.16 ft. for 10” antenna Figure 6-131 MPEL Boundary Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 401: Basic Antenna Tilt Setup
Therefore, with the antenna tilt set so that the bottom of the beam is four degrees below parallel with the ground, a target return at 10 nm is approximately 4,000 feet below the aircraft; at 20 nm, 8,000 feet; Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 402: Weather Mapping And Interpretation
Magenta is only shown in GWX 68 installations. • Areas that show steep color gradients (intense color changes) over thin bands or short distances suggest irregular rainfall rate and strong turbulence. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 403 Figure 6-134 The Blind Alley - Horizontal Scan In areas of multiple heavy cells, use the Vertical Scan feature along with antenna tilt management to examine the areas. Remember to avoid shadowed areas behind targets. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 404 Some hail shafts are extremely narrow (100 yards or less) and make poor radar targets. In the upper regions of a cell where ice particles are dry (no liquid coating), target returns are less intense. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 405 Figure 6-136 Horizontal Scan Display (GWX 68) Displaying weather on the Weather Radar Page: 1) Select the Weather Radar Page in the Map Page Group with the FMS Knob. 2) Press the MODE Softkey. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 406 Line. Press the ENT Key. 2) Press the ENT Key. 3) Turn the small FMS Knob to place the Bearing Line on the desired storm cell or other area to be vertically scanned. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 407 8) To select a new area to be vertically scanned, press the HORIZON Softkey to return to the Horizontal Scan view and repeat the previous steps. The Joystick can also be used to adjust bearing from left to right. Figure 6-139 Vertical Scan Display (GWX 68) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 408 2) Turn the small FMS Knob to adjust the antenna tilt angle. The selected tilt angle is implemented when Horizontal Scan is selected again. The Joystick can also be used to adjust tilt. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 409 3) Press the FMS Knob to remove the cursor. 4) Press the GAIN Softkey again to recalibrate the gain. CALIBRATED is displayed in the GAIN field. Manual Gain Set Below Calibrated Calibrated Gain Figure 6-142 Gain Calibration Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 410 6) If desired, readjust the Bearing Line as discussed previously to change the center of the Sector Scan. 7) Press the BRG Softkey again to remove the Bearing Line and cursor. The bearing reference is reset to 0º. Figure 6-144 40˚ Sector Scan Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 411 Areas of attenuated Potentially stronger than displayed. signal are shaded ® ® Horizontal Scan Without WATCH Horizontal Scan With WATCH ® Figure 6-145 Horizontal Scan Without and With WATCH Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 412: Ground Mapping And Interpretation
GAIN and TILT controls help improve contrast so that specific ground targets can be recognized more easily. As previously discussed, the type and orientation of the target in relation to the aircraft affects the intensity displayed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 413: Weather Radar Overlay On The Navigation Map Page
If the radar is operating in vertical scan mode while the overlay is enabled, the system indicates ‘N/A’ in the information box to indicate the airborne weather radar overlay is not available until the horizontal scan mode is selected on the Weather Radar Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 414 When the radar range is adjusted on the Navigation Map Page, system synchronizes the same range to the Weather Radar Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 415: System Status
† Annunciations in this column appear in white text in the Weather Radar Mode box on the Navigation Map Page. * See Table 6-19 for additional failure annunciations Table 6-17 Radar Modes on the Weather Radar Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 416 The system is not receiving valid data from the radar unit. The system RADAR FAIL should be serviced. Table 6-19 Abnormal Radar Status Annunciations on the Weather Radar Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 417: Stormscope
2) With ‘Map Setup’ selected (Figure 6-149), press the ENT Key. 3) Turn the small FMS Knob to display the group selection window. Turn the small FMS Knob to select ‘Weather’, and press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 418 • STRMSCP SMBL – Selects the range at which Stormscope data displays. Stormscope data is removed when a map range greater than the STRMSCP SMBL value is selected. Figure 6-149 Navigation Map Page Menu Figure 6-150 Map Setup Menu Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 419 Manually clearing Stormscope data on the Navigation Map: 1) Press the MENU Key. 2) Select ‘Clear Stormscope Lightning’ (Figure 6-152). ® 3) Press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 420 8) Press the FMS Knob to return to the Navigation Map Page. To change the display range on the Navigation Map Page, turn the Joystick clockwise to zoom out or counter-clockwise to zoom in. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 421: Selecting The Stormscope Page
2) Press the VIEW Softkey. The 360 and ARC softkeys are displayed. Press the 360 Softkey to display a 360˚ viewing area or press the ARC Softkey to display a 120˚ viewing area. 3) Press the BACK Softkey to return to the main Stormscope page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 422: Terrain Proximity
Terrain Proximity Page is selected for display. Terrain Proximity uses black, yellow, and red to represent terrain information relative to aircraft altitude. The color of each obstacle is associated with the altitude of the aircraft. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 423 The setup menu also controls the map range settings above which terrain and obstacle data are decluttered from the display. If a map range larger than the map range setting is selected, the data is removed from the map. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 424 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-156 Navigation Map Page Menu Figure 6-157 Navigation Map Page Setup Menu Figure 6-158 Navigation Map Page Setup Menu, Map Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 425: Terrain Proximity Page
Press the 360 or ARC Softkey to select the desired view. Or : a) Press the MENU Key. b) Select ‘View Arc’ or ‘View 360º’ (choice dependent on current state) and press the ENT Key to change the view. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 426 Black Terrain (Terrain More than 1000’ Below the Aircraft Altitude) Red Lighted Obstacle Terrain Legend (Above or Within 100’ Below Aircraft Altitude) Figure 6-161 Terrain Proximity Page (ARC View) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 427: Profile View Terrain
The G1000 offers a Profile View of terrain and obstacles relative to the aircraft’ s current flight path and altitude on the Navigation Map Page of the MFD. Profile View does not provide terrain or obstacle caution or warning annunciations or voice alerts, nor does it display potential impact points inside the Profile View.
Page 428: Profile View Display
Obstacles with heights greater than 200 feet AGL appear relative to aircraft altitude along the altitude scale. The top of the obstacle symbol on the scale represents the obstacle’ s height AGL. If the obstacle’ s height AGL Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 429 The Profile Path rectangle may be configured on or off, and the Navigation Map range at which the Profile Path is removed from map display can be changed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 430 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-165 Navigation Map Page Menu Figure 6-166 Navigation Map Page Setup Menu Figure 6-167 Navigation Map Page Setup Menu, Profile Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 431: Terrain-Svs
3-D GPS position. The G1000 GPS receiver provides the horizontal position and altitude. GPS altitude is derived from satellite position. GPS altitude is then converted to the height above geodetic sea level (GSL), which is the height above mean sea level calculated geometrically.
Page 432: Displaying Terrain-Svs Data
* Gray obstacles only shown on navigation maps. Table 6-24 Profile View Terrain/Obstacle Colors and Symbology Potential Impact Alert Type Example Annunciation Point Symbol Warning Caution Table 6-25 Terrain-SVS Potential Impact Point Symbols with Alert Types Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 433 • TERRAIN DATA – Turns the display of terrain data on or off and sets maximum range at which terrain is shown • OBSTACLE DATA – Turns the display of obstacle data on or off and sets maximum range at which obstacles are shown Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 434: Terrain-Svs Page
2) Turn the small FMS Knob to select the Terrain-SVS Page. Changing the Terrain-SVS Page view: 1) Press the VIEW Softkey. 2) Press the 360 or ARC Softkey to select the desired view. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 435 Black Terrain (Terrain More than 1000’ Below the Aircraft Altitude) Terrain Legend Red Lighted Obstacle Annunciation (Above or Within Window 100’ Below Aircraft Altitude) Figure 6-174 Terrain-SVS Page (ARC View) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 436: Terrain-Svs Alerts
• Press the ENT Key (to display the Terrain-SVS Page) PFD Alert Annunciation MFD Pop-up Alert Figure 6-175 Terrain-SVS Alert Annunciations Terrain Display Enabled Terrain Legend Alert Annunciation Figure 6-176 Navigation Map Page (After Terrain-SVS Pop-up Alert Acknowledgment) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 437 Terrain-SVS Page. The alert is annunciated when the projected vertical flight path is calculated to come within minimum clearance altitudes in Figure 6-177. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 438 ‘LOW ALT’ annunciation may appear on the PFD next to the Altimeter if the current aircraft altitude is at least 164 feet below the prescribed altitude at the Final Approach Fix. See the Flight Instruments Section for details. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 439: System Status
† Annunciation is shown on Terrain-SVS Page and the Navigation Map Page when Terrain is enabled. * “Terrain System Available” will be heard when sufficient GPS signal is received, or Terrain database coverage area re- entered. Table 6-27 Terrain-SVS System Status Annunciations Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 440: Traffic Information Service (Tis)
Mode S transponder for the traffic data link. TIS receives traffic information from ground stations, and is updated every 5 seconds. The G1000 displays up to eight traffic targets within a 7.5-nm radius, from 3000 feet below to 3500 feet above the requesting aircraft. Traffic is displayed using the symbology shown in Table 6-28.
Page 441: Displaying Traffic Data
When traffic is selected on maps other than the Traffic Map Page, an icon is shown to indicate the feature is enabled for display. Traffic Advisory Non-Threat Traffic Traffic Status Traffic Display Banners Enabled Non-Bearing Traffic Advisory Figure 6-179 TIS Traffic on the Navigation Map Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 442 6) Turn the small FMS Knob to scroll through options for each product (ON/OFF, range settings, etc.). 7) Press the ENT Key to select an option. 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 443: Traffic Map Page
Press the OPERATE Softkey to begin displaying traffic. Or : a) Press the MENU Key. b) Select ‘Operate Mode’ (shown if TIS is in Standby Mode) and press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 444: Tis Alerts
As long as a single TA remains on the display, no additional voice alerts are generated. If a second TA appears on the display or if the number of TAs initially decreases and then subsequently increases, another voice alert is generated. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 445: System Status
SYSTEM STATUS The G1000 performs an automatic test of TIS during power-up. If TIS passes the test, TIS enters Standby Mode (on the ground) or Operating Mode (in the air). If TIS fails the power up test, an annunciation is shown in the center of the Traffic Map Page.
Page 446 FAILED The transponder has failed* UNAVAILABLE TIS is unavailable or out of range * Contact a service center or Garmin dealer for corrective action Table 6-29 TIS Failure Annunciations System Test has Failed Data Not...
Page 447 The traffic service is unavailable or out of range *Shown as symbol on Traffic Map Page **Shown in center of Traffic Map Page Table 6-31 TIS Traffic Status Banner Annunciations Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 448: Avidyne Tas600 Traffic
Mode S transponder for the air-to-air traffic data link. Traffic is displayed using the symbols shown in Table 6-32. TAS Symbol Description Non-Threat Traffic Proximity Advisory (PA) Traffic Advisory (TA) Traffic Advisory Off Scale Table 6-32 TAS Symbol Description Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 449: Displaying Traffic Data
Undetermined), Distance 4.0 Traffic nm, 500’ Above, Advisory Off- Descending Scale, 400’ Proximity Traffic, Below, Level 900’ Above, Non-Threat Level Traffic, Altitude Not Reported Figure 6-186 Traffic Map Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 450 2) Select the TRAFFIC Softkey to display traffic data on the inset map (TRFC-1). 3) Select the softkey again to display the traffic-only inset (TRFC-2). 4) Select the softkey again to remove traffic data. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 451: Altitude Display
Maps besides the Traffic Map Page use settings based on those selected for the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 452 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page. Figure 6-188 Navigation Map Page Menu Figure 6-189 Navigation Map Page Figure 6-190 Navigation Map Page Setup Menu, Setup Menu Traffic Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 453: Tas Alerts
Muting the TAS voice alert in progress: 1) Select the Traffic Map Page. 2) Select the MUTE Softkey while the voice alert is playing. Subsequent voice alerts will be heard. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 454: System Status
Data is not being received from the TAS unit *Shown as symbol on Traffic Map Page **Shown in center of Traffic Map Page Table 6-35 TAS Traffic Status Annunciations Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 455: Garmin Gdl 88 Ads-B Traffic
The optional Garmin GDL 88 is a dual-link Universal Access Transceiver (UAT). It sends and receives Automatic Dependent Surveillance-Broadcast (ADS-B) traffic information on the 978 MHz UAT frequency. It also receives data link weather information on the UAT frequency.
Page 456 Only when in ADS-B ground station coverage and when the other aircraft is in ATC radar coverage. Table 6-36 Aircraft Available for Viewing by an ADS-B Equipped Own Aircraft Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 457: Ads-B With Tas
Radar Altitude (if available), Height Above Terrain, and Geodetic Sea Level (GSL) altitude are used to adjust the sensitivity of the CSA algorithm in accordance with the following table: Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 458 <=42,000 Terminal (including unavailable) Unavailable or Unavailable or Not approach > 42,000 1200 1.10 >2350 >2350 and not Terminal (including unavailable) Table 6-37 CSA Alerting Thresholds for ADS-B Traffic Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 459 “One Mile” through “Ten Miles”, or “Altitude not available” “More than ten miles” or “No Bearing” Table 6-38 TA Descriptive Voice Announcements ADS-B traffic voice alerts are suppressed when below 500 feet. NOTE: Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 460: Airborne And Surface Applications
AUX-ADS-B Status Page, discussed later in this section. SURF Application Aircraft traffic is on the ground Ground Vehicles Figure 6-194 Traffic Map Page with SURF Mode On Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 461: Traffic Description
Joystick, as indicated by the map range rings. The traffic mode and altitude display mode are annunciated in the upper left corner of the page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 462 3) If an optional TAS is installed, ensure the TAS STBY Softkey is enabled. 4) Press the Test Softkey. Or : a) Press the MENU Key. b) Turn the small FMS Knob to highlight ‘Test Mode’. c) Press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 463 UNREST (unrestricted): All traffic is displayed from 9900 feet above and 9900 feet below the aircraft. • 3) To return to the Traffic Map Page, press the BACK Softkey. Or : 1) Press the MENU Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 464 Figure 6-197 Traffic Map Page with Absolute Motion Vectors Enabled Enabling/disabling the Motion Vector display: 1) Select the Traffic Map Page. 2) Select the MOTION Softkey. 3) Select one of the following softkeys: Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 465 4) Press a softkey for the desired duration (30 SEC, 1 MIN, 2 MIN, 5 MIN). 5) When finished, press the BACK Softkey to return to the Traffic Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 466 The Traffic Map Page can display additional information for a selected aircraft symbol. This may include the aircraft tail number/Flight ID, type of aircraft (e.g., glider, small/medium/large aircraft, service vehicle, unmanned airborne vehicle (UAV)), course, track, groundspeed), and other information. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 467 1) Ensure the traffic system is operating. With the Navigation Map displayed, press the MAP Softkey. 2) Press the TRAFFIC Softkey. Traffic is now displayed on the map as shown in Figure 6-200. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 468 6) Turn the small FMS Knob to scroll through options (ON/OFF, range settings, etc.). 7) Press the ENT Key to select an option. 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 469 2) Press the TRAFFIC Softkey to display traffic data on the inset map (TRFC-1). 3) Select the softkey again to display the traffic-only inset (TRFC-2). 4) Select the softkey again to remove traffic data. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 470: System Status
Table 6-41 Traffic Failure Annunciations The annunciations to indicate the status of traffic information appear in a banner at the lower left corner of maps on which traffic can be displayed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 471 1) Turn the large FMS Knob to select the AUX Page Group. 2) Turn the small FMS Knob to select the AUX - ADS-B Status Page. Figure 6-204 ADS-B Traffic Status on ADS-B Status Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 472 If no uplink has been received, or the status is invalid, dashes appear instead of a number of minutes. Table 6-43 AUX-ADS-B Status Page Messages for ADS-B Traffic Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-04 Rev. A...
Page 473: Section 7 Automatic Flight Control System
IAU failure results in loss of the autopilot and manual electric trim. The Garmin AFCS is a digital Automatic Flight Control System (AFCS), fully integrated within the G1000 System avionics architecture. The System Overview section provides a block diagram (Figure 1-1) to support this system description.
Page 474: Afcs Controls
Selects/deselects Vertical Path Tracking Mode for Vertical Navigation flight control NOSE UP/NOSE Control the mode reference in Pitch Hold, Vertical Speed, and Flight Level Change DN Keys modes 1045 Figure 7-1 Dedicated MFD AFCS Controls Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 475 AFCS Status Annunciation on the PFD. The function remains disabled until both sides of the switch are inactivated. The AP TRIM Switch is located on the left control stick. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 476: Flight Director Operation
**The selected navigation receiver must have a valid VOR or LOC signal or active GPS course before NAV or APR Key press activates flight director. Table 7-1 Flight Director Activation Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 477: Afcs Status Box
Status Lateral Modes Status Vertical Modes Armed Active Active Mode Armed Reference AFCS Status Box Selected Altitude Command Bars GPS is Selected Navigation Source Figure 7-2 PFD AFCS Display 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 478: Command Bars
10 seconds no action is taken, the flashing annunciation stops. Figure 7-4 Loss of VOR Signal The flight director is automatically disabled if the attitude information required to compute the default flight director modes becomes invalid or unavailable. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 479: Vertical Modes
** ALTV is armed automatically under VPTH when the VNV Target Altitude is to be captured instead of the Selected Altitude. ***GP is available in installations with GIA 63W IAUs when SBAS is available. Table 7-2 Flight Director Vertical Modes 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 480: Pitch Hold Mode (Pit)
• Pressing the CWS Button, hand-flying the aircraft to establish a new pitch reference, then releasing the CWS Button Pitch Hold Selected Altitude Mode Active Capture Mode Armed Selected Altitude Command Bars Maintain Desired Pitch Reference Figure 7-5 Pitch Hold Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 481: Selected Altitude Capture Mode (Alts)
Use of the ALT Knob to change the Selected Altitude while Selected Altitude Capture Mode is active causes the flight director to revert to Pitch Hold Mode with Selected Altitude Capture Mode armed for the new Selected Altitude. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 482: Altitude Hold Mode (Alt)
CWS Button is released at the desired altitude, the new altitude is established as the Altitude Reference. Altitude Hold Altitude Mode Active Reference Selected Altitude Selected Altitude Command Bars Hold Pitch Attitude to Maintain Altitude Reference Figure 7-7 Altitude Hold Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 483: Vertical Speed Mode (Vs)
Altitude Capture Mode Active Reference Mode Armed Selected Vertical Altitude Speed Reference Vertical Speed Reference Command Bars Indicate Climb to Attain Vertical Speed Reference Figure 7-8 Vertical Speed Hold Mode 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 484: Flight Level Change Mode (Flc)
Selected Change Mode Airspeed Altitude Capture Active Reference Mode Armed Airspeed Reference Airspeed Reference Command Bars Indicate Climb to Attain Selected Altitude Figure 7-9 Flight Level Change Mode (IAS) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 485: Vertical Navigation Modes (Vpth, Altv)
VNV Target Altitude (ALTV) or the Selected Altitude (ALTS), whichever is greater. Figure 7-10 Vertical Path Tracking Armed Annunciations 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 486 Selected VNV Target Altitude Below Altitude VNV Target Vertical Deviation Indicator Required Vertical Speed Bug GPS is Terminal Selected Phase of Navigation Flight Source Figure 7-11 Vertical Path Capture Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 487 If the change is made while nearing a waypoint with a VNV Target Altitude, the aircraft may not re-establish on the descent path in time to meet the vertical constraint. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 488 • Vertical deviation from the profile has exceeded 250 feet, but is now less than 200 feet Pressing the VNV Key twice re-arms Vertical Path Tracking for immediate profile re-capture. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 489 VNV Target Altitude or the Selected Altitude, depending on which altitude is to be intercepted first. VNV target altitudes can be changed while editing the active flight plan (see the Flight Management Section for details). 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 490: Glidepath Mode (Gp) (Sbas Only)
• Vertical deviation is valid • The CDI is at less than full scale deviation • Automatic sequencing of waypoints has not been suspended (no ‘SUSP’ annunciation on the HSI) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 491 AUTOMATIC FLIGHT CONTROL SYSTEM GPS Approach Glidepath Mode Active Mode Active Command Bars Indicate GPS is LNAV/VNAV Descent on Glidepath Selected Approach Navigation Active Glidepath Source Indicator Figure 7-16 Glidepath Mode 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 492: Glideslope Mode (Gs)
Active ILS Frequency Approach Glideslope Tuned Mode Active Mode Active Command Bars Indicate Descent NAV2 (localizer) is Selected on Localizer/Glideslope Path Navigation Source Glideslope Indicator Figure 7-18 Glideslope Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 493: Go Around Mode (Ga)
(i.e., with the CWS Button or NOSE UP/NOSE DN Keys) result in reversion to Pitch and Roll Hold modes. Go Around Mode Active Autopilot Disconnect Annunciation Flashes Yellow for 5 sec Command Bars Indicate Climb Figure 7-19 Go Around Mode 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 494: Lateral Modes
AUTOMATIC FLIGHT CONTROL SYSTEM 7.4 LATERAL MODES The Garmin AFCS offers the lateral modes listed in Table 7-3. Refer to the vertical modes section for information regarding Go Around Mode. Maximum Roll Lateral Mode Description Control Annunciation Command Limit Holds the current aircraft roll...
Page 495: Roll Hold Mode (Rol)
Table 7-4 Roll Hold Mode Responses CHANGING THE ROLL REFERENCE The roll reference can be changed by pressing the CWS Button, establishing the desired bank angle, then releasing the CWS Button. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 496: Heading Select Mode (Hdg)
340° at a time result in turn reversals. Heading Select Altitude Hold Mode Active Mode Active Selected Selected Heading Heading Command Bars Track Selected Heading Figure 7-21 Heading Select Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 497: Navigation Modes (Gps, Vor, Loc, Bc)
• Navigation source manually switched (with the CDI Softkey) • During a LOC/ILS approach the FAF is crossed while in GPS Navigation Mode after the automatic navigation source switch from GPS to LOC 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 498 Intercept Selected Altitude Source Figure 7-23 Navigation Mode Backcourse Pitch Hold Mode Active Mode Active Command Bars Hold Pitch Attitude LOC2 is Selected Navigation Source Figure 7-24 Backcourse Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 499: Approach Modes (Gps, Vapp, Loc)
2) Ensure that GPS is the selected navigation source (use the CDI Softkey to cycle through navigation sources if necessary). 3) Press the APR Key. Figure 7-25 GPS Approach Mode Armed 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 500 Mode. The AFCS will not intercept and fly a DME arc before reaching an IAF that defines the beginning of the arc segment. Likewise, if at any point while established on the DME arc the pilot deselects GPS Navigation Mode, the AFCS will no longer track the arc. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 501: Autopilot And Yaw Damper Operation
The yaw damper uses yaw rate and roll attitude to dampen the aircraft’ s natural Dutch roll response. It also uses lateral acceleration to coordinate turns. Yaw damper operation is independent of autopilot engagement. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 502: Engaging The Autopilot And Yaw Damper
In most scenarios, releasing the CWS Button reengages the autopilot with a new reference. Refer to the flight director modes section for CWS behavior in each mode. Control Wheel Steering Figure 7-27 CWS Annunciation Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 503: Disengaging The Autopilot And Yaw Damper
This means that the yaw damper can remain operational in some cases where the autopilot automatically disengages. The yaw damper also disengages upon a localized failure in the yaw damper system. Figure 7-29 Automatic Autopilot Disengagement 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 504: Example Flight Plan
This scenario-based set of procedures (based on the example flight plan found in the Flight Management Section) shows various Garmin AFCS modes used during a flight. In this scenario, the aircraft departs Charles B. Wheeler Downtown Airport (KMKC), enroute to Colorado Springs Airport (KCOS). After departure, the aircraft climbs to 12,000 ft and airway V4 is intercepted, following ATC vectors.
Page 505 At 50 feet from the Selected Altitude, the green ‘ALT’ annunciation flashes for up to 10 seconds; the autopilot transitions to Altitude Hold Mode and levels the aircraft. Selected Altitude of 12,000 MSL ALT Mode KMKC Figure 7-31 Departure 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 506: Intercepting A Vor Radial
Mode and the ‘VOR’ annunciation flashes green. The autopilot begins turning to intercept the Selected Course. 3) The autopilot continues the turn until the aircraft is established on the Selected Course. Figure 7-32 Intercepting a VOR Radial Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 507: Flying A Flight Plan/Gps Course
2) Following the flight plan, the autopilot continues to steer the aircraft under GPS guidance. Note that in GPS Navigation Mode, course changes defined by the flight plan are automatically made without pilot action required. Figure 7-33 Transition to GPS Flight Plan 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 508: Descent
The green ‘ALT’ annunciation flashes for up to 10 seconds upon reaching 50 feet from the Selected Altitude; the autopilot transitions to Altitude Hold Mode and levels the aircraft. Cruise Altitude of 12,000 MSL ALT Mode Selected Altitude of 10,000 MSL ALT Mode Figure 7-34 FLC Descent Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 509 ALT Mode Cruise Altitude of 12,000 MSL ALT Mode VNAV Target Altitude of 10,000 MSL Selected Altitude (set below VNAV Target Altitude) OPSHN 3 nm Figure 7-35 VPTH Descent 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 510 The green ‘ALT’ annunciation flashes for up to 10 seconds upon reaching 50 feet from the VNV Target Altitude; the autopilot transitions to Altitude Hold Mode and levels the aircraft at the vertical waypoint. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 511: Approach
3) There are two options available at this point, as the autopilot flies the ILS approach: • Push the AP DISC Switch at the decision height and land the aircraft. • Use the GA Button to execute a missed approach. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 512 4) There are two options available at this point, as the autopilot flies the approach: • Push the AP DISC Switch at the Decision height and land the aircraft. • Use the GA Button to execute a missed approach. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 513 AUTOMATIC FLIGHT CONTROL SYSTEM KCOS CEGIX FALUR HABUK PYNON Figure 7-38 LPV Approach to KCOS 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 514: Go Around/Missed Approach
Altitude Hold Mode and levels the aircraft. 4) The autopilot flies the holding pattern after the missed approach is activated. Annunciations are displayed in the Navigation Status Box, above the AFCS Status Box. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 515 AUTOMATIC FLIGHT CONTROL SYSTEM MOGAL KCOS Figure 7-39 Go Around/Missed Approach 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 516: Afcs Annunciations And Alerts
Doing so may cause the preflight system test to fail or never Preflight Test to start. Cycle power to the servos if this occurs. Preflight system test failed; aural alert sounds at failure Table 7-5 AFCS Status Alerts Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 517: Overspeed Protection
(specific to each flap setting), a single aural “AIRSPEED” will sound, alerting the pilot to the impending underspeed condition. Flaps Airspeed Alert 82 kts 80 kts 75 kts Table 7-6 AFCS Status Alerts 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 518 IAS equals the minimum commandable autopilot airspeed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 519: Annunciations For Kap 140 Autopilot System
KAP 140 equipped aircraft only: Each time the CDI Softkey is pressed or the navigation source NOTE: is changed (i.e. missed approach), the following message appears in the message window, “NAV Source Changed – Select Desired Autopilot Mode.” 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 520 AUTOMATIC FLIGHT CONTROL SYSTEM lank Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 521: Section 8 Additional Features
, it may be necessary to carry NOTE: ® ® another source of charts on-board the aircraft. Additional features of the G1000 include the following: • Synthetic Vision Technology (SVT) (Optional) • Electronic Stability and Protection (ESP ™ ) System (Optional) •...
Page 522 The Flight Data Logging feature automatically stores critical flight and engine data on an SD data card. Approximately 1,000 flight hours can be recorded for each 1GB of available space on the card. The G1000 system provides a control and display interface to an optional auxiliary video system. Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 523: Synthetic Vision Technology (Svt)
The optional Synthetic Vision Technology (SVT) is a visual enhancement to the G1000 Integrated Flight Deck. SVT depicts a forward-looking attitude display of the topography immediately in front of the aircraft. The field of view is 30 degrees to the left and 35 degrees to the right.
Page 524: Svt Operation
• PATHWAY Softkey enables display of rectangular boxes that represent course guidance. • SYN TERR Softkey enables synthetic terrain depiction. • HRZN HDG Softkey enables horizon heading marks and digits. • APTSIGNS Softkey enables airport signposts. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 525 1) Press the PFD Softkey. 2) Press the SYN VIS Softkey. 3) Press the APTSIGNS Softkey. Display of airport signs will cycle on or off with the APTSIGNS Softkey. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 526: Svt Features
CDI. An inactive leg of an active flight plan is represented by white boxes corresponding to a white line drawn on the Inset map or MFD map indicating an inactive leg. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 527 Climb profiles cannot be displayed due to the variables associated with aircraft performance. Flight plan legs requiring a climb are indicated by pathways displayed at a level above the aircraft at the altitude selected or programmed. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 528 Climbs NOT displayed by pathway Selected Altitude for Step Down Programmed descent displayed by pathway Selected Altitude or Programmed Altitude (whichever is higher) Figure 8-5 SVT Pathways, Enroute and Descent Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 529 Selected Altitude or Programmed Altitude (whichever is higher) Turn Segment Climbs NOT displayed NOT displayed by pathway by pathway MAHP Figure 8-6 SVT Pathways, Approach, Missed Approach, and Holding 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 530 It may not align with the terrain horizon, particularly when the terrain is mountainous or when the aircraft is flown at high altitudes. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 531 MFD traffic page. If the traffic altitude is unknown, the traffic will not be displayed on the SVT display. For more details refer to the traffic system discussion in the Hazard Avoidance section. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 532 Airport signs are activated and deactivated by pressing the APTSIGNS Softkey. Traffic Airport Airport Sign Sign with without Identifier Identifier (Between (Between 4.5 nm and 8 nm and 8 nm) 15 nm) Figure 8-8 Airport Signs Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 533 As the aircraft gets closer to the runway, more detail such as runway numbers and centerlines will be displayed. Other Runway Runway Selected for on Airport Approach Figure 8-9 Airport Runways 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 534 In these cases, the conflict is outside the SVT field of view to the left or right of the aircraft. TERRAIN Annunciation Terrain Caution Potential Impact Point Figure 8-10 Terrain Alert Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 535: Field Of View
1) While viewing the Navigation Map Page, press the MENU Key to display the PAGE MENU. 2) Turn the large FMS Knob to highlight Map Setup and press the ENT Key. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 536 VIEW turned on. Lines Depict PFD Field of View Field of View on the MFD SVT View on the PFD Figure 8-13 PFD and MFD Field of View Comparison Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 537: Safetaxi
In the example shown, the aircraft is on taxiway Bravo inside the High Alert Intersection boundary on KSFO airport. Airport Hot Spots are outlined in magenta. When panning over the airport, features such as runway holding lines and taxiways are shown at the cursor. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 538 1) While viewing the Navigation Map Page, press the MENU Key to display the PAGE MENU. 2) Turn the large FMS Knob to highlight the Map Setup Menu Option and press the ENT Key. Figure 8-15 Navigation Map PAGE MENU, Map Setup Option Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 539 SafeTaxi database is revised every 56 days. SafeTaxi is always available for use after the expiration date. When turning on the system, the Power-up Page indicates whether the databases are current, out of date, or not available. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 540 1 – Indicates the first issue of the SafeTaxi database for the year The SafeTaxi EFFECTIVE date 13–JAN–14 is the beginning date for the current database cycle. SafeTaxi EXPIRES date 10–MAR–14 is the revision date for the next database cycle. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 541 PFD1. As before, scroll through the listed information by turning the FMS Knob or pressing the ENT Key until the SafeTaxi database information is shown. Refer to Updating Garmin Databases in Appendix B for instructions on revising the SafeTaxi database. 190-00962-04 Rev. A...
Page 542 ADDITIONAL FEATURES Current Date is before Effective Date SafeTaxi Database has Expired SafeTaxi Database Not Installed Figure 8-19 AUX – System Status Page, SafeTaxi Database Status Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 543: Chartview
Do not maneuver the aircraft based solely upon the geo-referenced aircraft symbol. NOTE: The ChartView database subscription is available from Jeppesen, Inc. Available data includes: • Arrivals (STAR) • Airport Diagrams • Departure Procedures (DP) • NOTAMs • Approaches 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 544: Chartview Softkeys
PLAN PROFILE MINIMUMS FIT WDTH FULL SCN BACK Pressing the BACK Softkey returns to the Chart Selection Softkeys. Figure 8-21 ChartView SHW CHRT, Chart Selection, and Chart Option Softkeys Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 545: Terminal Procedures Charts
If there is a problem in rendering the data (such as a data error or a failure of an individual chart), the banner UNABLE TO DISPLAY CHART is then displayed. Figure 8-24 Unable To Display Chart Banner 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 546 9) Press the ENT Key to complete the chart selection. Chart Scale Select Desired Approach Chart From Menu Scroll Through Chart With the Joystick Figure 8-25 Approach Information Page, Chart Selection Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 547 ADDITIONAL FEATURES While the APPROACH Box is selected using the FMS Knob, the G1000 softkeys are blank. Once the desired chart is selected, the chart scale can be changed and the chart page can be scrolled using the Joystick. Pressing the Joystick centers the chart on the screen.
Page 548 This information source is not related to the INFO-1 or INFO-2 Softkey. When the INFO Box is selected using the FMS Knob, the G1000 softkeys are blank. The Charlotte, NC airport has five additional charts offering information; the Airport Diagram, Take-off Minimums, Class B Airspace, Airline Parking Gate Coordinates, and Airline Parking Gate Location.
Page 549 Figure 8-28 Airport Information Page, Class B Chart Selected from INFO View Pressing the DP Softkey displays the Departure Procedure Chart if available. Chart Not To Scale Aircraft Not Shown Icon Figure 8-29 Departure Information Page 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 550 Chart With the Joystick Aircraft Not Shown Icon Figure 8-30 Arrival Information Page Pressing the APR Softkey displays the approach chart for the airport if available. Figure 8-31 Approach Information Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 551 NOTAM Softkey label appears subdued and is disabled as shown in Figure 8-32. The NOTAM Softkey may appear on the Airport Information Page and all of the chart page selections. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 552 Figure 8-33 NOTAM Softkey Highlighted Local NOTAM on This Airport NOTAM Softkey Selected Figure 8-34 Airport Information Page, Local NOTAMs Pressing the NOTAM Softkey again removes the NOTAMS information. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 553: Chart Options
Pressing the CHRT OPT Softkey displays the next level of softkeys, the chart options level (Figure 8-21). Pressing the ALL Softkey shows the complete approach chart on the screen. Complete Chart Shown Figure 8-35 Approach Information Page, ALL View 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 554 Figure 8-36 Approach Information Page, Header View Pressing the PLAN Softkey shows the approach chart two dimensional plan view. Approach Chart Plan View Figure 8-37 Approach Information Page, Plan View Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 555 Pressing the MINIMUMS Softkey displays the minimum descent altitude/visibility strip at the bottom of the approach chart. Minimum Descent Altitude/ Visibility Strip Figure 8-39 Approach Information Page, Minimums View, Full Screen Width 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 556 If the chart scale has been adjusted to view a small area of the chart, pressing the FIT WIDTH Softkey changes the chart size to fit the available screen width. Press FIT WDTH Softkey to Show Full Chart Width Figure 8-40 Airport Information Page, FIT WDTH Softkey Pressed Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 557 Screen and Chart with Info Window Figure 8-41 Airport Information Page, Full Screen and Info Window Pressing the BACK Softkey, or waiting for 45 seconds reverts to the chart selection softkeys. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 558 3) Turn the large FMS Knob to move between the FULL SCREEN and COLOR SCHEME Options. 4) Turn the small FMS Knob to choose between the On and Off Full Screen Options. Chart Setup Option Full Screen On/Off Selection Figure 8-42 Page Menus Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 559: Day/Night View
ChartView can be displayed on a white or black background for day or night viewing. The Day View offers a better presentation in a bright environment. The Night View gives a better presentation for viewing in a dark environment. When the CHART SETUP Box is selected the G1000 softkeys are blank. Selecting Day, Night, or Automatic View: 1) While viewing a terminal chart press the MENU Key to display the Page Menu OPTIONS.
Page 560 ADDITIONAL FEATURES Figure 8-44 Arrival Information Page, Day View Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 561 ADDITIONAL FEATURES Figure 8-45 Arrival Information Page, Night View 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 562: Chartview Cycle Number And Expiration Date
Figure 8-46 Power-up Page, ChartView Database Power-up Page Display Definition Blank Line. system is not configured for ChartView. Contact a Garmin‑ authorized service center for configuration. System is configured for ChartView but no chart database is installed. Contact Jeppesen for a ChartView database.
Page 563 Figure 8-47 AUX – System Status Page, ChartView Current and Available The ChartView database is provided directly from Jeppesen. Refer to Updating Jeppesen Databases in Appendix B for instructions on revising the ChartView database. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 564 ChartView has Expired, but is not Disabled ChartView Database is Disabled ChartView Database is Not Available Figure 8-48 AUX – System Status Page, ChartView Database Status Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 565: Flitecharts
Therefore, when the aircraft symbol appears within one of these areas, the aircraft position indicated is relative to the chart planview, not to the off-scale area. The FliteCharts database subscription is available from Garmin. Available data includes: • Arrivals (STAR) •...
Page 566: Flitecharts Softkeys
FIT WDTH FULL SCN BACK Pressing the BACK Softkey returns to the Chart Selection Softkeys. Figure 8-50 FliteCharts SHW CHRT, Chart Selection, and Chart Option Softkeys Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 567: Terminal Procedures Charts
If there is a problem in rendering the data (such as a data error or a failure of an individual chart), the banner UNABLE TO DISPLAY CHART is then displayed. Figure 8-53 Unable To Display Chart Banner 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 568 9) Press the ENT Key to complete the chart selection. Chart Not To Scale Select Desired Approach Chart from Menu Scroll Through Chart With the Joystick Aircraft Not Shown Icon Figure 8-54 Approach Information Page, Chart Selection Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 569 ADDITIONAL FEATURES While the APPROACH Box is selected using the FMS Knob, the G1000 softkeys are blank. Once the desired chart is selected, the chart scale can be changed and the chart can be panned using the Joystick. Pressing the Joystick centers the chart on the screen.
Page 570 (Figure 8-56) for certain airports. This information source is not related to the INFO- 1 or INFO-2 Softkey. When the INFO Box is selected using the FMS Knob, the G1000 softkeys are blank. The Charlotte, NC airport has three additional charts offering information; the Airport Diagram, Alternate Minimums, and Take-off Minimums.
Page 571 Take-off Minimums and Departure Procedures Chart (Figure 8-57). Figure 8-57 Airport Information Page, TAKE OFF MINIMUMS Selected from INFO View Pressing the DP Softkey displays the Departure Procedure Chart if available. Figure 8-58 Departure Information Page 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 572 Pressing the STAR Softkey displays the Standard Terminal Arrival Chart if available. Figure 8-59 Arrival Information Page Pressing the APR Softkey displays the approach chart for the airport if available. Figure 8-60 Approach Information Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 573 3) Turn the large FMS Knob to highlight the INFO Box. 4) Turn the small FMS Knob to select the INFO Box choices. When the INFO Box is selected the G1000 softkeys are blank. If multiple choices are available, scroll to the desired choice with the large FMS Knob and press the ENT Key to complete the selection.
Page 574: Chart Options
Pressing the CHRT OPT Softkey displays the next level of softkeys, the chart options level (Figure 8-50). Pressing the ALL Softkey shows the complete chart on the screen. Complete Chart Shown Figure 8-62 Airport Information Page, ALL View Selected Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 575 Press FIT WDTH Softkey to Show Full Chart Width Figure 8-63 Approach Information Page, FIT WDTH Softkey Selected 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 576 Full Screen and Chart with Info Window Figure 8-64 Airport Information Page, Full Screen and Info Window Pressing the BACK Softkey, or waiting for 45 seconds reverts to the chart selection softkeys. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 577 3) Turn the large FMS Knob to move between the FULL SCREEN and COLOR SCHEME Options. 4) Turn the small FMS Knob to choose between the On and Off Full Screen Options. Chart Setup Option Full Screen On/Off Selection Figure 8-65 Page Menus 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 578: Day/Night View
FliteCharts can be displayed on a white or black background for day or night viewing. The Day View offers a better presentation in a bright environment. The Night View gives a better presentation for viewing in a dark environment. When the CHART SETUP Box is selected the G1000 softkeys are blank. Selecting Day, Night, or Automatic View: 1) While viewing a terminal chart press the MENU Key to display the Page Menu OPTIONS.
Page 579 ADDITIONAL FEATURES Figure 8-67 Approach Information Page, Day View 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 580: Flitecharts Cycle Number And Expiration Date
Power-up Page displays the current status of the FliteCharts database. See the table below for the various FliteCharts Power-up Page displays and the definition of each. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 581 Figure 8-69 Power-up Page, FliteCharts Database Power-up Page Display Definition Blank Line. system is not configured for FliteCharts. Contact a Garmin‑ authorized service center for configuration. System is configured for FliteCharts but no chart database is installed. Refer to Updating Garmin Databases in Appendix B for the FliteCharts database Normal operation.
Page 582 The FliteCharts EFFECTIVE date 10–FEB–14 is the first date that this database is current. The FliteCharts EXPIRES date 10–MAR–14 is the last date that this database is current. The DISABLES date 06–SEP–14 is the date that this database becomes inoperative. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 583 Data Figure 8-70 AUX – System Status Page, FliteCharts Current and Available The FliteCharts database is provided from Garmin. Refer to Updating Garmin Databases in Appendix B for instructions on revising the FliteCharts database. The other four possible AUX - System Status page conditions are shown here. The EFFECTIVE date, in yellow, indicates the current date preceeds the date the FliteCharts database becomes effective.
Page 584 Current Date is Before Effective Date FliteCharts Expired, but is not Disabled FliteCharts Database is Disabled FliteCharts Database is Not Available Figure 8-71 AUX – System Status Page, FliteCharts Datbase Status Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 585: Airport Directory
The Airport Directory databases are revised every 56 days and offered on a subscription basis. Check fly. garmin.com for the current database. The Airport Directory is always available for use after the expiration date. When turning on the system, the Power-up Page indicates whether the databases are current, out of date, or not available.
Page 586 Normal operation. Airport Directory database is valid and within current cycle. Airport Directory database has expired. Database card contains no Airport Directory data. Table 8-4 Airport Directory Annunciation Definitions Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 587 The Airport Directory EFFECTIVE date 13–JAN–14 is the beginning date for the current database cycle. The Airport Directory EXPIRES date 10–MAR–14 is the revision date for the next database cycle. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 588 (Table 8-4). NOT AVAILABLE appears in blue in the REGION field if Airport Directory data is not available on the database card. An expired Airport Directory database is not disabled and will continue to function indefinitely. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 589: Siriusxm Satellite Radio Entertainment
• On the label on the back of the Data Link Receiver • On the XM Information Page on the MFD (Figure 8-75) • On the XM Satellite Radio Activation Instructions included with the unit (available at www.garmin.com, P/N 190-00355-04) Contact the installer if the Data Radio ID and the Audio Radio ID cannot be located.
Page 590 XM Information Page and a yellow Activation Required message is displayed in the center of the Weather Data Link Page (Map Page Group). The Service Class refers to the groupings of weather products available for subscription. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 591: Using Siriusxm Radio
1) While on the XM Radio Page, press the CHNL Softkey. 2) Press the CH + Softkey to go up through the list in the Channel Box, or move down the list with the CH – Softkey. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 592 Turn the small FMS Knob to display the Categories list. Highlight the desired category with the small FMS Knob and press the ENT Key. Selecting All Categories places all channels in the list. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 593 Preset Channel Figure 8-78 Accessing and Selecting Preset SiriusXM Channels Pressing the BACK Softkey, or waiting during 45 seconds of softkey inactivity, returns the system to the top level softkeys. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 594 Mute SiriusXM audio: 1) Select the XM Radio Page or XM Information Page. 2) Press the MUTE Softkey to mute the audio. Press the MUTE Softkey again to unmute the audio. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 595: Satellite Telephone Services
Before setting up an Iridium account, obtain the serial number of the Iridium Transceiver (GSR1) and the System ID by selecting the AUX- SYSTEM STATUS Page as shown in Figure 8-80. Contact Garmin Flight Data Services at 1-866-739-5687 in the United States or 913-397-8200, ext. 1135.
Page 596 1) With the AUX‑TELEPHONE Page displayed, select the MENU Key on the MFD to display the Page Menu. 2) Turn either FMS Knob to place the cursor on ‘Enable Iridium Transmission’. 3) Press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 597 Phone is disabled Phone is reserved for data transmission Calling other phone or incoming call from other phone Other phone is on hold Phones are connected Table 8-5 Telephone Symbols 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 598 2) Turn either FMS Knob to place the cursor on ‘Disable Incoming Call Alerts’. 3) Press the ENT Key. The voice and pop‑up alert will not be displayed now when an incoming call is received. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 599 Press the MENU Key to display the Page Menu. c) Turn either FMS Knob to place the cursor on ‘Dial a Phone Call’. d) Press the ENT Key. Figure 8-84 Initiating a Call 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 600 4) Press the ENT Key. ‘OK’ is highlighted as in Figure 8‑85. Figure 8-85 Make the Call 5) Press the ENT Key. The system will begin calling the number, as in Figure 8‑86. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 601 When the phone is answered, the connection is established as shown in Figure 8-87. To exit the call, press the HANGUP Softkey. Figure 8-87 Phone is Answered, Connection Complete 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 602: Text Messaging (Sms)
Figure 8-88 Text Messaging Page Message Symbol Description Received text message that has not been opened Received text message that has been opened Saved text message, draft not sent Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 603 Selecting the IGNR ALL Softkey will extinguish the pop-window and ignore all future incoming text messages. Selecting the SMS Softkey will display the AUX-TEXT MESSAGING Page. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 604 2) Turn either FMS Knob to place the cursor on ‘Disable New Message Popups’ or ‘Enable New Message Popups’. 3) Press the ENT Key. The pop‑up alert will not be displayed when an incoming text message is received. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 605 Or : a) Press the MENU Key to display the Page Menu. b) Turn either FMS Knob to place the cursor on ‘Draft New Message’. c) Press the ENT Key. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 606 Time and effort can be saved in typing text messages that are used repeatedly by saving these messages as a predefined message. Creating a predefined text message: 1) While viewing the AUX‑TEXT MESSAGING Page, press the MENU Key to display the Page Menu. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 607 Turn either FMS Knob to place the cursor on ‘Draft New Predefined Message’. c) Press the ENT Key. The PREDEFINED SMS TEXT MESSAGE Window is now displayed as shown in Figure 8‑94. Figure 8-94 Composing a Predefined Message 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 608 Special characters can be accessed by selecting the SYMBOLS Softkey. 3) Press the ENT Key. The cursor is now displayed in the ‘MESSAGE’ field (Figure 8‑95). Figure 8-95 Composing a New Text Message Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 609 2) Turn either FMS Knob to place the cursor on ‘Show Inbox Messages’. 3) Press the ENT Key. The message box selected for viewing is indicated at the bottom left of the list window. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 610 2) Turn either FMS Knob to place the cursor on ‘Show Draft Messages’. 3) Press the ENT Key. The message box selected for viewing is indicated at the bottom left of the list window. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 611 2) Turn either FMS Knob to place the cursor on ‘Sort By Address’. 3) Press the ENT Key. The sorting selection is indicated at the bottom center of the list window. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 612 Or : a) Press the MENU Key to display the Page Menu. b) Turn either FMS Knob to place the cursor on ‘Close Message’. c) Press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 613 Turn either FMS Knob to place the cursor on ‘Mark Selected Message As Read’. c) Press the ENT Key. The message symbol now indicates the message has been opened. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 614 Or : a) Press the MENU Key to display the Page Menu. b) Turn either FMS Knob to place the cursor on ‘Delete Selected Message’. c) Press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 615: Electronic Stability And Protection (Esp ™ )
™ airspeed operating limit. While ESP utilizes the same sensors, processors, and actuators as the Garmin AFCS autopilot, it is a separate function. The ESP ™...
Page 616: Roll Engagement
The applied force is intended to ™ encourage pilot input that returns the airplane to a more normal roll attitude. As roll attitude decreases, ESP will disengage at 30°. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 617: Pitch Engagement
™ Maximum opposing force is applied between 20° and 50° nose-up and between 25° and 50° nose-down. ESP disengages when 50° is exceeded in a nose-up or nose-down attitude. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 618: High Airspeed Protection
Exceeding Vne will result in ESP applying force to raise the nose of the aircraft. When the high airspeed condition is remedied, ESP ™ force is no longer applied. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 619: Scheduler
Press the ENT Key again or use the large FMS Knob to move the cursor to the next field. c) Use the FMS Knob to enter the desired time (HH:MM) and press the ENT Key. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 620 The softkey label reverts to ALERTS when pressed. Pressing the ALERTS Softkey again removes the Messages Window from the display, and the scheduler message is deleted from the message queue. Figure 8-105 PFD Messages Window Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 621: Electronic Checklists
DA42NG. The information described in this section is not intended to replace the checklist information described in the POH. Garmin is not responsible for the content of checklists. Checklists are created by the aircraft NOTE: manufacturer. Modifications or updates to the checklists are coordinated through the aircraft manufacturer.
Page 622 9) Select the EXIT Softkey to exit the Checklist Page and return to the page last viewed. When returning to the Checklist Page after pressing the EXIT Softkey, the system will return to the last selected checklist item. Figure 8-107 Sample Checklist Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 623 6) Press the ENT Key to advance to the next checklist. 7) Select the RETURN Softkey to return to the previous checklist. 8) Select the EXIT Softkey to exit the Checklist Page and return to the page last viewed. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 624 ADDITIONAL FEATURES Figure 8-108 Emergency Checklist Page Example Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 625: Flight Data Logging
The file is created automatically each time the G1000 system is powered on, provided an SD card has been inserted.
Page 626 Local 24hr Time inserted if no YYMMDD HHMMSS airport is found) log_140210_104506_KIXD.csv Figure 8-109 Log File Format Data logging status can be monitored on the AUX - UTILITY Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 627: Auxiliary Video
ADDITIONAL FEATURES 8.12 AUXILIARY VIDEO The G1000 system provides a control and display interface to an optional auxiliary video system. Images provided on the Aux-Video page are for supplemental use only. NOTE: There are four modes of operation of the auxiliary video display: Full-Screen, Full-Screen with Digital Zoom, Split-Screen with Map, and Split-Screen with Map and Digital Zoom.
Page 628: Video Setup
Pressing the HIDE MAP Softkey again restores the map view and the small video image. The softkey label returns to white characters on a black background. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 629 ADDITIONAL FEATURES Video Display View Figure 8-112 AUX - Video Split-Screen Figure 8-113 Full Screen Video Display 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 630: Zoom/Range
RANGE Knob to control the range setting of the map display. Pressing the softkey to display VID ACTV allows the RANGE Knob to control the zoom setting of the video display. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 631: Wi-Fi Connections
2) If necessary, select the RESCAN Softkey to have the system scan again for available networks. Or : a) Press the MENU Key to display the Page Menu. b) Turn either FMS Knob to place the cursor on ‘Rescan Available Networks’. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 632 Use the FMS Knobs to enter the desired alpha numeric characters. Select the CAP LOCK Softkey to enter upper case letters. If there is no security associated with the network, proceed to step 9. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 633 7) Press the ENT Key. ‘OK’ will be highlighted. 8) Press the ENT Key again. 9) The SAVE SETTINGS window is now displayed with the cursor highlighting ‘SAVE CONNECTION’. Figure 8-117 Save Option 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 634 Press the ENT Key. The cursor moves to ‘CONNECT’. d) Press the ENT Key again to connect to the selected network. Figure 8-118 Save Connection Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 635 Figure 8-119 Select Network to be Edited 4) Select the EDIT Softkey. The cursor now appears in the CONNECTION SETTINGS window as shown in Figure 8‑120. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 636 1) While viewing the list of saved networks, press the FMS Knob to activate the cursor. 2) Turn either FMS Knob to highlight the network to be deleted. 3) Select the DELETE Softkey. The selected network is removed from the list. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 637: Abnormal Operation
Reversionary Mode, SVT will take up to 30 seconds to be displayed. The standard, non-SVT PFD display will be shown in the interim. Figure 8-121 SVT Reversionary Mode 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 638: Unusual Attitudes
SiriusXM • Ensure the SiriusXM subscription has been activated • Perform a quick check of the circuit breakers to ensure that power is applied to the Data Link Receiver Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 639 2) Turn the small FMS Knob to select the AUX ‑ SYSTEM STATUS page. Figure 8-124 LRU Information Window on System Status Page If a failure still exists, the following messages may provide insight as to the possible problem: 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 640 Weather Datalink Page ‑ center of page within last 5 minutes DETECTING ACTIVATION Weather Datalink Page ‑ center of page SiriusXM subscription is not activated Table 8-7 GDL 69/69A Data Link Receiver Error Messages Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 641: Annunciations And Alerts
Selecting the ALERTS Softkey a second time views the alert text messages. • System Annunciations: Typically, a large red ‘X’ appears over instruments whose information is supplied by a failed Line Replaceable Unit (LRU). See the G1000 System Annunciations Section for more information. System Annunciation Red ‘X’...
Page 642 APPENDIX A • Audio Alerting System: The G1000 System issues audio alert tones when specific system conditions are met. See the Alert Level Definitions Section for more information. The annunciation tone may be tested from the AUX - System Status Page.
Page 643 APPENDIX A ALERT LEVEL DEFINITIONS The G1000 Alerting System uses three alert levels. • WARNING: This level of alert requires immediate attention. Warning alert text is shown in red in the Annunciation Window and is accompanied by a continuous chime and a flashing ‘WARNING’...
Page 644 USP has engaged autopilot due to slow airspeed. * Optional (KAP 140 equipped aircraft only) ** Optional (Garmin AFCS equipped aircraft with ESP ™ only) *** Optional Table A-1 Warning Alerts Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 645 Right fuel transfer from aux to main in progress.  No Tone L GLOW ON Left engine glow plug active. R GLOW ON Right engine glow plug active.  Optional Table A-3 Advisory Alerts 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 646 3) Turn the large FMS Knob to highlight the voice in the Audio Alert Box. 4) Turn the small FMS Knob to select the desired voice, press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 647 APPENDIX A Figure A-4 Audio Alert (AUX - System Setup Page) 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 648 APPENDIX A G1000 SYSTEM ANNUNCIATIONS Upon power-up, certain windows remain invalid as G1000 equipment begins to initialize. All windows NOTE: should be operational within one minute of power-up. If any window continues to remain flagged, the G1000 System should be serviced by a Garmin-authorized repair facility.
Page 649 AHRS. Indications indicates that the field is not Display system is not receiving receiving valid data. valid true airspeed information from air data computer. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 650 Knowledge of the aircraft, systems, flight conditions, and other existing operational priorities must be considered when responding to a message. This section describes various G1000 System message advisories. Certain messages are issued due to an LRU or LRU function failure. Such messages are normally accompanied by a corresponding red ‘X’ annunciation as shown previously in the G1000 System Annunciations section.
Page 651 If the problem persists, the G1000 system should be serviced. COM1 SERVICE – COM1 needs The system has detected a failure in COM1. COM1 may still be usable. The G1000 service. Return unit for repair. system should be serviced when possible.
Page 652 Verify that stored flight plans contain correct waypoint locations. G/S1 FAIL – G/S1 is inoperative. A failure has been detected in glideslope receiver 1. The G1000 system should be serviced. G/S1 SERVICE – G/S1 needs service. A failure has been detected in glideslope receiver 1. The receiver may still be Return unit for repair.
Page 653 A failure has been detected in the DL 69/69A or GDL 69/69A SXM. The receiver is unavailable. The G1000 system should be serviced. GDL69 MANIFEST – GDL software The GDL 69/69A or GDL 69/69A SXM has incorrect software installed. The G1000 mismatch, communication halted. system should be serviced.
Page 654 The audio panel self-test has detected a problem in the unit. Certain audio functions may service. Return unit for repair. still be available, and the audio panel may still be usable. The G1000 system should be serviced when possible. GMU1 MANIFEST – GMU1 software The GMU 44 has incorrect software installed.
Page 655 The #1 AHRS has incorrect software installed. The G1000 system should be serviced. mismatch, communication halted. GSR1 FAIL – GSR1 has failed. A failure has been detected in the GSR 56. The transceiver is unavailable. The G1000 system should be serviced. GTX1 MANIFEST – GTX1 software The transponder has incorrect software installed.
Page 656 The MFD detected a failure in the ChartView database (optional feature). Ensure that database error exists. the data card is properly inserted. Replace data card. If problem persists, the G1000 system should be serviced. MFD1 DB ERR – MFD1 FliteCharts The MFD detected a failure in the FliteCharts database (optional feature).
Page 657 The remote NAV1 transfer switch is stuck in the enabled (or “pressed”) state. Press transfer key is stuck. the transfer switch again to cycle its operation. If the problem persists, the G1000 system should be serviced. NAV1 SERVICE – NAV1 needs service.
Page 658 The SD card in the bottom card slot of the specified PFD or MFD contains invalid data. 2 is invalid. PFD1 SERVICE – PFD1 needs service. The PFD self-test has detected a problem. The G1000 system should be serviced. Return unit for repair. PFD1 VOLTAGE – PFD1 has low The PFD1 voltage is low.
Page 659 TIMER EXPIRD – Timer has expired. The system notifies the pilot that the timer has expired. TRAFFIC FAIL – Traffic device has The G1000 is no longer receiving data from the traffic system. The traffic device failed. should be serviced.
Page 660 The system is receiving the FIS-B weather service, and is waiting to receive the METAR GRAPHICAL weather product from the FIS-B data broadcast. NOTAM/TFR PIREP REGIONAL NEXRAD SIGMET WINDS/TEMPS ALOFT Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 661: Flight Plan Import/Export Messages
The stored flight plan was not successfully exported to the SD card. The SD card may not have sufficient available memory or the card may have been removed prematurely. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 662 Doing so may cause the preflight system test to fail or never Preflight Test to start. Cycle power to the servos if this occurs. Preflight system test failed; aural alert sounds at failure Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 663: Tas Alerts And Annunciations
NO TRFC DATA Data is not being received from the TAS unit *Shown as symbol on Traffic Map Page **Shown in center of Traffic Map Page TAS Traffic Status Annunciations 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 664: Tis Alerts And Annunciations
FAILED The transponder has failed* UNAVAILABLE TIS is unavailable or out of range * Contact a service center or Garmin dealer for corrective action TIS Failure Annunciations Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 665: Svs Terrain Alerts
“Terrain System Failure” configuration; or System audio fault MFD Terrain or Obstacle database unavailable or invalid, and TERRAIN DATABASE FAILURE None None Terrain-SVS operating with PFD Terrain or Obstacle databases 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 666: Ads-B Alerts And Annunciations
NO TRFC DATA Data is not being received from the traffic unit *Shown as symbol on Traffic Map Page **Shown in center of Traffic Map Page Traffic Status Annunciations Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 667: Weather Radar Alerts And Annunciations
The radar unit is reporting a fault. The radar should be serviced. The system is not receiving valid data from the radar unit. The system RADAR FAIL should be serviced. Abnormal Radar Status Annunciations on the Weather Radar Page 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 668: Gdl 69A/Gdl 69A Sxm Data Link Receiver Messages
WEATHER DATA LINK FAILURE Weather Datalink Page - center of page within last 5 minutes DETECTING ACTIVATION Weather Datalink Page - center of page SiriusXM subscription is not activated Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 669: Database Management
The navigation database must be installed from the Jeppesen or user supplied SD data card. Go to www. flygarmin.com or www.jeppesen.com for subscription and update information. To do this procedure, use a blank SD card to copy the navigation database. Garmin SD Cards (bottom NOTE: SD card slots) must NOT be used.
Page 670 12) Press the Display Database Selection Softkey (Figure B-3) to show active navigation database information for each display. Unselected MFD1 DB Selected PFD1 DB Selected Figure B-3 Display Database Softkey 13) Verify the correct navigation database cycle information is shown for each display (Figure B-4). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 671 STBY DB Softkey on the AUX-System Status Page. Turn system power off, then on to complete the database change. After the standby navigation database is installed, the card must be removed. NOTE: 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 672 APPENDIX B Loading a standby navigation database: To do this procedure, use a blank SD card to copy the navigation database. Garmin SD Cards (bottom NOTE: SD card slots) must NOT be used. The use of SanDisk SD Card is recommended to update the navigation database file.
Page 673 Unselected MFD1 DB Selected PFD1 DB Selected Figure B-9 Display Database Softkey 16) Verify the correct standby navigation database cycle information is shown for each display (Figure B-10). 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 674: Garmin Databases/Jeppesen Chartview Database
Make sure that no messages related to database errors are displayed in the Messages window of the NOTE: PFD. 17) Remove power from the system. GARMIN DATABASES/JEPPESEN CHARTVIEW DATABASE The following databases are stored on Supplemental Data Cards provided by Garmin: • Expanded basemap • Obstacle • Airport Directory (AOPA or AC-U-KWIK) •...
Page 675 28-day cycle. If not updated within 180 days of the expiration date, FliteCharts will no longer function. The ChartView database should be copied to the Garmin supplied Supplemental Data Card which will reside in the bottom card slot on the MFD. Contact Jeppesen (www.jeppesen.com) for subscription and update information.
Page 676 When an error message (Table B-1) is displayed, the problem must be corrected before the synchronization can be completed. A power cycle is required to restart synchronization when ‘Card Full’ or ‘Err’ is shown. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 677 • Existing Supplemental Database SD Cards from the PFD and MFD In some cases it may be necessary to obtain an unlock code from Garmin in order to make the database product functional. It may also be necessary to have the system configured by a Garmin authorized service facility in order to use some database features.
Page 678 1) With the system OFF, remove the Garmin SD Cards from the bottom SD card slot of each flight display unit. Label the SD cards for each display. NOTE: 2) Go to www.flygarmin.com. Download the applicable software and install the databases on the Garmin SD card for each display.
Page 679 Figure B-16 Check Database Cycle Number (MFD shown) Make sure that no messages related to database errors are displayed in the Messages window of the NOTE: PFD. 11) Remove power from the system. 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 680: Magnetic Field Variation Database Update
1) With ‘OK’ highlighted, as shown in Figure B-17, press the ENT Key on the MFD. A progress monitor is displayed as shown in Figure B-18. Figure B-18 Uploading Database to GRS 2) When the upload is complete, the system is ready for use. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 681: Garmin Aviation Glossary
Aeronautical Operational Control see also Bearing Aircraft On Ground AOPA Aircraft Owners and Pilots Association °C Degrees Celsius Autopilot Center Runway AP DISC Autopilot Disconnect Course to Altitude Leg 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 682 CRNT Current Direction Crosstrack The distance the aircraft is off a desired Distance Error course in either direction, left or right. see also Course, Course to Steer Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 683 Distance Leg ENGD Engaged Fault Detection and Exclusion Enroute; ETE to Final Destination FF, FFLOW see also Fuel Flow FIS-B Flight Information Services-Broadcast FISDL Flight Information Service Data Link 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 684 Garmin Display Unit Heading The direction an aircraft is pointed, based upon indications from a magnetic Garmin Engine/Airframe Unit compass or a properly set directional Geographic gyro. Garmin Flight Control Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 685 Instrument Meteorological Conditions consumption rate. Inch The portion of a flight plan between two waypoints. INACTV Inactive LGND Legend INC FUEL Increase Fuel 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 686 Out of the gate, Off the ground, On the Multi Function Window ground, and In the gate MGRS Military Grid Reference System Oxygen Megahertz P ALT Microphone Pressure Altitude Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 687 Standard Instrument Approach RAIM Receiver Autonomous Integrity Procedures Monitoring Standard Instrument Departure Random Access Memory SIG/AIR SIGMET/AIRMET Ram Air Temperature SIGMET Significant Meteorological Information RCVR Receiver Simulator Reference Supercooled Large Droplet 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 688 UTM/UPS Universal Transverse Mercator/ Universal TCAS Traffic Alert Collision Avoidance System Polar Stereographic Grid Telephone TEMP Temperature Volts TERM Terminal V, Vspeed Velocity (airspeed) Track Between Two Fixes Leg Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 689 XTALK Cross-Talk VFOM see also Vertical Figure of Merit Cross-Track, Crosstrack Error Visual Flight Rules Very High Frequency Yaw Damper Heading Vector to Intercept Leg VLOC VOR/Localizer Receiver 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 690: Frequently Asked Questions
APPENDIX D FREQUENTLY ASKED QUESTIONS If a particular aspect of G1000 operational capability is not addressed by these commonly asked questions or in the index, contact Garmin (see the copyright page or back cover for contact information) or a Garmin-authorized dealer.
Page 691 Also, the active flight plan is overwritten when another flight plan is activated. When storing flight plans with an approach, a departure, or an arrival, the G1000 uses the waypoint information from the current database to define the waypoints. If the database is changed or updated, the G1000 System automatically updates the information, provided the procedure has not been modified.
Page 692 APPENDIX D When OBS mode is active, the G1000 allows the pilot to set a desired course to/from a waypoint using the CRS/BARO Knob and HSI (much like a VOR). The most common application for using the OBS Softkey is the missed approach. The G1000 suspends automatic waypoint sequencing (indicated by a ‘SUSP’...
Page 693 (MAP). If an attempt to do so is made, an alert message “Are you sure you want to discontinue the current approach?” appears. The G1000 directs the pilot back to the transition waypoint and does not take into consideration any missed approach procedures, if the current approach is reactivated.
Page 694: General Tis Information
PFD Inset Map. Surveillance data includes all transponder-equipped aircraft within the coverage volume. The G1000 System displays up to eight traffic targets within a 7.5 nm radius, from 3,000 feet below, to 3,500 feet above the requesting aircraft.
Page 695 APPENDIX E Garmin is not responsible for Mode S geographical coverage. Operation of the ground stations WARNING: is the responsibility of the FAA. Refer to the AIM for a Terminal Mode S radar site map. TIS is unavailable at low altitudes in many areas of the United States. This is often the case in NOTE: mountainous regions.
Page 696: Map Symbols
Prohibited Area VOR/ILS Alert Area Restricted Area Caution Area Training Area VORTAC Danger Area Unknown Area Class C Terminal Radar Service Area TACAN Mode C Area Military Operations Area (MOA) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 697 Loss of hazard avoidance feature Unanchored Flight Path Waypoint (loss of GPS position) Turbulence Top of Descent (TOD) Icing Potential Bottom of Descent (BOD) PIREPs Navigating using Dead Reckoning AIREPs 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 698 Non-aircraft ground traffic. Ground traffic is only displayed when ADS-B is in Surface (SURF) Mode or own aircraft is on the ground. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 699 Gray obstacle is more than 1000 ft below aircraft altitude Table F-1 Obstacle Colors Potential Impact Alert Type Example Annunciation Point Symbol Warning Caution Table F-2 Terrain-SVS Potential Impact Point Symbols with Alert Types 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 700: Telephone/Text Messaging
Phone status not known Phone is disabled Phone is reserved for data transmission Calling other phone or incoming call from other phone Other phone is on hold Phones are connected Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 701: Index
Bearing Pointer ---------------------------------------------- 60 Annunciations Bearing Source ---------------------------------------------- 61 AFCS Status ----------------------------------------------646 Bluetooth ----------------------------------------------1, 3, 200 G1000 System --------------------------------- 9, 632–633 Bus voltage -------------------------------------------------- 86 Test tone --------------------------------------------- 12, 626 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 702 Flight ID ---------------------------------------------- 118, 124 Deleting Flight Instruments---------------------------------------47, 50 An entire airway ---------------------------------- 217, 218 Flight Level Change Mode (FLC) ----------------- 468, 492 An entire procedure ----------------------------- 217, 218 Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 703 Geodetic Sea Level (GSL) -------------------------- 406, 415 Low Altitude Annunciation -------------------------------- 75 Glidepath ----------------------------------------------------285 LPV ---------------------------------------------------- 261, 287 Glidepath Mode (GP) ------------------------- 474, 483, 496 LPV Approach ----------------------------------------------488 Glideslope ---------------------------------------------------285 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 704 Vertical Speed Indicator --------------------------------278 Night view -------------------------------543, 545, 562, 564 Required Obstacle Clearance (ROC) --------------------421 Non-path descent -----------------------------472, 494–495 Reversionary mode ----------------------------------------131 Normal display operation ------------------------------------ 8 Reversionary Mode ----------------------------------------8–9 NOTAMs -----------------------------------------------------535 Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 705 Updating Garmin databases -----------------------------525 System Page (EIS) ------------------------------------------- 86 Updating Jeppesen databases ---------------------------547 System power-up --------------------------------------------- 7 User-Defined Holding Pattern ----------------------------230 SYSTEM softkey --------------------------------------------- 86 System Time -------------------------------------------------- 48 190-00962-04 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 706 Waypoint Pages (WPT) ------------------------------------- 30 Waypoint Selection Submenu ---------190, 197, 204, 259 Weather Attenuated Color Highlight (WATCH) 395, 396 Wi-Fi -------------------------------------------------- 615, 620 Wind ---------------------------------------------------------158 Winds Aloft ------------------------------331, 332, 348, 371 Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-04 Rev. A...
Page 708 Garmin International, Inc. Garmin AT, Inc. Garmin (Europe) Ltd. Garmin Corporation 1200 East 151st Street 2345 Turner Road SE Liberty House,Houndsdown Business Park No. 68, Zhangshu 2nd Road Olathe, KS 66062, U.S.A. Salem, OR 97302, U.S.A. Southampton, Hampshire, SO40 9LR, U.K.

Garmin G1000 Pilot's Manual

Table of Contents

Hazard Avoidance

Quick Links

Chapters

Troubleshooting

Related Manuals for Garmin G1000

Summary of Contents for Garmin G1000
