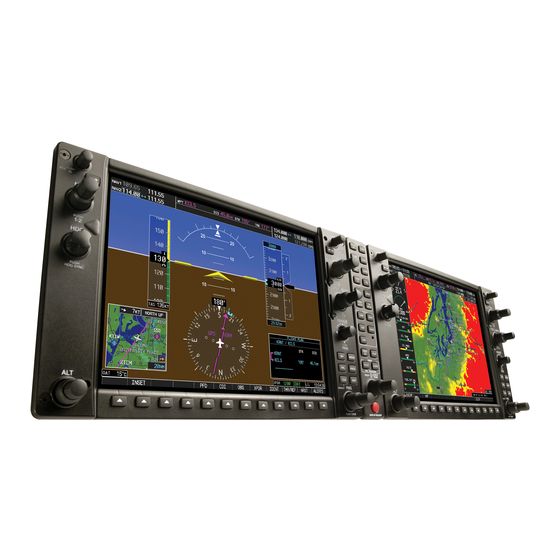

G1000 / GFC 700 Post Installation Checkout Procedure
Hawker / Beechcraft King Air C90
PRESS TO TEST
28
ALT
2992 1013
30
50
300
100
250
150
200
190-00682-00
January 2008
Revision 5
