INSTRUCTIONS FOR USE

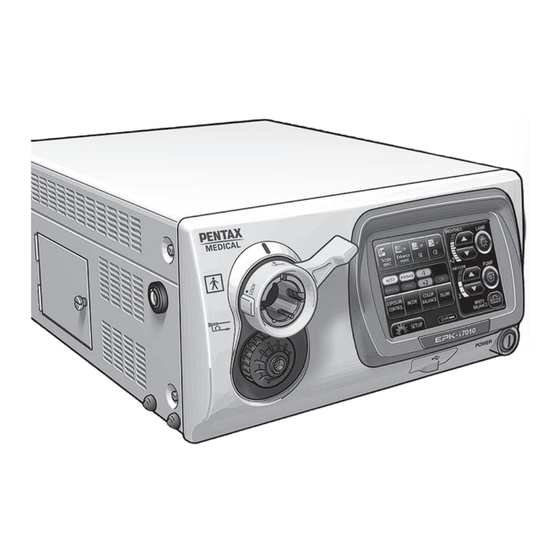

PENTAX Medical VIDEO PROCESSOR

Advertisement

Table of Contents
loading

Related Manuals for Pentax EPK-i7010

Summary of Contents for Pentax EPK-i7010

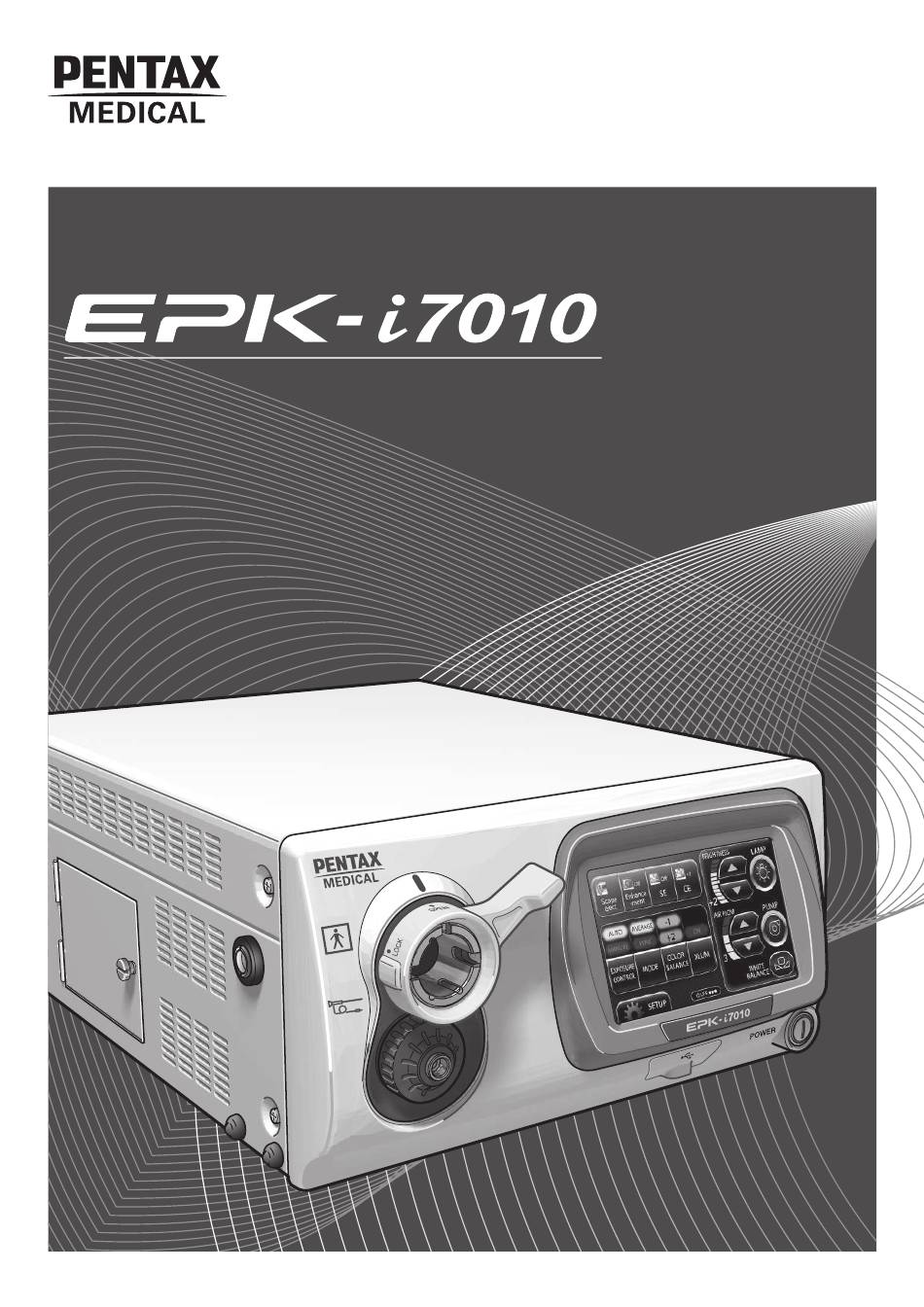

  • Page 1 INSTRUCTIONS FOR USE PENTAX Medical VIDEO PROCESSOR...
  • Page 2 (RGB) components of a white light image. PENTAX i-Scan modes 1, 2, and 3, are intended to give the user an enhanced view of the texture of the mucosal surface and blood vessels. i-Scan 1 provides the user with a view that sharpens surface vessels and enhances surface texture of the mucosa.
  • Page 3 For OE image enhancement, one of the two optical filters corresponding to Mode1 and Mode2 are inserted into illumination light path when the OE function is turned on in the PENTAX Medical EPK-i7010 video processor. The resulting OE image is then displayed on the observation monitor.

  • Page 4: Table Of Contents

    Safety Precautions - Important Nomenclature, Controls, and Functions Main Unit .......................... 5 Touch Panel ........................6 Rear Panel........................7 PENTAX Medical Water Bottle Assembly (OS-H5) ............8 Preparation System Configuration ....................... 9 Installation ........................10 Connecting a Video Endoscope ..................17 Pre-use Inspections Power-On and Lamp Inspection ..................
  • Page 5 Troubleshooting Specifications Electromagnetic Compatibility...

  • Page 6: Safety Precautions - Important

    7. Do not allow the power cord to become twisted, crushed or pulled taut. 8. When using an isolation transformer for any ancillary equipment, ensure the power requirements of the devices do not exceed the capacity of the isolation transformer. For further information, contact your local PENTAX Medical service facility.
  • Page 7 1. Alterations/modifications to the equipment should NEVER be made. Repairs should only be performed by an authorized PENTAX Medical service facility. 2. When replacing the lamp, use only the lamp recommended by PENTAX Medical and follow all PENTAX Medical instructions provided.
  • Page 8 This product is a medical device. In accordance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, this symbol indicates that the product must not be disposed of as unsorted waste, but should be collected separately. Contact your local PENTAX Medical service facility for correct disposal and recycling.
  • Page 9 Protective earth (ground) Mise à la terre de protection (masse) Equipotentiality Équipotentialité Instructions for Use Instructions d’utilisation Follow the Instructions for Use Suivre les instructions d'utilisation Endoscope Endoscope Illumination lamp model Référence du modèle de lampe d’éclairage Authorized representative in the European Community Représentant autorisé...

  • Page 10: Nomenclature, Controls, And Functions

    (OS-H5)"(P.8) of a fiberscope is possible. When using an adapter other than AE-P2, contact a PENTAX Medical service facility. NOTE  Always insert an endoscope prior to turning on the processor. Also, always turn off the processor before removing an endoscope.

  • Page 11: Touch Panel

    Touch Panel COLOR BALANCE Button c Brightness Setting Buttons Use this button to display the color balance adjustment screen. Use UV to I "Color Balance Button"(P.28) adjust the brightness level. I "Brightness Customize Buttons XLUM ON/OFF Button d Setting Buttons"(P.26) Each press of a button changes the Use this button to maximize the endo...

  • Page 12: Rear Panel

    Rear Panel RS-232C This connector (D-sub 9-pin connector) is for connecting an RJ45 external output device. It is an This connector is exclusively for RS-232C compliant interface. RJ45 communication. These connectors are for connecting "Image Recording Media"(P.91) or a This connector is for outputting USB printer.

  • Page 13: Pentax Medical Water Bottle Assembly (Os-H5)

    PENTAX Medical Water Bottle Assembly (OS-H5) Air/Water Hose The inside of the hose is split into two for the air and water supply. Air Pipe Stem Air/Water Connector A/W DRAIN Lever Insert this into the processor. Connect this to the air/...

  • Page 14: Preparation

    TS32GJF600 (Sony Business (PENTAX Medical) (PENTAX) (Transcend Solutions Corporation) Information, Inc) NOTE Recording devices specified in the diagram have been tested for compatibility with the EPK-i7010. Equivalent devices can be used but may not be compatible with the EPK-i7010. Preparation...

  • Page 15: Installation

    Never drop the processor or subject it to a severe impact as doing so could compromise the functionality and/or safety of the unit. Should this equipment be mishandled or dropped, do not use it. Return it to an authorized PENTAX Medical service facility for inspection and repair.
  • Page 16  Connecting a Power Supply Connect the power cord to a suitable power outlet with a protective earth terminal that meets the power rating indicated on the rating plate or a medical grade isolation transformer. When peripheral devices are used, connect the devices to the medical grade isolation transformer of the appropriate power rating in order to reduce the risk of electric shock.
  • Page 17  The range of display may not match with the following connection methods because the image output specifications differ. Connecting a monitor or recorder with an HD-SDI input connector (BNC) (recommended) Use the PENTAX Medical HD-SDI cable (OS-A85) to connect an HD-SDI connector to an HD-SDI input connector on the monitor(26”Radiance G2 HB). Preparation...
  • Page 18 Connecting a monitor or recorder with a DVI or VGA input connector Use the PENTAX Medical DVI cable (OS-A78) to connect the DVI connector to a DVI input connector of the recorder(HVO- 1000MD), or use the PENTAX VGA cable (OS-A74) to connect the DVI connector to a VGA input connector on the monitor(Radiance19).
  • Page 19 RGB Cable OS-A25 Y/C Cable OS-A24 Printer PENTAX Medical Control Cable OS-A58 USB Flash Memory or External Hard Disk Drive Using RGB output method Use an RGB cable (OS-A25) to connect the RGB connector to the connector on the printer.
  • Page 20 Connecting an external strobe device Connect the VIDEO OUT/SYNC OUT connector to the signal connector on an external strobe device recommended by PENTAX Medical. For details on connecting a compatible device, refer to the IFU for the compatible device. Connecting a microphone If you want to record video images with audio, connect a microphone to the AUDIO IN connector.
  • Page 21 Due to the increasing major antivirus solutions and licensing issues, it is not possible for PENTAX Medical to predict and prepare appropriate antivirus solutions for each customer. Therefore, PENTAX Medical customers typically have to install virus protection software at each medical facility according to the policies of the facility.

  • Page 22: Connecting A Video Endoscope

    Connecting a Video Endoscope Connect an endoscope to the processor. Connect the water bottle assembly and suction unit to the endoscope before use. For details on an endoscope, refer to the IFU for the endoscope. Check to ensure the endoscope locking lever is Endoscope open.
  • Page 23 In this case, contact your local PENTAX Medical service facility to have them inspect the endoscope and ask them to update the endoscope's software.

  • Page 24: Pre-Use Inspections

     If the lamp fails to illuminate, stop the inspection and contact a PENTAX Medical service facility.  If a PENTAX Medical video endoscope or video module that is not compatible with the processor is connected, endoscopic images will not be displayed.

  • Page 25: On-Screen Image Check

    On-screen Image Check Check the image displayed on the monitor. WARNING Check the live image is properly output on the monitor in the right direction. Automatic Brightness Control Inspection Check the video images from the endoscope on the monitor while the lamp is lit. Exercise the endoscope’s automatic iris.

  • Page 26: Exposure And Measurement Inspection

    Exposure and Measurement Inspection Press a on the touch panel, and select [MANUAL]. • The selected item illuminates green. Each press switches the item between [AUTO] and [MANUAL]. Press UV of [BRIGHTNESS] and check that the level of the indicator changes. Press a, and select [AUTO].

  • Page 27: Air/Water Supply Inspection

    For details about air and water delivery, refer to the Instructions for Use for the endoscope. If all of the inspection items are working properly, then the endoscopic examination can be performed. If there is a problem with any of the functions, do not perform the endoscopic examination. Contact a PENTAX Medical service facility.

  • Page 28: Operating Procedure

    Operating Procedure Turning On/Off the Processor Press R on the front of the processor. (Refer to Figure 5.1.) • The processor turns on, the touch panel illuminates, and the screen for normal mode appears on the monitor. I "Normal Screen" (P.23) •...
  • Page 29 NOTE  You can change the display for the HD monitor and the SD monitor in [Display setting]. I"Display setting" (P.66)  Depending on the setting of the monitor screen, endoscopic image or text information might spill out of the screen. Adjust the display position by performing overscan/underscan adjustment or vertical/horizontal adjustment and make sure that the image as well as text is correctly displayed on the screen.

  • Page 30: Touch Panel Operation

    Touch Panel Operation  Do not use a sharp object such as the tip of a pen to press the buttons on the touch panel.  Do not use the end of the light guide of the endoscope to operate the touch panel. Operating Procedure...
  • Page 31 Lamp Button Press S on the touch panel. • S illuminates green. The processor’s main lamp illuminates, and the distal end of the endoscope connected to the processor emits light. • If the lamp does not illuminate, the auxiliary lamp illuminates and S flashes green. ...
  • Page 32  Be careful not to hit the distal end of the endoscope against the bottom of the white balance adjuster.  Be sure to use the PENTAX Medical white balance adjuster OS-A43H when adjusting the white balance. Do not attempt to adjust the white balance under any other condition.
  • Page 33 Hold the distal end of the endoscope in place and Circle at the press P on the touch panel for at least 2 seconds. Bottom of the Normal Screen Adjuster • The white balance is adjusted. After the white balance is set, the message “White balance OK!”...
  • Page 34 XLUM ON/OFF Button Use this button when you want to know the position of the distal end of the endoscope from outside the body. When this is set to on, the light intensity of the endoscope is set to maximum and you can confirm the position of the distal end of the endoscope from outside the body.

  • Page 35: I-Scan

    i-scan This video processor includes three, optional preprogrammed modes of i-scan. i-scan is an optional digital, post-processing imaging enhancement technology, which is intended to be used as an adjunct to traditional white light endoscopy. i-scan 1, 2, and 3 are preprogrammed default settings. Only one default setting can be activated at a time. The user is able to either choose the default settings or change the volumetric options of the settings for customizability.
  • Page 36 i-scan Setting Setting Item Setting Value Explanation Enhancement (Enh) Off, +1, +2, +3, +4, Enhances the sharpness of edges and emphasizes the +5, +6, +1/a1, +2/ mucosal structures (the enhancement level is increased a2, +3/a3, +4/a4, with the setting value). +5/a5, +6/a6 Surface Off, +1, +2, +3, +4,...

  • Page 37: Optical Enhancement (Oe)

    (OE), which combines the band limited light and the digital processing. PENTAX OE technology has two modes, OE Mode1, 2. OE Mode1 uses a spectral filter that transmits band limited green and blue light and is intended to provide the user with enhanced image of blood vessels and fine structure of mucosa.

  • Page 38: Image Processing Settings

    Image Processing Settings Be sure to check that the endoscopic images on the monitor are not static and that the images are displayed with the correct orientation each time after changes have been made to image processing settings.  Using SE Press the [SE] key on the keyboard / customize button on the touch panel or configure setting on [i-scan] Tab.
  • Page 39  90K, K10 and J10 series endoscopes are not compatible with Twin mode viewing in OE mode image observation.  Some of 90K series endoscope require software update to be used with OE. Please contact your local PENTAX Medical service facility.

  • Page 40: Setup Menu Operations

    Setup Menu Operations Pressing e on the touch panel displays the Setup menu. Return to the main screen. Press a tab to display the setting items for the corresponding category. The Setup menu contains the following categories. i-scan Configure settings for image processing related to i-scan mode. I "[i-scan] Tab"...
  • Page 41  SE Set the level for SE (surface enhancement). Press [Off] or one of the six levels. • A higher numerical value sets a higher level.  CE Set the level for CE (contrast enhancement). Press [Off] or one of the six levels. •...
  • Page 42  i-scan profile Set the functions of [i-scan1], [i-scan2], and [i-scan3]. Press [>]. Select the i-scan Load the setting values mode to set. of a saved i-scan mode. • The [i-scan profile] screen appears. • The setting value in the main screen and other screens is displayed for each item.
  • Page 43  i-scan1-3 Select the i-scan mode. Select [Off], [i-scan1], [i-scan2], or [i-scan3]. • The selected button illuminates, and the settings registered in [i-scan profile] are loaded. • If one of the i-scan modes is already selected, the currently enabled button will be lit. •...

  • Page 44: [Image] Tab

    [Image] Tab Pressing the [Image] tab displays the following screen. The screen has three pages. Display the setup menu for each Return to the previous screen. of the categories. Return to the main screen. Change the page. Press any of the buttons to configure the setting.
  • Page 45 When [Scope enhancement] on the [Customize] tab is set to [Disable] Press [Off] or one of two types × six levels. • A higher numerical value sets a higher level for edge enhancement / structure enhancement display. [+1 to +6] Edge enhancement mode [+1/a1 to +6/a6] Edge enhancement / Structure enhancement mode : allows for enhancing the mucous membrane structure and contour.
  • Page 46  Image rotate Set the display orientation of the endoscopic image. Press [Normal] or [Rotate]. [Normal] [Rotate]  Twin mode Set or cancel twin mode. I "Twin Mode Screen" (P.24) Press [Off] or [On]. • If an endoscope is not connected to the processor, the message “Connect endoscope.” appears. NOTE ...
  • Page 47  Twin mode profile Set whether to display Load the saved the [Twin mode profile] twin mode Set the image processing for twin mode. screen. setting values. Press [>]. • The [Twin mode profile] screen appears. • The setting value in the main screen and the other screens is displayed for each item.
  • Page 48  There are certain models among 90K series endoscopes that cannot utilize ND mode. In order to use the ND mode, it is necessary to update the integrated software of the endoscope. Contact your local PENTAX Medical service facility to arrange the software update and inspection of the endoscope.

  • Page 49: [Customize] Tab

    [Customize] Tab Pressing the [Customize] tab displays the following screen. The screen has four pages. Display the setup menu for each Return to the previous screen. of the categories. Return to the main screen. Change the page. Display the advanced settings screen.
  • Page 50 Press the button of the function to set. Assignable Functions • You can press W X to display additional functions. • The name of the assigned function is displayed below the customize button. Display additional functions. The following functions can be assigned. Reference Function Name Function Description...
  • Page 51 Reference Function Name Function Description Page Save a still image to Image Recording Media in accordance with the USB capture* P.60 setting of [File storage setting (Still image)]. USB printer* Send a still image to the connected USB printer. P.71 Start and stop recording video.
  • Page 52 Reference Function Name Function Description Page Start or stop the stopwatch. Press and hold the button to reset the Stopwatch P.66 stopwatch. System information Display the [System information] screen. P.68 Switch the shutter mode for the endoscope between [Off] and [On] (K Shutter mode* series endoscope) or between [Off], [Low], [Medium], and [High] (i series P.52...
  • Page 53  Assign scope buttons Set the functions for the endoscope buttons. Press [>]. The function assigned to each endoscope button is displayed. • The [Assign scope buttons] screen appears. Select the endoscope buttons ([1], [2], [3], or [4]) for Assignable Functions which you want to assign a function.
  • Page 54 Reference Function Name Function Description Page Output a signal from the REMOTE1 connector on the back of the Remote1 — processor. Output a signal from the REMOTE2 connector on the back of the Remote2 — processor. Output a signal from the REMOTE3 connector on the back of the Remote3 —...
  • Page 55 Reference Function Name Function Description Page Switch the TE mode to a mode available in [TE setting]. It cannot be P.56 processed simultaneously with [OE]. Switch the OE mode to a mode available in [OE setting]. It cannot be P.56 processed simultaneously with [SE] [CE] [TE].
  • Page 56  Assign foot switch Set the functions for the foot switches. Press [>]. The function assigned to each foot switch is displayed. • The [Assign foot switch] screen appears. Select the foot switch for which you want to set a function from [L] and [R].
  • Page 57  Character display Set character display for the monitor. [Off] All characters are not displayed. [Date/Time] Only the date and time are displayed. [On] The information set to [ON] in [Character display] of the keyboard menu is displayed. Select [Off], [Date/Time], or [On]. ...
  • Page 58  Sub screen setting Configure the settings for the sub screen displayed when, for example, the freeze function is executed. Press [>]. • The [Sub screen setting] screen appears. Configure the [Sub screen delay], [Sub screen position], and [Sub screen position (ERCP)] settings. ...
  • Page 59  Digital zoom setting Configure the zoom settings for when [Digital zoom] is assigned to a customize button on the touch panel, endoscope button, or foot switch, and when zoom operations are performed with the keyboard. Press [>]. An animation is played at the set zoom ratio and up/down order.
  • Page 60  P-in-P Main/Side change Switch between the endoscopic image and external input video screens in P-in-P mode. [Main] The images input from an external device are displayed on the main screen of the monitor. The endoscopic images from the endoscope are displayed in the sub screen. [Side] The endoscopic images from the endoscope are displayed on the main screen of the monitor.
  • Page 61  CE setting Specify the CE display levels that can be switched using a customize button on the touch panel, endoscope button, foot switch, or keyboard. Press [>]. The level that is currently specified is indicated by green characters. • The [CE setting] screen appears. •...
  • Page 62  i-scan setting Specify the i-scan modes that can be switched using a customize button on the touch panel, endoscope button, foot switch, or keyboard. Press [>]. The mode that is currently specified is indicated by green characters. • The [i-scan setting] screen appears. •...

  • Page 63: [System] Tab

    [System] Tab Pressing the [System] tab displays the following screen. The screen has four pages. Display the setup menu for each Return to the previous screen. of the categories. Return to the main screen. Change the page. Display the advanced settings screen.
  • Page 64  Time zone setting Set the time zone setting. Press a check box to add or clear a check mark. Press [>] of [Time zone setting] in the [Date & Time] screen. • The [Time zone setting] screen appears. YZ to change the setting. •...
  • Page 65 Time zone No.[32] (GMT +11:00) Vladivostok, Solomon Islands, New Caledonia Time zone No.[33] (GMT +12:00) Auckland, Wellington, Fiji, UTC+12 Time zone No.[34] (GMT +13:00) Samoa, Nuku’alofa Press [OK]. • If you switch to another screen without pressing the [OK] button, the settings will not be applied. •...
  • Page 66  Folder and file name (Still image) Set the names of the folders and files generated in the PENTAX folder of the "Image Recording Media" (P.91) when still images are saved. Press [>] of [Folder and file name] in the [File storage The current folder and file name settings settings (Still image)] screen.
  • Page 67  Option (Still image) Set options related to saving still images. Press [>] of [Option] in the [File storage settings (Still Press any of the buttons to configure the image)] screen. setting. • The [Option (Still image)] screen appears. Set each of the items. •...
  • Page 68  Folder and file name (Video image) Set the names of the folders and files generated in the PENTAX folder of the "Image Recording Media" (P.91) when video images are saved. Press [>] of [Folder and file name] in the [File storage The current folder and file name settings settings (Video image)] screen.
  • Page 69  Disk space warning (Video image) Set the threshold for displaying the "Image Recording Media" (P.91) free Set the value for which to display a space warning message. warning message. Press [>] of [Disk space warning] in the [File storage setting (Video image)] screen.
  • Page 70  Operation checked Software The video images (MPEG-2 TS format) generated by this video processor are checked their operation with the following software in “Operation check list”. But this check only guarantees against its performance in our testing environment (PC) but not for your usage environment. Test environment Item Contents...
  • Page 71  Display setting Set the display format of the monitor. [16:9 mode1] Setting for HD monitor display (The character information is displayed on the right side of the endoscopic image.)(The DVI-D signal is output from the DVI connector.) [16:9 mode2] Setting for HD monitor display (The character information is displayed at the top and bottom of the endoscopic image.)(The DVI-D signal is output from the DVI connector.) [4:3]...
  • Page 72  Freeze release Set the method for freeze release. [Off] The frozen image is maintained even after the still image is saved. Release the frozen image manually. [On] Freeze is released automatically when the still image is saved. Press [Off] or [On]. ...
  • Page 73  System information Displays the system information of the processor. Press [>]. • The [System information] screen appears. • The “Serial No.” “Software Ver.” “System life” “Lamp life” “Scope name” “Scope serial No.” “Scope software Ver.” and “Scope connection count” information appear on the screen. ...
  • Page 74  Configuration copy Copy the system configuration data of the processor to "Image Recording Media" (P.91). Press [Output]. Indicates the Image Recording Media currently connected and the total size and • The [Configuration copy] screen appears. The Image Recording free space of each Image Recording Media. Media currently connected and the total size and free space of Perform Image Recording each Image Recording Media is indicated on the screen.
  • Page 75  Language Change the display language of the touch panel menus. Press [>]. The language that is currently specified is • The [Language] screen appears. indicated by green characters. Select [English], [Français], [Deutsch], [Español], [Italiano], [Magyar], [Polski], [Pусский], or [中文]. •...

  • Page 76: [Peripheral] Tab

    [Peripheral] Tab Pressing the [Peripheral] tab displays the following screen. The screen has one page. Display the setup menu for each Return to the previous screen. of the categories. Return to the main screen. Press any of the buttons to configure the setting.

  • Page 77: Keyboard Operations

    Do not use the keyboard as well as the keyboard menu while the message “Network/File system loading” is being displayed on the bottom right corner of the monitor screen. For the EPK-i7010 processor, use the following PENTAX Medical keyboard OS-A83.  Key Assignment...
  • Page 78  Function Keys The following list shows the functions assigned to the function keys of the keyboard designed specifically for use with the processor. Function Keys Key Name Function Outline Keyboard OS-A83 [Patient] Display the patient list. Patient [New patient] Register new patient data.
  • Page 79 Function Keys Key Name Function Outline Keyboard OS-A83 [i-scan3] Switch the [i-scan3] i-scan mode on or off. Ctrl [Noise reduction] Change the noise reduction level. Ctrl [Image size] Change the endoscopic image display size. Enhance Ctrl level [Image rotate] Change the endoscopic image display orientation. Ctrl Menu [Digital zoom]...

  • Page 80: Operations In The Keyboard Menu Screen

    Operations in the Keyboard Menu Screen Pressing the [Patient], [User], [Menu], [White balance], [Pump], or [Lamp] key displays the keyboard menu screen on the monitor. The keyboard menu screen consists of the [Patient list preset], [User list preset], and [Setup] tabs. Press the [] or [] key to select a tab.
  • Page 81 Press the [] key. [Patient data edit No.*] Screen • The [Patient data edit No.*] screen for a new patient or the selected patient appears. • Follow the procedure below to enter or change data in the [Patient data edit No.*] screen. Be sure to enter a name in the [Name] field. 1 Press the [] or [] key to select an item.

  • Page 82: Operations In The [User List Preset] Tab

    Operations in the [User list preset] Tab  Registering New and Editing Existing User Data Display the user preset list. Then, register new user data or edit registered user data. You can register the following user data items: [User name], [Character display], [Assign scope buttons & foot SW], [Picture data], and [Picture data initialize]. Press the [] or [] key in the keyboard menu screen to select the [User list preset] tab.

  • Page 83: Settings In The [Setup] Tab

     Settings in the [User data edit No.*] Screen You can configure the following settings for the user selected in the [User list preset] screen. [User name] Enter the name of the user. During user input, press the [Backspace] key to delete one character on the left of the cursor. Press the [Delete] key to delete one character on the right of the cursor.
  • Page 84 Select [Enable] or [Disable]. If you select [Enable], the settings for [IP address], [Subnet mask], and [Default gateway] become invalid. [IP address] / [Subnet mask] / [Default gateway] Follow the procedure below to enter or change settings. 1 Press the [] or [] key to select an item when entering the four items separated by “.” 2 Press the alphanumeric keys or the keys on the numeric keypad to enter or change the numbers.

  • Page 85: Maintenance

    1 Wipe the surface with gauze lightly dampened with a detergent (neutral pH, low foaming, with or without enzymes, mild/compatible with PENTAX Medical product, etc.) 2 Wipe the same areas with gauze lightly dampened with clean water (to remove residual detergent).

  • Page 86: Cleaning And Storage Of The Water Bottle Assembly

    • Be careful not to drop the processor or subject it to an excessive mechanical shock. The processor may become unsafe to use or damaged. If the processor is subjected to an excessive mechanical shock, stop using it and contact your PENTAX Medical service facility. Cleaning and Storage of the Water Bottle Assembly When washing, disinfecting, and sterilizing the water bottle assembly, be sure to follow the instructions in the IFU for OS-H5.

  • Page 87: Replacing The Lamp

    Use the PENTAX replacement lamp cartridge OL-X29, which has been developed to ensure optimal brightness and safety. Using a lamp not authorized by PENTAX Medical may result in excessive brightness and/or heat, and it is not known what kind of adverse effect that may have on the patients.
  • Page 88  Installing a Lamp Cartridge When performing the following procedure, always wear rubber gloves to prevent oil from your hands from getting on the glass surfaces. Do not directly touch the glass surfaces of the new lamp with your fingers. Hold the lamp cartridge so that the two screws on the lamp cartridge are at the front and fully insert it into the housing while keeping it straight.

  • Page 89: Replacing The Fuses

    Some consumable components of this product have the service life of less than six years. Contact your nearest PENTAX Medical service facility every three years for inspection and maintenance of all consumable components except lamp and fuse. Replacement of consumable components may be necessary.

  • Page 90: Repair

    When the abnormalities of the processor are not improved after it is performed the maintenance according to the Instructions for Use or exchanged a lamp or a fuse, please be sure to request repair to your local PENTAX Medical service facility.
  • Page 91 Press S on the touch panel to turn on The lamp is not lit. P.26 monitor. the lamp. The endoscope is not compatible with Contact a PENTAX Medical service — the processor. facility. Contact a PENTAX Medical service Abnormality in the connectors.
  • Page 92 *2: For details, refer to the Instructions for Use for the endoscope. NOTE  If there is no response even if you press any key on the keyboard, turn off the processor and contact a PENTAX Medical service facility.  If the problem persists even after taking the measures described in the corresponding solutions above, contact a PENTAX Medical service facility.
  • Page 93  Error Messages When an error message is displayed on the monitor, try the following solutions. If there is a problem that cannot be resolved with the following solutions, contact your PENTAX Medical service facility. Message Displayed on Reference Meaning...
  • Page 94 There was a problem with the system When the same message is displayed P.23 the processor(No**-**). startup. repeatedly, contact a PENTAX Medical service facility. System error. Please contact There was a problem with the system Contact a PENTAX Medical service your PENTAX service —...
  • Page 95  Other Messages Message Displayed on Reference Meaning Monitor Page Now printing. USB printer is printing now. — Now saving. Saving to Image Recording Media. — Connect to VCU. Connected to Endonet. — VCU ready. Ready to communicate with Endonet. —...
  • Page 96 K series video endoscopes, Gastroscope Family i series video endoscopes, Endoscope Compatibility Duodenoscope Family PENTAX Fiberscopes (via video module) Bronchoscope Family (“K series” consists of 70K, 80K, 90K, K10 and J10 Naso-Pharyngo-Laryngoscope Family series. “i series” consists of 90i and i10 series.)
  • Page 97 Electromagnetic Compatibility This product conforms to IEC60601-1-2: 2007: Medical electrical equipment, EMC standard. Guidance and manufacturer’s declaration – electromagnetic emissions should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment - guidance This product uses RF energy only for its internal function. RF emissions Group 1 CISPR 11...
  • Page 98 Guidance and manufacturer’s declaration – electromagnetic immunity should assure that it is used in such an environment. Electromagnetic environment - Immunity test IEC 60601 test level Compliance level guidance Electrostatic discharge(ESD) synthetic material, the relative humidity IEC 61000-4-2 Electrical fast supply lines supply lines of a t y pic al c o mmerc ial o r ho spit al...
  • Page 99 Note: Recommended separation distances between portable and mobile RF communications equipment and this product Rated maximum output Note: Electromagnetic Compatibility...
  • Page 100 Tel: +86 21 6170 1555 Fax: +49 40 560 42 13 Fax: +86 21 6170 1655 PENTAX Medical PENTAX Medical Singapore Pte. Ltd. A Division of PENTAX of America, Inc. 438A Alexandra Road, #08-06 3 Paragon Drive Alexandra Technopark, 119967 Singapore Montvale, NJ 07645-1782...
