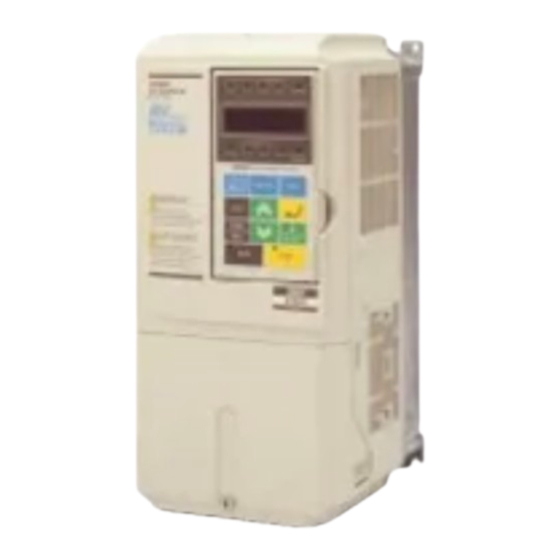

Page 1 Cat. No. I549-E1-01 USER’S MANUAL SYSDRIVE RV Series Models 3G3RV-V1 High-function General-purpose Inverters...
Page 2: General Precautions
Make sure that these protective covers are on the product before use. Consult your OMRON representative when using the product after a long period of storage. WARNING Do not touch the inside of the Inverter. Doing so may result in electrical shock.
Page 3: Transportation Precautions
Transportation Precautions Do not hold by front cover or panel, instead, hold by the radiation fin (heat sink) while Caution transporting the product. Doing so may result in injury. Do not pull on the cables. Doing so may result in damage to the product or malfunc- Caution tion.
Page 4 Do not connect any power source to the U, V, or W output. Doing so may result in Caution damage to the product or malfunction. Do not connect a load to the motor when performing auto-tuning. Doing so may result Caution in personal injury or equipment damage.
Page 5: Maintenance And Inspection Precautions
Maintenance and Inspection Precautions WARNING Do not touch the Inverter terminals while the power is being supplied. Maintenance or inspection must be performed only after turning OFF the power sup- WARNING ply, confirming that the CHARGE indicator (or status indicators) is turned OFF, and after waiting for the time specified on the front cover.
Page 6 Warning Information and Position There is warning information on the Inverter in the position shown in the following illustration. Always heed the warnings. Warning information position Warning information position Illustration shows the 3G3RV-B2220-V1 Illustration shows the 3G3RV-A2004-V1 Warning Information For ASIA Model (No suffix) For Europe (-E suffix) Models WARNING WARNING...
Page 7 Registered Trademarks The following registered trademarks are used in this manual. DeviceNet is a registered trademark of the ODVA (Open DeviceNet Vendors Association, • Inc.). MODBUS is a trademark of the AEG Schneider Automation, Inc. •...
Page 8: Table Of Contents
Contents General Precautions ..................i Transportation Precautions ................ii Installation Precautions ................. ii Wiring Precautions ..................ii Operation and Adjustment Precautions ............iii Maintenance and Inspection Precautions ............. iv Handling Inverters SYSDRIVE RV Introduction................1-2 SYSDRIVE RV Applications ................... 1-2 RV-series Inverter Models ....................1-2 About New Functions ...................1-4 Added or Improved Functions for the 3G3RV-V1 Inverter ..........
Page 9 Wiring Wiring ......................2-2 Connections to Peripheral Devices .............. 2-3 Connection Diagrams................... 2-4 Terminal Block Configuration ............... 2-5 Terminal Arrangement ....................2-5 Terminal Functions ......................2-6 Wiring Main Circuit Terminals..............2-10 Applicable Wire Sizes and Closed-loop Connectors ............ 2-10 Main Circuit Configurations ..................2-16 Standard Connection Diagrams ...................
Page 10 Trial Operation Cautions and Warnings ................4-2 Trial Operation Procedure ................4-3 Trial Operation Procedures................4-4 Application Confirmation....................4-4 Setting the Power Supply Voltage Jumper (400-V Class Inverters of 75 kW or Higher)..............4-4 Power ON ........................4-5 Checking the Display Status ................... 4-5 Initializing Parameters ....................
Page 11 Parameter Settings by Function Application and Overload Selections ............6-2 Select the Overload to Suit the Application ..............6-2 Frequency Reference................... 6-6 Selecting the Frequency Reference Source..............6-6 Using Multi-Step Speed Operation ................. 6-9 3G3RV-V1 Function Block ................... 6-12 Run Command ................... 6-14 Selecting the Run Command Source ................
Page 12 Motor Overheating Protection Using PTC Thermistor Inputs........6-65 Limiting Motor Rotation Direction.................. 6-67 Continuing Operation..................6-68 Restarting Automatically After Power Is Restored ............6-68 Speed Search ....................... 6-69 Continuing Operation at Constant Speed When Frequency Reference Is Lost.... 6-76 Restarting Operation After Transient Fault (Auto Restart Function)......6-77 Operation Selection After Cooling Fan Fault ...............
Page 13 Digital Operator Functions................ 6-182 Setting Digital Operator Functions ................6-182 Copying Parameters....................6-185 Prohibiting Writing Parameters from the Digital Operator .......... 6-189 Setting a Password ....................6-189 Displaying User-set Parameters Only ................ 6-191 Options ..................... 6-192 Performing Speed Control with PG ................6-192 Using an Analog Reference Board ................
Page 14 If There is Noise When the Inverter is Started or From an AM Radio......7-25 If the Ground Fault Interrupter Operates When the Inverter is Run......7-25 If There is Mechanical Oscillation ................. 7-25 If the Torque Generated for the Motor is Insufficient (Insufficient Power) ..... 7-27 If the Motor Rotates Even When Inverter Output is Stopped........
Page 15 Motor Application Precautions ..............10-9 Using the Inverter for an Existing Standard Motor............10-9 Using the Inverter for Special Motors ................. 10-10 Power Transmission Mechanism (Speed Reducers, Belts, and Chains) ....10-10 Conformance to UL Standard..............10-11 Conformance to CE Markings ..............10-13 CE Markings .......................
Page 16: Handling Inverters
Chapter 1 Handling Inverters This chapter describes the checks required upon receiving or installing an Inverter. SYSDRIVE RV Introduction.........1-2 About New Functions...........1-4 Confirmations upon Delivery........1-8 Exterior and Mounting Dimensions......1-12 Checking and Controlling the Installation Site ...1-15 Installation Orientation and Space ......1-16 Removing and Attaching the Terminal Cover ....1-18 Removing/Attaching the Digital Operator and Front Cover............1-19...
Page 17: Sysdrive Rv Introduction
SYSDRIVE RV Introduction SYSDRIVE RV Applications The SYSDRIVE RV is ideal for the following applications. Fan, blower, and pump applications • Conveyors, pushers, metal tooling machines, etc. • Settings must be adjusted to the application for optimum operation. Refer to Chapter 4 Trial Operation. RV-series Inverter Models RV-series Inverters have different models and specifications by the area (Asia and Europe) to support widely used applications and different power supply situations in each area.
Page 18 SYSDRIVE RV Introduction 400-V Class RV-series Inverter Models Table 1.2 RV-series Inverter Models (400-V Class) Protective Maximum Applied Motor Model Structure Capacity (Asia) 0.4 kW 3G3RV-A4004-V1 0.75 kW 3G3RV-A4007-V1 1.5 kW 3G3RV-A4015-V1 2.2 kW 3G3RV-A4022-V1 3.7 kW 3G3RV-A4037-V1 NEMA1 (Type 1) type 4.0 kW Not Available IP20...
Page 19: About New Functions
About New Functions Added or Improved Functions for the 3G3RV-V1 Inverter Added Functions with Flux Vector Control If a PG speed control board is used, the drive will have a high degree of accuracy, and the following functions are available. Torque Control •...
Page 20 About New Functions Added Parameters for the 3G3RV-V1 Inverter Open Parame- Flux Loop Factory Name with Vec- Remarks Vec- Setting Number Operation selection for setting E1-09 Used to set the method of operation when the frequency reference b1-05 or less input is less than the minimum output frequency (E1-09).
Page 21 Open Parame- Flux Loop Factory Name with Vec- Remarks Vec- Setting Number Sets the functions for channel 1 to 3 which are effective when the F2-01 Bi-polar or uni-polar input selection 3G3IV-PAI14B Analog Reference Board is used. F3-01 Digital input option Sets the Digital Reference Board input method.
Page 22 About New Functions Difference with Factory Settings of the 3G3RV Inverter Open Parame- Flux Loop Factory Set- Name with Vec- Remarks Vec- ting Number C6-01 CT/VT selection The factory setting is CT for the 3G3RV-V1 Inverter. Select carrier wave fixed pattern. C6-02 Carrier frequency selection The factory setting depends on the Inverter capacity...
Page 23: Confirmations Upon Delivery
If you find any irregularities in the above items, contact the dealer from which you purchased the Inverter or your OMRON representative immediately. Nameplate Information There is a nameplate attached to the side of each Inverter. The nameplate shows the model number, specifica- tions, lot number, serial number, and other information on the Inverter.
Page 24 Confirmations upon Delivery Inverter Model Numbers The model number of the Inverter on the nameplate indicates the specifications, voltage class, and maximum motor capacity of the Inverter in alphanumeric codes. 3G3RV - A 2 037 -V1 Specifications None First version Revision “V1”...
Page 25: Component Names
Component Names Inverter Appearance The external appearance and component names of the Inverter are shown in Figs. 1.3. and 1.4. Top protective cover Mounting hole Front cover Digital Operator Diecast case Nameplate Terminal cover Bottom protective cover Fig 1.3 18.5 kW or Less Mounting holes Inverter cover Cooling fan...
Page 26 Confirmations upon Delivery Terminal Arrangement Views with the terminal cover removed are shown in Fig 1.5 and Fig 1.6. E (G) RP R+ R- S+ S- MB MC M2 E (G) Control circuit terminals Main circuit terminals Charge indicator Ground terminal Fig 1.5 18.5 kW or Less Charge indicator Control circuit...
Page 27: Exterior And Mounting Dimensions
Exterior and Mounting Dimensions Open Chassis Inverters (IP00) Exterior diagrams of the Open Chassis Inverters are shown below. A. 200-V class Inverters of 22 to 30 kW B. 200-V class Inverters of 37 to 110 kW 400-V class Inverters of 22 to 55 kW 400-V class Inverters of 75 to 160 kW C.
Page 28: Enclosed Wall-Mounted Inverters (Nema 1)
Exterior and Mounting Dimensions Enclosed Wall-mounted Inverters (NEMA 1) Exterior diagrams of the Enclosed Wall-mounted Inverters (NEMA 1) are shown below. D. 200-V/400-V class Inverters of 0.4 to 18.5 kW Fig 1.8 Exterior Diagrams of Enclosed Wall-mounted Inverters...
Page 29 Table 1.4 Open Chassis Type (IP00) Dimensions(mm) Caloric Value (W) Approx. Mounting Voltage Motor Cooling Total Model Figure Mass Holes Class Output Method External Internal Heat (kg) (kW) Generated 3G3RV-B2220-V1 3G3RV-B2300-V1 1217 3G3RV-B2370-V1 12.5 1015 1426 3G3RV-B2450-V1 12.5 1266 1771 200V Natural 3-phase...
Page 30: Checking And Controlling The Installation Site
Checking and Controlling the Installation Site Checking and Controlling the Installation Site Install the Inverter in an installation site as described below and maintain optimum conditions. Installation Site Install the Inverter under the following conditions and a pollution level of 2 or less (UL standard). Table 1.6 Installation Site Type Ambient Operating Temperature...
Page 31: Installation Orientation And Space
Installation Orientation and Space WARNING Provide an appropriate stopping device on the machine side to secure safety. (A hold- ing brake is not a stopping device for securing safety.) Not doing so may result in injury. WARNING Provide an external emergency stopping device that allows an instantaneous stop of operation and power interruption.
Page 32: Digital Operator Panel Cutout Dimensions
Installation Orientation and Space Digital Operator Panel Cutout Dimensions Mounting panel Two M3 holes 14.5 Cutout 15.8 Fig 1.10 Digital Operator Panel Cutout Dimensions 1. The same space is required horizontally and vertically for both Closed Wall-mounting (IP20, NEMA 1(Type 1))and Open Chassis (IP00) Inverters.
Page 33: Removing And Attaching The Terminal Cover
Removing and Attaching the Terminal Cover Remove the terminal cover to wire cables to the control circuit and main circuit terminals. Removing the Terminal Cover Inverters of 18.5 kW or Less Loosen the screws at the bottom of the terminal cover, press in on the sides of the terminal cover in the direc- tions of arrows 1, and then lift up on the terminal in the direction of arrow 2.
Page 34: Removing/Attaching The Digital Operator And
Removing/Attaching the Digital Operator and Front Cover Removing/Attaching the Digital Operator and Front Cover The methods for removing and attaching the Digital Operator and front cover are described in this section. Inverters of 18.5 kW or Less To attach optional cards or change the terminal card connector, remove the Digital Operator and front cover in addition to the terminal cover.
Page 35 Removing the Front Cover Press the left and right sides of the front cover in the directions of arrows 1 and lift the bottom of the cover in the direction of arrow 2 to remove the front cover as shown in the following illustration. Fig 1.14 Removing the Front Cover (3G3RV-A4055-V1 Shown Above) Mounting the Front Cover After wiring the terminals, mount the front cover to the Inverter by performing in reverse order the steps to...
Page 36: Inverters Of 22 Kw Or More
Removing/Attaching the Digital Operator and Front Cover 1. Do not remove or attach the Digital Operator or mount or remove the front cover using methods other than those described above, otherwise the Inverter may break or malfunction due to imperfect contact. 2.
Page 37: Removing And Attaching The Protection Cover
Removing and Attaching the Protection Cover Inverters of 18.5 kW or less have protection covers on the top and bottom as shown in Fig 1.3 and Fig 1.4 Always remove the protection covers before installing an Inverter of 18.5 kW or less in a panel. Use the following procedure to remove and attach a protection cover.
Page 38: Attaching The Protection Cover
Removing and Attaching the Protection Cover Attaching the Protection Cover Top Protection Cover The protection cover has four hooks: two hooks on the bottom and two on the sides. Fit the bottom hooks into the holes, bend the cover slightly, and press the cover down until the hooks on the side snap. Holes for bottom hooks Fig 1.19 Attaching the Top Protection Cover (Model 3G3RV-A4055-V1 Shown Above) Bottom Protection Cover...
Page 39: Wiring
Chapter 2 Wiring This chapter describes wiring terminals, main circuit terminal connections, main circuit termi- nal wiring specifications, control circuit terminals, and control circuit wiring specifications. Wiring................2-2 Connections to Peripheral Devices......2-3 Connection Diagrams ..........2-4 Terminal Block Configuration ........2-5 Wiring Main Circuit Terminals ........2-10 Wiring Control Circuit Terminals ........2-26 Wiring Check .............2-33 Installing and Wiring Option Cards ......2-34...
Page 40: Wiring
Wiring Wiring must be performed only after confirming that the power supply has been WARNING turned OFF. Not doing so may result in electrical shock. Wiring must be performed by authorized personnel. Not doing so may result in electri- WARNING cal shock or fire.
Page 41: Connections To Peripheral Devices
Connections to Peripheral Devices Connections to Peripheral Devices Examples of connections between the Inverter and typical peripheral devices are shown in Fig 2.1. Power supply Molded-case circuit breaker or ground fault interrupter Magnetic con- tactor (MC) AC reactor for power factor improvement Braking resistor Input noise filter...
Page 42: Connection Diagrams
Connection Diagrams The connection diagrams for the Inverter are shown in this section. The connection diagram for is shown in Fig 2.2. When using the Digital Operator, the motor can be operated by wiring only the main circuits. Thermal relay Thermal switch contact trip contact Braking Unit...
Page 43: Terminal Block Configuration
Terminal Block Configuration Terminal Block Configuration Terminal Arrangement The terminal arrangement for 200 V class Inverters is shown in Fig 2.3 and Fig 2.4. E (G) RP R+ R- S+ S- MB MC M2 E (G) Control circuit terminals Main circuit terminals Charge indicator Ground terminal Fig 2.3 200-V Class Inverter for 0.4 kW...
Page 44: Terminal Functions
Charge indicator Control circuit terminals Main circuit terminals Ground terminal Fig 2.5 400-V Class Inverter for 75 kW Terminal Functions The functions of the main-circuit and control-circuit terminals are shown below. Main-circuit Terminals The functions for the main-circuit terminals by symbol are shown in Table 2.1. Be sure to wire correctly. Table 2.1 Main-circuit Terminal Functions Voltage Class 200-V Class...
Page 45 Terminal Block Configuration Control-circuit Terminals (Same for 200-V and 400-V Class) The functions for the control-circuit terminals by symbol are shown in Table 2.2. Table 2.2 Control Circuit Terminals Signal Name Function Signal Level Type Forward Run/Stop Command Forward run when ON; stopped when OFF. Reverse Run/Stop Command Reverse run when ON;...
Page 46 Table 2.2 Control Circuit Terminals (Continued) Signal Name Function Signal Level Type Fault output signal (NO con- tact) Fault when CLOSED across MA and MC Dry contacts Fault when OPEN across MB and MC Contact capacity: Fault output signal (NC con- 10 mA min., 1 A max.
Page 47 Terminal Block Configuration Communications-circuit Terminals (Same for 200-V and 400-V Class) The functions for the communications-circuit terminals by symbol are shown in Table 2.3. Table 2.3 Communications-circuit Terminal Functions Signal Type Signal Name Terminal Function Signal Level Symbol Differential input, RS-422A/485 receive data 422A/ For 2-wire RS-485, short R+ and...
Page 48: Wiring Main Circuit Terminals
Wiring Main Circuit Terminals Applicable Wire Sizes and Closed-loop Connectors Select the appropriate wires and crimp terminals from Table 2.4 to Table 2.6 (same for all countries). Refer to USER’S MANUAL (I526-E1- ) for wire sizes for Braking Resistor Units and Braking Units. Table 2.4 200-V class Wire Sizes Recom- Possible...
Page 49 Wiring Main Circuit Terminals Table 2.4 200-V class Wire Sizes (Continued) Recom- Possible Inverter Termi- Tightening mended Wire Wire Wire Sizes Model Terminal Symbol Torque Type Size mm 3G3RV- Screws (N•m) (AWG) (AWG) 60 to 100 R/L1, S/L2, T/L3, 1 U/T1, 17.6 to 22.5 (2/0 to 4/0) (2/0)
Page 50 Table 2.5 400-V class Wire Sizes Recom- Possible mended Inverter Termi- Tightening Wire Sizes Wire Size Model Terminal Symbol Torque Wire Type 3G3RV Screws (N•m) (AWG) (AWG) R/L1, S/L2, T/L3, 2, B1, B2, 2 to 5.5 A4004-V1 U/T1, V/T2, W/T3 1.2 to 1.5 (14 to 10) (14)
Page 51 Wiring Main Circuit Terminals Table 2.5 400-V class Wire Sizes (Continued) Recom- Possible mended Inverter Termi- Tightening Wire Sizes Wire Size Model Terminal Symbol Torque Wire Type 3G3RV Screws (N•m) (AWG) (AWG) 38 to 60 R/L1, S/L2, T/L3, 1, U/T1, V/T2, 9.0 to 10.0 (2 to 1/0) W/T3, R1/L11, S1/L21, T1/L31...
Page 52 Table 2.5 400-V class Wire Sizes (Continued) Recom- Possible mended Inverter Termi- Tightening Wire Sizes Wire Size Model Terminal Symbol Torque Wire Type 3G3RV Screws (N•m) (AWG) (AWG) 100 to 325 150 × 2P R/L1, S/L2, T/L3 78.4 to 98 (4/0 to 600) (300 ×...
Page 53 Wiring Main Circuit Terminals Table 2.6 Closed-loop Connector Sizes (JIS C2805) (200-V class and 400-V class) Terminal Screws Size Wire Thickness (mm M3.5 1.25 to 3.5 1.25 to 4 M3.5 1.25 to 3.5 0.75 1.25 to 4 M3.5 1.25 to 3.5 1.25 1.25 to 4 M3.5...
Page 54: Main Circuit Configurations
Main Circuit Configurations The main circuit configurations of the Inverter are shown in the table below. Table 2.7 Inverter Main Circuit Configurations 200-V Class 400-V Class 3G3RV-A2004-V1 to A2185-V1 3G3RV-A4004-V1 to A4185-V1 U/T1 U/T1 R/L1 R/L1 S/L2 V/T2 S/L2 V/T2 T/L3 T/L3 W/T3...
Page 55: Standard Connection Diagrams
Wiring Main Circuit Terminals Standard Connection Diagrams Standard Inverter connection diagrams are shown in Fig 2.8. The connections depend on the Inverter capacity. 3G3RV-A2004-V1 to A2185-V1, A4004- 3G3RV-B2220-V1, B2300-V1, B4220-V1 V1 to A4185-V1 to B4550-V1 Braking Resistor Unit (optional) Braking Resistor DC reactor Unit (optional) Braking Unit...
Page 56: Wiring The Main Circuits
Wiring the Main Circuits This section describes wiring connections for the main circuit inputs and outputs. Wiring Main Circuit Inputs Observe the following precautions for the main circuit power supply input. Installing a Molded-case Circuit Breaker Always connect the power input terminals (R, S, and T) and power supply via a molded-case circuit breaker (MCCB) suitable for the Inverter.
Page 57 Wiring Main Circuit Terminals Installing a Magnetic Contactor If the power supply for the main circuit is to be shut off during a sequence, a magnetic contactor can be used. When a magnetic contactor is installed on the primary side of the main circuit to forcibly stop the Inverter, however, the regenerative braking does not work and the Inverter will coast to a stop.
Page 58 Incorrect Noise Filter Installation • Power 3G3RV-V1 MCCB supply Inverter MCCB General- Other purpose controllers noise filter Example: SYSMAC Power 3G3RV-V1 MCCB supply General- Inverter purpose noise filter MCCB Other Do not use general-purpose noise filters. No general- controllers purpose noise filter can effectively suppress noise generated from the Inverter.
Page 59 Wiring Main Circuit Terminals When using an MC to switch to a commercial power supply, stop the Inverter and motor before operating the MC. Use the speed search function if the MC is operated during operation. If measures for momentary power interrupts are required, use a delayed release MC.
Page 60 Countermeasures Against Radio Interference Radio noise is generated from the Inverter as well as from the input and output lines. To reduce radio noise, install noise filters on both input and output sides, and also install the Inverter in a totally enclosed steel box. The cable between the Inverter and the motor should be as short as possible.
Page 61 Wiring Main Circuit Terminals Connecting the Braking Resistor (Mounting 3G3IV-PERF) A Braking Resistor that mounts to the Inverter can be used with 200-V and 400-V Class Inverters with outputs from 0.4 to 37 kW. Connect the braking resistor as shown in Fig 2.15. Table 2.9 L8-01 (Protect selection for internal DB resistor) 1 (Enables overheat protection)
Page 62 To prevent the Unit from overheating, design the sequence to turn OFF the power supply for the thermal over- load relay trip contacts of the Unit as shown in Fig 2.16. 200-V and 400-V Class Inverters with 0.4 to 18.5 kW Output 3G3IV-PLKB Braking Resistor Unit Thermal overload...
Page 63 Wiring Main Circuit Terminals Braking resistor overheat- Braking resistor overheat- Braking resistor overheat- ing contacts (Thermal pro- ing contacts (Thermal pro- ing contacts (Thermal pro- tector contacts) tector contacts) tector contacts) Braking Braking Braking Resistor Resistor Resistor Unit Unit Unit Inverter Braking Unit #2 Braking Unit #3...
Page 64: Wiring Control Circuit Terminals
Wiring Control Circuit Terminals Wire Sizes and Closed-loop Connectors For remote operation using analog signals, keep the control line length between the Digital Operator or opera- tion signals and the Inverter to 50 m or less, and separate the lines from high-power lines (main circuits or relay sequence circuits) to reduce induction from peripheral devices.
Page 65 Wiring Control Circuit Terminals Straight Solderless Terminals for Signal Lines Models and sizes of straight solderless terminal are shown in the following table. Table 2.12 Straight Solderless Terminal Sizes Wire Size mm2 (AWG) Model Manufacturer 0.25 (24) AI 0.25 - 8YE 12.5 0.5 (20) AI 0.5 - 8WH...
Page 66: Control Circuit Terminal Connections
Control Circuit Terminal Connections Connections to Inverter control circuit terminals are shown in Fig 2.22. Inverter Forward Run/Stop Reverse Run/Stop Thermal switch contact for Braking Unit External fault Fault reset Multi-step command 1 Multi-function (Main speed switching) contact input Multi-step speed Defaults setting 2 Jog frequency...
Page 67 Wiring Control Circuit Terminals 1. Control circuit terminals are arranged as shown below. IMPORTANT 2. The output current capacity of the +V, −V terminal is 20 mA. Do not short-circuit between the +V, −V, and AC terminals. Doing so may result in a malfunction or a breakdown of the Inverter. 3.
Page 68 Shunt Connector CN5 and DIP Switch S1 The shunt connector CN 5 and DIP switch S1 are described in this section. Terminating resistance Analog input switch : Factory settings Note: Refer to Table 2.13 for S1 functions and to Table 2.14 for CN5 functions.
Page 69 Wiring Control Circuit Terminals Sinking/Sourcing Mode The input terminal logic can be switched between sinking mode (0-V common) and sourcing mode (+24-V common) if shunt connector CN5 is used. An external 24-V power supply is also supported, providing more freedom in signal input methods. Table 2.14 Sinking/Sourcing Mode and Input Signals Internal Power Supply External Power Supply...
Page 70: Control Circuit Wiring Precautions
Control Circuit Wiring Precautions Observe the following precautions when wiring control circuits. Separate control circuit wiring from main circuit wiring (terminals R/L1, S/L2, T/L3, B1, B2, U/T1, V/T2, • W/T3, 2, and 3) and other high-power lines. Separate wiring for control circuit terminals MA, MB, MC, M1, and M2 (contact outputs) from wiring to •...
Page 71: Wiring Check
Wiring Check Wiring Check Checks Check all wiring after wiring has been completed. Do not perform a buzzer check on control circuits. Perform the following checks on the wiring. Is all wiring correct? • Have any wire clippings, screws, or other foreign material been left? •...
Page 72: Installing And Wiring Option Cards
Installing and Wiring Option Cards Option Card Models and Specifications Up to three Option Cards can be mounted in the Inverter. You can mount up one Card into each of the three places on the controller card (A, C, and D) shown in Fig 2.25. Table 2.15 lists the type of Option Cards and their specifications.
Page 73: Installation
Installing and Wiring Option Cards Installation Before mounting an Option Card, remove the terminal cover and be sure that the charge indicator inside the Inverter is not lit. After confirming that the charge indicator is not lit, remove the Digital Operator and front cover and then mount the Option Card.
Page 74: Pg Speed Control Card Terminals And Specifications
PG Speed Control Card Terminals and Specifications The terminal specifications for the PG Speed Control Cards are given in the following tables. 3G3FV-PPGA2 The terminal specifications for the 3G3FV-PPGA2 are given in the following table. Table 2.16 3G3FV-PPGA2 Terminal Specifications Terminal Contents Specifications...
Page 75 Installing and Wiring Option Cards 3G3FV-PPGD2 The terminal specifications for the 3G3FV-PPGD2 are given in the following table. Table 2.18 3G3FV-PPGD2 Terminal Specifications Terminal Contents Specifications 12 VDC (±5%), 200 mA max.* Power supply for pulse generator 0 VDC (GND for power supply) 5 VDC (±5%), 200 mA max.* Pulse input + terminal Line driver input (RS-422 level input)
Page 76: Wiring
Wiring Wiring examples are provided in the following illustrations for the Control Cards. Wiring the 3G3FV-PPGA2 Wiring examples are provided in the following illustrations for the 3G3FV-PPGA2. Inverter Three-phase, 200 VAC (400 VAC) E6B2-CWZ3E R/L1 U/T1 V/T2 V/T2 W/T3 W/T3 3G3FV-PPGA2 +12 V power supply 0 V power supply...
Page 77 Installing and Wiring Option Cards PG power supply +12 V Pulse input Short for open-col- lector input Pulse monitor output Pulse input Fig 2.29 I/O Circuit Configuration of the 3G3FV-PPGA2 Wiring the 3G3FV-PPGB2 Wiring examples are provided in the following illustrations for the 3G3FV-PPGB2. Inverter Three-phase E6B2-CWZ6C...
Page 78 PG power supply +12 V A-phase pulse monitor output A-phase pulses A-phase pulse input B-phase pulse monitor output B-phase B-phase pulse pulses input • When connecting to a voltage-output-type PG (encoder), select a PG that has an output impedance with a current of at least 12 mA to the input circuit photocoupler (diode).
Page 79: Wiring Terminal Blocks
Installing and Wiring Option Cards Wiring the 3G3FV-PPGX2 Wiring examples are provided in the following illustrations for the 3G3FV-PPGX2. Inverter Three-phase 200 VAC (400 E6B2-CWZ1X VAC) R/L1 U/T1 S/L2 V/T2 T/L3 W/T3 3G3FV-PPGX2 Power supply +12 V Power supply 0 V Power supply +5 V A-phase pulse input (+) A-phase pulse input (-)
Page 80: Selecting The Number Of Pg (Encoder) Pulses
Straight Solderless Terminals for Control Circuit Terminals We recommend using straight solderless terminal on signal lines to simplify wiring and improve reliability. Refer to Table 2.12 Straight Solderless Terminal Sizes for specifications. Closed-loop Connector Sizes and Tightening Torque The closed-loop connectors and tightening torques for various wire sizes are shown in Table 2.21. Table 2.21 Closed-loop Connectors and Tightening Torques Terminal Tightening Torque (N •...
Page 81 Installing and Wiring Option Cards Table 2.22 PG Pulse Selection Examples PG Rating PG Output Frequency for Maximum Fre- Motor's Maximum Speed (r/min) (p/rev) quency Output (Hz) 1800 18,000 1500 20,000 1200 1000 20,000 1200 18,000 Note 1. The motor speed at maximum frequency output is expressed as the sync rotation speed. 2.
Page 82 PG-X2 PG power supply 0V +12V IP12 Capacitor for +12 V momentary power loss A (+) A (-) B (+) B (-) Z (+) Z (-) Fig 2.35 3G3FV-PPGD2 Connection Example (for 12-V PG power supply)
Page 83: Digital Operator And Modes
Chapter 3 Digital Operator and Modes This chapter describes Digital Operator displays and functions, and provides an overview of operating modes and switching between modes. Digital Operator............3-2 Modes ................3-5...
Page 84: Digital Operator
Digital Operator This section describes the displays and functions of the Digital Operator. Digital Operator Display The key names and functions of the Digital Operator are described below. Digital Operator with LED Display (3G3IV-PJVOP161) Drive Mode Indicators FWD: Lit when there is a forward run command input. REMOTE REV: Lit when there is a reverse run command input.
Page 85: Digital Operator Keys
Digital Operator Digital Operator Keys The names and functions of the Digital Operator Keys are described in Table 3.1. Table 3.1 Key Functions Name Function Switches between operation via the Digital Operator (LOCAL) and L OC A L LOCAL/REMOTE Key control circuit terminal operation (REMOTE).
Page 86 There are indicators on the upper left of the RUN and STOP Keys on the Digital Operator. These indicators will light and flash to indicate operating status. The RUN Key indicator will flash and the STOP Key indicator will light during initial excitation of the dynamic brake.
Page 87: Modes
Modes Modes This section describes the Inverter's modes and switching between modes. Inverter Modes The Inverter's parameters and monitoring functions are organized in groups called modes that make it easier to read and set parameters.The Inverter is equipped with 5 modes. The 5 modes and their primary functions are shown in the Table 3.3.
Page 88: Switching Modes
Switching Modes The mode selection display will appear when the MENU Key is pressed from a monitor or setting display. Press the MENU Key from the mode selection display to switch between the modes. Press the DATA/ENTER Key from the mode selection key to monitor data and from a monitor display to access the setting display.
Page 89: Drive Mode
Modes Drive Mode Drive Mode is the mode in which the Inverter can be operated. The following monitor displays are possible in Drive Mode: The frequency reference, output frequency, output current, and output voltage, as well as fault information and the fault history. When b1-01 (Reference selection) is set to 0, the frequency can be changed from the frequency setting display.
Page 90: Quick Programming Mode
Quick Programming Mode In Quick Programming Mode, the parameters required for Inverter trial operation can be monitored and set. Parameters can be changed from the setting displays. Use the Increment, Decrement, and Digit Selection/ RESET Keys to change the frequency. The parameter will be written and the monitor display will be returned to when the ENTER Key is pressed after changing the setting.
Page 91: Advanced Programming Mode
Modes Advanced Programming Mode In Advanced Programming Mode, all Inverter parameters can be monitored and set. Parameters can be changed from the setting displays. Use the Increment, Decrement, and Digit Selection/ RESET Keys to change the frequency. The parameter will be written and the monitor display will be returned to when the ENTER Key is pressed after changing the setting.
Page 92 Setting Parameters Here, the procedure is shown to change C1-01 (Acceleration Time 1) from 10 s to 20 s. Table 3.4 Setting Parameters in Advanced Programming Mode Step Digital Operator Display Description Power supply turned ON. MENU Key pressed to enter Drive Mode. MENU Key pressed to enter Quick Program- ming Mode.
Page 93: Verify Mode
Modes Verify Mode Verify Mode is used to display any parameters that have been changed from their default settings in a Pro- gramming Mode or by autotuning. “None” will be displayed if no settings have been changed. Of the Environment Mode settings, only A1-02 will be displayed if it has been changed. Other Environment Modes settings will not be displayed even if they have been changed from their default settings.
Page 94: Autotuning Mode
Autotuning Mode Autotuning automatically tunes and sets the required motor constants when operating in the open-loop V/f, V/f with PG, or open-loop vector control modes. Always perform autotuning before starting operation when using open-loop vector control mode. When V/f control has been selected, stationary autotuning for only line-to-line resistance can be selected. When the motor cannot be disconnected from the load, perform stationary autotuning.
Page 95 Modes Autotuning Monitor Display Setting Display MENU Tuning mode: Tuning mode rotational tuning Autotuning DRIVE QUICK VERIFY AUTO TUNING DRIVE QUICK VERIFY AUTO TUNING Motor output power Motor output power DRIVE QUICK VERIFY AUTO TUNING Motor rated voltage Motor rated voltage DRIVE QUICK VERIFY AUTO...
Page 96: Trial Operation
Chapter 4 Trial Operation This chapter describes the procedures for trial operation of the Inverter and provides an example of trial operation. Cautions and Warnings..........4-2 Trial Operation Procedure..........4-3 Trial Operation Procedures..........4-4 Adjustment Suggestions ..........4-20...
Page 97: Cautions And Warnings
Cautions and Warnings Turn ON the input power supply only after mounting the front cover, terminal covers, WARNING bottom cover, Digital Operator, and optional items. Not doing so may result in electri- cal shock. Do not remove the front cover, terminal covers, bottom cover, Digital Operator, or WARNING optional items while the power is being supplied.
Page 98: Trial Operation Procedure
Trial Operation Procedure Trial Operation Procedure Perform trial operation according to the following flowchart. When setting the basic parameters, always set C6-01 (CT/VT Selection) according to the application. START Installation Wiring Set power supply voltage. *1 Turn ON power. Confirm status. Select Basic settings operating...
Page 99: Trial Operation Procedures
Trial Operation Procedures The procedure for trial operation is described in order in this section. Application Confirmation First, confirm the application before using the Inverter. Fan, blower, pump • Other equipment • For any Inverter application other than a fan, blower, or pump, set C6-01 (CT/VT Selection) to 0 (CT: low car- rier, fixed torque).
Page 100: Power On
Trial Operation Procedures Power ON Confirm all of the following items before turning ON the power supply. Check that the power supply is of the correct voltage. • 200-V class: 3-phase 200 to 240 V, 50 Hz/60 Hz 400-V class: 3-phase 380 to 480 V, 50 Hz/60 Hz For an Inverter of 200 V, 37 kW or more, use one of the following power supplies for the cooling fan.
Page 101: Initializing Parameters
Initializing Parameters Initialize parameters by following the table below. Set A1-03 to 2220 when initializing a 2-wire sequence. Table 4.1 Initializing Parameters Step Operator Screen Displays Description Turn ON the power. Press to shift to Advanced Programming MENU Mode. Press to show parameter reference screen. Press to confirm A1.
Page 102: Basic Settings
Trial Operation Procedures Basic Settings Switch to the quick programming mode (the QUICK indicator on the Digital Operation should be lit) and then set the following parameters. Refer to Chapter 3 Digital Operator and Modes for Digital Operator operating procedures and to Chapter 5 Parameters and Chapter 6 Parameter Settings by Function for details on the parameters.
Page 103 Table 4.2 Parameters that must be set (Continued) Parameter Factory Name Description Setting Range Page Number Setting Set to enable or disable the motor overload protection function using the electronic ther- mal relay. Motor protection 5-57 L1-01 0: Disabled 0 to 3 selection 6-62 1: General motor protection...
Page 104: Settings For The Control Methods
Trial Operation Procedures * 1. 0 or 1 for flux vector control. * 2. The factory setting depends on the capacity of the Inverter. * 3. The upper limit of the setting range depends on the upper limit set in E1-04. * 4.
Page 105 Setting the Control Method Any of the following four control methods can be set. Parameter Set- Control Method Basic Control Main Applications ting Variable speed control, particularly A1-02 = 0 control of multiple motors with one V/f control Voltage/frequency ratio fixed control (factory setting) Inverter and replacing existing Invert- Applications requiring high-precision...
Page 106: Autotuning
Trial Operation Procedures Open-loop Vector Control (A1-02 = 2) Perform autotuning. If the motor can be operated without a load, perform rotational autotuning. If the motor cannot be operated, perform stationary autotuning. Refer to the following section on Autotuning for details on autotuning.
Page 107 Tuning Mode Multi-function Inputs Multi-function Outputs Same as during normal Rotational autotuning Do not function. operation Maintain same status as Stationary autotuning 1 Do not function. when autotuning is started. Stationary autotuning for line- Maintain same status as Do not function. to-line resistance only when autotuning is started.
Page 108 Trial Operation Procedures If the values of E2-02 and E2-03 differed greatly from the reference data of the motor in the test report or the instruction manual, hunting, motor vibrations, insufficient motor torque, or an overcurrent may occur because the motor is operated although the aforementioned conditions have not been fulfilled after stationary autotuning1.
Page 109 After having completed autotuning, set E1-05 (Motor maximum frequency) to the base frequency shown on the motor nameplate. Output voltage Rated voltage from motor nameplate T1-03 Output frequency Base frequency Base frequency from motor nameplate ×T1-03 from motor nameplate Rated voltage from motor nameplate Fig 4.4 Motor Base Frequency and Inverter Input Voltage Setting 1.
Page 110 Trial Operation Procedures Parameter Settings for Autotuning The following parameters must be set before autotuning. Table 4.4 Parameter Settings before Autotuning Data Displays during Param- Autotuning eter Setting Factory Name Display Open Num- Range Setting Flux with Loop Vector Vector When switching to motor 2 is selected, set the motor for which autotuning is to be performed.
Page 111 * 7. The setting range depends on the Inverter capacity. The value for a 200 V Class Inverter for 0.4 kW is given. * 8. Set T1-02 and T1-04 when 2 is set for T1-01. Only set value 2 is possible for V/f control or V/f control with PG. * 9.
Page 112: Application Settings
Trial Operation Procedures Precautions After Using Autotuning When using a spindle motor, the maximum output speed is higher than the rated frequency (or Base Fre- quency, FA (E1-06)). For the region greater than FA, defined as the constant output range, output torque is reduced because the voltage does not increase for an increase in the frequency.
Page 113: No-Load Operation
To use a 0 to 10-V analog signal for a 60 Hz motor for variable-speed operation between 0 and 54 Hz (0% • to 90% speed deduction), set H3-02 to 90.0%. To control speed between 20% and 80% to ensure smooth gear operation and limit the maximum speed of •...
Page 114: Check And Recording Parameters
Trial Operation Procedures Refer to Adjustment Suggestions on page 4-20 if hunting, vibration, or other problems originating in the • control system occur. Check and Recording Parameters Use verify mode (i.e., when the VERIFY indicator on the Digital Operator is lit) to check parameters that have been changed for trial operation and record them in a parameter table.
Page 115: Adjustment Suggestions
Adjustment Suggestions If hunting, vibration, or other problems originating in the control system occur during trial operation, adjust the parameters listed in the following table according to the control method. This table lists only the most commonly used parameters. Table 4.6 Adjusted Parameters Recom- Control Name (Parameter...
Page 116 Adjustment Suggestions Table 4.6 Adjusted Parameters (Continued) Recom- Control Name (Parameter Factory Performance mended Adjustment Method Method Number) Setting Setting • Reducing motor • Increase the setting if magnetic noise motor magnetic noise is Depends Carrier frequency • Controlling hunting 0 to high.
Page 117 ting.) ASR for V/f control with a PG will only control the output frequency; a high gain, such as is possible for open-loop vector control, cannot be set. The following parameters will also indirectly affect the control system. Table 4.7 Parameters Indirectly Affecting Control and Applications Name (Parameter Number) Application CT/VT selection (C6-01)
Page 118: User Parameters
Chapter 5 User Parameters This chapter describes all user parameters that can be set in the Inverter. User Parameter Descriptions........5-2 Digital Operation Display Functions and Levels ..5-3 User Parameter Tables ..........5-8...
Page 119: User Parameter Descriptions
User Parameter Descriptions This section describes the contents of the user parameter tables. Description of User Parameter Tables User parameter tables are structured as shown below. Here, b1-01 (Frequency Reference Selection) is used as an example. Control Methods Change Name Param- Setting Factory...
Page 120: Digital Operation Display Functions And Levels
Digital Operation Display Functions and Levels Digital Operation Display Functions and Levels The following figure shows the Digital Operator display hierarchy for the Inverter. Function Display Page MENU Drive Mode Status Monitor Parameters Monitor 5-77 Fault Trace Fault Trace 5-82 Inverter can be operated and Fault History Fault History...
Page 121: User Parameters Settable In Quick Programming Mode
User Parameters Settable in Quick Programming Mode The minimum user parameters required for Inverter operation can be monitored and set in quick programming mode. The user parameters displayed in quick programming mode are listed in the following table. These, and all other user parameters, are also displayed in advanced programming mode.
Page 122 Digital Operation Display Functions and Levels Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- with Loop Vec- Number Display tion Vector Select carrier wave fixed pattern. Carrier fre- 0: Low-noise PWM quency 1: 2.0 kHz selection (C6-...
Page 123 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- with Loop Vec- Number Display tion Vector Max. output 60.0 frequency 40.0 to E1-04 303H Output voltage (V) 300.0 Frequency Max. 200.0 voltage 0.0 to E1-05 304H 255.0*7...
Page 124 Digital Operation Display Functions and Levels Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- with Loop Vec- Number Display tion Vector Set the voltage level gain for multi- Gain (termi- function analog output 2. nal AM) Set the number of multiples of 10 V to be output as the 100% output for...
Page 125: User Parameter Tables
User Parameter Tables A: Setup Settings The following settings are made with the environment parameters (A parameters): Language displayed on the Digital Operator, access level, control method, initialization of parameters. Initialize Mode: A1 User parameters for the environment modes are shown in the following table. Control Methods Change Name...
Page 126 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Used to initialize the param- eters using the specified method. Initialize No initializing 1110: Initializes using the 6-14 User parameters...
Page 127: Application Parameters: B
Application Parameters: b The following settings are made with the application parameters (B parameters): Operation method selection, DC injection braking, speed searching, timer functions, dwell functions, DROOP functions, energy saving functions, and zero-servo. Operation Mode Selections: b1 User parameters for operation mode selection are shown in the following table. Control Methods Change Name...
Page 128 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Used to set the method of operation when the fre- Operation quency reference input is selection for less than the minimum out- setting E1-...
Page 129 DC Injection Braking: b2 User parameters for injection braking are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Zero-speed Used to set the frequency level (DC which starts DC injection...
Page 130 User Parameter Tables Speed Search: b3 User parameters for the speed search are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Enables/disables the speed...
Page 131 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Speed Sets the magnetic contactor search wait operating delay time when time (cur- there is a magnetic contactor rent detec- on the output side of the tion or...
Page 132 User Parameter Tables Timer Function: b4 User parameters for timer functions are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Timer func- Sets the timer function out-...
Page 133 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector PID limit Sets the limit after PID-con- 0.0 to b5-06 trol as a percentage of the 100.0% 1AAH 6-142 100.0...
Page 134 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector PID feed- back com- mand loss Sets the PID feedback loss 0.0 to detection b5-14 1.0 s...
Page 135 Dwell Functions: b6 User parameters for dwell functions are shown in the following table. Control Methods Name Change Param- Set- Fac- Open during Regis- Description Flux Page eter ting tory Loop Opera- with Vec- Number Display Range Setting Vec- tion Dwell fre- quency at...
Page 136 User Parameter Tables Energy Saving: b8 User parameters for energy-saving control functions are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Energy-sav-...
Page 137 Zero-Servo: b9 User parameters for zero-servo functions are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Adjust the strength of the zero-servo lock.
Page 138: Autotuning Parameters: C
User Parameter Tables Autotuning Parameters: C The following settings are made with the autotuning parameters (C parameters): Acceleration/deceleration times, s-curve characteristics, slip compensation, torque compensation, speed control, and carrier frequency functions. Acceleration/Deceleration: C1 User parameters for acceleration and deceleration times are shown in the following table. Control Methods Change Name...
Page 139 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Accel/decel time setting 0: 0.01-second units 6-24 unit C1-10 0 or 1 209H 1: 0.1-second units 6-25 Acc/Dec Units...
Page 140 User Parameter Tables Motor Slip Compensation: C3 User parameters for slip compensation are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Used to improve speed accu-...
Page 141 Torque Compensation: C4 User parameters for are torque compensation shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Sets torque compensation gain as a ratio.
Page 142 User Parameter Tables Speed Control (ASR): C5 User parameters for speed control are shown in the following table. Control Methods Name Param- Change Open eter Setting Factory during Regis- Description Flux Page Loop Num- Range Setting Opera- with Vec- Display Vec- tion ASR pro-...
Page 143 Carrier Frequency: C6 User parameters for the carrier frequency are shown in the following table. Control Methods Name Param- Change Open eter Setting Factory during Regis- Description Flux Page Loop Num- Range Setting Opera- with Vec- Display Vec- tion CT/VT 0: CT (low carrier, parameter selection torque, 150% per minute)
Page 144: Reference Parameters: D
User Parameter Tables Reference Parameters: d The following settings are made with the reference parameters (d parameters): Frequency references. Preset Reference: d1 User parameters for frequency references are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open...
Page 145 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Frequency The frequency reference reference 11 when multi-step speed refer- 0.00 d1-11 28CH ences 2 and 4 are ON for a Reference multi-function inputs.
Page 146 User Parameter Tables Reference Limits: d2 User parameters for frequency reference limits are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Frequency...
Page 147 Reference Frequency Hold: d4 User parameters for the reference frequency hold function are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Sets whether or not frequen-...
Page 148 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Set the torque reference Torque ref- delay time in ms units. erence delay This function can be used to time adjust the noise of the torque...
Page 149 Field Weakening: d6 User parameters for the field weakening command are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Set the Inverter output volt- age when the field weaken- Field weak-...
Page 150: Motor Constant Parameters: E
User Parameter Tables Motor Constant Parameters: E The following settings are made with the motor constant parameters (E parameters): V/f characteristics and motor parameters. V/f Pattern: E1 User parameters for V/f characteristics are shown in the following table. Control Methods Param- Change Name...
Page 151 Control Methods Param- Change Name eter Setting Factory during Regis- Open Flux Description Page Num- Range Setting Opera- with Loop Vec- Display tion Vector Mid. output frequency 0.0 to 0.0 Hz E1-11 30AH 6-156 300.0 Frequency Mid. Set only to fine-adjust V/f for output the output range.
Page 152 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Motor line- Sets the motor phase-to- to-line resis- 0.000 9.842 phase resistance in Ω units. tance E2-05 312H 6-152...
Page 153 Motor 2 V/f Pattern: E3 User parameters for motor 2 V/f characteristics are shown in the following table. Control Methods Param- Change Name eter Setting Factory during Regis- Open Flux Description Page Num- Range Setting Opera- with Loop Vec- Display tion Vector Motor 2...
Page 154 User Parameter Tables Motor 2 Setup: E4 User parameters for motor 2 are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Sets the motor rated current...
Page 155: Option Parameters: F
Option Parameters: F The following settings are made with the option parameters (F parameters): Settings for option boards PG Option Setup: F1 User parameters for the PG Speed Control Board are shown in the following table. Control Methods Change Name Param- Setting Factory...
Page 156 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Sets the stopping method when a speed deviation (DEV) fault occurs. Operation 0: Ramp to stop selection at (Deceleration stop using deviation...
Page 157 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Overspeed detection Sets the overspeed detection 0 to level F1-08 115% 387H 6-194 method. Frequencies above that set PG Over- for F1-08 (set as a percent- spd Level...
Page 158 User Parameter Tables Analog Reference Board: F2 User parameters for the Analog Reference Board are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion...
Page 159 Analog Monitor Boards: F4 User parameters for the Analog Monitor Board are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Channel 1 Effective when the Analog...
Page 160 User Parameter Tables Not Used: F5 User parameters for the Digital Output Board are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Description Page eter Range Setting Opera- with Loop Number Display tion Vector Not used F5-01...
Page 161 Communications Option Boards: F6 User parameters for a Communications Option Board are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Operation Set the stopping method for...
Page 162: Terminal Function Parameters: H
User Parameter Tables Terminal Function Parameters: H The following settings are made with the terminal function parameters (H parameters): Settings for external terminal functions. Multi-function Contact Inputs: H1 User parameters for multi-function contact inputs are shown in the following tables. Control Methods Change Name...
Page 163 Multi-function Contact Input Functions Control Methods Set- Open ting Function Flux Page Loop with Vec- Value Vec- 3-wire sequence (Forward/Reverse Run Command) 6-15 Local/Remote selection (ON: Local, OFF: Remote) 6-81 6-89 Option/Inverter selection (ON: Option board) 6-197 Multi-step speed reference 1 When H3-09 is set to 2, this function is combined with the master/auxiliary speed switch.
Page 164 User Parameter Tables Control Methods Set- Open ting Function Flux Page Loop with Vec- Value Vec- Analog frequency reference sample/hold 6-88 External fault (Desired settings possible) 20 to Input mode: NO contact/NC contact, Detection mode: Normal/during opera- 6-91 tion PID control integral reset (reset when reset command is input or when Yes 6-145 stopped during PID control) PID control integral hold (ON: Hold)
Page 165 Multi-function Contact Outputs: H2 User parameters for multi-function outputs are shown in the following tables. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Terminal M1-M2 function Multi-function contact out-...
Page 166 User Parameter Tables Control Methods Set- Open ting Function Flux Page Loop with Vec- Value Vec- Fault (ON: Digital Operator communications error or fault other than CPF00 and CPF01 has occurred.) Not used. (Set when the terminals are not used.) Minor fault (ON: Alarm displayed) Fault reset command active Timer function output...
Page 167 Analog Inputs: H3 User parameters for analog inputs are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Signal level selection (terminal 0: 0 to 10 V...
Page 168 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Multi-func- tion analog input (terminal Select multi-function analog 6-34 A2) func- H3-09 input function for terminal 0 to 1F 418H 6-164...
Page 169 H3-05 and H3-09 Settings Control Methods Set- Open ting Function Contents (100%) Flux Page Loop with Vec- Value Vec- 6-36 Add to terminal A1 Maximum output frequency 6-164 Frequency reference (voltage) com- Frequency gain 6-35 mand value Auxiliary frequency reference 1 Maximum output frequency 6-10 (2nd step analog)
Page 170 User Parameter Tables Multi-function Analog Outputs: H4 User parameters for multi-function analog outputs are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector...
Page 171 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Sets the multi-function ana- log output 2 voltage level Bias (termi- bias. nal AM) Sets output characteristic up/ down parallel movement as a -10.0 to H4-06...
Page 172 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Stopping Set the stopping method for method communications errors. after com- 0: Deceleration to stop munication using deceleration time in error...
Page 173 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Pulse train -100.0 input bias Set the input bias when the H6-04 0.0% 42FH 6-39 pulse train is 0. Pulse Input 100.0 Bias...
Page 174: Protection Function Parameters: L
User Parameter Tables Protection Function Parameters: L The following settings are made with the protection function parameters (L parameters): Motor selection func- tion, power loss ridethrough function, stall prevention function, frequency detection, torque limits, and hard- ware protection. Motor Overload: L1 User parameters for motor overloads are shown in the following table.
Page 175 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Set Multi-function input terminalA3 (H3-05) or A2 Alarm oper- (H3-09) to E and select the ation selec- operation when the input tion during motor temperature (ther-...
Page 176 User Parameter Tables Power Loss Ridethrough: L2 User parameters for power loss ridethroughs are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector...
Page 177 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Sets in seconds the time KEB decel- required to decelerate from eration time the speed where the deceler- 0.0 to L2-06 0.0 s...
Page 178 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Stall pre- Sets the lower limit for stall vention prevention during accelera- limit during tion, as a percentage of the accel Inverter rated current, when...
Page 179 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector 0: Disabled 1: Enabled Used to enable or disable the Overvolt- function for inhibiting main age inhibit circuit overvoltages by selection reducing the regenerative...
Page 180 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Speed Effective when “Desired fre- agreement quency (speed) agree 2,” detection “Frequency (FOUT) detec- -300.0 level (+/-) tion 3,”...
Page 181 Torque Detection: L6 User parameters for the torque detection function are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector 0: Overtorque/undertorque detection disabled.
Page 182 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Torque detection selection 2 L6-04 0 to 8 4A4H 6-59 Torq Det 2 Output of torque detection 1 Torque is enabled by setting B or 17...
Page 183 Control Methods Name Param- Change Open eter Setting Factory during Regis- Description Flux Page Loop Num- Range Setting Opera- with Vec- Display Vec- tion Integral time set- Set the integral time for the torque ting for limit. When integral control is set 5 to torque L7-06...
Page 184 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Sets the operation for when Operation the Inverter overheat pre- selection alarm goes ON. after over- 0: Decelerate to stop in heat pre-...
Page 185: N: Special Adjustments
Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Ambient Set the ambient temperature. temperature If set to 60 °C, the Inverter 45 to 45 °C L8-12 4B8H overload protection function...
Page 186 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Set the hunting-prevention gain multiplication factor. Normally, there is no need to Hunting- make this setting.
Page 187 High-slip Braking: N3 User parameters for high-slip braking are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Description Open Flux Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector High-slip braking Sets the frequency width for decelera- deceleration during high-slip...
Page 188 User Parameter Tables Feed Forward: N5 User parameters for the feed forward control are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector...
Page 189: Digital Operator Parameters: O
Digital Operator Parameters: o The following settings are made with the Digital Operator parameters (o parameters): Multi-function selec- tions and the copy function. Monitor Select: o1 User parameters for Digital Operator Displays are shown in the following table. Control Methods Change Name Param-...
Page 190 User Parameter Tables Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Setting unit for fre- quency Set the setting unit for frequency parameters reference-related parameters. related to V/ o1-04 0 or 1...
Page 191 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Frequency When the frequency refer- reference ence is set on the Digital setting Operator frequency refer- method ence monitor, sets whether selection...
Page 192: T: Motor Autotuning
User Parameter Tables Copy Function: o3 User parameters for the copy function are shown in the following table. Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Copy func-...
Page 193 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description Page eter Range Setting Opera- with Loop Vec- Number Display tion Vector Number of motor poles Set the number of motor 2 to 48 T1-06 4 poles 706H 4-15 poles.
Page 194: U: Monitor Parameters
User Parameter Tables U: Monitor Parameters The following settings are made with the monitor parameters (U parameters): Setting parameters for monitor- ing in drive mode. Status Monitor Parameters: U1 The parameters used for monitoring status are listed in the following table. Control Methods Name Output Signal Level Dur-...
Page 195 Control Methods Name Output Signal Level Dur- Param- Min. Open Regis- Description ing Multi-Function Analog Flux eter Loop Unit with Vec- Number Display Output Vec- Shows input ON/OFF status U1-10= 1: FWD command Input termi- (S1) is ON. nal status 1: REV command (S2) is ON.
Page 196 User Parameter Tables Control Methods Name Output Signal Level Dur- Param- Min. Open Regis- Description ing Multi-Function Analog Flux eter Loop Unit with Vec- Number Display Output Vec- Terminal Monitors the input current A2 input of the multi-function analog 20 mA: 100% (4 to 20 mA) current (0 to 10 V, −10 to 10 V U1-16...
Page 197 Control Methods Name Output Signal Level Dur- Param- Min. Open Regis- Description ing Multi-Function Analog Flux eter Loop Unit with Vec- Number Display Output Vec- Output volt- Monitors the Inverter inter- age refer- nal voltage reference for 10 V: 200 VAC (400 VAC) ence (Vd) U1-27 motor excitation current...
Page 198 User Parameter Tables Control Methods Name Output Signal Level Dur- Param- Min. Open Regis- Description ing Multi-Function Analog Flux eter Loop Unit with Vec- Number Display Output Vec- PID target PID target value value 0.01 U1-38 Given as maximum fre- 10 V: Max.
Page 199 Fault Trace: U2 User parameters for error tracing are shown in the following table. Control Methods Name Output Signal Level Param- Min. Open Regis- Description During Multi-Function Flux eter Loop Unit with Vec- Number Display Analog Output Vec- Current fault The contents of the current U2-01 fault.
Page 200 User Parameter Tables Control Methods Name Output Signal Level Param- Min. Open Regis- Description During Multi-Function Flux eter Loop Unit with Vec- Number Display Analog Output Vec- Input termi- The input terminal status when nal status at the previous fault occurred. fault U2-11 The format is the same as for...
Page 201: Fault History: U3
Fault History: U3 User parameters for the error log are shown in the following table. Control Methods Name Output Signal Level Dur- Param- Min. Open Regis- Flux Description ing Multi-Function Analog eter Loop Unit with Vec- Number Display Output Vec- Most recent The error contents of 1st fault...
Page 202: Factory Settings That Change With The Control Method (A1-02)
User Parameter Tables Factory Settings that Change with the Control Method (A1-02) The factory settings of the following user parameters will change if the control method (A1-02) is changed. Factory Setting Param- Open V/f Con- V/F with Flux Name Setting Range Unit eter Loop...
Page 203 200 V and 400 V Class Inverters of 0.4 to 1.5 kW Param- eter Open Factory Setting Flux Unit Loop Num- Vector Vector Control Control E1-03 E1-04 Hz 50.0 60.0 60.0 72.0 50.0 50.0 60.0 60.0 50.0 50.0 60.0 60.0 90.0 120.0 180.0...
Page 204: Factory Settings That Change With The Inverter Capacity (O2-04)
User Parameter Tables Factory Settings that Change with the Inverter Capacity (o2-04) The factory settings of the following user parameters will change if the Inverter capacity (o2-04) is changed. 200 V Class Inverters Param- eter Name Unit Factory Setting Number Inverter Capacity 0.75 o2-04...
Page 205 Param- eter Name Unit Factory Setting Number Inverter Capacity 18.5 o2-04 kVA selection Energy-saving filter time b8-03 0.50 (Open loop vector control) 2.00 (Open loop vector control) constant Energy-saving coeffi- b8-04 57.87 51.79 46.27 38.16 35.78 31.35 23.10 20.65 18.12 cient C6-01 CT/VT selection...
Page 206 User Parameter Tables 400 V Class Inverters Param- eter Name Unit Factory Setting Number Inverter Capacity 0.75 o2-04 kVA selection Energy-saving filter time b8-03 0.50 (Open loop vector control) constant Energy-saving coeffi- b8-04 576.40 447.40 338.80 313.60 245.80 236.44 189.50 145.38 140.88 126.26...
Page 207 Param- eter Name Unit Factory Setting Number Inverter Capacity 18.5 o2-04 kVA selection Energy-saving filter time b8-03 0.50 (Open loop vector control) 2.00 (Open loop vector control) constant Energy-saving coeffi- b8-04 115.74 103.58 92.54 76.32 71.56 67.20 46.20 38.91 36.23 32.79 cient C6-01...
Page 208 User Parameter Tables Param- eter Name Unit Factory Setting Number Inverter Capacity o2-04 kVA selection Energy-saving filter time 2.00 (Open loop vector con- b8-03 constant trol) Energy-saving coeffi- b8-04 30.13 30.57 27.13 21.76 cient C6-01 CT/VT selection Carrier frequency selec- tion (when VT is C6-02 *1 *3...
Page 209: Parameter Settings By Function
Chapter 6 Parameter Settings by Function Application and Overload Selections ......6-2 Frequency Reference ..........6-6 Run Command............6-14 Stopping Methods ............6-16 Acceleration and Deceleration Characteristics ..6-23 Adjusting Frequency References.......6-33 Speed Limit (Frequency Reference Limit Function)...6-41 Improved Operating Efficiency........6-43 Machine Protection ............6-50 Continuing Operation..........6-68 Inverter Protection .............6-79 Input Terminal Functions..........6-81...
Page 210: Application And Overload Selections
Application and Overload Selections Select the Overload to Suit the Application Set C6-01 (CT: Low carrier constant torque, VT: High carrier variable torque) depending on the application for which the Inverter is used. The setting ranges for the Inverter carrier frequency, overload tolerance, and maximum output frequency depend on the setting in C6-01.
Page 211 Application and Overload Selections Difference Between CT and VT The characteristics of CT (low carrier, constant torque) and VT (high carrier, variable torque) are shown below. CT: Low Carrier, Constant Torque VT: High Carrier, Variable Torque Variable Torque Constant Torque Torque Torque Motor speed...
Page 212 Carrier Frequency When selecting the carrier frequency, observe the following precautions items. When using a device with C6-01 set to 1 (VT), adjust the carrier frequency according to the cases shown • below. If the wiring distance between Inverter and motor is long: Set the carrier frequency low. (Use the following values as guidelines.
Page 213 Application and Overload Selections Carrier Frequency and Inverter Overload Current Level When C6-01 is set to 1, the Inverter overload level will be reduced. Even when the overload current falls to below 120% constant 1 min, OL2 (Inverter overload) will be detected. The Inverter overload current reduction level is shown below.
Page 214: Frequency Reference
Frequency Reference This section explains how to input the frequency reference. Selecting the Frequency Reference Source Set parameter b1-01 to select the frequency reference source. Related Parameters Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera-...
Page 215 Frequency Reference Inputting the Frequency Reference Using Control Circuit Terminal (Analog Setting) When b1-01 is set to 1, you can input the frequency reference from control circuit terminal A1 (voltage input), control circuit terminal A2 (voltage or current input) or control circuit terminal A3 (voltage input). Inputting Master Speed Frequency Reference Only (Voltage Input) When inputting a voltage for the master speed frequency reference, input the voltage to control circuit termi- nal A1.
Page 216 Switch between 2 Step Speeds: Master/Auxiliary Speeds When switching between the master and auxiliary speeds, input the master speed frequency reference to con- trol circuit terminal A1 and the auxiliary speed frequency reference to control circuit terminal A2 or A3. The master speed frequency reference input to terminal A1 will be used for the Inverter frequency reference when the master speed reference 1 allocated to multi-function input terminal (factory setting: S5) is OFF, and the auxiliary speed frequency reference input to terminal A2 or A3 will be used for the Inverter frequency refer-...
Page 217: Using Multi-Step Speed Operation
Frequency Reference Setting Frequency Reference Using Pulse Train Signals When b1-01 is set to 4, the pulse train input to control circuit terminal RP is used as the frequency reference. Set H6-01 (Pulse Train Input Function Selection) to 0 (frequency reference), and then set the 100% reference pulse frequency to H6-02 (Pulse Train Input Scaling).
Page 218 TerminalS5 TerminalS6 TerminalS7 TerminalS8 Multi-step Multi-step Multi-step Jog Fre- Speed Selected Frequency Speed Refer- Speed Refer- Speed Refer- quency Selec- ence 1 ence 2 ence 3 tion Frequency reference 1 d1-01, master speed frequency Frequency reference 2 d1-02, auxiliary frequency 1 Frequency reference 3 d1-03, auxiliary frequency 2 Frequency reference 4 d1-04 Frequency reference 5 d1-05...
Page 219 Frequency Reference Connection Example and Time Chart The following diagram shows a time chart and control circuit terminal connection example during a 9-step operation. Inverter Forward/stop Reverse/stop External fault Fault reset Multi-step speed reference 1 Multi-step speed reference 2 Multi-step speed reference 3 Jog frequency SC Sequence common Frequency setting power (+15 V)
Page 220: 3G3Rv-V1 Function Block
3G3RV-V1 Function Block The following diagram shows the function block diagram of 3G3RV-V1.
Page 221 Frequency Reference Primary delay filter Primary delay filter ≠ * 2 is current input. Primary delay filter ≠ * The same value can not be set in H3-05 and H3-09. Fig 6.11 AI Input Detailed Diagram...
Page 222: Run Command
Run Command This section explains input methods for the Run Command. Selecting the Run Command Source Set parameter b1-02 to select the source for the Run Command. Related Parameters Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter Range...
Page 223 Run Command Performing Operations Using a 3-wire Sequence When any parameter from H1-01 to H1-6 (multi-function contact input terminals S3 to S8) is set to 0, termi- nals S1 and S2 are used for a 3-wire sequence, and the multi-function input terminal that has been set func- tions as a Forward/Reverse Run Command terminal.
Page 224: Stopping Methods
Stopping Methods This section explains methods of stopping the Inverter. Selecting the Stopping Method when a Stop Command is Sent There are four methods of stopping the Inverter when a Stop Command is sent: Deceleration to stop • Coast to stop •...
Page 225 Stopping Methods Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- with Loop Vec- Number Display tion Vector Zero-speed Used to set the frequency level (DC which starts DC injection injection braking in units of Hz when braking deceleration to stop is starting fre-...
Page 226 Deceleration to Stop If the Stop Command is input (i.e., the Run Command is turned OFF) when b1-03 is set to 0, the motor decel- erates to a stop according to the deceleration time that has been set. (Factory setting: C1-02 (Deceleration Time 1)) If the output frequency when decelerating to a stop falls below b2-01, the DC injection brake will be applied using the DC current set in b2-02 only for the time set in b2-04.
Page 227 Stopping Methods Setting Precautions When using flux vector control, the zero-speed control starts when motor speed drops to b2-01 during • deceleration. Also, the setting b2-01 < E1-09 is possible. The current level during injection brake time at start is the value of E2-03 (motor no-load current). Accord- •...
Page 228: Using The Dc Injection Brake
Coast to Stop with Timer If the Stop Command is input (i.e., the Run Command is turned OFF) when b1-03 is set to 3, the Inverter out- put is interrupted to coast the motor to a stop. After the Stop Command is input, Run Commands are ignored until the time T has elapsed.
Page 229 Stopping Methods Inputting the DC Injection Brake Command from Control Circuit Terminals If you set a multi-function contact input terminal (H1- ) to 60 (DC injection brake command), you can apply the DC injection brake to the motor by turning ON the terminal for which the DC injection brake com- mand has been set when the Inverter is being stopped.
Page 230: Using An Emergency Stop
Using an Emergency Stop Set a multi-function input terminal (H1- ) to 15 or 17 (emergency stop) to decelerate to a stop at the decel- eration time set in C1-09. If inputting the emergency stop with an NO contact, set the multi-function input ter- minal (H1- ) to 15, and if inputting the emergency stop with an NC contact, set the multi-function input terminal (H1-...
Page 231: Acceleration And Deceleration Characteristics
Acceleration and Deceleration Characteristics Acceleration and Deceleration Characteristics This section explains the acceleration and deceleration characteristics of the Inverter. Setting Acceleration and Deceleration Times Acceleration time indicates the time taken for the output frequency to climb from 0% to 100%. Deceleration time indicates the time taken for the output frequency to reduce to 0%.
Page 232 Control Methods Name Change Param- Set- Open Factory during Regis- Description Flux eter ting Loop Setting Opera- with Vec- Number Range Display Vec- tion Accel/ decel time set- 0: 0.01-second units C1-10 0 or 1 209H ting unit 1: 0.1-second units Acc/Dec Units Accel/...
Page 233 Acceleration and Deceleration Characteristics Setting Acceleration and Deceleration Time Units Set the acceleration/deceleration time units using C1-10. Parameter C1-10 is set to 1 at the factory. Set value Details The acceleration/deceleration time settings range is 0.00 to 600.00 in units of 0.01 s. The acceleration/deceleration time settings range is 0.00 to 6000.0 in units of 0.1 s.
Page 234 Adjusting Acceleration and Deceleration Time Using an Analog Input If you set H3-09 (Multi-function Analog Input Terminal A2 Function Selection) or H3-05 (Multi-function Analog Input Terminal A3 Function Selection) to 5 (acceleration/deceleration time gain), you can adjust the acceleration/deceleration time using terminal A2's or A3's input voltage. The Inverter's acceleration time when the acceleration time has been set in C1-01 is as follows: Acceleration time = C1-01 set value x acceleration/deceleration time gain Acceleration/deceleration time gain (set value: 5)
Page 235: Accelerating And Decelerating Heavy Loads (Dwell Function)
Acceleration and Deceleration Characteristics Accelerating and Decelerating Heavy Loads (Dwell Function) The dwell function stores the output frequency when starting or stopping heavy loads. By temporarily storing the output frequency, you can prevent the motor from stalling. When using the dwell function, you must select a deceleration stop.
Page 236: Preventing The Motor From Stalling During Acceleration (Stall Prevention During Acceleration Function)
Preventing the Motor from Stalling During Acceleration (Stall Prevention During Acceleration Function) The Stall Prevention During Acceleration function prevents the motor from stalling if a heavy load is placed on the motor, or sudden rapid acceleration is performed. If you set L3-01 to 1 (enabled) and the Inverter output current exceeds the -15% level of the set value in L3- 02, the acceleration rate will begin to slow down.
Page 237 Acceleration and Deceleration Characteristics Time Chart The following figure shows the frequency characteristics when L3-01 is set to 1. Output current Stall level during acceleration Time Output frequency Output frequency is controlled to prevent the motor stalling. Time Fig 6.25 Time Chart for Stall Prevention During Acceleration Setting Precautions If the motor capacity is small compared to the Inverter capacity, or if the motor is operated using the fac- •...
Page 238: Preventing Overvoltage During Deceleration (Stall Prevention During Deceleration Function)
Preventing Overvoltage During Deceleration (Stall Prevention During Deceleration Function) The Stall Prevention During Deceleration function makes the rate of deceleration more gentle to suppress increases in DC bus voltage when the DC bus voltage exceeds the set value during motor deceleration. This function automatically lengthens the deceleration time with respect to the bus voltage, even if the decel- eration time has been set to a considerably small value.
Page 239: Preventing Overvoltage By Automatically Reducing The Regenerative Torque Limit (Overvoltage Inhibit Function)
Acceleration and Deceleration Characteristics Setting Example An example of stall prevention during deceleration when L3-04 is set to 1 as shown below. Output frequency Deceleration time controlled to prevent overvoltage Time Deceleration time (set value) Fig 6.27 Stall Prevention During Deceleration Operation Setting Precautions The stall prevention level during deceleration differs depending on the Inverter capacity.
Page 240 Related Parameters Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- with Loop Vec- Number Display tion Vector 0: Disabled 1: Enabled Used to enable or disable the Overvolt- function for inhibiting main age inhibit circuit overvoltages by selection...
Page 241: Adjusting Frequency References
Adjusting Frequency References Adjusting Frequency References This section explains methods of adjusting frequency references. Adjusting Analog Frequency References Gain and bias are among the parameters used to adjust analog inputs. Related Parameters Control Methods Change Name Param- Setting Factory during Regis- Open Flux...
Page 242 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- with Loop Vec- Number Display tion Vector Signal level 0: 0 to +10V, with lower selection limit 1: −10 to 10 V, without (terminal lower limit H3-08 0 to 2...
Page 243 Adjusting Frequency References Adjusting Analog Frequency Reference Using Parameters The frequency reference is input from the control circuit terminals using analog voltage and current. If using frequency reference terminal A1 as an input terminal, perform adjustments using parameters H3-02 and H3-03. If using multi-function analog input terminal A2 as a frequency reference terminal, perform adjustments using H3-10 and H3-11.
Page 244 Adjusting Frequency Bias Using an Analog Input When parameter H3-09 or H3-05 is set to 0 (add to terminal A1), the frequency equivalent to the terminal A2 or A3 input voltage is added to A1 as a bias. Frequency bias terminal A2 or A3 input Multi-function analog input terminal A2 or A3 input level...
Page 245: Operation Avoiding Resonance (Jump Frequency Function)
Adjusting Frequency References Operation Avoiding Resonance (Jump Frequency Function) The jump frequency function operates the motor while avoiding resonance caused by characteristic frequen- cies in the machinery. This function is effective in creating a frequency reference dead band. During constant-speed operation, operation within the jump frequency range is prohibited. Smooth operation still used during acceleration and deceleration, i.e., jumps are not performed.
Page 246 Setting Jump Frequency Reference Using an Analog Input When parameter H3-09 (Multi-function Analog Input Terminal A2 Function Selection) or H3-05 (Multi-func- tion Analog Input Terminal A3 Function Selection) is set to A (jump frequency), you can change the jump fre- quency using the terminal A2 or A3 input level.
Page 247: Adjusting Frequency Reference Using Pulse Train Inputs
Adjusting Frequency References Adjusting Frequency Reference Using Pulse Train Inputs The frequency reference can be adjusted when b1-01 (Reference Selection) is set to 4 (Pulse Train Input). Set the pulse frequency in parameter H6-02 to 100% reference, and then adjust the gain and bias accordingly using H6-03 and H6-04.
Page 248 Setting example This example results in an output frequency of 30 Hz when a 2-kHz pulse is input (maximum frequency: 60 Hz). 2000 Hz: 30 Hz = Set value: 60 Hz Set value = 2000 x 60/30 = 4000 Hz (4 kHz) Setting precautions The pulse train inputs of the Inverter do not control positioning as they do for servomotors and stepper motors.
Page 249: Speed Limit (Frequency Reference Limit Function)
Speed Limit (Frequency Reference Limit Function) Speed Limit (Frequency Reference Limit Func- tion) This section explains how to limit the motor speed. Limiting Maximum Output Frequency If you do not want the motor to rotate above a given frequency, use parameter d2-01. Set the upper limit value of the Inverter output frequency as a percent, taking E1-04 (Maximum Output Fre- quency) to be 100%.
Page 250 Adjusting Frequency Lower Limit Using an Analog Input If you set parameter H3-09 (Multi-function Analog Input Terminal A2 Function Selection) or H3-05 (Multi- function Analog Input Terminal A3 Function Selection) to 9 (output frequency lower level), you can adjust the frequency lower level using the terminal A2 or A3 input level.
Page 251: Improved Operating Efficiency
Improved Operating Efficiency Improved Operating Efficiency This section explains functions for improving motor operating efficiency. Reducing Motor Speed Fluctuation (Slip Compensation Function) When the load is large, the amount of motor slip also grows large and the motor speed decreases. The slip compensation function controls the motor at a constant speed, regardless of changes in load.
Page 252 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- with Loop Vec- Number Display tion Vector Output volt- 0: Disabled. age limit 1: Enabled. (The motor flux operation will be lowered automati- selection C3-05 0 or 1 213H...
Page 253 Improved Operating Efficiency Adjusting Slip Compensation Limit The upper limit for the slip compensation amount can be set in C3-03 as a percent, taking the motor rated slip amount as 100%. If the speed is lower than the target value but does not change even when you adjust the slip compensation gain, the motor may have reached the slip compensation limit.
Page 254: Compensating For Insufficient Torque At Startup And Low-Speed Operation (Torque Compensation)
Compensating for Insufficient Torque at Startup and Low-speed Opera- tion (Torque Compensation) The torque compensation function detects that the motor load has increased, and increases the output torque. V/f control calculates and adjusts the motor primary loss voltage according to the output voltage (V), and compensates for insufficient torque at startup and during low-speed operation.
Page 255 Improved Operating Efficiency Adjusting Torque Compensation Gain Normally, there is no need to make this adjustment. Do not adjust the torque compensation gain when using open-loop vector control. Adjust the torque compensation gain using V/f control in the following circumstances. If the cable is very long, increase the set value.
Page 256: Hunting-Prevention Function
Hunting-prevention Function The hunting-prevention function suppresses hunting when the motor is operating with a light load. This func- tion can be used in V/f and V/f with PG. Related Parameters Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter...
Page 257: Stabilizing Speed (Speed Feedback Detection Function)
Improved Operating Efficiency Stabilizing Speed (Speed Feedback Detection Function) The speed feedback detection control (AFR) function measures the stability of the speed when a load is sud- denly applied, by calculating the amount of fluctuation of the torque current feedback value, and compensat- ing the output frequency with the amount of fluctuation.
Page 258: Machine Protection
Machine Protection This section explains functions for protecting the machine. Limiting Motor Torque (Torque Limit Function) The motor torque limit function is enabled with flux vector control and open-loop vector control. In the open-loop vector control and flux vector control, the user-set value is applied to the torque limit by cal- culating internally the torque output by the motor.
Page 259 Machine Protection Control Methods Name Param- Change Open eter Setting Factory during Regis- Description Flux Loop Num- Range Setting Opera- with Vec- Display Vec- tion Control Select the control method for the method torque limit during acceleration selection and deceleration. for torque 0: Proportional control (integral limit dur-...
Page 260 Set the Torque Limit Value Using an Analog Input You can change the analog input level torque limit value by setting the torque limit in multi-function analog input terminals A2 and A3. The analog input terminal signal level is factory-set as follows: Multi-function analog input terminal A2: 4 to 20 mA If 20 mA is input, the torque is limited when the torque is 100% of the motor rated torque.
Page 261 Machine Protection Selecting the Control Method for Torque Limit during Acceleration and Deceleration L7-07 is used to select the control method for the torque limit during acceleration and deceleration. The selec- tions are proportional control and integral control. For applications, in which the torque limit will be reached during acceleration and deceleration, torque control can be given priority by selecting integral control.
Page 262: Preventing Motor Stalling During Operation
Preventing Motor Stalling During Operation Stall prevention during operation prevents the motor from stalling by automatically lowering the Inverter's output frequency when a transient overload occurs while the motor is operating at a constant speed. Stall prevention during operation is enabled only during V/f control. If the Inverter output current continues to exceed the setting in parameter L3-06 for 100 ms or longer, the motor speed is reduced.
Page 263: Changing Stall Prevention Level During Operation Using An Analog Input
Machine Protection Changing Stall Prevention Level during Operation Using an Analog Input If you set H3-09 (Multi-function Analog Input Terminal A2 Function Selection) or H3-05 (Multi-function Analog Input Terminal A3 Function Selection) to 8 (stall prevention level during run), you can change the stall level during operation by setting H3-10 [Gain (Terminal A2)] and H3-11 [Bias (Terminal A2)] or H3-06 [Gain (Terminal A3)] and H3-07 [Bias (Terminal A3)].
Page 264 Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- with Loop Vec- Number Display tion Vector Speed Effective when “Desired fre- agreement quency (speed) agree 2,” detection “Frequency (FOUT) detec- -300.0 level (+/-) tion 3,”...
Page 265 Machine Protection Timing Chart for Frequency Detection Operation L4-01: Speed Agree Level L4-03: Speed Agree Level +/− Related parameter L4-02: Speed Agree Width L4-04: Speed Agree Width +/− Fref/Fout Agree 1 Fref/Fout Agree 2 Frequency Frequency L4-02 L4-04 reference reference Output frequency Output frequency Fref/Fout...
Page 266: Detecting Motor Torque
Detecting Motor Torque If an excessive load is placed on the machinery (overtorque) or the load is suddenly lightened (undertorque), you can output an alarm signal to multi-function output terminal M1-M2, P1-PC, or P2-PC. To use the overtorque/undertorque detection function, set B, 17, 18, 19 (overtorque/undertorque detection NO/ NC) in one of the following parameters: H2-01 to H2-03 (multi-function output terminals M1-M2, P1-PC, and P2-PC function selection).
Page 267 Machine Protection Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- with Loop Vec- Number Display tion Vector Torque Open loop vector control: detection Motor rated torque is set as 0 to level 1 L6-02 100%.
Page 268 L6-01 and L6-04 Set Values and LED Indications The relationship between alarms displayed by the Digital Operator when overtorque or undertorque is detected, and the set values in L6-01 and L6-04, is shown in the following table. LED Indications Overtorque/ Overtorque/ Function Value...
Page 269: Changing Overtorque And Undertorque Detection Levels Using An Analog Input
Machine Protection Undertorque Detection • Motor current (output torque) L6-02 or L6-05 L6-03 L6-03 Undertorque detection 1 NO or Undertorque detection 2 NO L6-06 L6-06 The undertorque detection disabled margin is approximately 10% of the Inverter rated output current (or motor rated torque) Changing Overtorque and Undertorque Detection Levels Using an Ana- log Input If you set parameter H3-09 (Multi-function Analog Input Terminal A2 Function Selection) or H3-05 (Multi-...
Page 270: Motor Overload Protection
Motor Overload Protection You can protect the motor from overload using the Inverter's built-in electronic thermal overload relay. Related Parameters Control Methods Change Name Param- Setting Factory during Regis- Description Open Flux eter Range Setting Opera- with Loop Vec- Number Display tion Vector...
Page 271 Machine Protection Multi-Function Outputs (H2-01 to H2-03) Control Methods Open Setting Flux Function Loop Value with Vec- Vec- Motor overload (OL1, including OH3) pre-alarm (ON: 90% or more of the detection level) Setting Motor Rated Current Set the rated current value on the motor nameplate in parameters E2-01 (for motor 1) and E4-01 (for motor 2). This set value is the electronic thermal base current.
Page 272: Setting Motor Protection Operation Time
L1-01 Electronic Thermal Operation Motor Type Tolerance Load Characteristics Cooling Ability (at 100% Motor Load) Value Rated rotation speed Short time 60 s. = 100% speed This motor yields a cooling effect even Vector motor Operates continuously at when operating at Continuous (1:100) 0.6 to 60 Hz.
Page 273: Motor Overheating Protection Using Ptc Thermistor Inputs
Machine Protection Setting the Motor Overload Pre-Alarm If the motor overload protection function is enabled (i.e., L1-01 is set to other than 0) and you set H2-01 to H2-03 (multi-function output terminals M1-M2, P1-PC, and P2-PC function selection) to 1F (motor overload OL1 pre-alarm), the motor overload pre-alarm will be enabled.
Page 274 PTC Thermistor Characteristics The following diagram shows the characteristics of the PTC thermistor temperature to the resistance value. Class H Class F Resistance (ohms) 180°C 150°C 1330 Tr: Temperature threshold value Temperature Tr 5 Tr+5 Fig 6.41 PTC Thermistor Temperature-Resistance Value Characteristics Operation during Motor Overheating Set the operation if the motor overheats in parameters L1-03 and L1-04.
Page 275: Limiting Motor Rotation Direction
Machine Protection Limiting Motor Rotation Direction If you set motor reverse rotation prohibited, a Reverse Run Command will not be accepted even if it is input. Use this setting for applications in which reverse motor rotation can cause problems (e.g., fans, pumps, etc.) Related Parameters Control Methods Change...
Page 276: Continuing Operation
Continuing Operation This section explains functions for continuing or automatically restarting Inverter operation even if an error occurs. Restarting Automatically After Power Is Restored Even if a temporary power loss occurs, you can restart the Inverter automatically after power is restored to continue motor operation.
Page 277: Speed Search
Continuing Operation Control Methods Change Name Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- with Loop Vec- Number Display tion Vector Sets the time required to Voltage return the Inverter output recovery voltage to normal voltage at time the completion of a speed 0.0 to...
Page 278 Related Parameters Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Enables/disables the speed search function for the Run Command and sets the speed search method. 0:Disabled, speed Speed calculation...
Page 279 Continuing Operation Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Speed Sets the magnetic contactor search wait operating delay time when time (cur- there is a magnetic contactor rent detec- on the output side of the tion or...
Page 280 Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Sets the Inverter's minimum baseblock time in units of one second, when the Min. base- Inverter is restarted after block time power loss ridethrough.
Page 281 Continuing Operation Setting Precautions When both external search commands 1 and 2 are set for the multi-function contact terminals, an OPE03 • (invalid multi-function input selection) operation error may occur. Set either external search command 1 or external search command 2. If speed search during startup is selected when using V/f control with PG, the Unit will start from the fre- •...
Page 282 Estimated Speed Search The time chart for estimated speed searches is shown below. Search at Startup The time chart for when speed search at startup and speed search to multi-function input terminals us shown below. Set frequency Run Command reference Start using speed detected Output frequency...
Page 283 Continuing Operation Loss Time Longer Than the Minimum Baseblock Time (L2-03) • AC power supply Start using speed detected Set frequency reference Output frequency Output current 10 ms Minimum baseblock time Speed Search Wait Time (L2-03) (b3-05) Fig 6.45 Speed Search After Baseblock (Estimated Speed: Loss Time > L2-03) Current Detection Speed Search The time charts for current detection speed search is shown below.
Page 284: Continuing Operation At Constant Speed When Frequency Reference Is Lost
Loss Time Longer Than Minimum Baseblock Time • AC power supply Output frequency before power loss Set frequency Deceleration speed set in b3-03 reference Output frequency b3-02 Speed search operating time Output current Speed search wait time (b3-05) Minimum baseblock time (L2-03) Fig 6.48 Speed Search After Baseblock (Current Detection: Loss Time >...
Page 285: Restarting Operation After Transient Fault (Auto Restart Function)
Continuing Operation Restarting Operation After Transient Fault (Auto Restart Function) If an Inverter fault occurs during operation, the Inverter will perform self-diagnosis. If no fault is detected, the Inverter will automatically restart. This is called the auto restart function. Set the number of auto restarts in parameter L5-01. A fault reset is attempted every 5 ms after a fault occurs and minimum baseblock time has passed.
Page 286: Operation Selection After Cooling Fan Fault
Application Precautions The number of auto restarts count is reset under the following conditions: • After auto restart, normal operation has continued for 10 minutes. After the protection operation has been performed, and the fault has been verified, and an fault reset has been input.
Page 287: Inverter Protection
Inverter Protection Inverter Protection This section explains the functions for protecting the Inverter and the braking resistor. Performing Overheating Protection on Mounted Braking Resistors Perform overheating protection on Inverter-mounted braking resistors (Model: ERF-150WJ When overheating in a mounted braking resistor is detected, an alarm RH (Mounted braking resistor overheat- ing) is displayed on the Digital Operator, and the motor coasts to a stop.
Page 288: Reducing Inverter Overheating Pre-Alarm Warning Levels
Reducing Inverter Overheating Pre-Alarm Warning Levels The Inverter detects the temperature of the cooling fins using the thermistor, and protects the Inverter from overheating. You can receive Inverter overheating pre-alarms in units of 1 ° The following overheating pre-alarm warnings are available: Stopping the Inverter as error protection, and continuing operation, with the alarm OH (Radiation fins overheating) on the Digital Operator flashing.
Page 289: Input Terminal Functions
Input Terminal Functions Input Terminal Functions This section explains input terminal functions, which set operating methods by switching functions for the multi-function contact input terminals (S3 to S8). Temporarily Switching Operation between Digital Operator and Control Circuit Terminals You can switch the Inverter Run Command inputs and frequency reference inputs between local (i.e., Digital Operator) and remote (input method using b1-01 and b1-02).
Page 290: Blocking Inverter Outputs (Baseblock Commands)
Blocking Inverter Outputs (Baseblock Commands) Set 8 or 9 (Baseblock command NO/NC) in one of the parameters H1-01 to H1-06 (multi-function contact input terminal S3 to S8 function selection) to perform baseblock commands using the terminal's ON/OFF operation, and prohibit Inverter output using the baseblock commands. At this time, the motor will be coasting and “BB”...
Page 291: Stopping Acceleration And Deceleration (Acceleration/Deceleration Ramp Hold)
Input Terminal Functions Stopping Acceleration and Deceleration (Acceleration/Deceleration Ramp Hold) The acceleration/deceleration ramp hold function stops acceleration and deceleration, stores the output fre- quency at that point in time, and then continues operation. Set one of the parameters H1-01 to H1-06 (multi-function contact input terminal S3 to S8 function selection) to A (acceleration/deceleration ramp hold) to stop acceleration and deceleration when the terminal is turned ON and to store the output frequency at that point in time.
Page 292: Raising And Lowering Frequency References Using Contact Signals (Up/Down)
Application Precautions When d4-01 is set to 1, the output frequency on hold is stored even after the power supply is turned OFF. If • performing operations using this frequency after the Inverter has also been turned OFF, input the Run Command with the Acceleration/Deceleration Ramp Hold turned ON.
Page 293 Input Terminal Functions Precautions When setting and using UP and DOWN commands, observe the following precautions. Setting Precautions If multi-function input terminals S3 to S8 are set as follows, operation error OPE03 (Invalid multi-function input selection) will occur: Only either the UP command or DOWN command has been set. •...
Page 294 Output frequency Upper limit Accelerates to lower limit Same frequency Lower limit Forward operation/stop UP command Reference frequency reset DOWN command Frequency matching signal* Power supply * The frequency matching signal turns ON when the motor is not accelerating/ decelerating while the Run Command is ON. Fig 6.52 UP/DOWN Commands Time Chart...
Page 295: Accelerating And Decelerating Constant Frequencies In The Analog References (+/- Speed)
Input Terminal Functions Accelerating and Decelerating Constant Frequencies in the Analog Refer- ences (+/- Speed) The +/− speed function increments or decrements the frequency set in analog frequency reference d4-02 (+/− Speed Limit) using two contact signal inputs. To use this function, set One of the parameters H1-01 to H1-06 (multi-function contact terminal inputs S3 to S8 function selection) to 1C (Trim Control Increase command) and 1D (Trim Control Decrease command).
Page 296: Hold Analog Frequency Using User-Set Timing
Hold Analog Frequency Using User-set Timing When one of H1-01 to H1-06 (multi-function contact input terminal S3 to S8 function selection) is set to 1E (sample/hold analog frequency command), the analog frequency reference will be held from 100 ms after the terminal is turned ON, and operation will continue thereafter at that frequency.
Page 297: Switching Operations Between A Communications Option Board And Control Circuit Terminals
Input Terminal Functions Switching Operations between a Communications Option Board and Control Circuit Terminals You can switch reference input between the Communications Option Board and the control circuit terminals. Set one of the parameters H1-01 to H1-06 (multi-function contact input terminal S3 to S8 function selection) to 2 (Option/Inverter selection) to enable switching reference input using the terminal ON/OFF status when the Inverter is stopped.
Page 298: Jog Frequency Operation Without Forward And Reverse Commands (Fjog/Rjog)
Jog Frequency Operation without Forward and Reverse Commands (FJOG/RJOG) The FJOG/RJOG command functions operate the Inverter using jog frequencies by using the terminal ON/ OFF operation. When using the FJOG/RJOG commands, there is no need to input the Run Command. To use this function, set one of the parameters H1-01 to H1-06 (multi-function contact input terminal S3 to S8 function selection) to 12 (FJOG command) or 13 (RJOG command).
Page 299: Stopping The Inverter By Notifying Programming Device Errors To The Inverter (External Fault Function)
Input Terminal Functions Stopping the Inverter by Notifying Programming Device Errors to the Inverter (External Fault Function) The external fault function performs the error contact output, and stops the Inverter operation if the Inverter peripheral devices break down or an error occurs. The digital operator will display EFx (External fault [input terminal Sx]).
Page 300: Output Terminal Functions
Output Terminal Functions The output terminal function, which sets the output methods by switching the settings of H2-01 to H2-03 (Multi-function contact output terminals M1-M2, P1-PC, and P2-PC), is described here. During Run (Setting: 0) The Run Command is OFF and there is not output voltage. The Run Command is ON or a voltage is being output.
Page 301 Output Terminal Functions Motor Overload (OL1) Pre-alarm (Setting: 1F) The motor protection function's electronic thermal value is less than 90% of the detection level. The motor protection function's electronic thermal value is greater than 90% of the detection level. This output function is valid when the motor overload protection function is enabled (L1-01 =1). •...
Page 302: Monitor Parameters
Monitor Parameters This section explains the analog monitor and pulse monitor parameters. Using the Analog Monitor Parameters This section explains the analog monitor parameters. Related Parameters Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display...
Page 303 Monitor Parameters Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Set the voltage level gain for multi-function analog out- Gain (termi- put 2. nal AM) Set the number of multiples of 10 V to be output as the 0.00 to...
Page 304 Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Channel 1 output mon- Sets the channel 1 item bias -10.0 to itor bias F4-05 to 100%/10 V when the Ana- 0.0% 395H 10.0...
Page 305 Monitor Parameters Adjusting the Meter The output voltage for terminals FM-AC and AM-AC and output channels 1 and 2 of the AO option board can be adjusted while the Inverter is stopped. For example, just pressing the Enter Key and displaying the data set- ting display for H4-02 or H4-03 will cause the following voltage to be output by the FM-AC terminals.
Page 306: Using Pulse Train Monitor Contents
Using Pulse Train Monitor Contents This section explains pulse monitor parameters. Related Parameters Name Control Methods Change Param- Setting Factory during Regis- Description Open Flux eter Range Setting Opera- Display with Loop Vec- Number tion Vector Pulse train Select the pulse train moni- monitor tor output items (value of the 1, 2, 5,...
Page 307 Monitor Parameters Application Precautions When using a pulse monitor parameter, connect a peripheral device according to the following load condi- tions. If the load conditions are different, there is a risk of characteristic insufficiency or damage to the machinery. Using a Sourcing Output Load impedance Output Voltage (Isolated)
Page 308: Communications Functions
Communications Functions This section explains the individual communications functions. Using RS-422A/485 Communications You can perform serial communications with SYSMAC CS-series Programmable Controllers (PLCs) or simi- lar devices using the RS-422A/485 protocol. Related Parameters Name Control Methods Change Param- Setting Factory during Regis- Open...
Page 309 Communications Functions Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Stopping Set the stopping method for method communications errors. after com- 0: Deceleration to stop munication using deceleration time in error...
Page 310 Control Methods Name Output Signal Level Dur- Param- Min. Open Regis- Description ing Multi-Function Analog Flux eter Loop Unit with Vec- Number Display Output Vec- RS-422A/ Shows RS-422A/485 errors. U1-39= 1: CRC error communica- 1: Data length error tions error Not used (always 0).
Page 311 Communications Functions Communications Specifications The RS-422A/485 communications specifications are shown in the following table. Item Specifications Interface RS-422, RS-485 Communications Cycle Asynchronous (Start-stop synchronization) Baud rate: Select from 1,200, 2,400, 4,800, 9,600, and 19,200 bps. Data length: 8 bits fixed Communications Parameters Parity: Select from even, odd, or none.
Page 312 Connection Example to a PLC This section provides a connector pin arrangements and standard wiring diagram for the Serial Communica- tions Boards/Units. Connector Pin Arrangement for Serial Communications Board/Unit The connector pin arrangement for the CS1W-SCB41-V1, CJ1W-SCU41-V1, and C200HW-COM06-V1 Serial Communications Boards/Units is shown below. Pin No.
Page 313 Communications Functions RS-422A (4-wire) • Communications Board SYSDRIVE RV B500-AL001 Link Adapter Code Pin No. Code Pin No. Shielded cable Pin No. Shielded cable Code Code Control cir- cuit terminal block (com- RS-422A RS-422A/485 munications interface terminals) interface Hood RS-422A RS-422A 9-pin D-sub connector Code...
Page 314 Slave Address Set the Inverter address from 0 to 32. If you set 0, commands from the master will be broadcast (i.e., the Inverter will not return responses). Function Code The function code specifies commands. There are three function codes, as shown below. Command Message Response Message Function Code...
Page 315 Communications Functions DSR Message An example of command/response messages is given below. Reading Storage Register Contents (Function Code: 03 Hex) Read the contents of the storage register only for specified quantities whose addresses are consecutive, starting from a specified address. The contents of the storage register are separated into higher place 8 bits and lower place 8 bits, and comprise the data within response messages in address order.
Page 316 Loopback Test (Function Code: 08 Hex) The loopback test returns command messages directly as response messages without changing the contents to check the communications between the master and slave. You can set user-defined test code and data values. The following table shows a message example when performing a loopback test with the slave 1 Inverter. Response Message Response Message Command Message...
Page 317 Communications Functions Set the number of data specified using command messages as quantity of specified messages x 2. Handle response messages in the same way. INFO Data Tables The data tables are shown below. The types of data are as follows: Reference data, monitor data, and broadcast data.
Page 318 Register No. Contents Reference selection settings Bit 0 Not used Bit 1 PID target value (register 0006H) 1: Enabled 0: Disabled Bits 3 to B Not used 000FH Broadcast data S5 1: Enabled 0: Disabled Broadcast data S6 1: Enabled 0: Disabled Broadcast data S7 1: Enabled 0: Disabled Broadcast data S8 1: Enabled 0: Disabled Note Write 0 to all unused bits.
Page 319 Communications Functions Register No. Contents Data link status Bit 0 Writing data Bit 1 Not used 0022H Bit 2 Not used Bit 3 Upper and lower limit errors Bit 4 Data integrity error Bits 5 to F Not used Frequency ref- 0023H Monitors U1-01 erence...
Page 320 Register No. Contents Bit B Overtorque detection 1: Detected Bit C Frequency reference lost 1: Lost 002CH Bit D Retrying error 1: Retrying Bit E Error (including RS-422A/485 communications time-out) 1:Error occurred Bit F Communications time-out 1: Timed out Multi-function output status Bit 0 Multi-function output (terminal M1-M2) 1: ON 0: OFF 002DH...
Page 321 Communications Functions Broadcast Data The following table shows the broadcast data. This is write data only. Register Contents Address Operation signal Bit 0 Run command 1: Operating 0: Stopped Bit 1 Reverse operation command 1: Reverse 0: Forward Bits 2 and 3 Not used Bit 4 External error 1: Error (set using H1-01)
Page 322 Error Codes The following table shows RS-422A/485 communications error codes. Error Code Contents Function code error A function code other than 03H, 08H, or 10H has been set by the PLC. Invalid register number error • The register address you are attempting to access is not recorded anywhere. •...
Page 323 Communications Functions Self-Diagnosis The Inverter has a built-in function for self-diagnosing the operations of serial communications interface cir- cuits. This function is called the self-diagnosis function. The self-diagnosis function connects the communica- tions parts of the send and receive terminals, receives the data sent by the Inverter, and checks if communications are being performed normally.
Page 324 Converting Register Data Register data (such as monitor values or parameter set value data) is placed in the communications data block of the message data (i.e., request message or response data). The data in each register is sent as 2-byte data. It is processed under the following rules and sent in hexadecimal.
Page 325: Communications With A Programmable Controller
Communications Functions Negative values are expressed in 2’s complements If the frequency bias in H3-03 is -100%, the minimum unit of setting will be 1% and the data will be converted as follows: 100 (%)/1 (%) = 100 = 0064 Hex →...
Page 326 Applicable Programmable Controllers and Peripheral Devices A Serial Communications Board or Unit can be mounted to the following SYSMAC CPU Units. Table 6.1 Applicable Programmable Controllers Series CPU Unit models CS1H-CPU67H/66H/65H/64H/63H SYSMAC CS CS1G-CPU45H/44H/43H/42H CJ1H-CPU67H/66H/65H CJ1G-CPU45H/44H/43H/42H SYSMAC CJ CJ1G-CPU45P/44P/43P/42P CJ1M-CPU13/12/11/23/22/21 C200HX-CPU34-E/44-E/54-E/64-E/34-ZE/44-ZE/54-ZE/64-ZE/65-ZE/85-ZE SYSMAC C200HX/HG/HE C200HG-CPU33-E/43-E/53-E/63-E/33-ZE/43-ZE/53-ZE/63-ZE...
Page 327 Communications Functions Peripheral Devices The following peripheral devices are required to use the protocol macro function. Table 6.3 Peripheral Devices Name Model Specification The following peripheral devices support the protocol macro function of the entire SYSMAC series. Personal computer environment Personal com- IBM PC/AT or compatible computer puter...
Page 328 Table 6.4 List of manuals (Continued) Name, series, model Cat. No. Serial Communications Board, CS1W-SCB21/41-V1 Serial Communications Unit, CS1W-SCU21-V1 W336 Users Manual Serial Communications Unit, CJ1W-SCU21/SCU41-V1 Serial Communications Board, C200HW-COM01 C200HW-COM02-V1 to W304 Operation Manual C200HW-COM06-EV1 Serial Communications Board, CQM1H-SCB41 W365 Operation Manual CX-Protocol, WS02-PSTC1-E W344 Operation Manual...
Page 329 Communications Functions For the SYSMAC C200HX/HG/HE and CQM1H Series: Use the following ports for the SYSMAC C200HX/HG/HE and CQM1H series. C200HW-COM06-V1 Communications Board: Port A • CQM1H-SCB41 Serial Communications Board: Port 2 • Communications Board Setting Value Port 1 Port 2 Port A Port B Standard format setting...
Page 330 Protocol Macro Function The protocol macro function makes it possible to customize a communications protocol in order to create a macro according to the specifications of the serial communications port of a general-purpose peripheral device. The protocol macro function is mainly used for the following jobs. Creation of the message communications frame •...
Page 331 Communications Functions Configuration of the Protocol Macro Function The protocol consists of one or more sequences. A sequence is an independent set of actions to perform together with a general-purpose peripheral device, such as an Inverter. For example, the RUN command and the frequency reference are given to the Inverter and the status of the Inverter is read in a single sequence.
Page 332 Step In a single step, a DSR message is sent and a response for the DSR message is received. A step may not include a response if it is a broadcast message. In the case of repetitive actions to issue the RUN command and frequency reference to the Inverter and read the status of the Inverter, for example, the actions to give the RUN command and frequency reference consti- tute one step.
Page 333 Communications Functions Data Created by Protocol Support Tool and CX-Protocol A project file is used by the Protocol Support Tool to create and control data. A project file consists of the following data. Protocol list Protocol name Single project file Protocol name A maximum of 20 protocols (A maximum of 1,000 sequences per project)
Page 334 Creating a Project File The following description provides information about how to create a project file to send the RUN command and frequency references to three Inverters and read the Inverter status. (“PST” indicates the WS01-PSTF1-J Protocol Support Tool.) First, select from I/O items, monitor items, and parameters the data to be exchanged according to the applica- tion.
Page 335 Communications Functions Communications SYSDRIVE Board 3G3RV C: Control data (See note.) 12 11 Communications Sequence No. PMCR port 000 to 999 BCD 1: Port A 2: Port B Word Data No. of data items sent in accordance with PMCR instruction 000B No.
Page 336 Creating a Sequence Use the following procedure to create a new sequence. 1. Click on New Protocol with the left button of the mouse. Then click on a blank space with the right button of the mouse. 2. Select Create Communication Sequence. The following table will appear.
Page 337 Communications Functions Send & Recv Send Monitored for Monitored for Tr period Tfs period Recv Monitored for Tfr period Send wait time set per step. Nothing is sent during this period. Tfs: Monitors the completion of the data sent. If the data transmission is not finished within this period, the data will be re-transmitted.
Page 338 Retry Set the number of times to retry the command within a range from 0 to 9. It is recommended that the number be set to 3 or larger. If a transmission error occurs due to noise, the trans- mission of the command will be retried. If the number is set to 3, an error will be detected if the transmission fails three times.
Page 339 Communications Functions Header <h> and Terminator <t> Set the header and terminator. No header or terminator is used for communications with the 3G3RV. Therefore, set both to None. Check code <c> Set the check code. The CRC-16 check code is used for communications with the 3G3RV. Select the CRC-16 check code and set the default value to 65535.
Page 340 DSR Message Requesting that the RUN Command and Frequency Reference Be Written • The DSR message to write data to two registers from register 0001 Hex (the RUN command) consists of the following items. 1 0 0 0 0 1 0 0 0 2 CRC-16 check (Set with <c>) Next register data Set with variables...
Page 341 Communications Functions Recv Message Detail Settings 1. With the left button of the mouse, click on Receive Message List. Then click on a blank space with the right button of the mouse. 2. Select Create Receive Message. The following table will appear. Set the Receive message in the table. Message Check code <c>...
Page 342 Data Set the expected response in detail. Response to the RUN Command and Frequency Reference • The response to the DSR message written consists of the following items. 1 0 0 0 0 1 0 0 0 2 CRC-16 check (Set with <c>) Number of write data registers: 2 Write start register number (RUN command: 0001) Function code (Write 10)
Page 343 Communications Functions Ladder Program Connect the PST and the Communications Board, and read the Communications Board system settings from the PST. Set the start/stop bits both to 1 bit, and data length to 8 bits. Transfer the created protocol to the Communications Board. The following example describes how to control the Inverter with this protocol.
Page 344 Inverter Control Outputs (Register 002C Inverter Status) The Inverter control outputs for register 002C Inverter status are listed in the following table. Word Slave 1 function Word Slave 2 function Word Slave 3 function 01100 During RUN 01200 During RUN 01300 During RUN 01101 Zero speed 01201 Zero speed...
Page 345 Communications Functions Status flags Communications Port Enabled Flag • Flag bit for communications port 7: A20207 Protocol Macro Execution Flag • The Protocol Macro Execution Flag is described below. Unit/Board Port 1 Port 2 CS1 Board CIO 190915 CIO 191915 Bit 15 of CIO n + CS1 Unit Bit 15 of CIO n + 9...
Page 346 Ladder Program Protocol Communications Macro Execution Port Enabled Flag * Flag Communications Port Abort Flag Fig 6.75 Ladder Program -138...
Page 347 The communications response times for communications with an Inverter via the RS-422/485 port of an Omron-made Communications Board are detailed below. Use this information as a reference when deciding the number of Slaves to be connected to one network, and when considering the timing of input and output signals.
Page 348: Individual Functions
Individual Functions This section explains the individual functions used in special applications. Using the Timer Function Multi-function contact input terminals S3 to S8 can be designated as timer function input terminals, and multi- function output terminals M1-M2, P1-PC, and P2-PC can be designated as timer function output terminals. By setting the delay time, you can erase chattering from the sensors and switches.
Page 349: Using Pid Control
Individual Functions Using PID Control PID control is a method of making the feedback value (detection value) match the set target value. By combin- ing proportional control (P), integral control (I), and derivative control (D), you can even control targets (machinery) with play time.
Page 350 Related Parameters Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector 0: Disabled 1: Enabled (Deviation is D- PID control controlled.) method 2: Enabled (Feedback value selection is D-controlled.) 3: PID control enabled...
Page 351 Individual Functions Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector PID reverse 0: 0 limit when PID output output is negative. selection 1: Reverses when PID b5-11 0 or 1 1AFH...
Page 352 Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Pulse train input func- 0: Frequency reference tion selec- H6-01 1: PID feedback value 0 to 2 42CH tion 2: PID target value...
Page 353 Individual Functions Multi-Function Analog Input (H3-05, H3-09) Control Methods Open Setting Flux Function Contents (100%) Loop Value with Vec- Vec- PID feedback Maximum output frequency PID target value Maximum output frequency PID Control Methods There are four PID control methods. Select the method by setting parameter b5-01. Set Value Control Method PID output becomes the Inverter output frequency, and D control is used in the difference between PID...
Page 354 PID Adjustment Methods Use the following procedure to adjust PID while performing PID control and measuring the response wave- form. 1. Set b5-01 (PID Control Method Selection) to 1 or 2 (PID control enabled). 2. Increase b5-02 (Proportional Gain (P)) to within a range that does not vibrate. 3.
Page 355 Individual Functions Suppressing Short Cycle Vibration If vibration occurs when the vibration cycle is short, and the cycle is almost identical to the derivative time (D) set value, the differential operation is too strong. Shorten the derivative time (D) to suppress the vibration. If vibration continues even when the derivative time (D) is set to 0.00 (D control disabled), reduce the propor- tional gain (P), or increase the PID primary delay time constant.
Page 356 PID Control Block The following diagram shows the PID control block in the Inverter. Fig 6.79 PID Control Block -148...
Page 357 Individual Functions PID Feedback Loss Detection When performing PID control, be sure to use the PID feedback loss detection function. If PID feedback is lost, the Inverter output frequency may accelerate to the maximum output frequency. When setting b5-12 to 1 and the status of the PID feedback value detection level in b5-13 is insufficient and continues for the time set in b5-14, an FbL (PID feedback reference lost) alarm will be displayed on the Digi- tal Operator and Inverter operation will continue.
Page 358: Energy-Saving
Energy-saving To perform energy saving, set b8-01 (Energy Saving Mode Selection) to 1. Energy-saving control can be per- formed using both V/f control and vector control. The parameters to be adjusted are different for each. In V/f control, adjust b8-04 to b8-06, and in vector control, adjust b8-02 and b8-03. Related Parameters Name Control Methods...
Page 359 Individual Functions Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Sets the motor rated slip in Motor rated Hz units. slip These set values will become 2.90 0.00 to E2-02...
Page 360: Setting Motor Parameters
Setting Motor Parameters In vector control method, the motor parameters are set automatically using autotuning. If autotuning does not complete normally, set them manually. Related Parameters Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display...
Page 361 Individual Functions Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Sets motor mechanical loss as a percentage of motor Motor rated output (W). mechanical Usually setting is not neces- loss sary.
Page 362 Motor Line-to-Line Resistance Setting E2-05 is set automatically when performing motor line-to-line resistance autotuning. When you cannot per- form tuning, consult the motor manufacturer for the line-to-line resistance value. Calculate the resistance from the line-to-line resistance value in the motor test report using the following formula, and then make the setting accordingly.
Page 363: Setting The V/F Pattern
Individual Functions Setting the V/f Pattern In V/f control method, you can set the Inverter input voltage and the V/f pattern as the need arises. Related Parameters Name Control Methods Param- Change eter Setting Factory during Regis- Description Open Flux Num- Range Setting...
Page 364 Name Control Methods Param- Change eter Setting Factory during Regis- Open Flux Description Num- Range Setting Opera- with Loop Vec- Display tion Vector Mid. output frequency 0.0 to 0.0 Hz E1-11 30AH 300.0 Frequency Mid. Set only to fine-adjust V/f for output the output range.
Page 365 Individual Functions Setting V/f Pattern Set the V/f pattern in E1-03 when using V/f control (with or without a PG). There are two methods of setting the V/f pattern: Select one of the 15 pattern types (set value: 0 to E) that have been set beforehand, or set a user-defined V/f pattern (set value: F).
Page 366 0.4 to 1.5 kW V/f Pattern The diagrams show characteristics for a 200-V Class motor. For a 400-V Class motor, multiply all voltages by Constant Torque Characteristics (Set Value: 0 to 3) • Set Value 0 50 Hz Set Value 1 60 Hz Set Value 2 60 Hz...
Page 367 Individual Functions 2.2 to 45 kW V/f Pattern The diagrams show characteristics for a 200-V Class motor. For a 400-V Class motor, multiply all voltages by Constant Torque Characteristics (Set Value: 0 to 3) • Set Value 0 50 Hz Set Value 1 60 Hz Set Value 2...
Page 368 55 to 300 kW V/f Pattern The diagrams show characteristics for a 200-V Class motor. For a 400-V Class motor, multiply all voltages by Constant Torque Characteristics (Set Value: 0 to 3) • Set Value 0 50 Hz Set Value 1 60 Hz Set Value 2 60 Hz...
Page 369 Individual Functions When E1-03 is set to F (User-defined V/f pattern), you can set parameters E1-04 to E1-10. If E1-03 is set to anything other than F, you can only refer to parameters E1-04 to E1-10. If the V/f characteristics are linear, set E1-07 and E1-09 to the same value.
Page 370: Torque Control
Torque Control With flux vector control, the motor's output torque can be controlled by a torque reference from an analog input. Set d5-01 to 1 to control torque. Related Parameters Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter...
Page 371 Individual Functions Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Set the delay time from inputting the multi-function input “speed/torque control Speed/ change” (from On to OFF or torque con- OFF to ON) until the control trol switch-...
Page 372 Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Multi-func- tion analog input (terminal Select multi-function analog A2) func- H3-09 input function for terminal 0 to 1F 418H tion selec- A2.
Page 373 Individual Functions Monitor Function Control Methods Name Param- Open Output Signal Level During Multi- Min. Regis- Flux eter Description Loop Function Analog Output Unit with Vec- Number Vec- Display Torque ref- Monitor in internal torque erence 10 V: Motor rated torque U1-09 reference value for vector 0.1% No...
Page 374 Torque compensation from analog input Torque reference Torque primary delay from analog input filter d5-02 Speed limit from analog Internal torque Priority Torque limit input from terminal A1 reference circuit Speed controller Refer to torque limit setting (ASR) − via constants and analog input Speed limit d5-04 d5-03...
Page 375 Individual Functions Torque Limit Operation Examples Operation examples will be described separately for winding operation, in which the speed and motor torque are in the same directions, and rewinding operation, in which the speed and motor torque are in opposite direc- tions.
Page 376 Torque Reference Adjustment Consider the following information when adjusting the torque. Torque Reference Delay Time: d5-02 The time constant of the primary filter in the torque reference section can be adjusted. This parameter is used to eliminate noise in the torque reference signal and adjust the responsiveness to the host controller. Increase the setting if oscillation occurs during torque control.
Page 377 Individual Functions Application Precautions The frequency reference (during speed control) is set in b1-01. The speed limit during torque control is set • in d5-03. If the torque reference has been assigned to a multi-function analog input, terminal A2, or terminal A3, the •...
Page 378: Speed Control (Asr) Structure
Speed Control (ASR) Structure Speed control (ASR) during flux vector control adjusts the torque reference so that the deviation between the speed reference and the estimated speed (PG feedback) is 0. Speed control (ASR) during V/f control with a PG adjusts the output frequency so that the deviation between the speed reference and the estimated speed (PG feedback) is 0.
Page 379 Individual Functions Name Control Methods Param- Change Open eter Setting Factory during Regis- Description Flux Loop Num- Range Setting Opera- Display with Vec- Vec- tion ASR pro- portional Usually setting is not necessary. 1.00 to 20.00 (P) gain 2 C5-03 Set to change the rotational speed 21DH 300.00...
Page 380 Speed Control (ASR) Gain Adjustment for Flux Vector Control Use the following procedure to adjust C5-01 and C5-03 with the mechanical system and actual load con- nected. At zero-speed, increase C5-01 (ASR P Gain 1) until there is no oscillation. At zero-speed, decrease C5-02 (ASR I Time 1) until there is no oscillation.
Page 381 Individual Functions Adjusting ASR Proportional Gain 1 (C5-01) This gain setting adjusts the responsiveness of the speed control (ASR). The responsiveness is increased when this setting is increased. Usually this setting is higher for larger loads. Oscillation will occur if this setting is increased too much.
Page 382 Different Gain Settings for Low-speed and High-speed Switch between low-speed and high-speed gain when oscillation occurs because of resonance with the mechanical system at low speed or high speed. The proportional gain P and integral time I can be switched according to the motor speed, as shown below.
Page 383 Individual Functions Gain Adjustment for Speed Control during V/f Control with PG When using V/f control with PG, set the proportional gain (P) and the integral time (I) at E1-09 (minimum out- put frequency) and E1-04 (maximum output frequency). Fig 6.90 Speed Control Gain Integral Time Adjust- ment for V/f Control with PG shows how the proportional gain and integral time change in linear fashion based on the speed.
Page 384: Increasing The Speed Reference Response (Feed Forward Control)
Increasing the Speed Reference Response (Feed Forward Control) Use feed forward control to increase the responsiveness to speed references. This function is effective for machines for which the ASR gain cannot be increased to a large value because doing so would result in vibra- tions.
Page 385: Droop Control Function
Individual Functions Feed Forward Control Structure The following block diagram shows the speed controller (ASR) and the feed forward control structure. • N5-02, N5-03 U1-45 Feed Secondary Frequency forward Torque limit current U1-44 reference controller reference Primary Speed controller (ASR) filter C5-06 L7-01 to L7-04...
Page 386 Related Parameters Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Sets the slip as a percentage Droop con- of maximum frequency trol gain when the maximum output frequency is specified and 0.0 to b7-01...
Page 387: Zero-Servo Function
Individual Functions Zero-servo Function The zero-servo function holds the motor when the motor is stopped in what is call a zero-servo status. This function can be used to stop the motor even with an external force acts on the motor or the analog reference input is offset.
Page 388 Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Sets the output width of the zero-servo completion sig- nal. Zero-servo Enabled when the “zero- completion servo completion (end)” is width set for a multi-function input.
Page 389 Individual Functions Time Chart A time chart for the zero-servo function is given in Fig 6.93 Time Chart for Zero-Servo. Run Command Zero-servo command Frequency (speed) reference Zero-speed level b2-01 Motor speed Zero-Servo End signal Zero-servo status Fig 6.93 Time Chart for Zero-Servo Application Precautions Be sure to leave the Run Command input ON.
Page 390: Digital Operator Functions
Digital Operator Functions This section explains the Digital Operator functions. Setting Digital Operator Functions You can set Digital Operator-related parameters such as selecting the Digital Operator display, multi-function selections, and copy functions. Related Parameters Name Control Methods Change Param- Setting Factory during Regis-...
Page 391 Digital Operator Functions Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector LOCAL/ Sets the Digital Operator REMOTE Local/Remote Key key enable/ 0: Disabled o2-01 disable 1: Enabled (Switches 0 or 1 505H...
Page 392 Changing Frequency Reference and Display Units Set the Digital Operator frequency reference and display units using parameter o1-03. You can change the units for the following parameters using o1-03. U1-01 (Frequency Reference) • U1-02 (Output Frequency) • U1-05 (Motor Speed) •...
Page 393: Copying Parameters
Digital Operator Functions Clearing Cumulative Operation Time Set the cumulative operation time initial value in time units in parameter o2-07. Set o2-07 to 0 to clear U1-13 (Inverter Operating Time). Clearing Inverter Cooling Fan Operation Time Set the fan operation time initial value in time units in parameter o2-10. Set o2-10 to 0 to clear U1-40 (Cooling Fan Operating Time).
Page 394 Storing Inverter set values in the Digital Operator (READ) To store Inverter set values in the Digital Operator, make the settings using the following method. Set 03-02 (Read permitted selection) to 1 (read permitted). Table 6.5 READ Function Procedure Step Digital Operator Display Explanation Press the Menu Key, and select advanced pro-...
Page 395 Digital Operator Functions Writing Parameter Set Values Stored in the Digital Operator to the Inverter (COPY) To write parameter set values stored in the Digital Operator to the Inverter, make the settings using the follow- ing method. Table 6.6 COPY Function Procedure Step Digital Operator Display Explanation...
Page 396 Comparing Inverter Parameters and Digital Operator Parameter Set Values (VERIFY) To compare Inverter parameters and Digital Operator parameter set values, make the settings using the follow- ing method. Table 6.7 VERIFY Function Procedure Step Digital Operator Display Explanation Press the MENU Key. and select advanced pro- gramming mode.
Page 397: Prohibiting Writing Parameters From The Digital Operator
Digital Operator Functions Prohibiting Writing Parameters from the Digital Operator If you set A1-01 to 0, you can refer to and set the A1 and A2 parameter groups, and refer to drive mode, using the Digital Operator. If you set one of the parameters H1-01 to H1-06 (multi-function contact input terminal S3 to S8 function selection) to 1B (write parameters permitted), you can write parameters from the digital operator when the ter- minal that has been set is ON.
Page 398 Related Parameters Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Used to set the parameter access level (set/read.) 0: Monitoring only (Monitoring drive mode Parameter and setting A1-01 and access level A1-04.)
Page 399: Displaying User-Set Parameters Only
Digital Operator Functions Displaying User-set Parameters Only You can set and refer to parameters necessary to the Inverter only, using the A2 parameters (user-set parame- ters) and A1-01 (Parameters Access Level). Set the number of the parameter to which you want to refer in A2-01 to A2-32, and then set A1-01 to 1. You can set and refer to parameters set in A1-01 to A1-03 and A2-01 to A2-32 only, using advanced programming mode.
Page 400: Options
Options This section explains the Inverter option functions. Performing Speed Control with PG This section explains functions with V/f control with PG and flux vector control. Related Parameters Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting...
Page 401 Options Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Sets the stopping method when a speed deviation (DEV) fault occurs. Operation 0: Ramp to stop selection at (Deceleration stop using deviation...
Page 402 Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Overspeed detection Sets the overspeed detection 0 to level F1-08 115% 387H method. Frequencies above that set PG Over- for F1-08 (set as a percent- spd Level...
Page 403 Options Using PG Speed Control Board There are four types of PG Speed Control Board that can be used in V/f control with PG. 3G3FV-PPGA2: A-phase (single) pulse input, compatible with open collector or complimentary outputs. • 3G3FV-PPGB2: A/B-phase pulse input, compatible with complimentary outputs. •...
Page 404 Setting Number of Gear Teeth Between PG and Motor Set the number of PG gear teeth in F1-12 and F1-13. If there are gears between the motor and PG, you can operate the motor by setting the number of gear teeth. When the number of gear teeth has been set, the speed of motor rotations within the Inverter is calculated using the following formula.
Page 405: Using An Analog Reference Board
Options Using an Analog Reference Board 3G3IV-PAI14B provides 3 channels of bi-polar inputs with 13-bit A/D conversion accuracy (and a + sign bit). The function of each channel is determined by the setting of F2-01. 3G3IV-PAI14U provides 2 channels of bi-polar inputs with 14-bit A/D conversion accuracy. Channel 1 is a voltage input and channel 2 is a current input.
Page 406 Related Parameters Name Control Methods Change Param- Setting Factory during Regis- Open Flux Description eter Range Setting Opera- Display with Loop Vec- Number tion Vector Sets the Digital Reference Board input method. 0: BCD 1% unit 1: BCD 0.1% unit Digital 2: BCD 0.01% unit input option...
Page 407 Options Selecting Input Terminal Functions for the 3G3IV-PDI16H2 Digital Reference Board The frequency reference from the 3G3IV-PDI16H2 Board is determined by the setting of F3-01 and the 12/16- bit switch on the option board. The possible settings are listed in the following table. 12-bit Binary 16-bit Binary 3-digit BCD with...
Page 408 Selecting the Input Terminal Function for a 3G3IV-PDI08 Digital Reference Board The frequency reference from a 3G3IV-PDI08 Board is determined by the setting of F3-01, as shown in the following table. 8-bit Binary with Sign 2-digit BCD with Sign Terminal Pin No.
Page 409 Options Selecting the Digital Reference The range of the digital references is determined by the combination of the settings of o1-03 and F3-01. The information monitored in U1-01 (Frequency reference) will also change. 3G3IV-PDI16H2 Reference Ranges When using the 3G3IV-PDI16H2, the following ranges can be set depending on the settings of the parameters. U1-01 Monitor Unit Switch Reference Setting...
Page 410 3G3IV-PDI08 Reference Ranges When using the 3G3IV-PDI08, the following ranges can be set depending on the settings of the parameters. U1-01 Monitor Unit F3-01 Reference Input Mode Reference Setting Range o1-03 = 0 o1-03 = 1 2-digit BCD with sign, 1% -110 to 110% 2-digit BCD with sign, 0.1% -15.9 to 15.9%...
Page 411: Using Inverters For Elevating Machines
Using Inverters for Elevating Machines Using Inverters for Elevating Machines This section describes precautions to be observed when using the 3G3RV-V1 for elevating machines such as elevators and cranes. Brake ON/OFF Sequence Brake ON/OFF Sequence For the holding brake’s ON/OFF sequence, use the following Inverter output signals according to the set con- trol method.
Page 412 Sequence Circuit Configuration The brake ON/OFF sequence circuit configuration is shown below. Holding brake Inverter auxiliary relay coil Fault contacts Sequence (Forward run) circuit DOWN DOWN (Reverse run) HIGH/LOW (Multi-step speed reference 2) Energizes the brake when ON (250 VAC 1 A or less, 30 VDC 1 A or less) Frequency detection 2, 5 or...
Page 413: Stall Prevention During Deceleration
Using Inverters for Elevating Machines Stall Prevention during Deceleration If connecting a braking resistor to discharge regenerative energy, be sure to set Stall prevention selection dur- ing decel (L3-04) to 0 (Disabled). If Stall prevention selection during decel (L3-04) is set to 1, 2, or 3, the motor may not stop within the specified decelerating time.
Page 414: I/O Open-Phase Protection And Overtorque Detection
I/O Open-phase Protection and Overtorque Detection To prevent the machine from falling when the motor is open-phase or a similar situation, enable L8-05 and L8- 07 (Input and output open-phase protection selection) and L6-01 to L6-06 (Overtorque detection) (factory set- ting is Disabled).
Page 415: Control-Related Adjustments
Using Inverters for Elevating Machines Control-related Adjustments The 3G3RV-V1 is designed to provide sufficient performance for elevating machines. However, if problems related to controllability should occur, such as vibration or slipping, adjust the following parameters in accor- dance with the control method. Only parameters that frequently require adjustment are listed in this table. Table 6.8 Control-related Adjustments Parame- Recom-...
Page 416 Table 6.8 Control-related Adjustments (Continued) Parame- Recom- Control Factory ter Num- Name Performance mended Adjustment Method Method Setting Setting ASR propor- • Torque or speed response C5-01 tional (P) • Increasing torque and is insufficient: Increase gain 1 speed response 10.00 to 20.00 the setting...
Page 417: Reducing Shock During Elevating Machine Start, Stop, Acceleration, And Deceleration
Using Inverters for Elevating Machines Reducing Shock during Elevating Machine Start, Stop, Acceleration, and Deceleration When the riding comfort during start, stop, acceleration, and deceleration is of high importance, as it is for ele- vators in which people ride, adjust the following parameters. S-curve Characteristics, Acceleration/Deceleration Times (High speed) C2-02...
Page 418 Stopping with DC Injection Braking and Zero-speed Control b2-04 (DC injection braking time at stop (HIGH) (zero-speed control time at stop): 0.3 to 0.5 s Output frequency (LOW) b2-01 [Zero speed level (DC injection braking Frequency starting frequency)]: 0.1 to 3.0 Hz detection 2 or b2-02 (DC injection braking current): 50% to 80% During run 2...
Page 419 Using Inverters for Elevating Machines Time Chart Lifting • The analog signals corresponding to the load size are input as torque compensation signals from before the Inverter starts until operation stops. (Factory setting: 10 V/100% torque) Positive polarity is input for motor loads and negative polarity is input for regenerative loads. The following diagram shows the time chart for lifting.
Page 420: Confirming Startup Current And Reducing Carrier Frequency
Analog Input Filter Time Constant If noise enters the analog frequency reference during operation using analog frequency reference (b1-01 = 1), and operation becomes rough, implement noise countermeasures and also set H3-12 (Analog input filter time parameter) to between 0.01 and 0.10 s. Confirming Startup Current and Reducing Carrier Frequency When performing trial operation, check the motor current using the Digital Operator or a clamp ammeter with and without a mechanical load.
Page 421: Troubleshooting
Chapter 7 Troubleshooting This chapter describes the fault displays and countermeasure for the Inverter and motor prob- lems and countermeasures. Protective and Diagnostic Functions ......7-2 Troubleshooting ............7-19...
Page 422: Protective And Diagnostic Functions
Protective and Diagnostic Functions This section describes the alarm functions of the Inverter. The alarm functions include fault detection, alarm detection, operation error detection, and autotuning error detection. Fault Detection When the Inverter detects a fault, the fault contact output operates, and the Inverter output is shut OFF causing the motor to coast to a stop.
Page 423 Protective and Diagnostic Functions Table 7.1 Fault Displays and Processing (Continued) Display Meaning Probable Causes Corrective Actions The deceleration time is too short and Increase the deceleration time or Main Circuit Overvoltage the regenerative energy from the connect a braking resistor (or The main circuit DC voltage exceeded motor is too large.
Page 424 Table 7.1 Fault Displays and Processing (Continued) Display Meaning Probable Causes Corrective Actions Cooling Fin Overheating The ambient temperature is too high. Install a cooling unit. The temperature of the Inverter's cool- There is a heat source nearby. Remove the heat source. ing fins exceeded the setting in L8-02 or the overheat protection level.
Page 425 Protective and Diagnostic Functions Table 7.1 Fault Displays and Processing (Continued) Display Meaning Probable Causes Corrective Actions The load is too heavy. The accelera- Check the size of the load and the tion time, deceleration time, and cycle length of the acceleration, deceler- time are too short.
Page 426 Table 7.1 Fault Displays and Processing (Continued) Display Meaning Probable Causes Corrective Actions Overshooting/Undershooting are Adjust the gain again. occurring. Overspeed The speed has been greater than the Check the reference circuit and The reference speed is too high. Overspeed setting in F1-08 for longer than the reference gain.
Page 427 Protective and Diagnostic Functions Table 7.1 Fault Displays and Processing (Continued) Display Meaning Probable Causes Corrective Actions External Fault (Input Terminal S3) Ext Fault External Fault (Input Terminal S4) Ext Fault External Fault (Input Terminal S5) Ext Fault • Reset external fault inputs to the An "external fault"...
Page 428 Table 7.1 Fault Displays and Processing (Continued) Display Meaning Probable Causes Corrective Actions Disconnect and then reconnect the Digital Operator connection is faulty. SI-F/G Option Board CPU Failure Digital Operator. SI-F/G SI-F/G Option Board operation failed. CPU down Inverter control circuit is faulty. Replace the Inverter.
Page 429 Protective and Diagnostic Functions Table 7.1 Fault Displays and Processing (Continued) Display Meaning Probable Causes Corrective Actions Try turning the power supply off and on again. CPU-ASIC Mutual Diagnosis Fault CPU-Err The control circuit is damaged. Replace the Inverter. ASIC Version Fault The Inverter control circuit is faulty Replace the Inverter.
Page 430: Alarm Detection
Alarm Detection Alarms are detected as a type of Inverter protection function that do not operate the fault contact output. The system will automatically returned to its original status once the cause of the alarm has been removed. The Digital Operator display flashes and the alarm is output from the multi-function outputs (H2-01 to H2- 03).
Page 431 Protective and Diagnostic Functions Table 7.2 Alarm Displays and Processing (Continued) Display Meaning Probable causes Corrective Actions Check the size of the load and the length of the acceleration, decelera- Motor Overheating (blink- tion, and cycle times. E was set for H3-05 or H3-09 and the ing) The motor has overheated.
Page 432 Table 7.2 Alarm Displays and Processing (Continued) Display Meaning Probable causes Corrective Actions External Fault Detected for Com- munications Board Other Than SI- (blink- Remove the cause of the external ing) Continuing operation was specified fault. for EF0 (F6-03 = 3)and an external External fault was input from the option board.
Page 433 Protective and Diagnostic Functions Table 7.2 Alarm Displays and Processing (Continued) Display Meaning Probable causes Corrective Actions Option Board Communications Error (blink- A communications error occurred in a Check the communications devices ing) mode where the Run Command or a and signals.
Page 434: Operation Errors
Operation Errors An operation error will occur if there is an invalid setting or a contradiction between two parameter settings. It won't be possible to start the Inverter until the parameters have been set correctly. (The alarm output and fault contact outputs will not operate either.) When an operation error has occurred, refer to the following table to identify and correct the cause of the errors.
Page 435 Protective and Diagnostic Functions Table 7.3 Operation Error Displays and Incorrect Settings (Continued) Display Meaning Incorrect settings The following settings have been made at the same time. PID Control Selection • b5-01 (PID Control Method Selection) has been set to a value other than 0. PID Select Error •...
Page 436: Errors During Autotuning
Errors During Autotuning The errors that can occur during autotuning are given in the following table. If an error is detected, the motor will coast to a stop and an error code will be displayed on the Digital Operator. The error contact output and alarm output will not function.
Page 437: Errors When Using The Digital Operator Copy Function
Protective and Diagnostic Functions Table 7.4 Errors During Autotuning (Continued) Display Meaning Probable causes Corrective Actions Leakage inductance Autotuning was not completed in the Check the motor wiring. error specified time. Leak Inductance PG Disconnection PG pulses were input when the Inverter Fix the broken/disconnected wiring.
Page 438 Table 7.5 Errors during Copy Function (Continued) Func- Display Meaning Probable causes Corrective Actions tion The Inverter product code or software Use the copy function for the same ID not matched number is different. product code and software number. ID UNMATCH The capacity of the Inverter being Inverter capacity Use the copy function for the same...
Page 439: Troubleshooting
Troubleshooting Troubleshooting Due to parameter setting errors, faulty wiring, and so on, the Inverter and motor may not operate as expected when the system is started up. If that should occur, use this section as a reference and apply the appropriate measures.
Page 440: If The Motor Does Not Operate
If the Motor Does Not Operate Use the following information if the motor does not operate. The motor does not operate when the RUN Key on the Digital Operator is pressed. The following causes are possible. If the Inverter is not in drive mode and the DRIVE indicator on the Digital Operator (JVOP-161) does not light up, the Inverter will remain in ready status and will not start.
Page 441 Troubleshooting The operation method selection is wrong. If parameter b1-02 (reference selection) is set to 0 (Digital Operator), the motor will not operate when an external operation signal is input. Set b1-02 to 1 (control circuit terminal) and try again. Similarly, the motor will also not operate if the LOCAL/REMOTE Key has been pressed to switch to Digital Operator operation.
Page 442: If The Direction Of The Motor Rotation Is Reversed
The motor only rotates in one direction. "Reverse run prohibited" is selected. If b1-04 (Prohibition of Reverse Operation) is set to 1 (reverse run pro- hibited), the Inverter will not receive Reverse Run Commands. To use both forward and reverse operation, set b1-04 to 0.
Page 443: If The Motor Operates Higher Than The Reference
Troubleshooting If the Motor Operates Higher Than the Reference Use the following information if the motor operates higher than the reference. The analog frequency reference bias setting is wrong (the gain setting is wrong). The frequency reference bias set in parameter H3-03 is added to the frequency reference. Check to be sure that the set value is suitable.
Page 444: If The Motor Overheats
The deceleration time setting is too long. Check the deceleration time setting (parameters C1-02, C1-04, C1-06, and C1-08). Motor torque is insufficient. If the parameters are correct and there is no overvoltage fault, then the motor's power is limited. Consider increasing the motor capacity.
Page 445: If There Is Noise When The Inverter Is Started Or From An Am Radio
Troubleshooting The ambient temperature is too high. The motor rating is determined within a particular ambient operating temperature range. The motor will burn out if it is run continuously at the rated torque in an environment in which the maximum ambient operating temperature is exceeded.
Page 446 There may be resonance between the mechanical system's characteristic frequency and the carrier frequency. If the motor is running with no problems and the machinery is oscillating with a high-pitched whine, it may indicate that this is occurring. To prevent this type of resonance, adjust the carrier frequency with parameters C6-02 to C6-05.
Page 447: If The Torque Generated For The Motor Is Insufficient (Insufficient Power)
Troubleshooting PID control diverges. The following causes are possible. Feedback is not being input. If no feedback is being input and the detection value is zero, PID control will fail to function and the output will diverge. This will cause the motor speed to increase to the maximum frequency. Check for a break in the feedback signal or for an incorrect setting of either H3-09 (multi-function analog input terminal A2 function selection) = B or H6-01 (pulse train input function selection) = 1.
Page 448: If Ov Is Detected When The Fan Is Started, Or Fan Stalls
If OV is Detected When the Fan is Started, or Fan Stalls Generation of OV (main circuit voltage) and stalling can occur if the fan is turning when it is started. The DC injection braking is insufficient when starting. This can be prevented by slowing fan rotation by DC injection braking before starting the fan. Increase the parameter b2-03 (DC injection braking time (initial excitation) at start) setting.
Page 449 Troubleshooting or the power supply is OFF, current will flow as shown by the arrows and the Inverter input will operate. If this occurs, insert a diode at section A in the diagram. Section A Control device (Output Unit) Inverter (control input) 24 V S1 7...
Page 450: Maintenance And Inspection
Chapter 8 Maintenance and Inspection This chapter describes basic maintenance and inspection for the Inverter. Maintenance and Inspection........8-2...
Page 451: Daily Inspection
Maintenance and Inspection Daily Inspection Check the following items with the system in operation. The motor should not be vibrating or making unusual noises. • There should be no abnormal heat generation. • The ambient temperature should not be too high. •...
Page 452: Types And Number Of Cooling Fans Used In The Drive
Maintenance and Inspection Periodic inspection standards vary depending the Inverter's installation environment and usage conditions. The Inverter's maintenance periods are noted below. Keep them as reference. Refer to Cooling Fan Replacement Outline (Page 8-5) for replacing a cooling fan and Circulation Fan Replacement Outline (Page 8-15) for replacing a circulation fan.
Page 453 Table 8.3 Number of Cooling Fans to be Used (Continued) 200 V Class 400 V Class Maximum Motor Capacity Heatsink Cooling Heatsink Circulation Heatsink Cooling Heatsink Circulation (kW)
Page 454: Cooling Fan Replacement Outline
Maintenance and Inspection Cooling Fan Replacement Outline 200 V and 400 V Class Inverters of 18.5 kW or Less A cooling fan is attached to the bottom of the Inverter. If the Inverter is installed using the mounting holes on the back of the Inverter, the cooling fan can be replaced without removing the Inverter from the installation panel.
Page 455 200 V and 400 V Class Inverters of 22 kW or More A cooling fan is attached to the top panel inside the Inverter. The cooling fan can be replaced without removing the Inverter from the installation panel. 200 V Class Inverters of 22 kW, 30kW and 400 V Class Inverters of 22 kW to 55 kW Removing the Cooling Fan 1.
Page 456 Maintenance and Inspection Attaching the Fan Cover 1. Tilt the fan cover toward the bottom of the Inverter as shown in Fig 8.3 and insert it to the mounting hole until it meets with A. Fan cover Bottom Inverter Cooling fan Top Inverter Fig 8.3 2.
Page 457 200 V Class Inverters of 55 kW, 75 kW and 400 V Class Inverters of 75 kW, 90 kW Removing the Cooling Fan 1. Remove the terminal cover, Inverter cover, Digital Operator, and front cover from the front of the Inverter. 2.
Page 458 Maintenance and Inspection 200 V Class Inverters of 37 kW and 45 kW Removing the Cooling Fan 1. Remove the terminal cover, Inverter cover, Digital Operator, and front cover from the front of the Inverter. 2. Remove the panel to which the control board, the gate drive board, and the cooling fan power relay board are mounted.
Page 459 200 V Class Inverters of 90 kW Removing the Cooling Fan 1. Remove the terminal cover, Inverter cover, Digital Operator, and front cover from the front of the Inverter. 2. Remove the panel to which the control board, the gate drive board, and the cooling fan power relay board are mounted.
Page 460 Maintenance and Inspection 400 V Class Inverters of 110 kW and 132 kW Removing the Cooling Fan 1. Remove the terminal cover, Inverter cover, Digital Operator, and front cover from the front of the Inverter. 2. Remove any cables that are connected to the cooling fan power relay board. The cable that is connected to the control circuit terminals can be removed together with the control circuit terminal board.
Page 461 200 V Class Inverters of 110 kW and 400 V Class Inverters of 160 kW Removing the Cooling Fan 1. Remove the terminal cover, Inverter cover, Digital Operator, and front cover from the front of the Inverter. 2. Remove any cables that are connected to the cooling fan power relay board. The cable that is connected to the control circuit terminals can be removed together with the control circuit terminal board.
Page 462 Maintenance and Inspection 400 V Class Inverters of 185 kW and 220 kW Removing the Cooling Fan 1. Remove the terminal cover and top and bottom front covers from the front of the Inverter. 2. Remove any cables that are connected to the cooling fan power relay board. 3.
Page 463 400 V Class Inverters of 300 kW Removing the Cooling Fan 1. Remove the terminal cover, Inverter cover, Digital Operator, and front cover from the front of the Inverter. 2. Remove any cables that are connected to the cooling fan power relay board. The cable that is connected to the terminal board can be removed together with the terminal board.
Page 464: Circulation Fan Replacement Outline
Maintenance and Inspection Circulation Fan Replacement Outline With some capacities, there is a small fan installed inside the Inverter for the purpose of increasing circulation in areas where heat has built up. These fans have built-in fan sensors that output an alarm when the rotation rate of the fan drops to indicate that replacement is necessary.
Page 465 200 V and 400 V Class Inverters of 18.5 kW The circulation fan is installed at the top-left corner of the Inverter interior. Removing the Circulation Fan 1. Remove the Digital Operator, the terminal cover, and the front cover. 2. While pushing the relay connector tab (A) in direction 1, pull the relay connector out in direction 2. 3.
Page 466 Maintenance and Inspection Removing the Circulation Fan 1. Remove the terminal cover, the Inverter cover, the Digital Operator, and the control board cover. 2. Pull out the cables connected to the control circuit terminal board, the gate drive board, and the cooling fan power relay board.
Page 467 400 V Class Inverters of 185 kW and 220 kW Two circulation fans are installed as described in the following sections. Removing the Circulation Fan 1. Remove the terminal cover and top and bottom front covers. 2. Unscrew the frame fixing screws and take off the frame. 3.
Page 468 Maintenance and Inspection 400 V Class Inverters of 300 kW Two circulation fans are installed as described in the following sections. Removing the Circulation Fan 1. Remove the terminal cover and top and bottom front covers. 2. Unscrew the frame fixing screws and takeoff the frame. 3.
Page 469: Removing And Mounting The Control Circuit Terminal Board
Removing and Mounting the Control Circuit Terminal Board The control circuit terminal board can be removed and mounted without disconnecting the cables. Always confirm that the charge indicator is not lit before removing or mounting the control circuit terminal board. IMPORTANT Removing the Control Circuit Terminal Board 1.
Page 470: Specifications
Chapter 9 Specifications This chapter describes the basic specifications of the Inverter and specifications for options and peripheral devices. Standard Inverter Specifications ........9-2 Specifications of Options and Peripheral Devices ..9-6 Options and Peripheral Devices ........9-7...
Page 471: Standard Inverter Specifications
Standard Inverter Specifications The standard Inverter specifications are listed by capacity in the following tables. Specifications by Model Specifications are given by model in the following tables. 200-V Class Inverters Table 9.1 Specifications for 200-V Class Inverters Model A2004 A2007 A2015 A2022 A2037...
Page 472 Standard Inverter Specifications 400-V Class Inverters Table 9.2 Specifications for 400-V Class Inverters Model A4004 A4007 A4015 A4022 A4037 A4055 A4075 A4110 A4150 A4185 3G3RV- -V1 Max. applicable motor output (kW) 0.75 18.5 Rated input current (A) Rated output capacity (kVA) Output specifi- Rated output current (A)
Page 473: Common Specifications
Common Specifications The following specifications apply to both 200 V and 400 V Class Inverters. Table 9.3 Common Specifications Model Number Specification 3G3RV- -V1 Sine wave PWM Control method Flux vector control, Open-loop vector control, V/f control, V/f with PG control (switched by parameter setting) CT selected (low carrier, constant torque applications): 150% /0.5 Hz (Open-loop vector control) VT selected (high carrier, variable torque applications): 120%/0.5 Hz (Open-loop vector control) Torque characteristics...
Page 474 Standard Inverter Specifications * 1. Rotational autotuning must be performed to ensure obtaining the specifications given for flux or open-loop vector control. * 2. Increase the Inverter capacity if loads exceeding these current values are expected. * 3. Only VT can be set for 200 V Class 110 kW as well as 400 V Class 220 kW and 300 kW Inverters. * 4.
Page 475: Specifications Of Options And Peripheral Devices
Specifications of Options and Peripheral Devices The following options and peripheral devices can be used for the Inverter. Select them according to the application. Table 9.4 Options and Peripheral Devices Purpose Name Model (Code) Description Always connect a breaker to the power supply line to pro- MCCB or Ground Example: Mitsubishi Power supply...
Page 476: Options And Peripheral Devices
Options and Peripheral Devices Options and Peripheral Devices There are several types of options and peripheral devices for Inverters: Separately installed options, spe- cial options, Option Cards, and recommended separately installed options. The specifications of these options are provided in this sections. Separately Installed Options Special Options BRAKING UNIT...
Page 477 Directive Output Noise Filter Controls noise generated by the Inverter so it does not enter the power supply. Con- 3G3RV-PLF nected to the motor output side. (Tokin) * Recommended Options can be ordered from OMRON using the above model numbers.
Page 478: Special Mounted Options
Options and Peripheral Devices Special Mounted Options The special mounted options are described in this section. Fan Unit Replacement fan for Inverters equipped with a cooling fan. Replace the Cooling Fan when the fan replacement time has come or a cooling fan fault (FAN) alarm has been displayed.
Page 479: Separately Installed Options
Separately Installed Options The separately installed options include Scaling Meters and Analog Operators. Scaling Meters A Scaling Meter is attached to a multi-function analog output from the Inverter and is used to display rota- tional speeds of motors, line speeds, etc., in physical units. K3MA-J Standard Models and Application Supply Voltage...
Page 480 Options and Peripheral Devices Wiring Example A wiring example for a Scaling Meter is shown below. MCCB Inside Inverter 3-phase power Inverter supply Analog output Analog monitor Dimensions The dimensions of a Scaling Meter are given below. Recommended Panel Cutout Dimensions Display LED Size Weight: 200 g...
Page 481 Analog Operators: Standard with Steel Panels or Small in Plastic An Analog Operator allows frequency reference settings and ON/OFF operation control to be performed by analog references from a remote location (50 m max.) 3G3IV-PJV0P96 3G3IV-PJV0P95 Analog Operator Analog Operator (standard steel panels) (small, plastic) Models and Application...
Page 482 Options and Peripheral Devices Braking Unit A Braking Unit is used with a Braking Resistor Unit to reduce the deceleration time of the motor. It is not required with Inverters of 18.5 kW or less. BRAKING UNIT WARNING Remove this cover, and set the connectors May cause injury or electric before turning the...
Page 483 Dimensions The dimensions of a Braking Unit are given below. 3G3IV-PCDBR2015B/PCDBR2022B 3G3IV-PCDBR4030B/PCDBR4045B Mounting direction Four, M4 66.5 mounting holes 114.5 30 min 30 min. 138.5 Three, wire pullout holes (with 22-mm-dia. rubber bushings) 3G3IV-PCDBR2110B Mounting direction 4 M6 5.51 (140) MTG HOLE MAIN CIRCUIT WIRE OUTLET 1.10 (28)
Page 484 Options and Peripheral Devices 3G3IV-PCDBR4220B Mounting direction 4−M6 8.27 (210) MTG HOLE MAIN CIRCUIT WIRE OUTLET 1.10 (28) TERMINAL M6 4.09 DIA RUBBER BUSH (104) 2−LEAD WIRE OUTLET 1.38 (35) DIA RUBBER BUSH 6.16 (156.5) 1.97 (50) 4.37 (111) 4.67 (118.5) 8.27 (210) 6.14 (156) 9.84 (250)
Page 485 Braking Resistor Unit A Braking Resistor Unit is used to absorb the regenerative motor energy with a resistor to reduce deceleration time (use rate: 10% ED). A 10% ED means that the 10% of the operating cycle time can be used to control braking (deceleration time).
Page 486 Options and Peripheral Devices Dimensions The dimensions of a Braking Resistor Unit are given below. Dimensions (mm) Model No. Weight Dimensions Voltage Class 3G3IV- Mounting Diagram (kg) PLKEB Screws M5 × 3 20P7 M5 × 4 21P5 M5 × 4 22P2 23P7 M5 ×...
Page 487 Braking Resistors A Braking Resistor consumes the regenerative motor energy with a resistor to reduce deceleration time (use rate: 3% ED). A 3% ED means that the 3% of the operating cycle time can be used to control braking (decel- eration time).
Page 488 Options and Peripheral Devices Digital Operator Connection Cable Connected the Inverter to a Digital Operator in a remote locations. Both 1-m and 2-m Cables are available. 3G3IV-PCN 26 Models and Application Model No. Specifications 3G3IV-PCN126 Cable length: 1 m 3G3IV-PCN326 Cable length: 3 m...
Page 489 DC Reactor A DC Reactor is used to control harmonics generated by the Inverter. It is more effective than and can be used in combination with an AC Reactor. It is also used to increase the power factor. 3G3HV-PUZDAB Yaskawa Models and Application The standard models of DC Reactors are listed below.
Page 490 Options and Peripheral Devices Dimensions The dimensions of a DC Reactor are given below. Model Dimensions (mm) Weight Dimensions 3G3HV- Diagram (kg) PUZDAB 5.4A8MH 18A3MH 36A1MH 72A0.5MH 90A0.4MH 3.2A28MH 5.7A11MH 12A6.3MH 23A3.6MH 33A1.9MH 47A1.3MH 2 mounting holes App. screws: d2 D2 max.
Page 491 AC Reactor An AC Reactor is used to control harmonics generated by the Inverter or when the power supply capacity is greatly larger than the Inverter’s capacity. It is also used to increase the power factor. Select the AC Reactor from the following table according to the motor capacity.
Page 492 Options and Peripheral Devices Inverter AC Reactor Max. Appli- Voltage cable Motor Current Inductance Loss Model No. Class Capacity (mH) (kW) 3G3IV-PUZBAB200A0.11MH 0.11 3G3IV-PUZBAB250A0.09MH 0.09 3G3IV-PUZBAB250A0.09MH 0.09 3G3IV-PUZBAB330A0.06MH 0.06 400-V Class 3G3IV-PUZBAB330A0.06MH 0.06 3G3IV-PUZBAB490A0.04MH 0.04 3G3IV-PUZBAB490A0.04MH 0.04 3G3IV-PUZBAB660A0.03MH 0.03 Wiring Example A wiring example for an AC Reactor is shown below.
Page 493 Model Dimen- Dimensions (mm) Weight 3G3IV sions (kg) -PUZBAB Diagram 200A0.11MH 230±5 250A0.09MH 230±5 330A0.06MH 230±5 17.5 490A0.04MH 315±5 660A0.03MH 315±5 15.5 M: Terminal M: Terminal Nameplate Nameplate Mounting hole detail J: 4 mounting bolts J: 4 mounting bolts Mounting hole detail Dimensions Diagram 1 Dimensions Diagram 2 6-M: Terminal...
Page 494 Options and Peripheral Devices Input Noise Filters for EMC Directives (3G3RV-PFS , by Schaffner) When conformance to the EMC Directives in the EC Directives is required, always use one of these Filters. The Filter is connected between the Inverter’s power supply input terminals (R/L1, S/L2, T/L3) and the power supply.
Page 495 Wiring Example A wiring example for an Input Noise Filter for EMC Directives is shown below. Inverter Noise filter Clamp core MCCB 3-phase 200 VAC Single-phase 200 VAC 3-phase 400 VAC Dimensions The dimensions of an Input Noise Filter for EMC Directives are given below. M5 (Inverter mounting holes x 4) M6 (Inverter mounting holes x 4) Dimensions Diagram 1...
Page 496 Options and Peripheral Devices Dimensions Diagram 5 Dimensions Diagram 6 Dimensions Diagram 7 Dimensions Diagram 8 Dimensions Diagram 9 Dimensions Diagram 10 φ13 M5 × 8 holes for protecting cover 27 100 SCHAFFNER Dimensions Diagram 11...
Page 497 Simple Input Noise Filter A Simple Input Noise Filter reduces noise coming into the inverter from the power supply line and to reduce noise flowing from the inverter into the power supply line. Connected the Filter to the power supply input side.
Page 498 Options and Peripheral Devices Models and Application The standard models of Simple Input Noise Filters listed in the following table. Inverter Simple Input Noise Filter Max. Applicable Rated Voltage Motor Capacity Model No. Current Class (kW) 3G3EV-PLNFD2103DY 0.75 3G3EV-PLNFD2103DY 3G3EV-PLNFD2103DY 3G3EV-PLNFD2153DY 3G3EV-PLNFD2303DY 200-V Class...
Page 499 Dimensions The dimensions of a Simple Input Noise Filter are given below. Dimensions Model Weight Dimensions Mounting 3G3EV- Diagram (kg) Hmax Screws M4 × 4 PLNFD2103DY 20 mm M4 × 4 PLNFD2153DY 20 mm M4 × 4 PLNFD2203DY 20 mm M4 ×...
Page 500 Options and Peripheral Devices Models and Application The standard models of Input Noise Filters are listed in the following table. Inverter Input Noise Filter Max. Applicable Voltage Motor Capacity Model No. Rated (A) Class (kW) 3G3IV-PFN258L4207 3G3IV-PFN258L5507 3G3IV-PFN258L7534 3G3IV-PFN258L10035 18.5 3G3IV-PFN258L13035 3G3IV-PFN258L13035 200-V Class...
Page 501 Dimensions The dimensions of an Input Noise Filter are given below. Dimensions (mm) Weight Dimensions Model 3G3IV- Diagram (kg) PFN258L4207 4-M5 PFN258L5507 4-M5 PFN258L7534 4-M5 PFN258L10035 4-M5 PFN258L13035 4-M5 PFN258L18007 4-M5 PFN359L25099 PFN359L30099 PFN359P40099 18.5 PFN359P50099 19.5 PFN359P60099 20.5 PFN359P90099 J (mounting screw) J (mounting screw) Dimensions Diagram 1...
Page 502 Options and Peripheral Devices Output Noise Filter An Output Noise Filter controls noise generated by the Inverter so it does not enter the power supply. It is con- nected to the motor output side. 3G3IV-PLF Tokin Models and Application The standard models of Output Noise Filters are listed in the following table. Inverter Output Noise Filter Max.
Page 503 Wiring Example A wiring example for an Output Noise Filter is shown below. Output Noise Filter Inverter MCCB Dimensions The dimensions of an Output Noise Filter are given below. Model Weight Terminal 3G3IV- (Diameter) (Diameter) (kg) 7 × 4.5 PLF310KA TE-K5.5 M4 7 ×...
Page 504: Appendix
Appendix This chapter provides precautions for the Inverter, motor, and peripheral devices and also pro- vides lists of parameters. SYSDRIVE 3G3RV Control Methods ......10-2 Inverter Application Precautions ........10-6 Motor Application Precautions ........10-9 Conformance to UL Standard ........10-11 Conformance to CE Markings........10-13 Wiring Examples............10-19 Parameters ..............10-27...
Page 505: Sysdrive 3G3Rv Control Methods
SYSDRIVE 3G3RV Control Methods Details of the SYSDRIVE 3G3RV Inverter control methods and their features are provided in this section. Control Methods and Features 3G3RV-Series Inverters support the following four control methods, allowing the selection of a control method to suit the required purpose. Table 10.1 provides an overview of the control methods and their fea- tures.
Page 506 SYSDRIVE 3G3RV Control Methods Table 10.1 Overview and Features of Control Methods (Continued) Open-loop Vector Control Method V/f Control V/f Control with PG Flux Vector Control Control Rotational autotun- Rotational autotun- ing, stationary auto- Line-to-line resis- Line-to-line resis- ing, stationary auto- tuning 1, 2, Autotuning tance (Normally not...
Page 507: Control Methods And Applications
Application Function Precautions Observe the following precautions when using the application functions. Perform rotational autotuning during trial operation whenever it is possible to separate the motor and • machine. To achieve the characteristics of vector control described in Table 10.1, the control must be adjusted within a range that the machine will not vibrate after rotational autotuning has been performed.
Page 508 SYSDRIVE 3G3RV Control Methods V/f Control with PG (A1-02 = 1) V/f control with a PG enables precise control of machine line speed. Speed control using the speed feedback of the machine shaft is possible in this mode. Conveyor Inverter PG Speed Control Board (3G3FV-PPGA2 or 3G3FV-PPGD2) Fig 10.2...
Page 509: Inverter Application Precautions
Inverter Application Precautions This section provides precautions for selecting, installing, setting, and handling Inverters. Selection Observe the following precautions in selecting an Inverter. Installing Reactors A large peak current will flow in the power input circuit when the Inverter is connected to a large-capacity power transformer (600 kVA or higher) or when switching a phase capacitor.
Page 510: Installation
Inverter Application Precautions Options Terminals B1, B2, 3 are for connecting only the options specifically provided by OMRON. Never connect any other devices to these terminals. Installation Observe the following precautions when installing an Inverter. Installation in Enclosures Either install the Inverter in a clean location not subject to oil mist, airborne matter, dust, and other contami- nants, or install the Inverter in a completely enclosed panel.
Page 511: Handling
Handling Observe the following precautions when wiring or performing maintenance for an Inverter. Wiring Check The Inverter will be internally damaged if the power supply voltage is applied to output terminal U, V, or W. Check wiring for any mistakes before supplying power. Check all wiring and sequences carefully. Magnetic Contactor Installation Do not start and stop operation frequently with a magnetic contactor installed on the power supply line.
Page 512: Motor Application Precautions
Cooling effects diminish in the low-speed range, resulting in an increase in the motor temperature. Therefore, the motor torque should be reduced in the low-speed range whenever using a motor not made by OMRON. If 100% torque is required continuously at low speed, consider using a special inverter or vector motor.
Page 513: Using The Inverter For Special Motors
Using the Inverter for Special Motors Observe the following precautions when using a special motor. Pole-changing Motor The rated input current of pole-changing motors differs from that of standard motors. Select, therefore, an appropriate Inverter according to the maximum input current of the motor to be used. Before changing the number of poles, always make sure that the motor has stopped.
Page 514: Conformance To Ul Standard
Conformance to UL Standard Conformance to UL Standard To comply with UL standard, follow the appropriate installation instructions. Installation Site Install the Inverter in a pollution degree 2 environment or equivalent. Specification of Closed-Loop Connector The closed-loop connectors must be installed on conductors before installing to terminal blocks. Use UL Listed closed-loop connectors shown below.
Page 515 Control Circuit Terminal A UL Listed, Class 2 power supply must be used for the control circuits. See below table. Table 10.3 Power Supply for Control Circuits Input/Output Terminal Power Supply Open Collec- P1, P2, PC Class 2 power supply tor Outputs S1, S2, S3, S4, LVLC power supply when using...
Page 516: Conformance To Ce Markings
Conformance to CE Markings Conformance to CE Markings Points regarding conformance to CE markings are given below. CE Markings CE markings indicate conformance to safety and environmental standards that apply to business transactions (including production, imports, and sales) in Europe. There are unified European standards for mechanical products (Machine Directive), electrical products (Low Voltage Directive), and electrical noise (EMC Direc- tive).
Page 517 Wiring Example This example shows wiring for conforming to undervoltage reference. Thermal switch Thermal relay contact trip contact Braking Unit (optional) Level Motor detector Braking Resistor Unit (optional) Cooling fan Noise filter Inverter 3-phase power 200 to 240 V 3G3RV 50/60 Hz 3G3FV -PPGB2...
Page 518 Conformance to CE Markings Input Fuses In order to conform to the Low Voltage Directive, fuses must be provided for inputs. Use UL-compatible input fuses with ratings higher than the voltages and currents, and fusing I t specifications within the ranges shown in the table below.
Page 519 Table 10.4 Selection Requirements for Input Fuses with Examples (Continued) Selection Requirements Input Fuse (Examples) Inverter Model Fusing Voltage Number Voltage Current Fusing I Class Model Number Manufacturer Ratings 3G3RV- sec) sec) 600 V A4004-V1 6 to 55 CR6L-20/UL FUJI 20 A 600 V A4007-V1...
Page 520 Conformance to CE Markings EMC Directive 3G3RV-Series Inverters satisfy testing for conformance to the EMC Directive under the conditions described in European Standard EN61800-3. Installation Method In order to ensure that the machinery or installation incorporating the Inverter conforms to the EMC Directive, perform installation according to the method below.
Page 521 R/L1, S/L2, T/L3 Remove the paint on the ground side. Inputs Inverter Filter Outputs U/T1, V/T2, W/T3 R/L1, S/L2, T/L3 Wiring length: 40 cm max. Metallic plate Wiring length: 20 m max. Remove the paint on the ground side. Fig 10.8 Installation Method for Filter and Inverter (3G3RV-B2220-V1 to B211K-V1, B4220-V1 to B430K-V1)
Page 522: Wiring Examples
Wiring Examples Wiring Examples This section provides wiring examples to connect a Braking Unit and other peripheral devices to the main circuits, examples of wiring a transformer to Inverter I/O, and other aspects of Inverter wiring. Using a Braking Resistor Unit This example shows wiring for a Braking Resistor Unit.
Page 523: Using A Braking Unit And Braking Resistor Unit
Using a Braking Unit and Braking Resistor Unit This example shows wiring for a Braking Unit and Braking Resistor Unit. 3G3RV-A2220, 3G3RV-A2300 (200-V class Inverters of 22 kW, 30 kW) Braking Unit DC Reactor to Braking Resistor Unit (Optional) improve input (Optional) A sequence is required to turn power factor...
Page 524: Using Braking Units In Parallel
Wiring Examples Using Braking Units in Parallel This example shows wiring for using two Braking Units in parallel. A sequence is required to turn OFF the Thermal power supply for the thermal overload relay Thermal protector protector trip contacts of the Braking Resistor Unit. Brak- Brak- Resis-...
Page 525: Using A Braking Unit And Three Braking Resistor Units In Parallel
Using a Braking Unit and Three Braking Resistor Units in Parallel This example shows wiring for using three Braking Resistor Units in parallel. Thermal Thermal Thermal protector protector protector Braking Braking Braking Resistor Resistor Resistor A sequence is required to turn OFF the Unit Unit Unit...
Page 526: Using An Analog Operator
Wiring Examples Using an Analog Operator This example shows wiring for using an Analog Operator. The Analog Operator model number is 3G3IV- PJVOP95 or 3G3IV-PJVOP96 . This example shows wiring for the 3G3RV-A2075 (200-V class Inverters of 7.5 kW) Short-circuit bar (Standard) MCCB Motor...
Page 527: Using Transistors For Input Signals And A 0-V Common In Sinking Mode With An Internal Power Supply
Using Transistors for Input Signals and a 0-V Common in Sinking Mode with an Internal Power Supply Set CN5 (shunt connector) on the control card to NPN as shown below for a sequence that uses an NPN tran- sistor for an input signal (0-V command and sinking mode) and an internal +24-V power supply. MCCB U/T1 R/L1...
Page 528: Using Transistors For Input Signals And A 0-V Common In Sinking Mode With An External Power Supply
Wiring Examples Using Transistors for Input Signals and a 0-V Common in Sinking Mode with an External Power Supply Set CN5 (shunt connector) on the control card to EXT as shown below for a sequence that uses an NPN tran- sistor for an input signal (0-V command and sinking mode) and an external +24-V power supply.
Page 529: Using Contact And Open Collector Outputs
Using Contact and Open Collector Outputs This example shows wiring for contact outputs and open collector outputs. The following example is for the 3G3RV-A2075 (200-V class Inverter for 7.5 kW). MCCB Motor 3-phase power Inverter Ground Ammeter scale adjustment resistor Multi-function analog output 2 -10 to +10 V 2 mA Default: Ouput current,...
Page 530: Parameters
Parameters Parameters Factory settings are given in the following table. Table 10.5 User Parameters Fac- Fac- Set- Set- tory Name tory Name ting ting Setting Setting Language selection for Digital A1-00 b3-05 Speed search wait time Operator display Sets the magnetic flux compensation as A1-01 Parameter access level b3-10...
Page 531 Table 10.5 User Parameters (Continued) Fac- Fac- Set- Set- tory Name tory Name ting ting Setting Setting b5-16 PID sleep operation delay time C1-10 Accel/decel time setting unit Acceleration/deceleration time for Accel/decel time switching fre- b5-17 C1-11 PID reference quency S-curve characteristic time at b6-01 Dwell frequency at start...
Page 532 Parameters Table 10.5 User Parameters (Continued) Fac- Fac- Set- Set- tory Name tory Name ting ting Setting Setting d2-03 Master speed reference lower limit (C6-01 = 0) C6-02 Carrier frequency selection d3-01 Jump frequency 1 (C6-01 d3-02 Jump frequency 2 = 1) Carrier frequency upper limit d3-03...
Page 533 Table 10.5 User Parameters (Continued) Fac- Fac- Set- Set- tory Name tory Name ting ting Setting Setting *2*9 E1-10 Min. output frequency voltage E4-03 Motor 2 no-load current 1.20 Motor 2 number of poles (number E1-11 Mid. output frequency 2 E4-04 of poles) E1-12...
Page 534 Parameters Table 10.5 User Parameters (Continued) Fac- Fac- Set- Set- tory Name tory Name ting ting Setting Setting F4-05 Channel 1 output monitor bias H1-06 Terminal S8 function selection 8 (6) Terminal M1-M2 function selec- F4-06 Channel 2 output monitor bias H2-01 tion (contact) Analog output signal level for...
Page 535 Table 10.5 User Parameters (Continued) Fac- Fac- Set- Set- tory Name tory Name ting ting Setting Setting H5-01 Slave address L2-07 Momentary recovery time Frequency reduction gain at KEB H5-02 Communication speed selection L2-08 start Stall prevention selection during H5-03 Communication parity selection L3-01 accel...
Page 536 Parameters Table 10.5 User Parameters (Continued) Fac- Fac- Set- Set- tory Name tory Name ting ting Setting Setting L7-03 Forward regenerative torque limit N5-01 Feed forward control selection L7-04 Reverse regenerative torque limit N5-02 Motor acceleration time 0.178 Integral time setting for torque L7-06 N5-03 Feed forward proportional gain...
Page 537 Table 10.5 User Parameters (Continued) Fac- Fac- Set- Set- tory Name tory Name ting ting Setting Setting T1-03 Motor rated voltage T1-07 Motor base speed 1750 200.0 Number of PG pulses when turn- T1-04 Motor rated current T1-08 1.90 T1-05 Motor base frequency 60.0 T1-09...
Page 538 Index Symbols +/- speed, daily inspection, 6-87 DC reactor, 2-19 Numerics detecting motor overspeed, 6-196 detecting motor torque, 6-58 2-wire sequence, 6-14 detecting PG open circuit, 6-196 3-wire sequence, 6-15 Digital Operator, digital operator communications error 1, digital operator communications error 2, digital operator connection fault, AC reactor, 2-19...
Page 539 Index incorrect Inverter capacity setting, Open Chassis Type, 7-14 inductive noise, open-loop vector control, 2-21 4-11 inrush prevention circuit fault, operation errors, 7-14 installation site, option board communications error, 1-15 7-13 installed braking resistor overheating, option board connection error, internal braking transistor fault, option board selection error, 7-14 Inverter input voltage,...
Page 540 Index radio noise, V/f control with PG, 2-22 4-10 rated current, V/f control without PG, 6-63 4-10 RJOG, V/f pattern, 6-90 6-155 6-157 RS-422A/485 communications, Verify Mode, 6-100 3-11 RS-422A/485 communications error, 7-12 Run Command, 6-14 watchdog timer fault, wire size, 2-10 2-26 S-curve characteristics,...
Page 541 Revision History A manual revision code appears as a suffix to the catalog number on the front cover of the manual. Cat. No. I549-E1-01 Revision Code The following table outlines the changes made to the manual during each revision. Page numbers refer to the previous version.
Page 542 The Netherlands Tel: (31)2356-81-300/Fax: (31)2356-81-388 OMRON ELECTRONICS LLC 1 East Commerce Drive, Schaumburg, IL 60173 U.S.A. Tel: (1)847-843-7900/Fax: (1)847-843-8568 OMRON ASIA PACIFIC PTE. LTD. 83 Clemenceau Avenue, #11-01, UE Square, Singapore 239920 Tel: (65)6835-3011/Fax: (65)6835-2711 OMRON (CHINA) CO., LTD. Room 2211, Bank of China Tower,...

This manual is also suitable for:

3g3rv-v1

Omron SYSDRIVE RV Series User Manual

Appendix

Quick Links

Troubleshooting

Related Manuals for Omron SYSDRIVE RV Series

Summary of Contents for Omron SYSDRIVE RV Series
