5
FUNCTIONS FOR RECEIVE

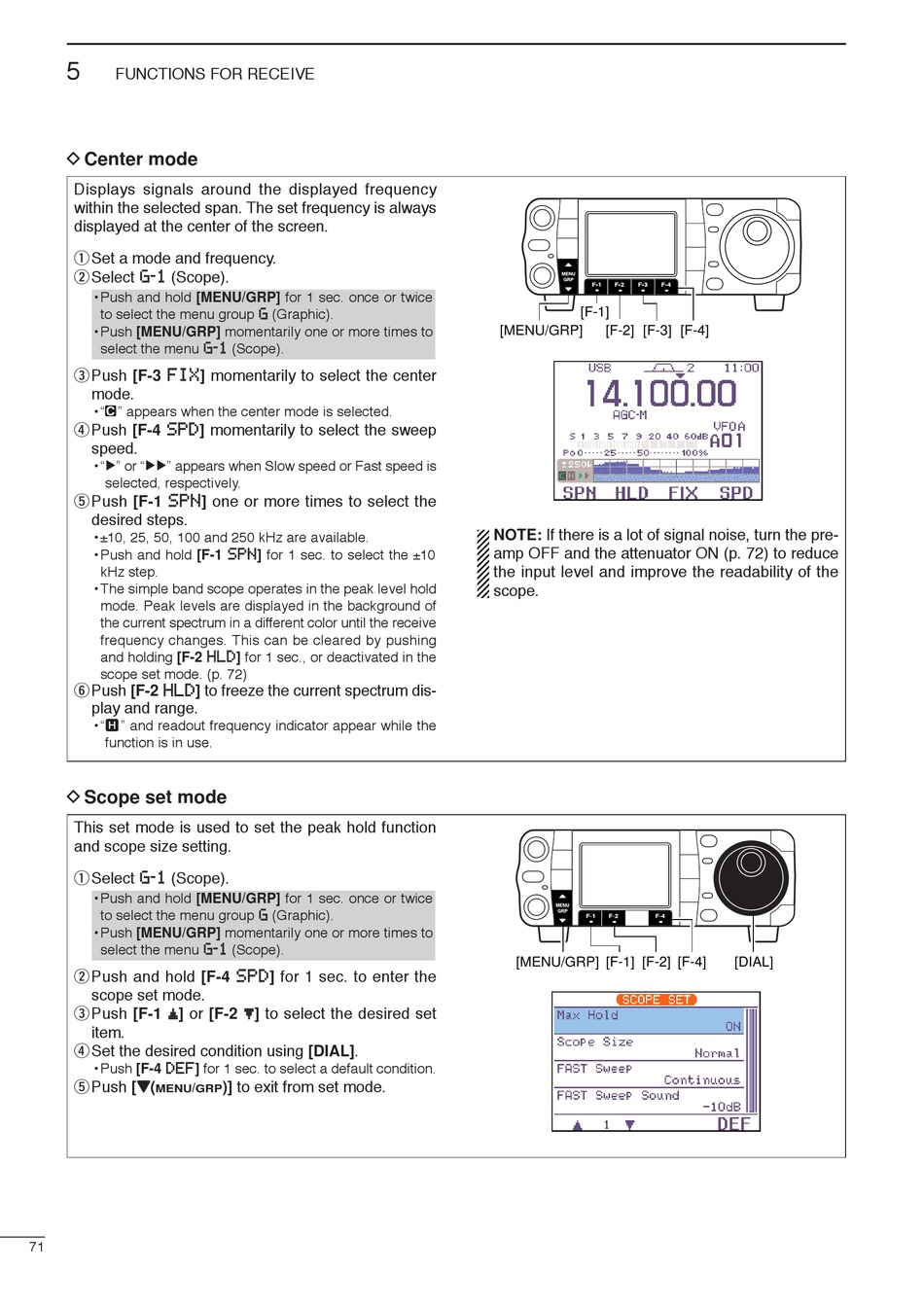

D Center mode

Displays signals around the displayed frequency
within the selected span. The set frequency is always
displayed at the center of the screen.
q Set a mode and frequency.
w Select G G - - 1 1 (Scope).
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group G G (Graphic).
• Push [MENU/GRP] momentarily one or more times to
select the menu G G - - 1 1 (Scope).
e Push [F-3 F F I I X X ] momentarily to select the center
mode.
• "= " appears when the center mode is selected.
r Push [F-4 S S P P D D ] momentarily to select the sweep
speed.
• "≈" or "≈≈" appears when Slow speed or Fast speed is
selected, respectively.
t Push [F-1 S S P P N N ] one or more times to select the
desired steps.
• ±10, 25, 50, 100 and 250 kHz are available.
• Push and hold [F-1 S S P P N N ] for 1 sec. to select the ±10
kHz step.
• The simple band scope operates in the peak level hold
mode. Peak levels are displayed in the background of
the current spectrum in a different color until the receive
frequency changes. This can be cleared by pushing
and holding [F-2 H H L L D D ] for 1 sec., or deactivated in the
scope set mode. (p. 72)
y Push [F-2 H H L L D D ] to freeze the current spectrum dis-
play and range.
• "H " and readout frequency indicator appear while the
function is in use.

D Scope set mode

This set mode is used to set the peak hold function
and scope size setting.
q Select G G - - 1 1 (Scope).
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group G G (Graphic).
• Push [MENU/GRP] momentarily one or more times to
select the menu G G - - 1 1 (Scope).
w Push and hold [F-4 S S P P D D ] for 1 sec. to enter the
scope set mode.
e Push [F-1 ≤ ≤ ] or [F-2 ≥ ≥ ] to select the desired set
item.
r Set the desired condition using [DIAL].
• Push [F-4 D D E E F F ] for 1 sec. to select a default condition.
t Push [Z Z (
/
MENU GRP
71
)] to exit from set mode.
[F-1]
[MENU/GRP] [F-2] [F-3] [F-4]
NOTE: If there is a lot of signal noise, turn the pre-
amp OFF and the attenuator ON (p. 72) to reduce
the input level and improve the readability of the
scope.
[MENU/GRP] [F-1] [F-2] [F-4] [DIAL]
