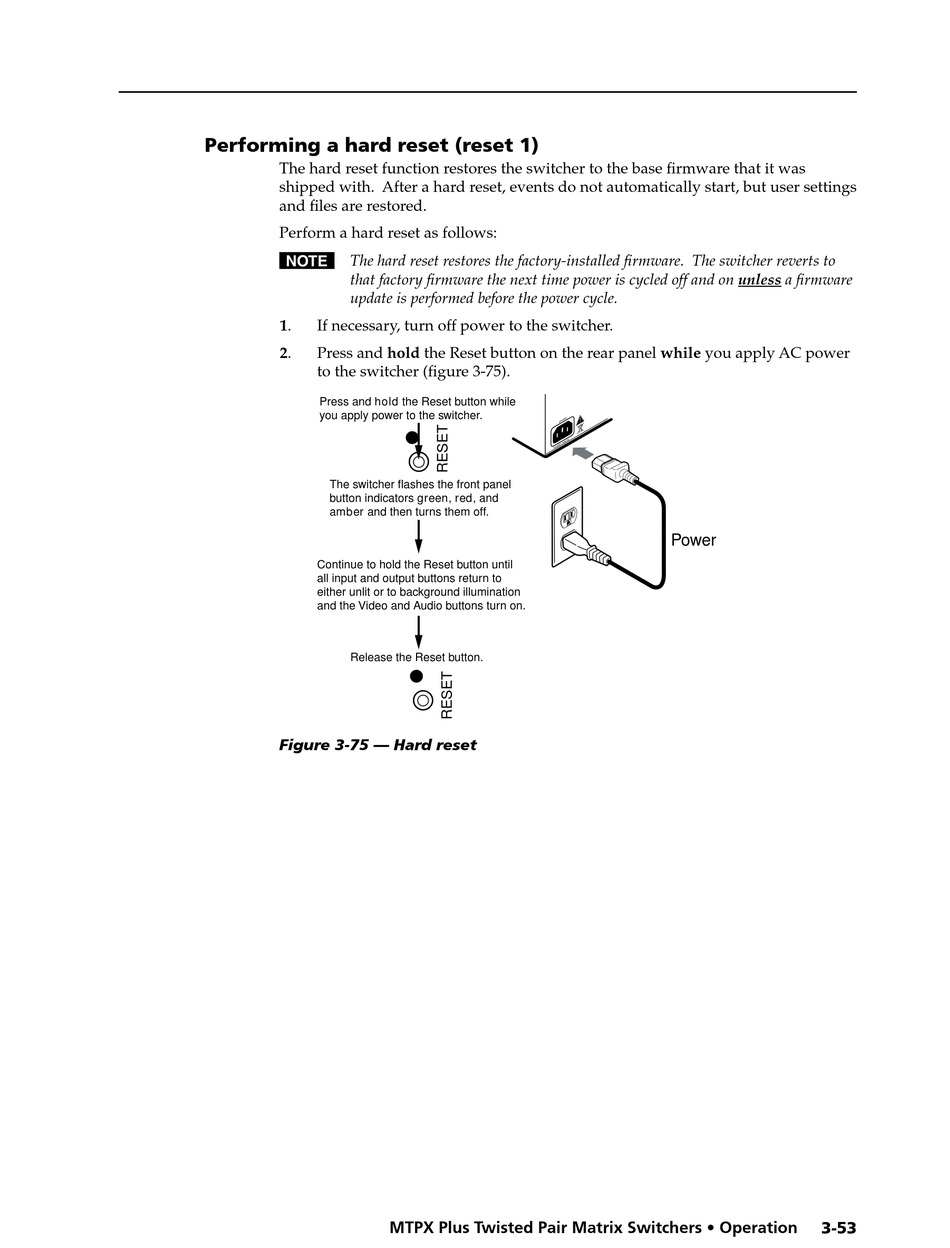

Performing a hard reset (reset 1)

The hard reset function restores the switcher to the base firmware that it was
shipped with. After a hard reset, events do not automatically start, but user settings
and files are restored.
Perform a hard reset as follows:
N The hard reset restores the factory-installed firmware. The switcher reverts to
that factory firmware the next time power is cycled off and on unless a firmware
update is performed before the power cycle.
If necessary, turn off power to the switcher.
1.
2. Press and hold the Reset button on the rear panel while you apply AC power
to the switcher (figure 3-75).
Press and hold the Reset button while
you apply power to the switcher.
The switcher flashes the front panel
button indicators green, red, and
amber and then turns them off.
Continue to hold the Reset button until
all input and output buttons return to
either unlit or to background illumination
and the Video and Audio buttons turn on.
Release the Reset button.
Figure 3-75 — Hard reset
MTPX Plus Twisted Pair Matrix Switchers • Operation
Power
3-53
