Introduction, cont'd

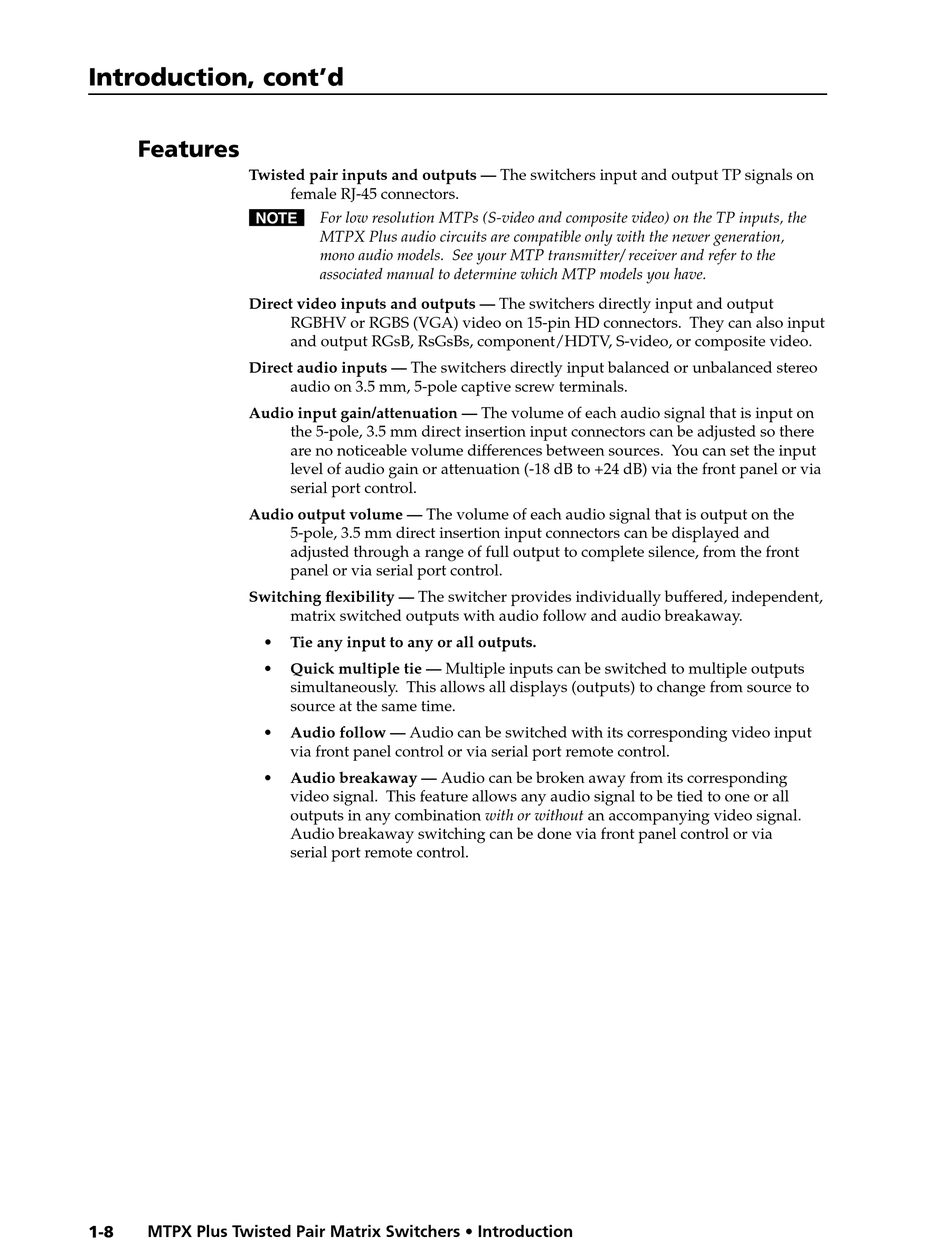

Features

Twisted pair inputs and outputs — The switchers input and output TP signals on
N For low resolution MTPs (S-video and composite video) on the TP inputs, the
Direct video inputs and outputs — The switchers directly input and output
Direct audio inputs — The switchers directly input balanced or unbalanced stereo
Audio input gain/attenuation — The volume of each audio signal that is input on
Audio output volume — The volume of each audio signal that is output on the
Switching flexibility — The switcher provides individually buffered, independent,
•
•
•
•
1-8 MTPX Plus Twisted Pair Matrix Switchers • Introduction
female RJ-45 connectors.
MTPX Plus audio circuits are compatible only with the newer generation,
mono audio models. See your MTP transmitter/ receiver and refer to the
associated manual to determine which MTP models you have.
RGBHV or RGBS (VGA) video on 15-pin HD connectors. They can also input
and output RGsB, RsGsBs, component/HDTV, S-video, or composite video.
audio on 3.5 mm, 5-pole captive screw terminals.
the 5-pole, 3.5 mm direct insertion input connectors can be adjusted so there
are no noticeable volume differences between sources. You can set the input
level of audio gain or attenuation (-18 dB to +24 dB) via the front panel or via
serial port control.
5-pole, 3.5 mm direct insertion input connectors can be displayed and
adjusted through a range of full output to complete silence, from the front
panel or via serial port control.
matrix switched outputs with audio follow and audio breakaway.
Tie any input to any or all outputs.
Quick multiple tie — Multiple inputs can be switched to multiple outputs
simultaneously. This allows all displays (outputs) to change from source to
source at the same time.
Audio follow — Audio can be switched with its corresponding video input
via front panel control or via serial port remote control.
Audio breakaway — Audio can be broken away from its corresponding
video signal. This feature allows any audio signal to be tied to one or all
outputs in any combination with or without an accompanying video signal.
Audio breakaway switching can be done via front panel control or via
serial port remote control.
