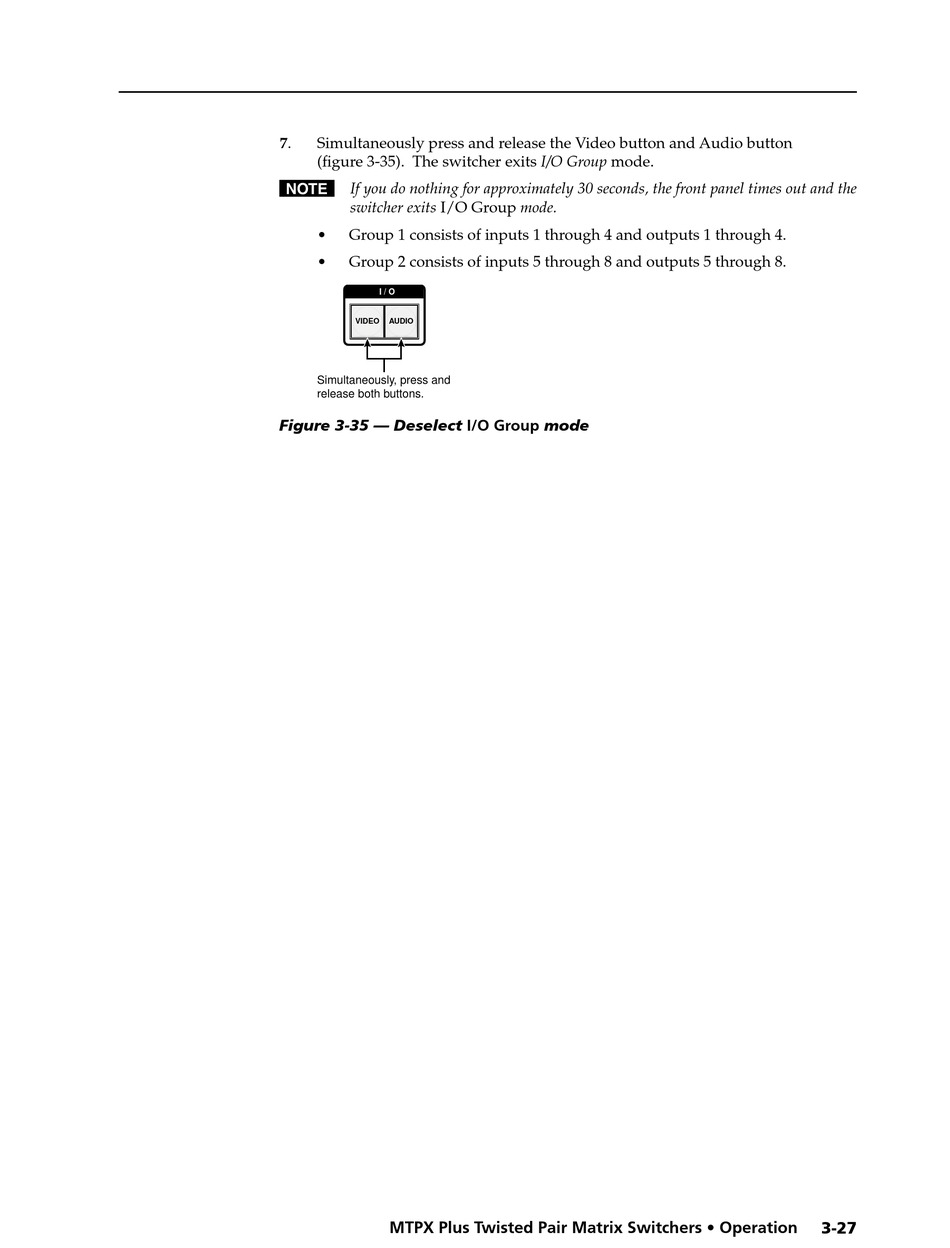

7. Simultaneously press and release the Video button and Audio button
(figure 3-35). The switcher exits I/O Group mode.
N If you do nothing for approximately 30 seconds, the front panel times out and the
switcher exits I/O Group mode.
• Group 1 consists of inputs 1 through 4 and outputs 1 through 4.
• Group 2 consists of inputs 5 through 8 and outputs 5 through 8.
I / O
VIDEO AUDIO
Simultaneously, press and
release both buttons.
Figure 3-35 — Deselect I/O Group mode
MTPX Plus Twisted Pair Matrix Switchers • Operation 3-27
