Figure 3-63 shows the same volume (61%) as in figure 3-62, but displayed on a
16-input-button switcher, such as an MTPX Plus 168.
1
3
4
5
2
Lit Buttons
•
The input LEDs display the selected output's audio volume level.
•
In this example, the lit/blinking input buttons indicate 59.5 to 62.5 percent of the applied audio input.
•
The unlit/blinking input buttons indicate an audio volume attenuation of 25 dB to 27 dB.

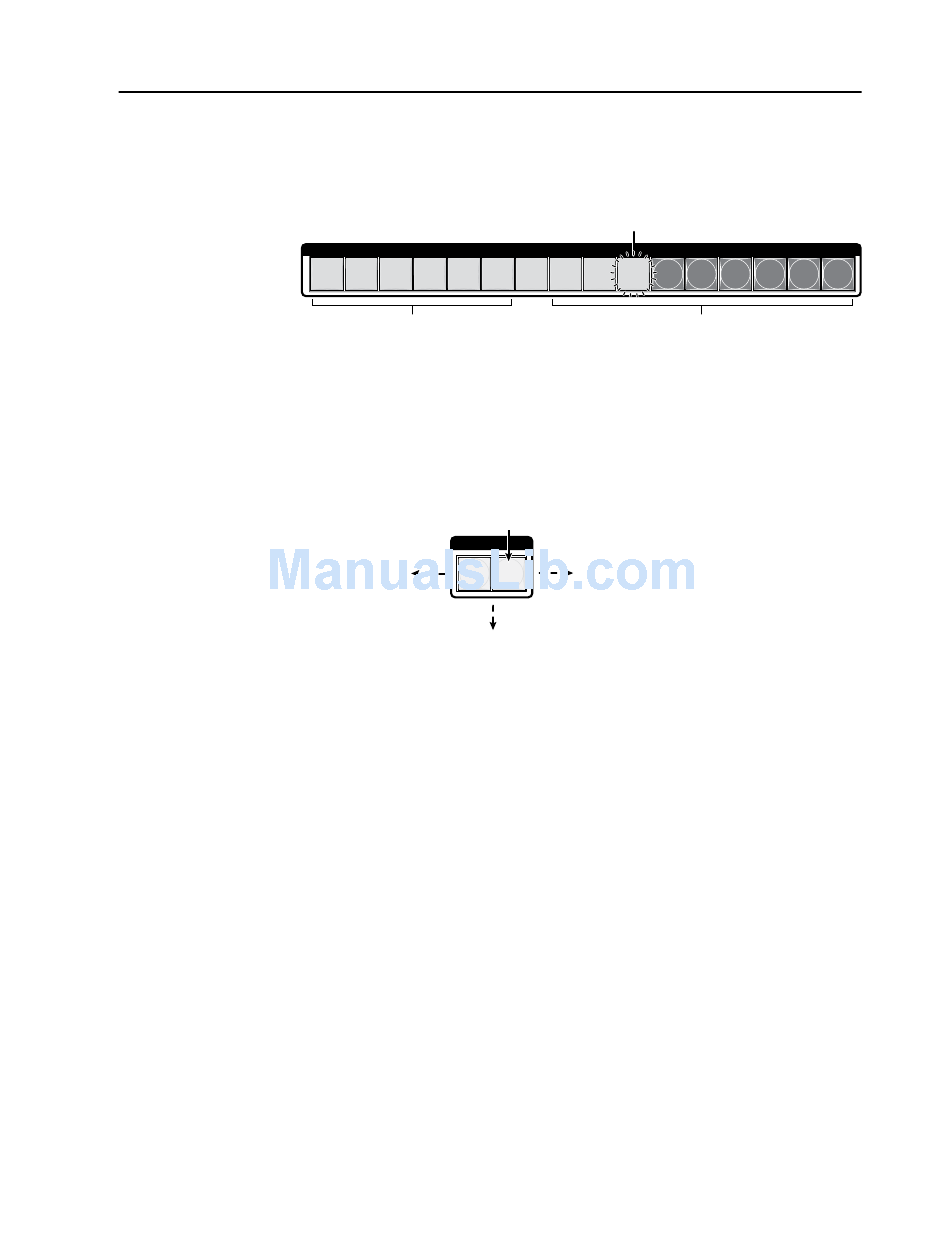

Figure 3-63 — Volume display on a 16-input-button switcher
Press and release the Audio button (figure 3-64).
5.
The Video button
lights green.
All input buttons and output buttons
return to unlit or background illumination.
Figure 3-64 — Deselect Audio mode
MTPX Plus Twisted Pair Matrix Switchers • Operation
Blinking Button
-26 dB attenuation
61% volume
INPUTS
6
7
8
9 10
Press the Audio button
to exit audio mode.
I / O
The Audio button stops
VIDEO
AUDIO
blinking and lights.
12 13
11
14
15
16
Unlit Buttons
3-45
