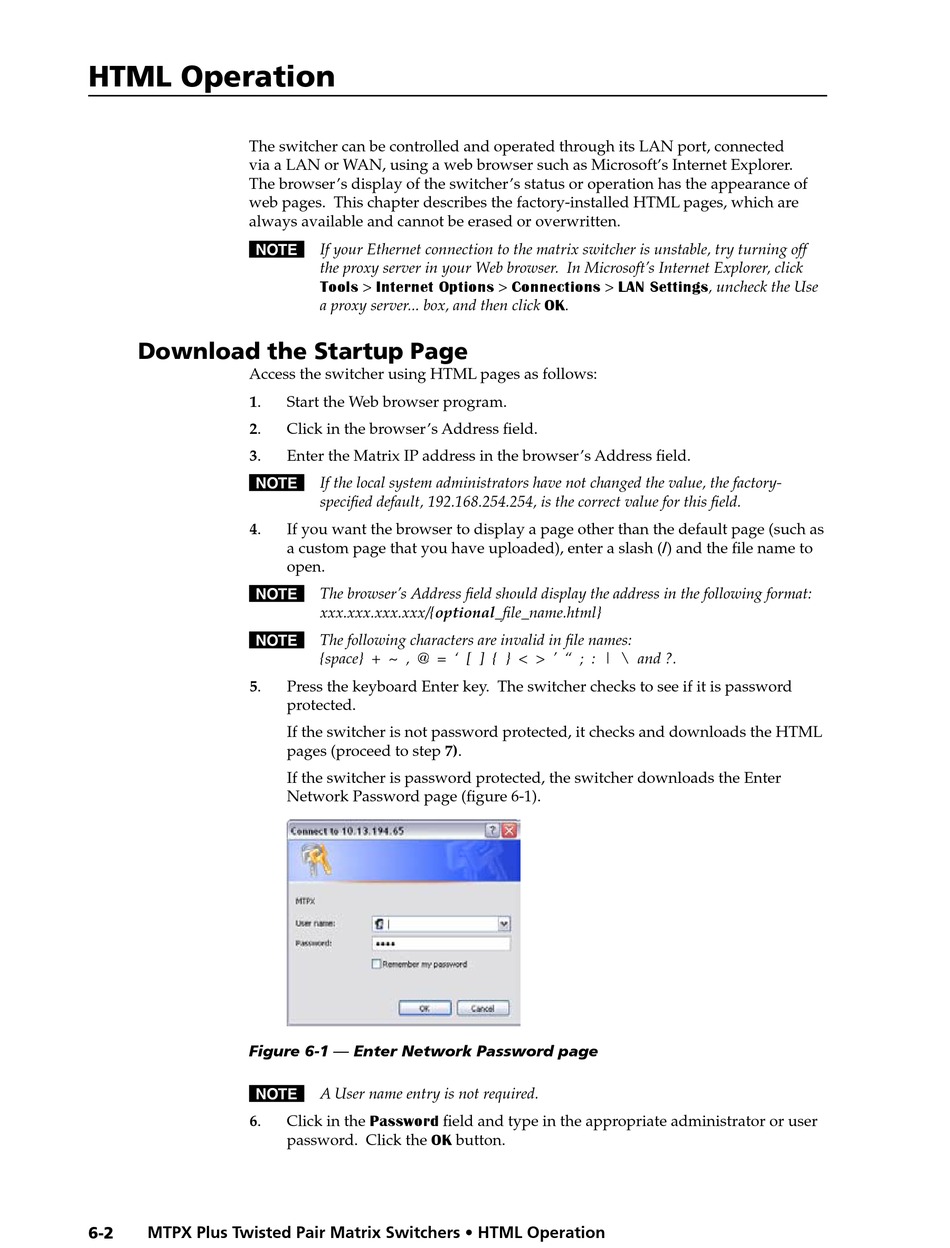

HTML Operation
The switcher can be controlled and operated through its LAN port, connected
via a LAN or WAN, using a web browser such as Microsoft's Internet Explorer.
The browser's display of the switcher's status or operation has the appearance of
web pages. This chapter describes the factory-installed HTML pages, which are
always available and cannot be erased or overwritten.
N If your Ethernet connection to the matrix switcher is unstable, try turning off
Download the Startup Page
Access the switcher using HTML pages as follows:
1.
2.
3.
N If the local system administrators have not changed the value, the factory-
4.
N The browser's Address field should display the address in the following format:
N The following characters are invalid in file names:
5.
Figure 6-1 — Enter Network Password page
N A User name entry is not required.
6.
6-2 MTPX Plus Twisted Pair Matrix Switchers • HTML Operation
the proxy server in your Web browser. In Microsoft's Internet Explorer, click
Tools > Internet Options > Connections > LAN Settings, uncheck the Use
a proxy server... box, and then click OK.
Start the Web browser program.
Click in the browser's Address field.
Enter the Matrix IP address in the browser's Address field.
specified default, 192.168.254.254, is the correct value for this field.
If you want the browser to display a page other than the default page (such as
a custom page that you have uploaded), enter a slash (/) and the file name to
open.
xxx.xxx.xxx.xxx/{optional_file_name.html}
{space} + ~ , @ = ' [ ] { } < > ' " ; : | \ and ?.
Press the keyboard Enter key. The switcher checks to see if it is password
protected.
If the switcher is not password protected, it checks and downloads the HTML
pages (proceed to step 7).
If the switcher is password protected, the switcher downloads the Enter
Network Password page (figure 6-1).
Click in the Password field and type in the appropriate administrator or user
password. Click the OK button.
