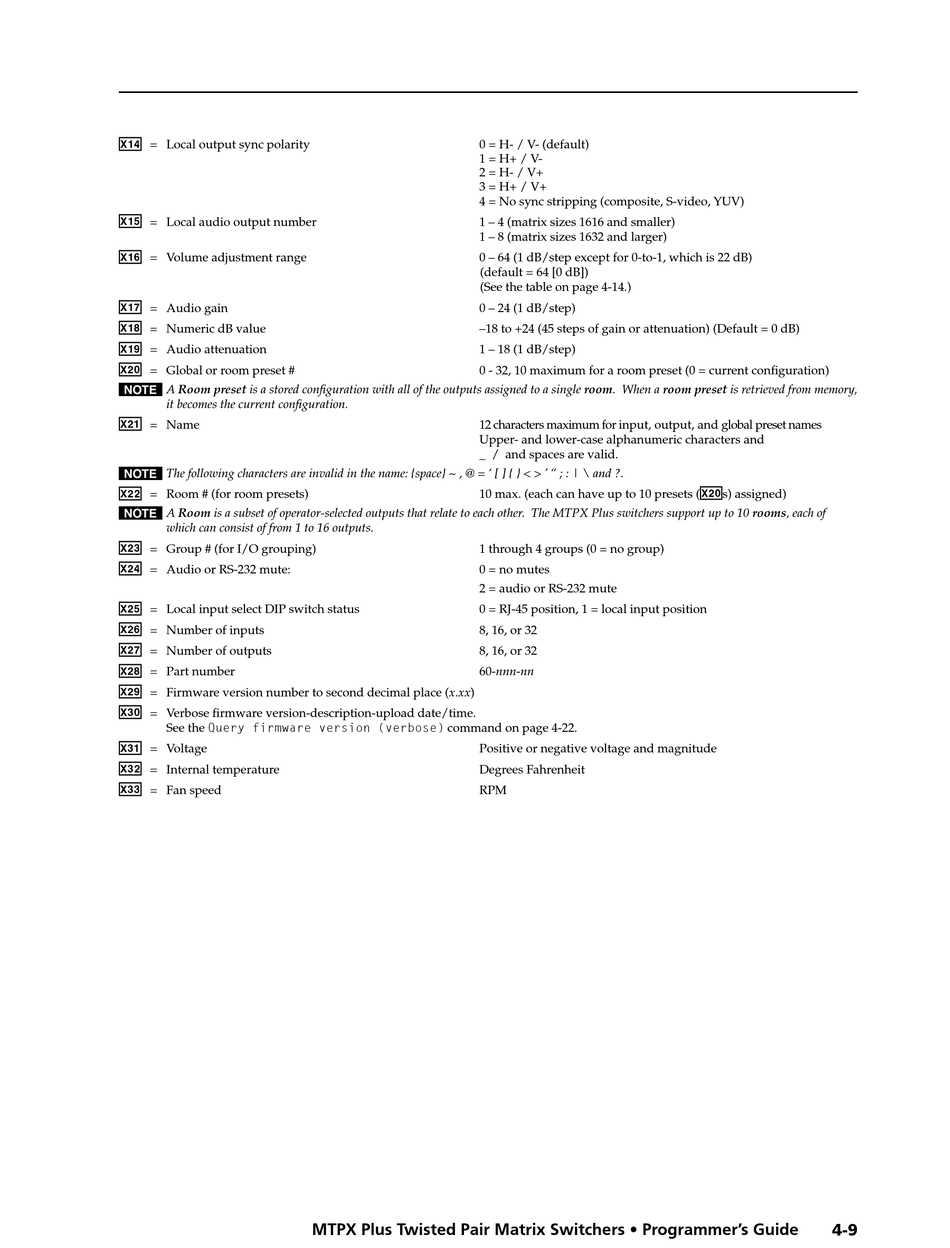

Extron electronics MTPX Plus Series User Manual page 103

X1$
= Local output sync polarity
X1%
= Local audio output number
X1^
= Volume adjustment range
X1&
= Audio gain
X1*
= Numeric dB value
X1(
= Audio attenuation
X2)
= Global or room preset #
N A Room preset is a stored configuration with all of the outputs assigned to a single room. When a room preset is retrieved from memory,
it becomes the current configuration.
X2!
= Name
N The following characters are invalid in the name: {space} ~ , @ = ' [ ] { } < > ' " ; : | \ and ?.
X2@
= Room # (for room presets)
N A Room is a subset of operator-selected outputs that relate to each other. The MTPX Plus switchers support up to 10 rooms, each of
which can consist of from 1 to 16 outputs.
X2#
= Group # (for I/O grouping)
X2$
= Audio or RS-232 mute:
X2%
= Local input select DIP switch status
X2^
= Number of inputs
X2&
= Number of outputs
X2*
= Part number
X2(
= Firmware version number to second decimal place (x.xx)
X3)
= Verbose firmware version-description-upload date/time.
See the Query firmware version (verbose) command on page 4-22.
X3!
= Voltage
X3@
= Internal temperature
X3#
= Fan speed
0 = H- / V- (default)
1 = H+ / V-
2 = H- / V+
3 = H+ / V+
4 = No sync stripping (composite, S-video, YUV)
1 – 4 (matrix sizes 1616 and smaller)
1 – 8 (matrix sizes 1632 and larger)
0 – 64 (1 dB/step except for 0-to-1, which is 22 dB)
(default = 64 [0 dB])
(See the table on page 4-14.)
0 – 24 (1 dB/step)
–18 to +24 (45 steps of gain or attenuation) (Default = 0 dB)
1 – 18 (1 dB/step)
0 - 32, 10 maximum for a room preset (0 = current configuration)
12 characters maximum for input, output, and global preset names
Upper- and lower-case alphanumeric characters and
_ / and spaces are valid.
10 max. (each can have up to 10 presets (
1 through 4 groups (0 = no group)
0 = no mutes
2 = audio or RS-232 mute
0 = RJ-45 position, 1 = local input position
8, 16, or 32
8, 16, or 32
60-nnn-nn
Positive or negative voltage and magnitude
Degrees Fahrenheit
RPM
