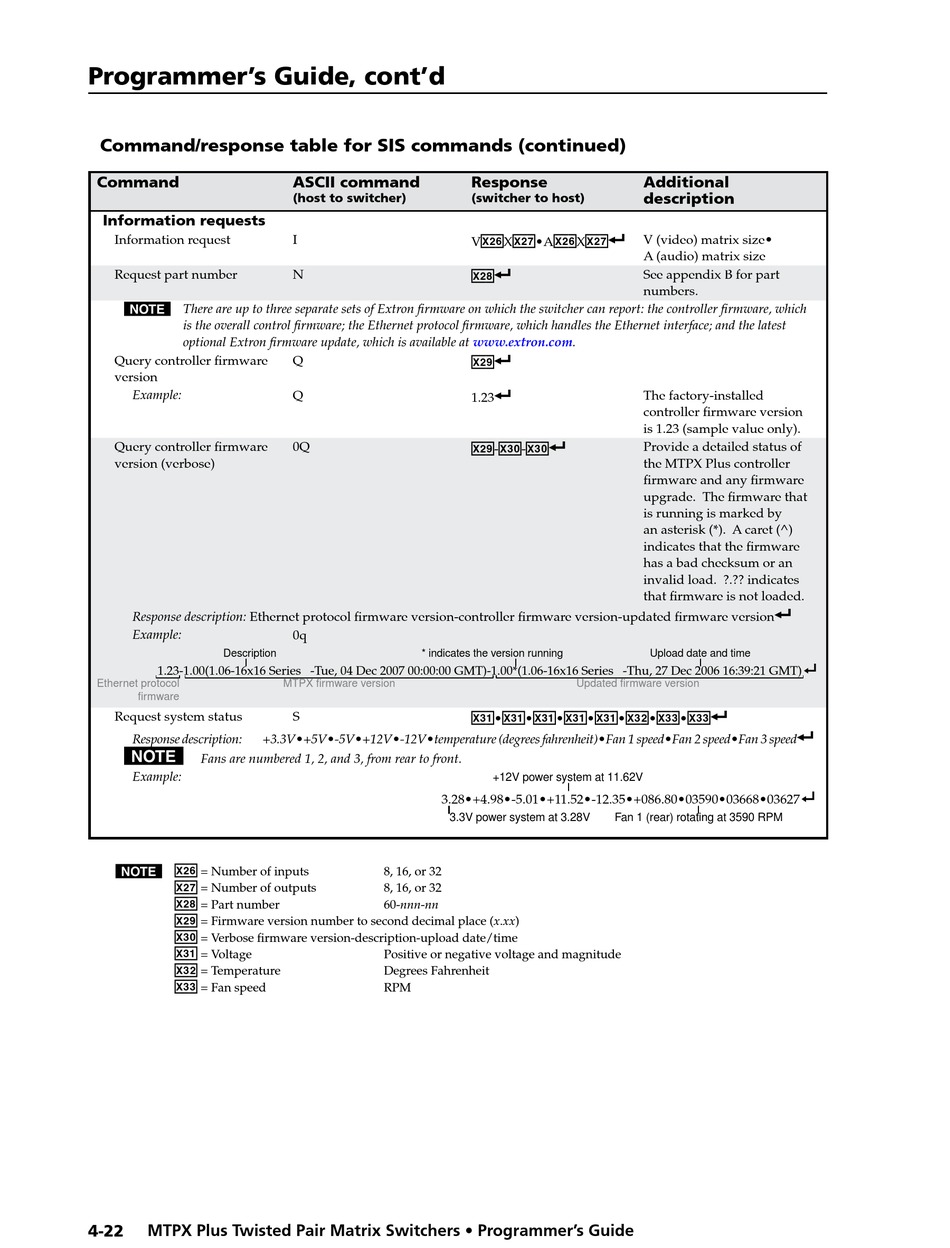

Programmer's Guide, cont'd
Command/response table for SIS commands (continued)
Command
Information requests
Information request
Request part number
N There are up to three separate sets of Extron firmware on which the switcher can report: the controller firmware, which
is the overall control firmware; the Ethernet protocol firmware, which handles the Ethernet interface; and the latest
optional Extron firmware update, which is available at www.extron.com.
Query controller firmware
version
Example:
Query controller firmware
version (verbose)
Response description: Ethernet protocol firmware version-controller firmware version-updated firmware version
Example:
Description
1.23-1.00(1.06-16x16 Series -Tue, 04 Dec 2007 00:00:00 GMT)-1.00*(1.06-16x16 Series -Thu, 27 Dec 2006 16:39:21 GMT)
Ethernet protocol
firmware
Request system status
Response description:
+3.3V•+5V•-5V•+12V•-12V•temperature (degrees fahrenheit)•Fan 1 speed•Fan 2 speed•Fan 3 speed
N
Fans are numbered 1, 2, and 3, from rear to front.
Example:
X2^
N
= Number of inputs
X2&
= Number of outputs
X2*
= Part number
X2(
= Firmware version number to second decimal place (x.xx)
X3)
= Verbose firmware version-description-upload date/time
X3!
= Voltage
X3@
= Temperature
X3#
= Fan speed
4-22
MTPX Plus Twisted Pair Matrix Switchers • Programmer's Guide
ASCII command
(host to switcher)
I
N
Q
Q
0Q
0q
* indicates the version running
MTPX firmware version
S
3.28•+4.98•-5.01•+11.52•-12.35•+086.80•03590•03668•03627
3.3V power system at 3.28V
8, 16, or 32
8, 16, or 32
60-nnn-nn
Positive or negative voltage and magnitude
Degrees Fahrenheit
RPM
Response
Additional
description
(switcher to host)
X2^
X2&
X2^
X2&]
V (video) matrix size•
V
X
•A
X
A (audio) matrix size
X2*]
See appendix B for part
numbers.
X2(]
]
The factory-installed
1.23
controller firmware version
is 1.23 (sample value only).
X2(
X3)
X3)]
Provide a detailed status of
-
-
the MTPX Plus controller
firmware and any firmware
upgrade. The firmware that
is running is marked by
an asterisk (*). A caret (^)
indicates that the firmware
has a bad checksum or an
invalid load. ?.?? indicates
that firmware is not loaded.
Upload date and time
Updated firmware version
X3!
X3!
X3!
X3!
X3!
X3@
•
•
•
•
•
•
+12V power system at 11.62V
Fan 1 (rear) rotating at 3590 RPM
]
X3#
X3#]
•
]
