ADC Soneplex Broadband System Operation And Maintenance Manual page 268

Note: The default setting is "strapped".

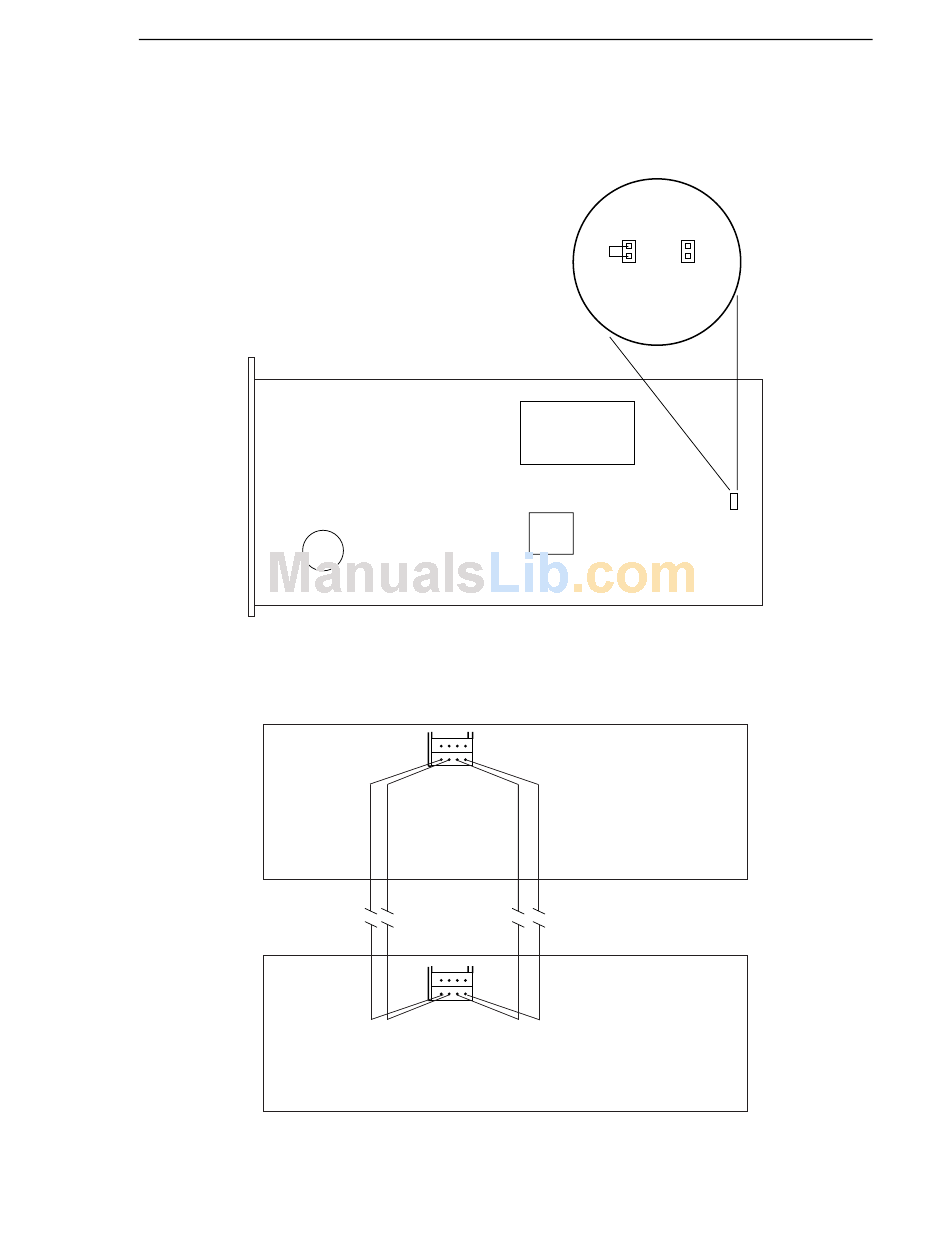

Figure 576-1. Berg Jumper Configuration on MPU for TBOS Linking
+ –
RX
. .
.
+ –
RX
Figure 576-2. Daisy-Chaining Chassis for TBOS Linking
ADCP-61-471 • Issue 4 • June 2000 • Section 2: Operation and Maintenance
BERG JUMPER
LAST
CHASSIS
IN CHAIN
PORT 4
PORT 1
+ –
TX
PORT 4
PORT 1
+ –
TX
DLP-576
Page 2 of 2
JD 13
ALL OTHER
CHASSIS
(NO STRAP)
10387-A
CHASSIS #1
CHASSIS #4
10392-A
