Control Pages

These three Control pages (User Control, Presets, and PIP Setup) allow limited
device configuration. From the User Control page, the selection and viewing of
inputs, mute and freeze selection, and execution of auto image is possible. Picture
control and input sampling is also available on the User Control page. From the
Presets page, up to 16 Memory presets and up to 30 Input presets can be saved
and recalled. Using the PIP (Picture-in-Picture) page an input can be selected
and swapped to become either the main image or the secondary (PIP) image. In
addition, the PIP can be turned off and auto image can be performed an either
input. Within PIP Setup limited picture control is possible. The Control pages
initially open on the User Control page.

User Control page

The User Control page emulates some of the front panel features and displays the
current picture control settings and input sampling data (see figure 7-11).
In addition, image muting/unmuting, freezing/unfreezing and Auto Image can be
selected.

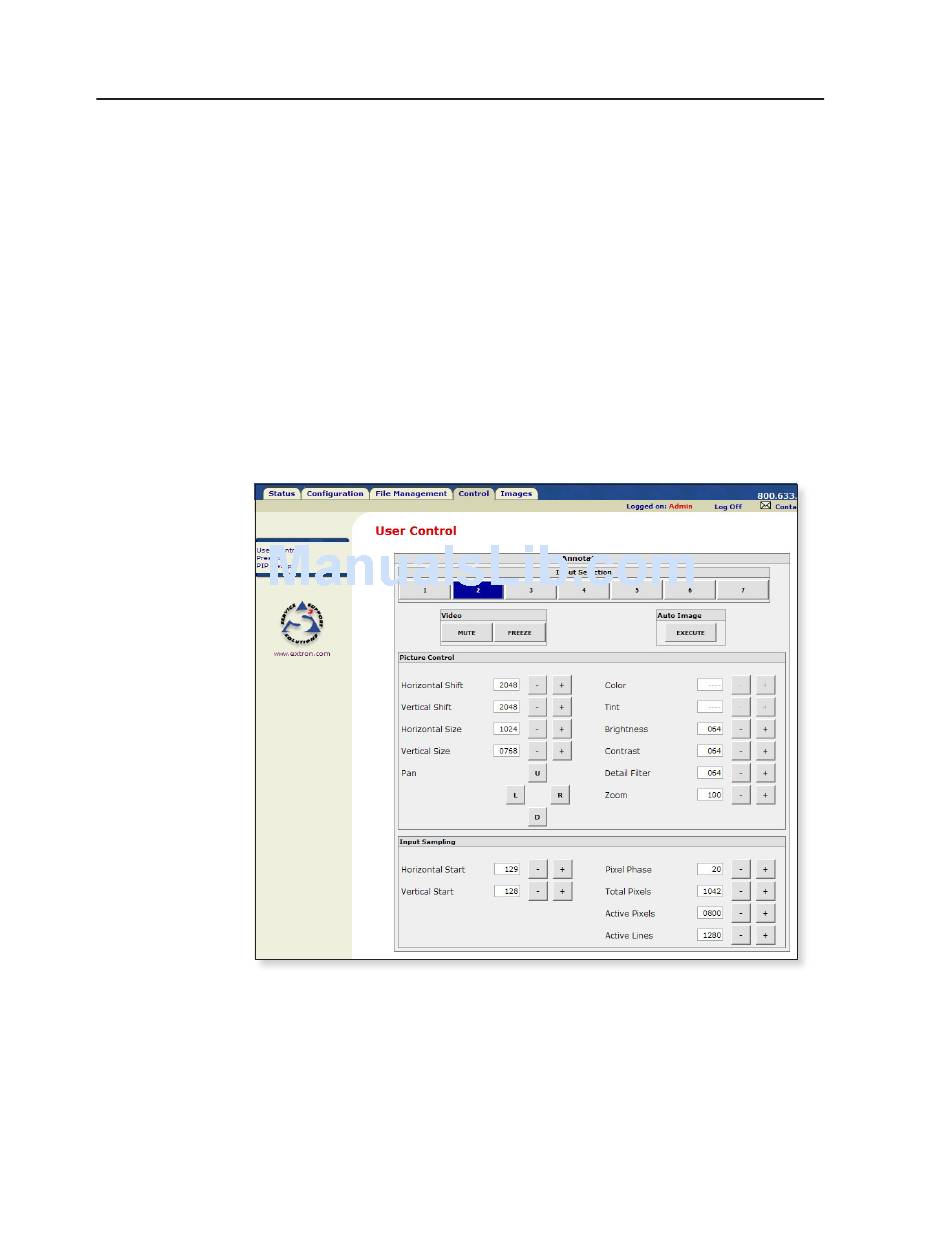

Figure 7–11 — User Control page
To select an input to be displayed, click on an input number. The selected input is
displayed.
To mute or unmute, freeze or unfreeze the input image, click on the appropriate
button. Muting the image blanks the display screen. Unmuting the image allows
the image to be displayed.
Freezing the image keep the same image displayed, even when the input is
switched. Unfreezing the image allows images from switched inputs to be viewed.
