Annotator Software, cont'd
Advanced Settings tab
The Advanced Settings tab allows advanced functions to be configured. These
include test pattern selection, and advanced features, used primarily during initial
setup.

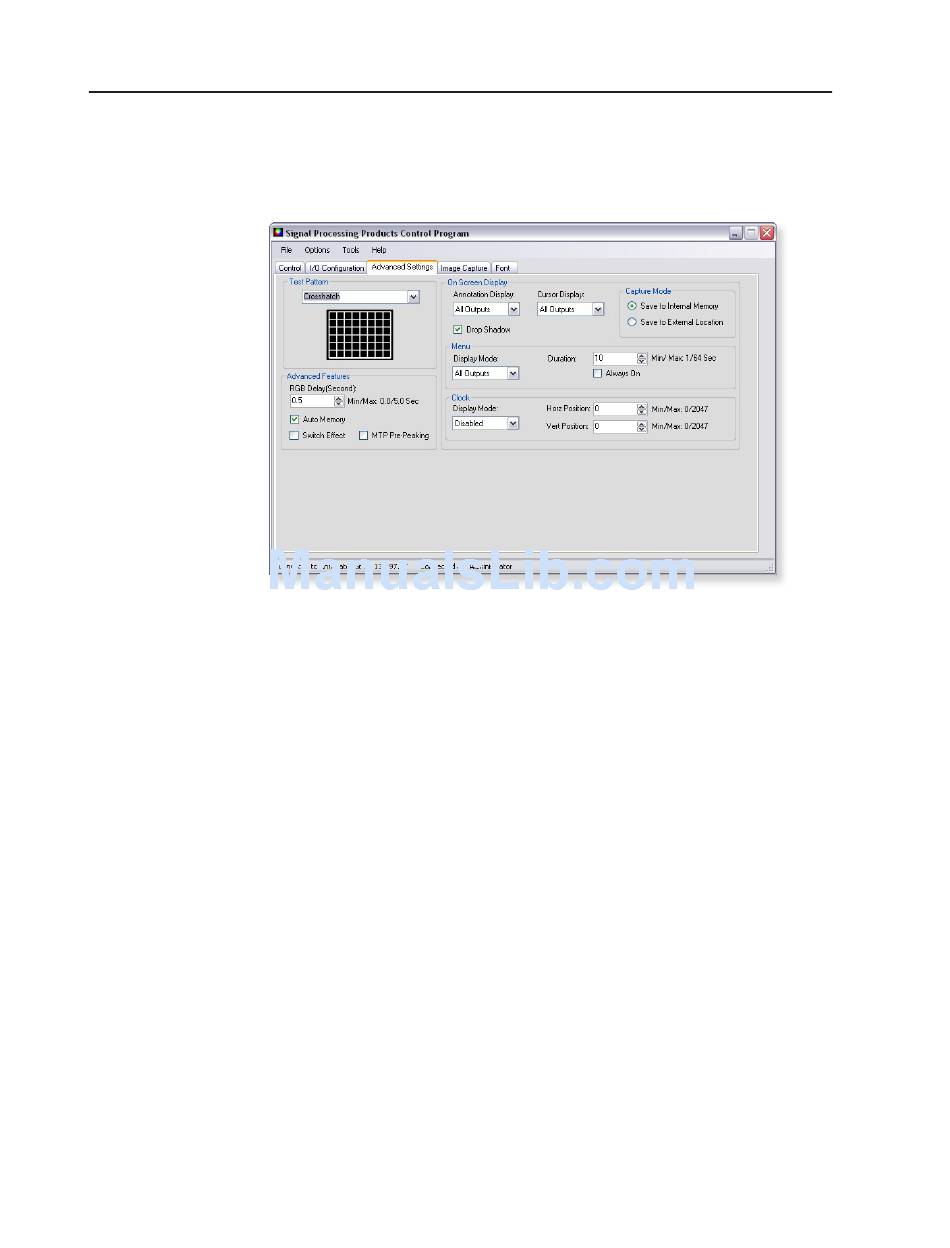

Figure 6-5 — The Advanced Settings tab screen
• Test Pattern — Select any of the 14 test patterns to aid setting up an output
display device. A small thumbnail of the pattern is shown on the tab (see above).
Select Off where a test pattern is not needed
• Advanced Features — Within this section RGB delay can be adjusted (from
0 to 5.0 seconds) in 0.1 second intervals with each click of the scroll arrows.
In addition, auto memory can be turned on or off, and switch effect can be
activated. If using mini twisted pair devices, pre-peaking can be turned on to
compensate for long cable runs.
• On Screen Display — Within this section selections can be made to how
annotation display and cursor display is handled by choosing from each drop-
down list. In addition by selecting or deselecting a check box, drop shadow on
annotations can be turned on or off.
• Capture Mode — These two selectable radio buttons allow a choice of locations
for saving Quick Capture captured images to; either internal or external memory.
• Menu — The menu section allows a choice of display modes (all outputs,
program only, preview only, or none) and the display duration, either from 1 to
64 seconds (adjustable in 1 second intervals) or always on. Select as desired.
• Clock — In this section the clock display mode can be set or disabled, and it's
on-screen horizontal and vertical position can be adjusted.
6-12
Annotator • Annotator Software
