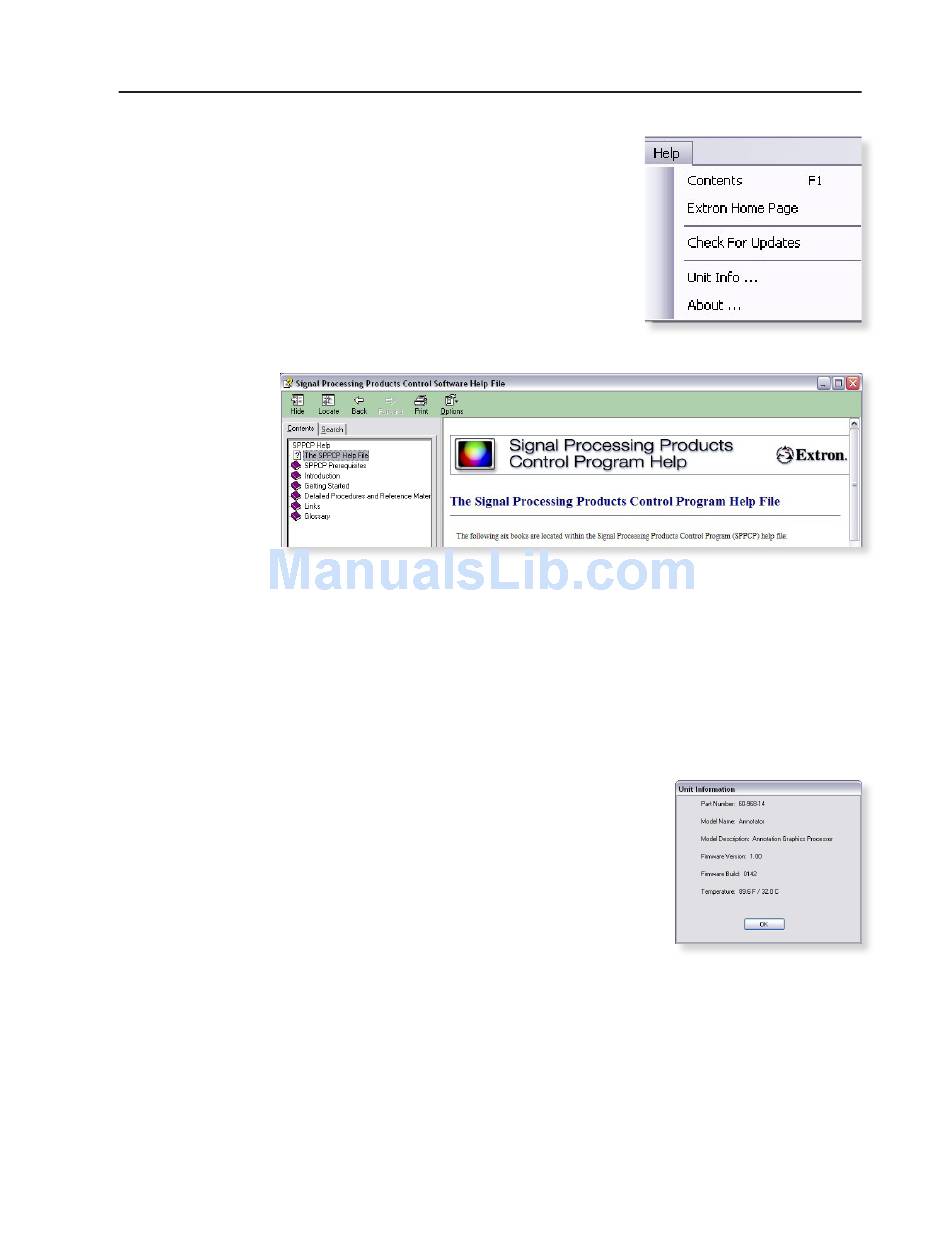

Help menu
Click on this to open a drop-down menu
displaying five selectable options: Contents,
Extron Home Page, Check for Updates, Unit
Info..., and About....
• Contents — Select this (or press F1) to bring
up the Help file which gives step-by-step
instructions to configure the Annotator using
the SPPCP program. The Help File opens in
a separate window (see figure 6-2). Select the
subject matter from the contents section at the left side of the window.
Figure 6-2 — The control program' Help File's main window
• Extron Home Page — Select this to open the Extron Web site
(www.extron.com)
applications such as Firmware Loader and IP Link File Manager can be
downloaded, and supporting documentation for Extron products can be viewed.
• Check For Updates — Select this to update the software control program
(SPPCP). If an update is available follow any on-screen instructions to install it.
A dialog box appears if no updates are currently available. Click OK or the X in
the window's top right corner to close it.
• Unit Info... — Select this to open a dialog box
with information about the connected device.
The box shows the part number, the name, model
description, currently installed firmware version
and build, and
the device's internal temperature.
home page. From this link, device firmware and necessary
Annotator • Annotator Software
6-9
