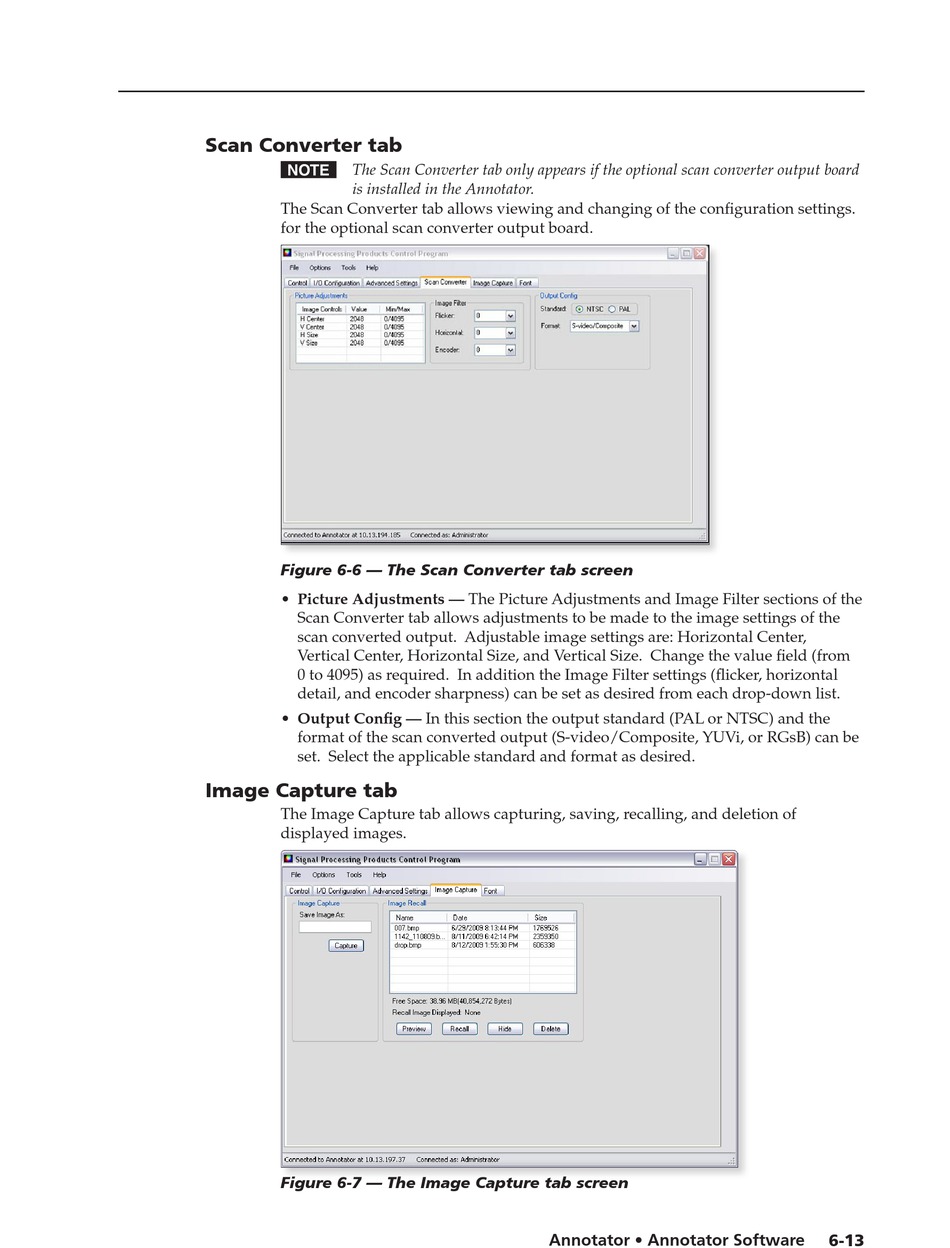

Scan Converter tab

N The Scan Converter tab only appears if the optional scan converter output board
is installed in the Annotator.
The Scan Converter tab allows viewing and changing of the configuration settings.
for the optional scan converter output board.
Figure 6-6 — The Scan Converter tab screen
• Picture Adjustments — The Picture Adjustments and Image Filter sections of the
Scan Converter tab allows adjustments to be made to the image settings of the
scan converted output. Adjustable image settings are: Horizontal Center,
Vertical Center, Horizontal Size, and Vertical Size. Change the value field (from
0 to 4095) as required. In addition the Image Filter settings (flicker, horizontal
detail, and encoder sharpness) can be set as desired from each drop-down list.
• Output Config — In this section the output standard (PAL or NTSC) and the
format of the scan converted output (S-video/Composite, YUVi, or RGsB) can be
set. Select the applicable standard and format as desired.
Image Capture tab
The Image Capture tab allows capturing, saving, recalling, and deletion of
displayed images.
Figure 6-7 — The Image Capture tab screen
Annotator • Annotator Software 6-13
