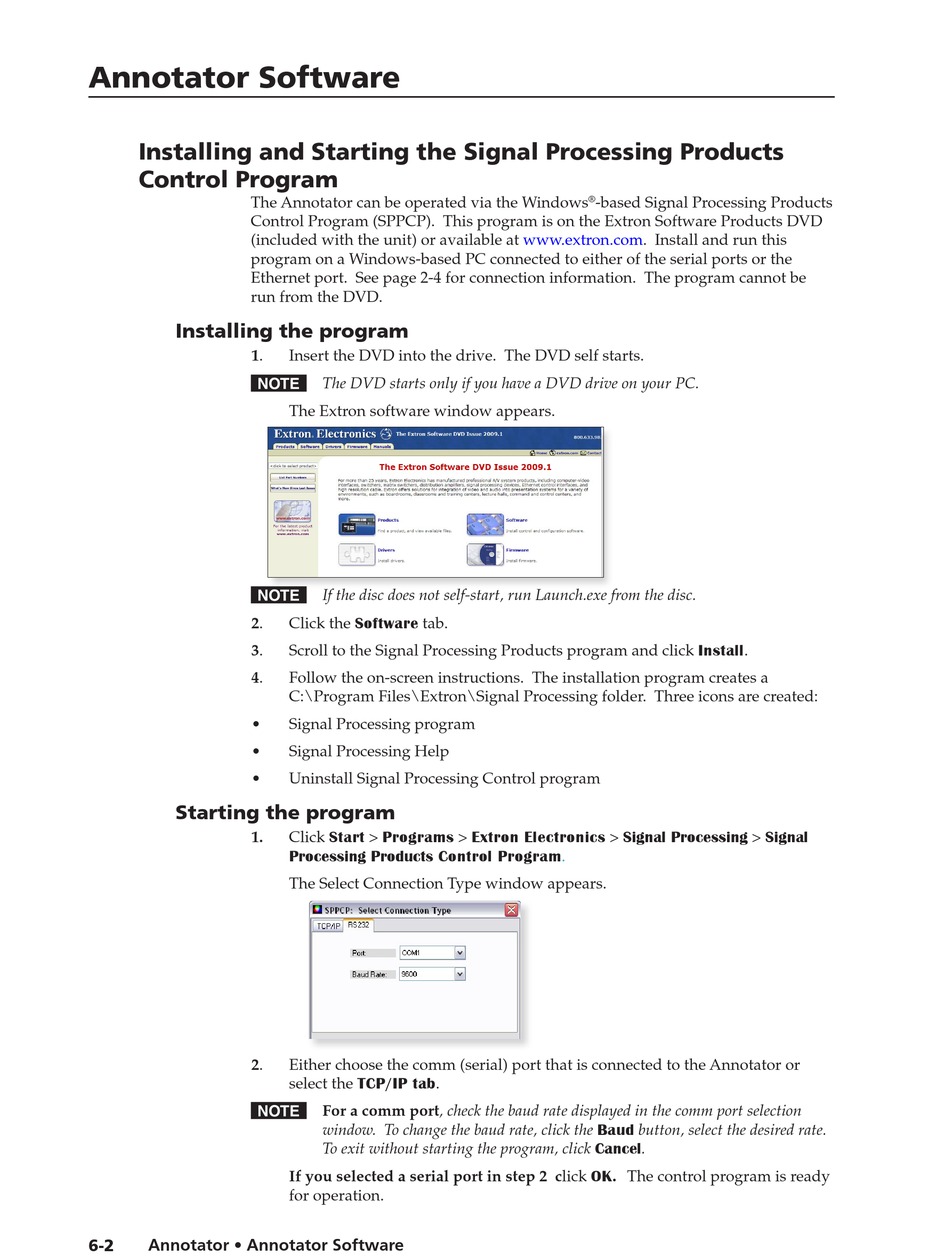

Annotator Software
Installing and Starting the Signal Processing Products
Control Program
The Annotator can be operated via the Windows
Control Program (SPPCP). This program is on the Extron Software Products DVD
(included with the unit) or available at www.extron.com. Install and run this
program on a Windows-based PC connected to either of the serial ports or the
Ethernet port. See page 2-4 for connection information. The program cannot be
run from the DVD.

Installing the program

1.
N The DVD starts only if you have a DVD drive on your PC.
N If the disc does not self-start, run Launch.exe from the disc.
2.
3.
4.
•
•
•

Starting the program

1.
2.
N For a comm port, check the baud rate displayed in the comm port selection
6-2 Annotator • Annotator Software
Insert the DVD into the drive. The DVD self starts.
The Extron software window appears.
Click the Software tab.
Scroll to the Signal Processing Products program and click Install.
Follow the on-screen instructions. The installation program creates a
C:\Program Files\Extron\Signal Processing folder. Three icons are created:
Signal Processing program
Signal Processing Help
Uninstall Signal Processing Control program
Click Start > Programs > Extron Electronics > Signal Processing > Signal
Processing Products Control
The Select Connection Type window appears.
Either choose the comm (serial) port that is connected to the Annotator or
select the TCP/IP tab.
window. To change the baud rate, click the Baud button, select the desired rate.
To exit without starting the program, click Cancel.
If you selected a serial port in step 2 click OK. The control program is ready
for operation.
-based Signal Processing Products
®
Program.
