Mounting the Annotator
If the Annotator is to be rack mounted, it is important to mount it before cabling it.
Four rubber feet are included with the unit. Install the feet only if the unit is to be
mounted on a table top (see "Tabletop placement" below).
Tabletop placement
For tabletop placement, install the self-adhesive rubber feet/pads (provided) onto
the four corners of the bottom of the device.
UL guidelines for rack mounted devices
The following Underwriters Laboratories (UL) guidelines pertain to the safe
installation of the Annotator in a rack.
1
.
Elevated operating ambient temperature — If installed in a closed or multi-unit
rack assembly, the operating ambient temperature of the rack environment may
be greater than room ambient temperature. Therefore, install the device in an
environment compatible with the maximum ambient temperature
(Tma = +122 °F, +50 °C) specified by Extron.
2.
Reduced air flow — Install the equipment in a rack so that the amount of air flow
required for safe operation of the equipment is not compromised.
3.
Mechanical loading — Mount the equipment in the rack so that a hazardous
condition is not achieved due to uneven mechanical loading.
4.
Circuit overloading — Connect the equipment to the supply circuit and consider
the effect that circuit overloading might have on overcurrent protection and
supply wiring. Appropriate consideration of equipment nameplate ratings should
be used when addressing this concern.
5.
Reliable earthing (grounding) — Maintain reliable grounding of rack-
mounted equipment. Pay particular attention to supply connections other
than direct connections to the branch circuit (e.g., use of power strips).
Rack mounting

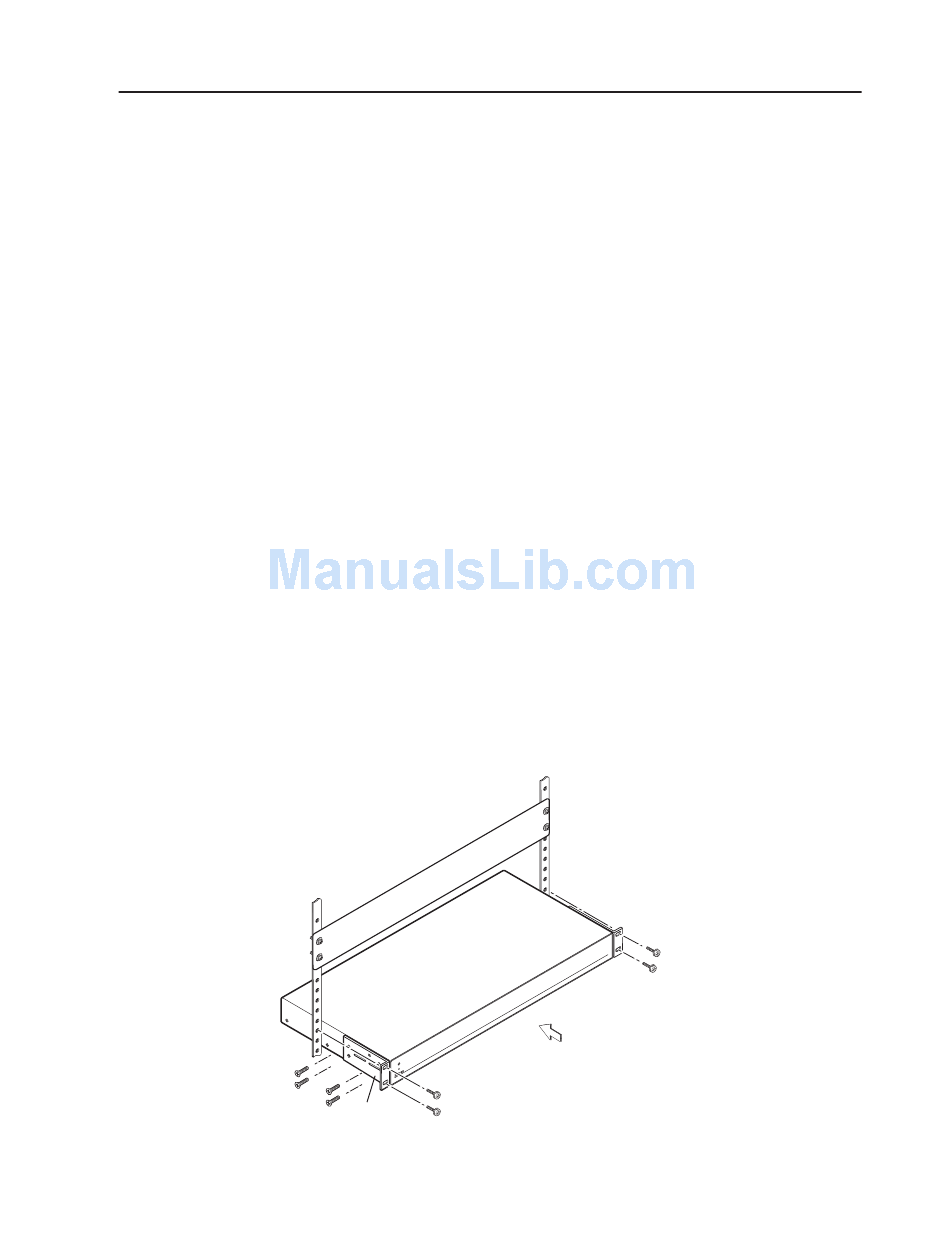

To rack mount the Annotator, insert screws under each opposite corner of the unit
and secure it to the the rack (see figure 2-1).
Rack Mount
Bracket
Figure 2-1 — Mounting the Annotator
Annotator • Installation
2-3
