HTML Operation, cont'd
Firmware Upgrade page
The Firmware Upgrade page (figure 7-8) provides a way to replace the firmware
that is coded on the Annotator's control board without needing to take the device
out of service.

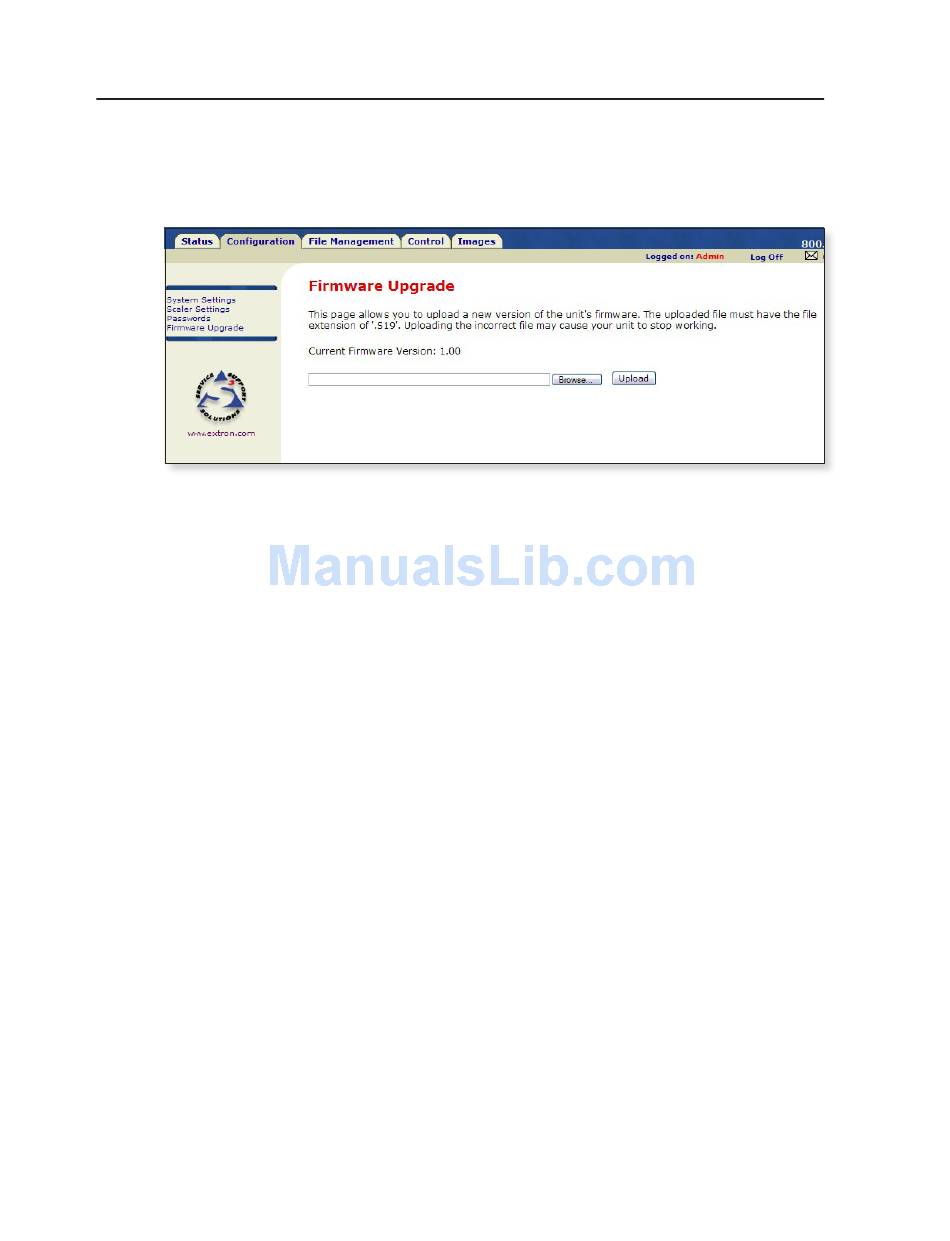

Figure 7–8 — Firmware Upgrade page
N The Firmware Upgrade page is only for replacing the firmware that controls all
Update the Annotator firmware as follows:
1.
2.
3.
4.
5.
6.
7-10
Annotator • HTML Operation
the device operation. To insert your own HTML pages, see File Management
Page, later in this chapter.
Visit the Extron Web site, www.extron.com, and download the latest firmware
file to your computer.
a.
On the Extron Web page, select the Downloads tab.
b.
On the Download Center page, click the Firmware link on the left sidebar
menu.
c.
Click on the Annotator name.
d.
On the next screen, fill in the required information, then click the
Download product name_firmware version.exe button.
e.
On the File Download - Security Warning window, click Save.
f.
On the Save As window, browse to the folder where you want to save
the firmware file, and click Save. The firmware installation (.exe) file is
placed on your hard drive.
Run the .exe file. This opens the Firmware Update program, creating a
g.
product named folder within which is placed the firmware file (x.S19).
Access the Annotator internal Web pages.
Select the Configuration tab.
On the Configuration page, click the Firmware Upgrade link on the left
sidebar menu.
Click Browse. A Choose file window opens.
Navigate to the folder (created in 1g) where the firmware upgrade file is
saved. Select the file.
