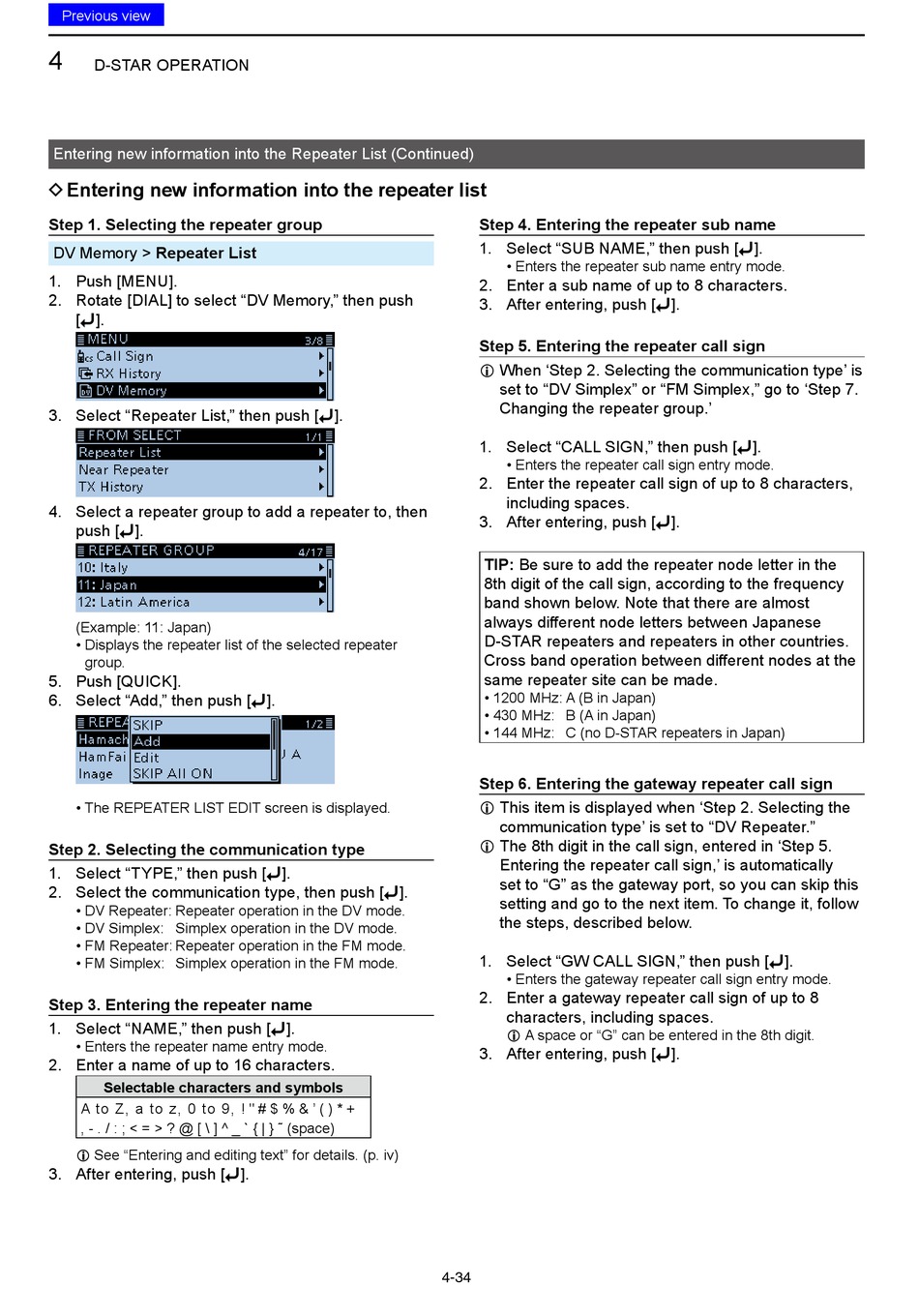

4
D-STAR OPERATION
Entering new information into the Repeater List (Continued)

D Entering new information into the repeater list

Step 1. Selecting the repeater group
DV Memory > Repeater List
1. Push [MENU].
2. Rotate [DIAL] to select "DV Memory," then push
[ï].
3. Select "Repeater List," then push [ï].
4. Select a repeater group to add a repeater to, then
push [ï].
(Example: 11: Japan)
• Displays the repeater list of the selected repeater
group.
5. Push [QUICK].
6. Select "Add," then push [ï].
• The REPEATER LIST EDIT screen is displayed.
Step 2. Selecting the communication type
1. Select "TYPE," then push [ï].
2. Select the communication type, then push [ï].
• DV Repeater: Repeater operation in the DV mode.
• DV Simplex: Simplex operation in the DV mode.
• FM Repeater: Repeater operation in the FM mode.
• FM Simplex: Simplex operation in the FM mode.
Step 3. Entering the repeater name
1. Select "NAME," then push [ï].
• Enters the repeater name entry mode.
2. Enter a name of up to 16 characters.
Selectable characters and symbols
A to Z, a to z, 0 to 9, ! " # $ % & ' ( ) * +
, - . / : ; < = > ? @ [ \ ] ^ _ ` { | } ˜ (space)
L See "Entering and editing text" for details. (p. iv)
3. After entering, push [ï].
Step 4. Entering the repeater sub name
1. Select "SUB NAME," then push [ï].
• Enters the repeater sub name entry mode.
2. Enter a sub name of up to 8 characters.
3. After entering, push [ï].
Step 5. Entering the repeater call sign
L When 'Step 2. Selecting the communication type' is
set to "DV Simplex" or "FM Simplex," go to 'Step 7.
Changing the repeater group.'
1. Select "CALL SIGN," then push [ï].
• Enters the repeater call sign entry mode.
2. Enter the repeater call sign of up to 8 characters,
including spaces.
3. After entering, push [ï].
TIP: Be sure to add the repeater node letter in the
8th digit of the call sign, according to the frequency
band shown below. Note that there are almost
always different node letters between Japanese
D-STAR repeaters and repeaters in other countries.
Cross band operation between different nodes at the
same repeater site can be made.
• 1200 MHz: A (B in Japan)
• 430 MHz: B (A in Japan)
• 144 MHz: C (no D-STAR repeaters in Japan)
Step 6. Entering the gateway repeater call sign
L This item is displayed when 'Step 2. Selecting the
communication type' is set to "DV Repeater."
L The 8th digit in the call sign, entered in 'Step 5.
Entering the repeater call sign,' is automatically
set to "G" as the gateway port, so you can skip this
setting and go to the next item. To change it, follow
the steps, described below.
1. Select "GW CALL SIGN," then push [ï].
• Enters the gateway repeater call sign entry mode.
2. Enter a gateway repeater call sign of up to 8
characters, including spaces.
L A space or "G" can be entered in the 8th digit.
3. After entering, push [ï].
4-34
