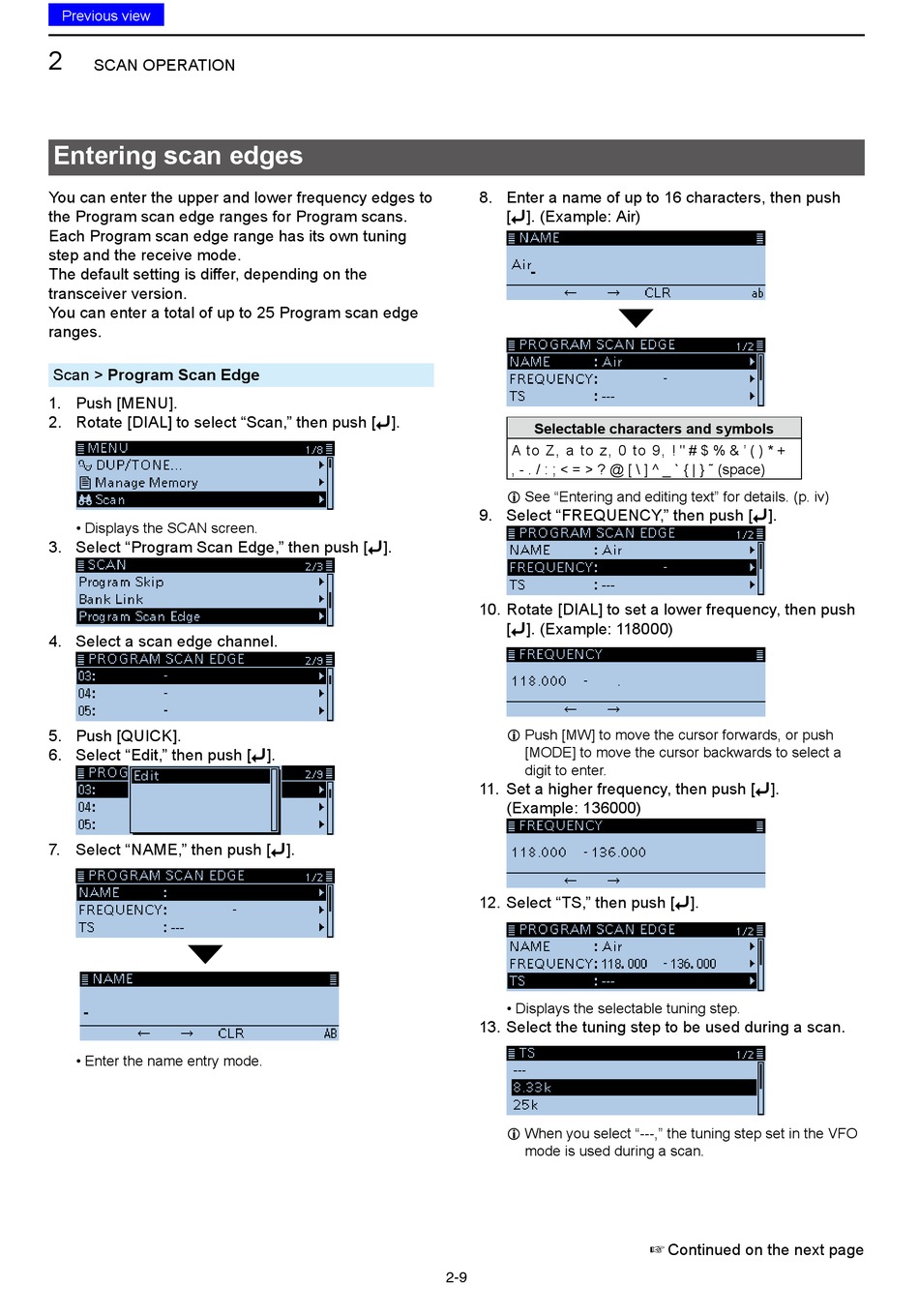

Icom ID-4100A Advanced Manual page 28

Previous view
2
SCAN OPERATION
Entering scan edges
You can enter the upper and lower frequency edges to
the Program scan edge ranges for Program scans.
Each Program scan edge range has its own tuning
step and the receive mode.
The default setting is differ, depending on the
transceiver version.
You can enter a total of up to 25 Program scan edge
ranges.
Scan > Program Scan Edge
1. Push [MENU].
2. Rotate [DIAL] to select "Scan," then push [ï].
• Displays the SCAN screen.
3. Select "Program Scan Edge," then push [ï].
4. Select a scan edge channel.
5. Push [QUICK].
6. Select "Edit," then push [ï].
7. Select "NAME," then push [ï].
• Enter the name entry mode.
8. Enter a name of up to 16 characters, then push
[ï]. (Example: Air)
Selectable characters and symbols
A to Z, a to z, 0 to 9, ! " # $ % & ' ( ) * +
, - . / : ; < = > ? @ [ \ ] ^ _ ` { | } ˜ (space)
L See "Entering and editing text" for details. (p. iv)
9. Select "FREQUENCY," then push [ï].
10. Rotate [DIAL] to set a lower frequency, then push
[ï]. (Example: 118000)
L Push [MW] to move the cursor forwards, or push
[MODE] to move the cursor backwards to select a
digit to enter.
11. Set a higher frequency, then push [ï].
(Example: 136000)
12. Select "TS," then push [ï].
• Displays the selectable tuning step.
13. Select the tuning step to be used during a scan.
L When you select "---," the tuning step set in the VFO
mode is used during a scan.
2-9
☞ Continued on the next page
