5
GPS OPERATION
Transmitting NMEA data (Continued)

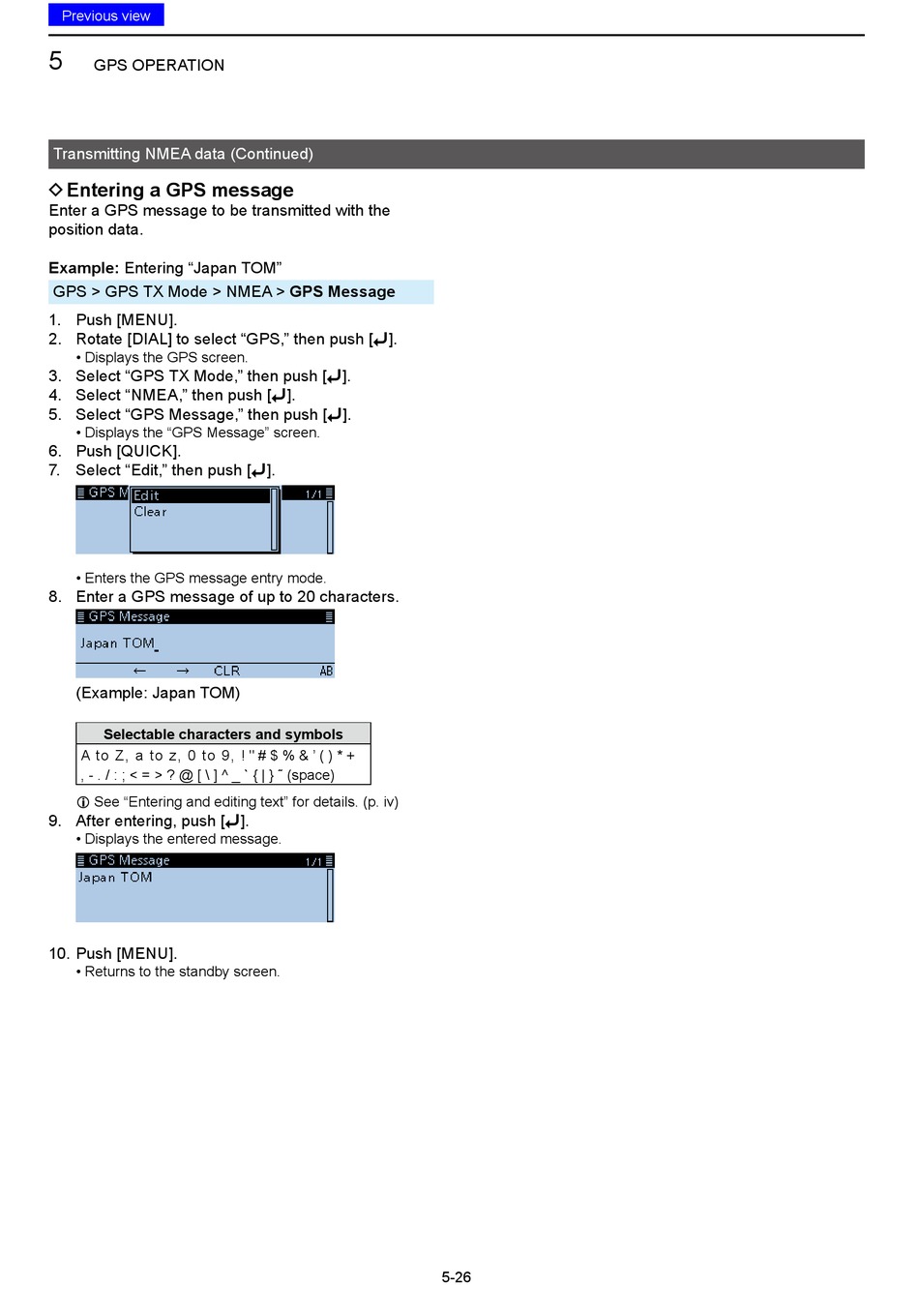

D Entering a GPS message

Enter a GPS message to be transmitted with the
position data.
Example: Entering "Japan TOM"
GPS > GPS TX Mode > NMEA > GPS Message
1. Push [MENU].
2. Rotate [DIAL] to select "GPS," then push [ï].
• Displays the GPS screen.
3. Select "GPS TX Mode," then push [ï].
4. Select "NMEA," then push [ï].
5. Select "GPS Message," then push [ï].
• Displays the "GPS Message" screen.
6. Push [QUICK].
7. Select "Edit," then push [ï].
• Enters the GPS message entry mode.
8. Enter a GPS message of up to 20 characters.
( Example: Japan TOM)
Selectable characters and symbols
A to Z, a to z, 0 to 9, ! " # $ % & ' ( ) * +
, - . / : ; < = > ? @ [ \ ] ^ _ ` { | } ˜ (space)
L See "Entering and editing text" for details. (p. iv)
9. After entering, push [ï].
• Displays the entered message.
10. Push [MENU].
• Returns to the standby screen.
5-26
