1

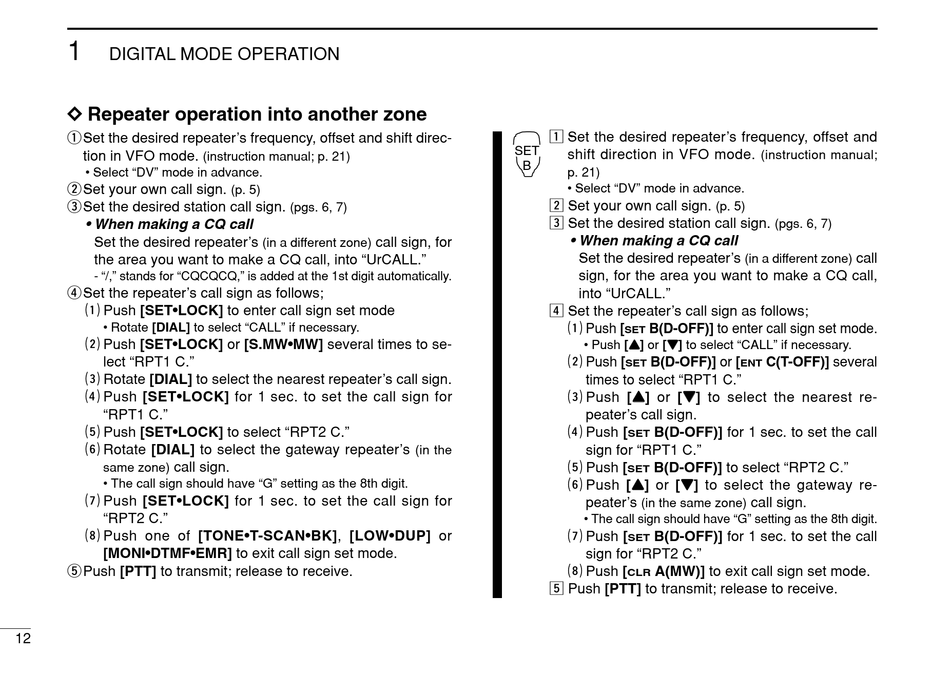

DIGITAL MODE OPERATION
D D Repeater operation into another zone
qSet the desired repeater's frequency, offset and shift direc-
tion in VFO mode.
• Select "DV" mode in advance.
w Set your own call sign.
e Set the desired station call sign.
• When making a CQ call
Set the desired repeater's
the area you want to make a CQ call, into "UrCALL."
- "/," stands for "CQCQCQ," is added at the 1st digit automatically.
r Set the repeater's call sign as follows;
a Push [SET•LOCK] to enter call sign set mode
• Rotate [DIAL] to select "CALL" if necessary.
s Push [SET•LOCK] or [S.MW•MW] several times to se-
lect "RPT1 C."
d Rotate [DIAL] to select the nearest repeater's call sign.
f Push [SET•LOCK] for 1 sec. to set the call sign for
"RPT1 C."
g Push [SET•LOCK] to select "RPT2 C."
h Rotate [DIAL] to select the gateway repeater's
call sign.
same zone)
• The call sign should have "G" setting as the 8th digit.
j Push [SET•LOCK] for 1 sec. to set the call sign for
"RPT2 C."
k Push one of [TONE•T-SCAN•BK], [LOW•DUP] or
[MONI•DTMF•EMR] to exit call sign set mode.
t Push [PTT] to transmit; release to receive.
12
(instruction manual; p. 21)
(p. 5)
(pgs. 6, 7)
call sign, for
(in a different zone)
z Set the desired repeater's frequency, offset and
SET
shift direction in VFO mode.
B
p. 21)
• Select "DV" mode in advance.
x Set your own call sign.
c Set the desired station call sign.
• When making a CQ call
Set the desired repeater's
sign, for the area you want to make a CQ call,
into "UrCALL."
v Set the repeater's call sign as follows;
a Push [
• Push [Y Y ] or [Z Z ] to select "CALL" if necessary.
s Push [
times to select "RPT1 C."
d Push [Y Y ] or [Z Z ] to select the nearest re-
peater's call sign.
f Push [
sign for "RPT1 C."
(in the
g Push [
h Push [Y Y ] or [Z Z ] to select the gateway re-
peater's
• The call sign should have "G" setting as the 8th digit.
j Push [
sign for "RPT2 C."
k Push [
b Push [PTT] to transmit; release to receive.
(instruction manual;
(p. 5)
(pgs. 6, 7)
(in a different zone)
B(D-OFF)] to enter call sign set mode.
SET
B(D-OFF)] or [ C(T-OFF)] several
SET ENT
B(D-OFF)] for 1 sec. to set the call
SET
B(D-OFF)] to select "RPT2 C."
SET
call sign.
(in the same zone)
B(D-OFF)] for 1 sec. to set the call
SET
A(MW)] to exit call sign set mode.
CLR
call
