3
BASIC OPERATION

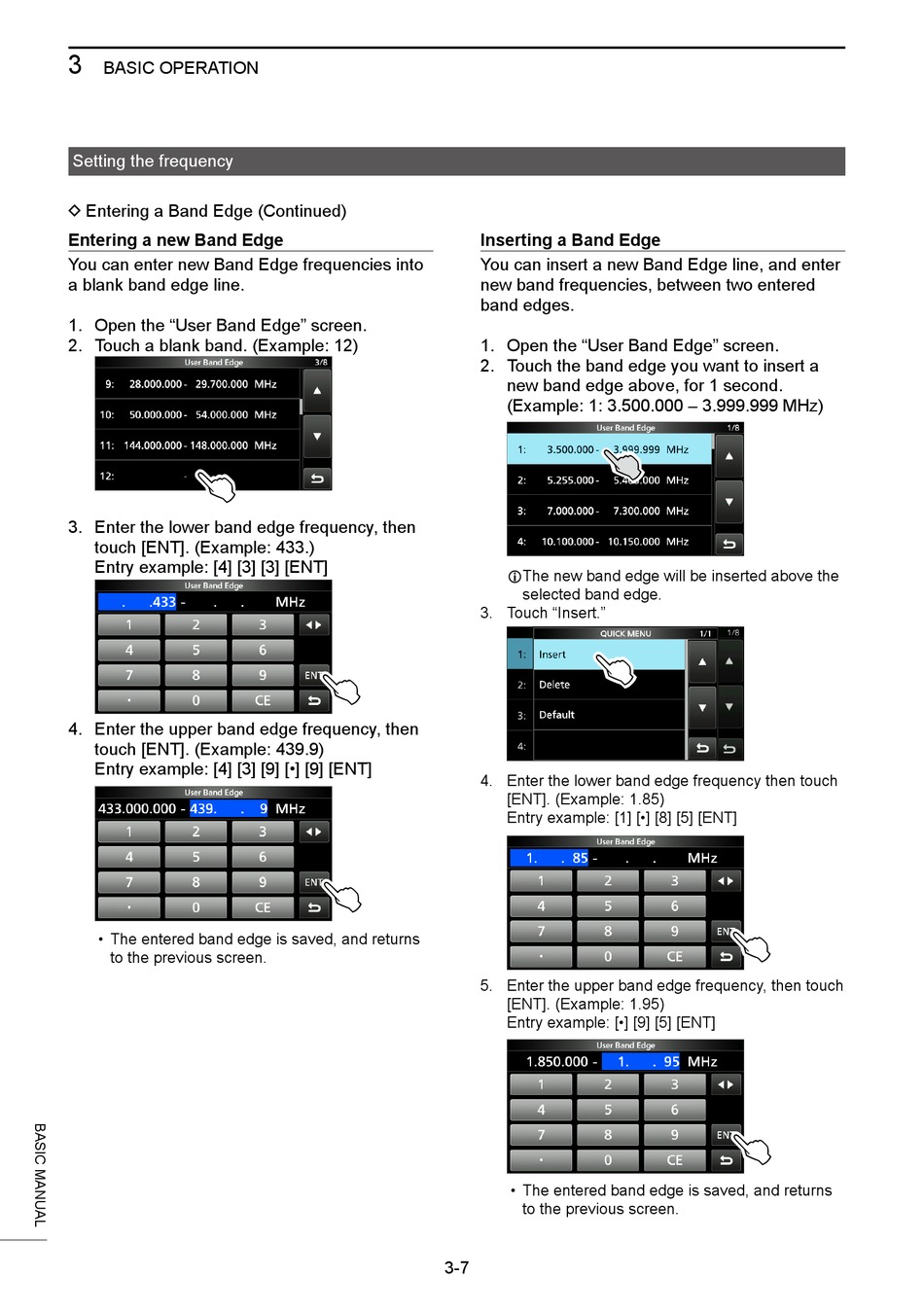

Setting the frequency
D Entering a Band Edge (Continued)

Entering a new Band Edge

You can enter new Band Edge frequencies into
a blank band edge line.
1. Open the "User Band Edge" screen.
2. Touch a blank band. (Example: 12)
3. Enter the lower band edge frequency, then
touch [ENT]. (Example: 433.)
Entry example: [4] [3] [3] [ENT]
4. Enter the upper band edge frequency, then
touch [ENT]. (Example: 439.9)
Entry example: [4] [3] [9] [•] [9] [ENT]
• The entered band edge is saved, and returns
to the previous screen.

Inserting a Band Edge

You can insert a new Band Edge line, and enter
new band frequencies, between two entered
band edges.
1. Open the "User Band Edge" screen.
2. Touch the band edge you want to insert a
new band edge above, for 1 second.
(Example: 1: 3.500.000 – 3.999.999 MHz)
LThe new band edge will be inserted above the
selected band edge.
3. Touch "Insert."
4. Enter the lower band edge frequency then touch
[ENT]. (Example: 1.85)
Entry example: [1] [•] [8] [5] [ENT]
5. Enter the upper band edge frequency, then touch
[ENT]. (Example: 1.95)
Entry example: [•] [9] [5] [ENT]
• The entered band edge is saved, and returns
to the previous screen.
3-7
