Hook the looped chains by their rings to the front (toward the front of the printer) of the
wire paper guide, one chain positioned near each outer edge of the paper path and two
chains positioned near the center of the paper path for the paper width used.
5.
Hook the four (4) short chains by their rings to the back of the paper guide in positions
similar to the front chains.
6.
Refer to the Paper Stacking instructions in the Operation chapter to start the paper stack
ing properly.

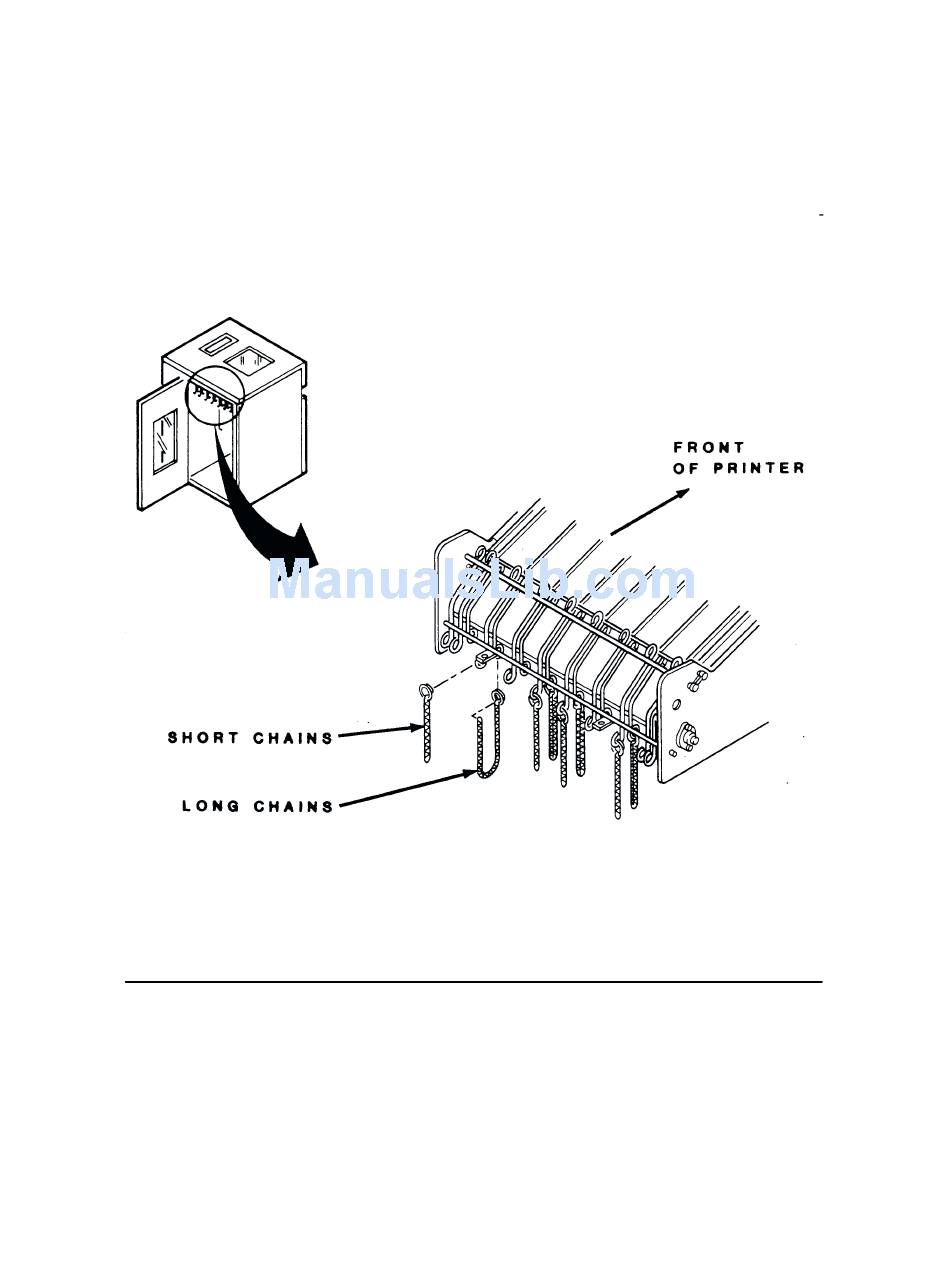

Figure 10-3. Chain Assembly Installation - Floor Cabinet Model
Shipping Restraints Removal
The printer shipping restraints must be removed prior to operation. The following tools are
required to remove the shipping restraints from a floor cabinet model:
D
3/32 inch hex wrench
D
Phillips head screwdriver
D
3/8" nut driver
D
diagonal cutters
10-4
Installation
