1.
Fully raise the Forms Thickness Adjustment Lever (A) to open the platen.
2.
Remove all paper.
3.
Remove the ribbon and spools.
4.
Use a soft-bristled brush to clear chaff from the paper path and platen ends (B).
5.
With the soft-bristled brush, clean chaff and dust from the ribbon guides (C).
6.
Use a vacuum cleaner to clear chaff and dust from the printer base pan (D). Do not use the
vacuum on the paper or ribbon path - damage may result.
7.
Clean ink or dirt on the platen (E) with a soft cloth lightly moistened with alcohol. Do not
let excess alcohol drip into the hammer bank (F).
8-2

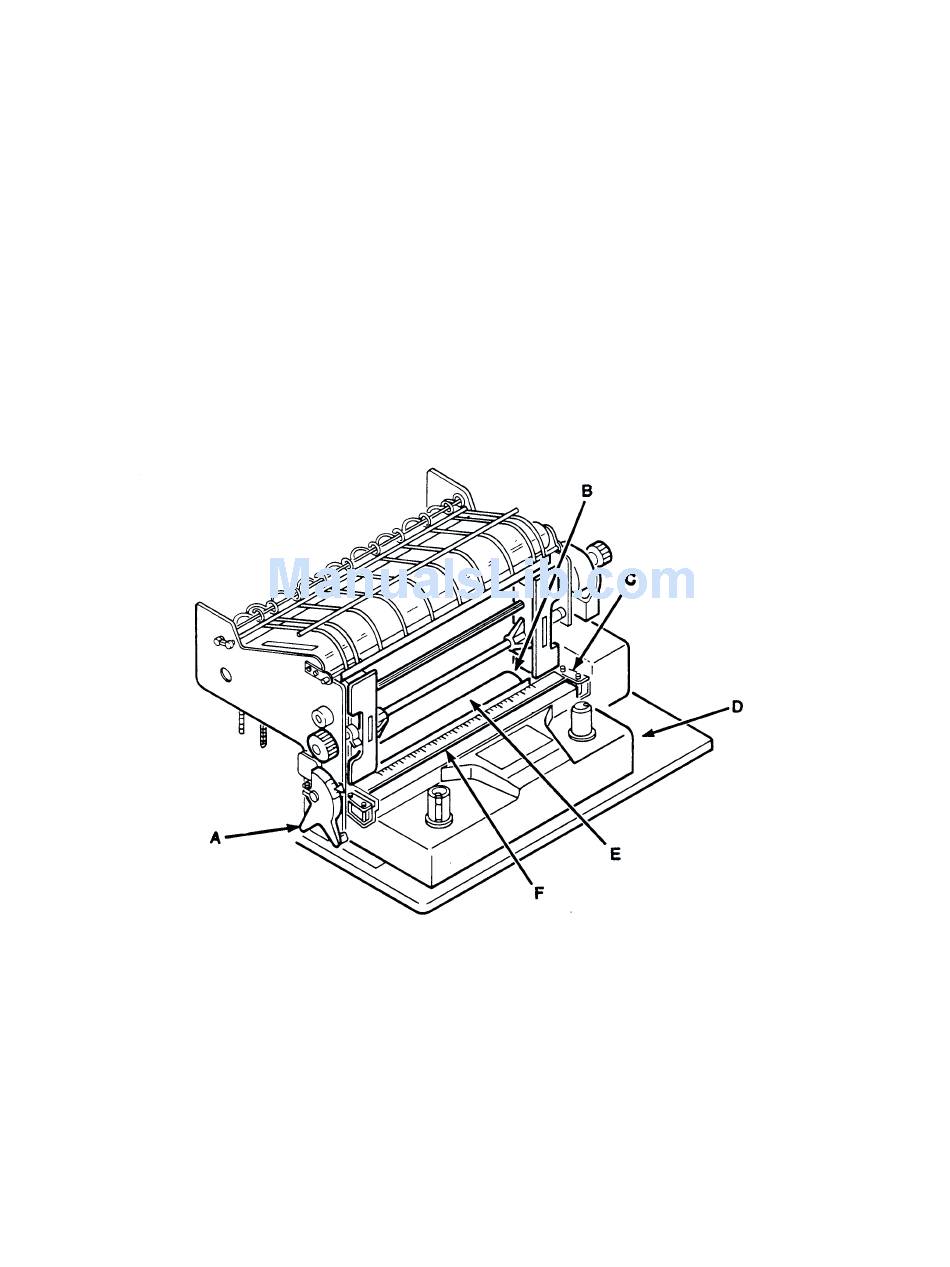

Figure 8-1. Interior Cleaning
