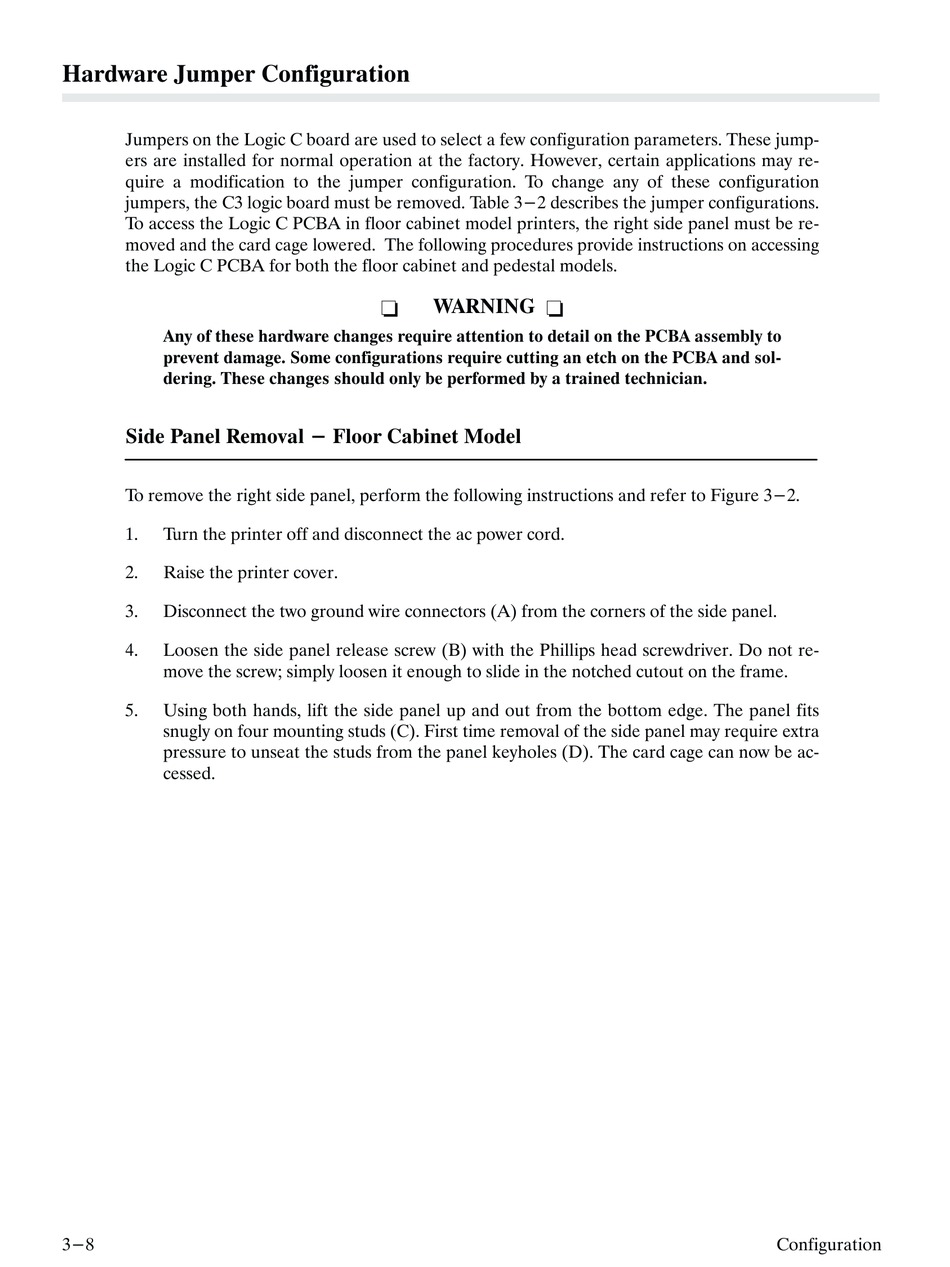

Hardware Jumper Configuration
Jumpers on the Logic C board are used to select a few configuration parameters. These jump
ers are installed for normal operation at the factory. However, certain applications may re
quire a modification to the jumper configuration. To change any of these configuration
jumpers, the C3 logic board must be removed. Table 3-2 describes the jumper configurations.
To access the Logic C PCBA in floor cabinet model printers, the right side panel must be re
moved and the card cage lowered. The following procedures provide instructions on accessing
the Logic C PCBA for both the floor cabinet and pedestal models.
Any of these hardware changes require attention to detail on the PCBA assembly to
prevent damage. Some configurations require cutting an etch on the PCBA and sol
dering. These changes should only be performed by a trained technician.
Side Panel Removal - Floor Cabinet Model
To remove the right side panel, perform the following instructions and refer to Figure 3-2.
1.
Turn the printer off and disconnect the ac power cord.
2.
Raise the printer cover.
3.
Disconnect the two ground wire connectors (A) from the corners of the side panel.
4.
Loosen the side panel release screw (B) with the Phillips head screwdriver. Do not re
move the screw; simply loosen it enough to slide in the notched cutout on the frame.
5.
Using both hands, lift the side panel up and out from the bottom edge. The panel fits
snugly on four mounting studs (C). First time removal of the side panel may require extra
pressure to unseat the studs from the panel keyholes (D). The card cage can now be ac
cessed.
3-8
WARNING
-
-
Configuration
