7.
Align the PCBA with its slot and gently slide it back into the card cage.
8.
Press the ejection levers (E) back into position to secure the PCBA into the edge connec
tor. If the PCBA does not go into position with only moderate force, remove the PCBA
and realign it in its slot.
Forcing the PCBA back into position can damage components or break the PCBA.
Never force the PCBA into position; always realign and reinstall the PCBA if it can
not be replaced with only moderate force.
9.
Raise the card cage (A); secure it by tightening the release wing nut (B).
10. Replace the side panel on the mounting studs.
11. Tighten the side panel release screw.
12. Connect the ground wires to the corners of the side panel.
13. Close the printer cover.
14. Connect the ac power source.
3-10
-

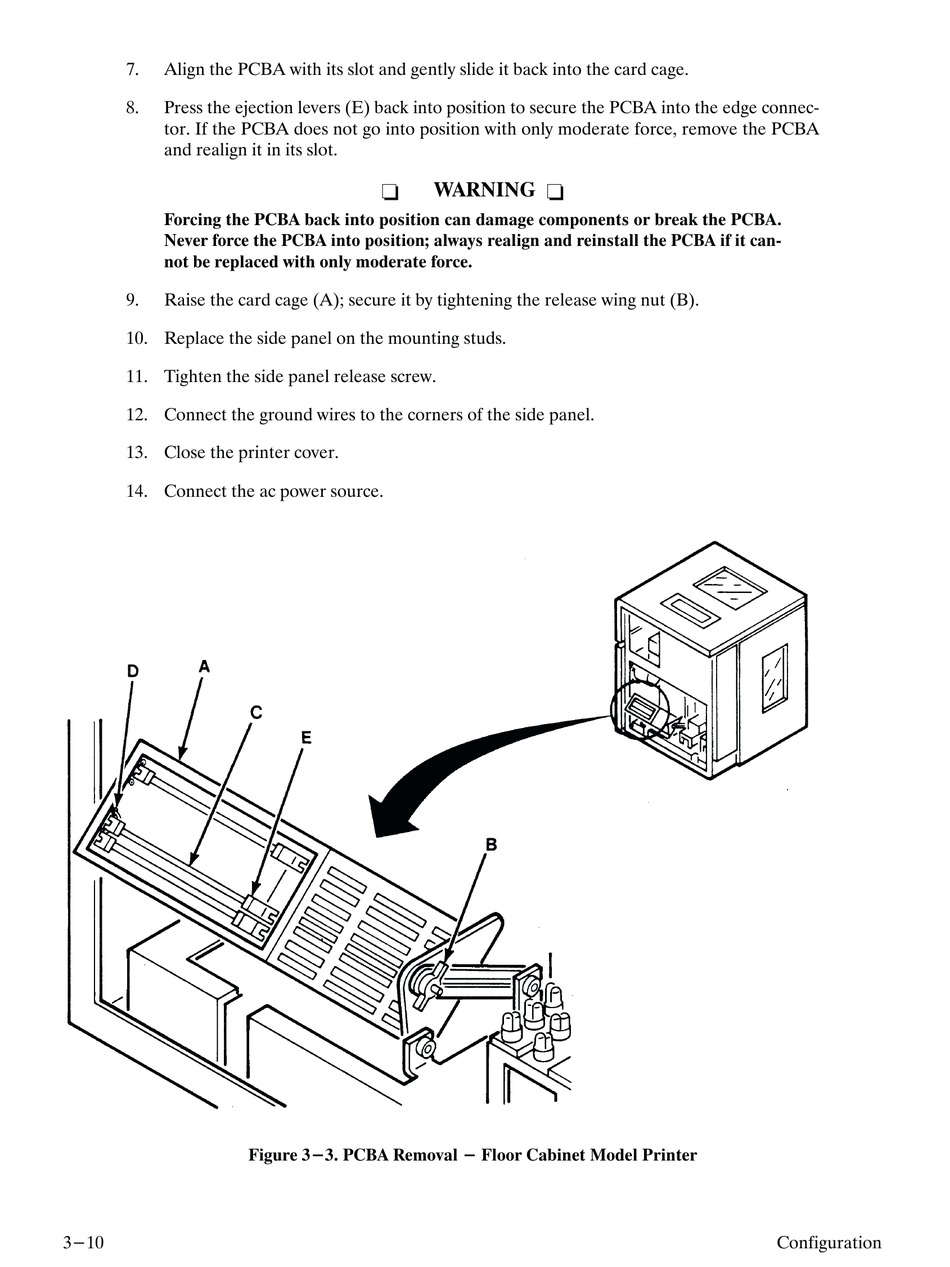

Figure 3-3. PCBA Removal - Floor Cabinet Model Printer
WARNING
-
Configuration
