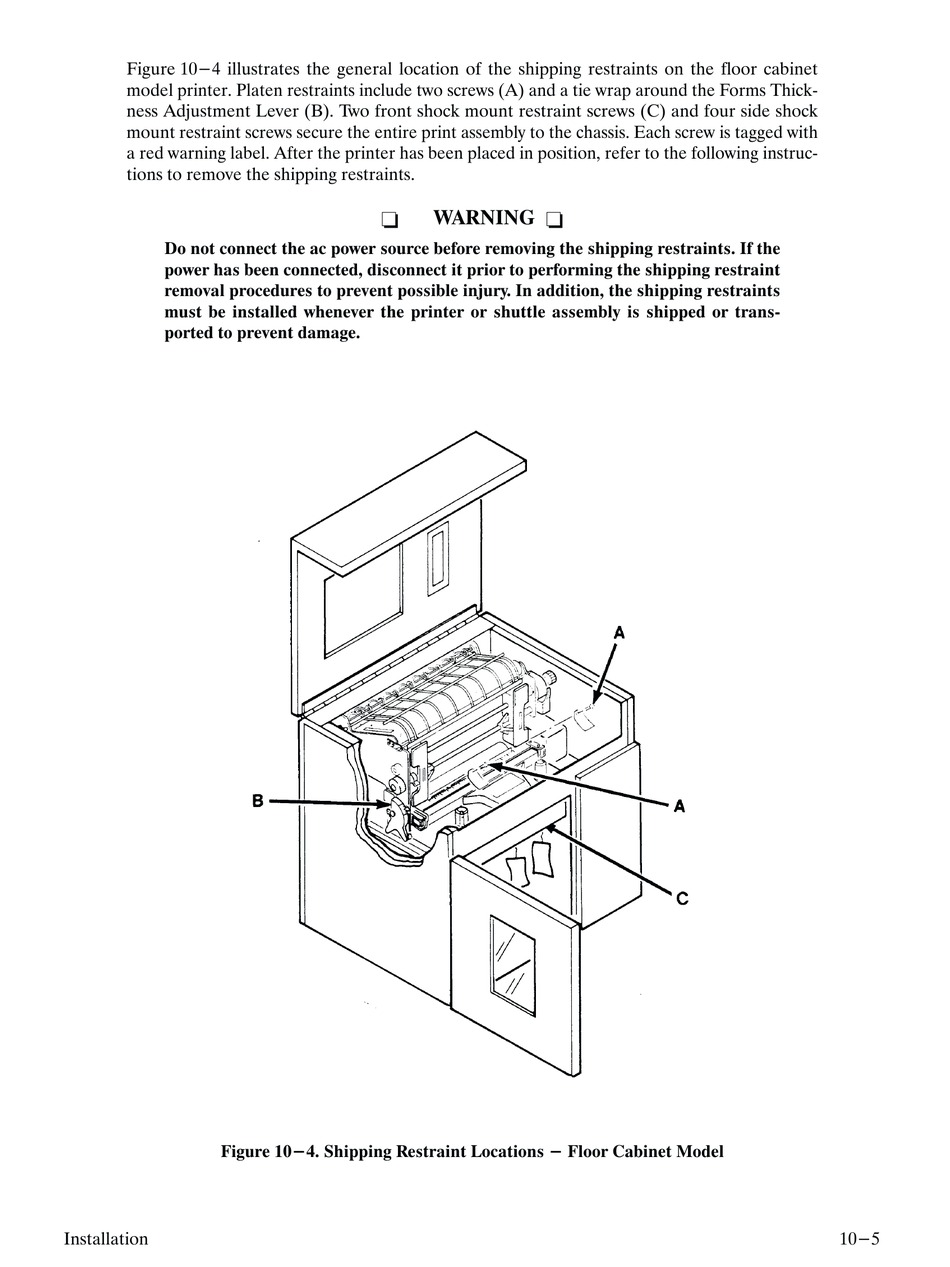

Figure 10-4 illustrates the general location of the shipping restraints on the floor cabinet
model printer. Platen restraints include two screws (A) and a tie wrap around the Forms Thick
ness Adjustment Lever (B). Two front shock mount restraint screws (C) and four side shock
mount restraint screws secure the entire print assembly to the chassis. Each screw is tagged with
a red warning label. After the printer has been placed in position, refer to the following instruc
tions to remove the shipping restraints.
Do not connect the ac power source before removing the shipping restraints. If the
power has been connected, disconnect it prior to performing the shipping restraint
removal procedures to prevent possible injury. In addition, the shipping restraints
must be installed whenever the printer or shuttle assembly is shipped or trans
ported to prevent damage.
Figure 10-4. Shipping Restraint Locations - Floor Cabinet Model
Installation
WARNING
-
-
10-5
