Line Spacing n/72 Inch (Asserted)

ASCII Code:
Hex Code:
Purpose:
Expression:
Comment:
Example:
Programming
P-SERIES
N/A
N/A
Asserts line spacing value which has been set by ESC A (Line Spacing n/72
inch, stored). See comment.
N/A
When the ESC 2 control sequence is received, all line feeds following the
command will be set at n/72-inch as set by the value stored in ESC A. If no
line spacing has been defined by ESC A, the line spacing is set to 6 lpi.
The control code line spacing selection will override the control panel line
spacing setting.

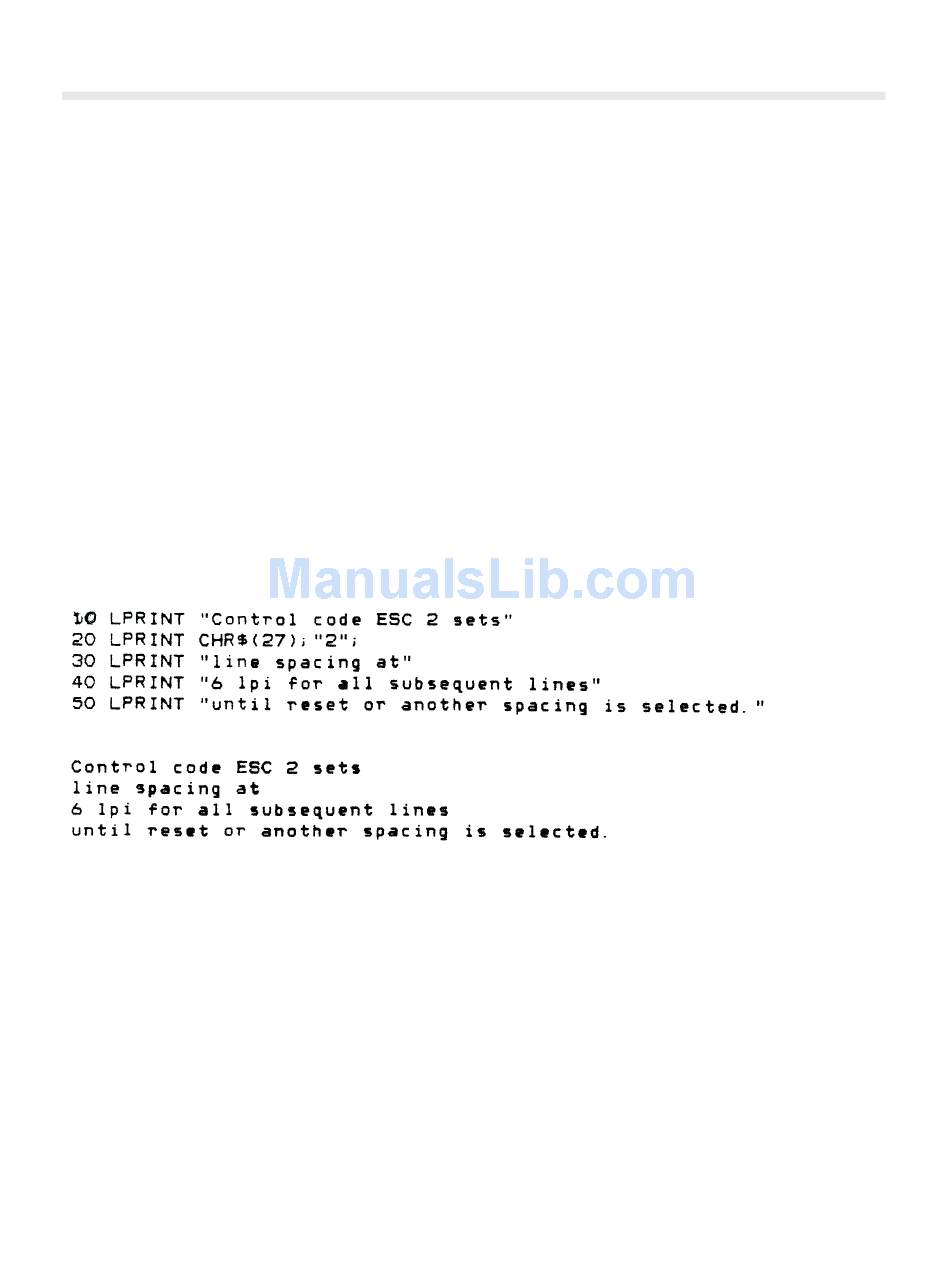

The following example illustrates 1/6-inch line spacing and assumes that a
distance has not been set for ESC A.
SERIAL MATRIX
ESC 2
1B 32
CHR$(27);"2";
6-39
