Commissioning

MMA welding

6.7 MMA welding
6.7.1

PICO 230; 260; 300; PICO 230; 260; 300 CEL

1
Item Symbol Description
1
2
3
6.7.1.1

Electrode holder connection

Caution: Risk of injury from crushing!
Suitable protective gloves should be worn when changing spent stick electrodes.
When pausing work, always place the electrode holder on an insulated surface.
• Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
Polarity depends on the instructions from the electrode manufacturer given on the electrode
packaging.
6.7.1.2

Connection for workpiece lead

• Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
Polarity depends on the instructions from the electrode manufacturer given on the electrode
packaging.
26
0
Connection socket, "+" welding current
Workpiece lead or electrode holder connection
Connection socket, "-" welding current
Electrode holder or workpiece lead connection
Connection socket, 19-pole
Remote control connection
Item Description
1 Connection socket "+"
2 Connection socket "-"
3 Connection socket, 19-pole
2
3

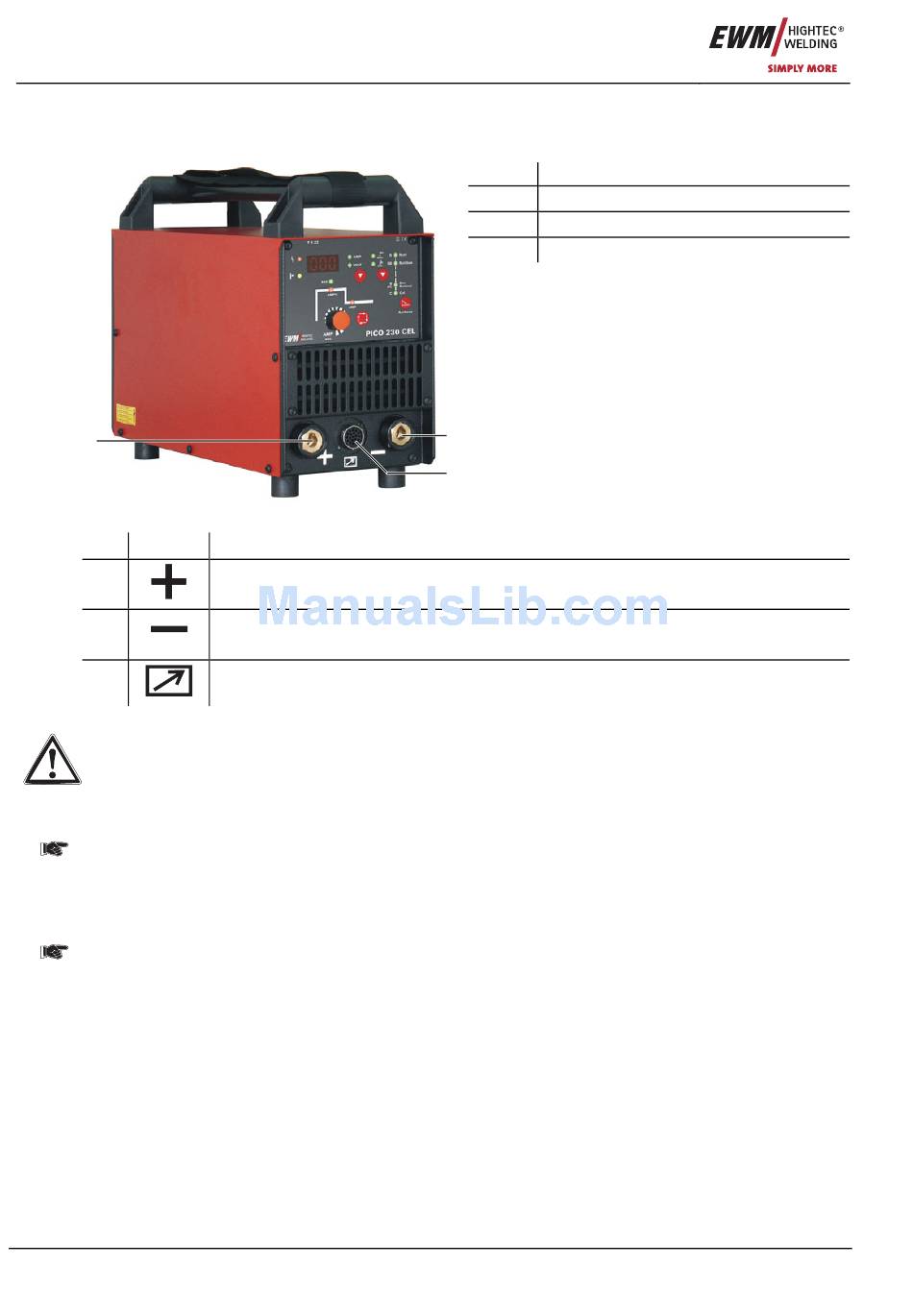

Figure 6-2
Item No.: 099-002032-EWM01
