Functional characteristics

TIG welding

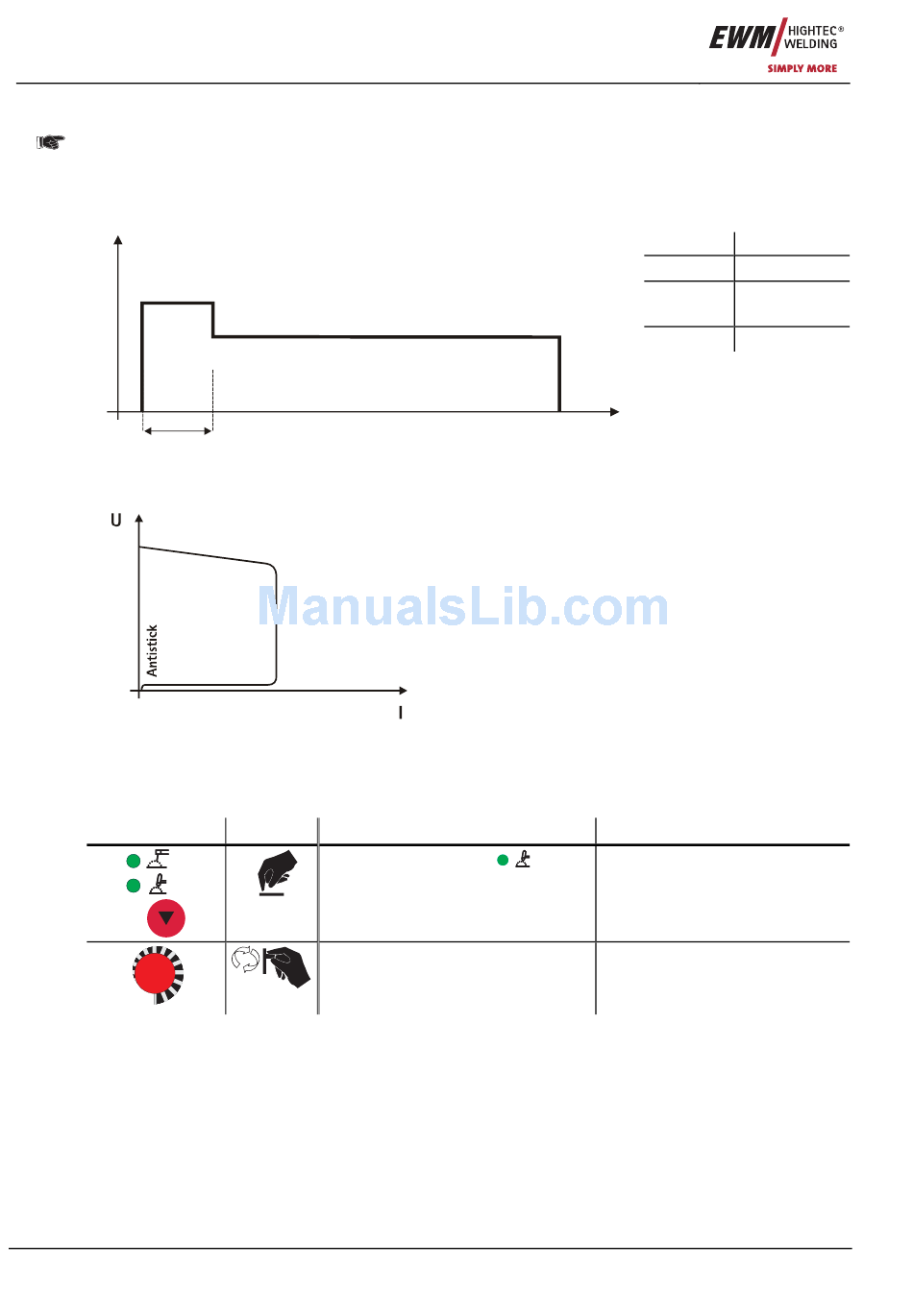

Functional sequence of hotstart device
The hotstart device uses an increased ignition current to improve arc ignition. The parameters for
the hotstart current and time can be adjusted individually.
When the stick electrode has been struck, the arc ignites at the adjusted hotstart current AMP (factory
setting: 120% of main current) and welds at this current until the hotstart time in seconds has elapsed
(factory setting: 1 second). The hotstart current then reduces to the main current set.
I
AMP%
sec
5.3.4

Antistick

5.4 TIG welding
5.4.1

TIG welding selection

Control element Action
AMP
sec
20
AMP
Figure 5-3
Figure 5-4
Result
TIG welding signal light
up
x x
Main current setting
Anti-stick prevents the electrode from annealing.
If the electrode sticks in spite of the Arcforce device, the
machine automatically switches over to the minimum
current within about 1 second to prevent the electrode
from overheating. Check the welding current setting
and correct according to the welding task!
Display
The last welding current set in
lights
this procedure is displayed
Read welding current
Symbol Meaning
AMP Main current
AMP% Hotstart
current
sec Hotstart time
t
Item No.: 099-002032-EWM01
