Functional characteristics

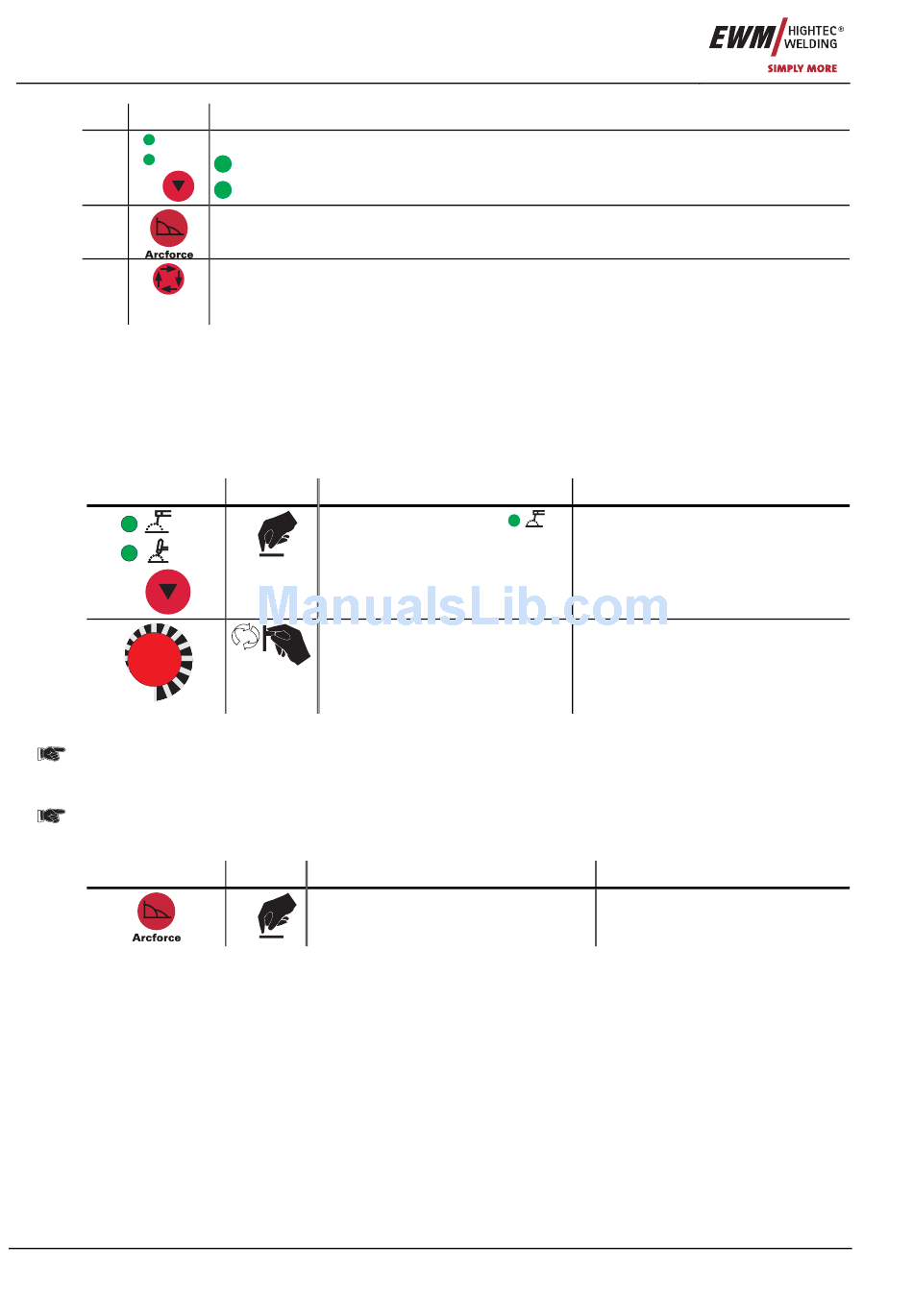

Welding data display

Item Symbol Description
AMP
10
VOLT
11
12
5.2 Welding data display
The welding data display shows all relevant welding parameters and their values as selected. To the right
of the display on the control is an "arrow key" for selecting between welding current and welding voltage.
Further parameter displays are described later on in this chapter.
5.3

MMA welding

5.3.1

Selecting MMA welding

Control element Action
AMP
sec
5.3.2 Selecting the electrode type – Arcforce (welding characteristics)
During the welding process, arcforce prevents the electrode sticking in the weld pool with
increases in current. This makes it easier to weld large-drop melting electrode types at low
current strengths with a short arc in particular.
The electrode types used must be selected on the machine control to achieve the optimum
welding properties of the electrode types.
Control element Action
18
0
"Display switching" button
AMP
Welding current display
VOLT
Welding voltage display
"Arcforce" button (welding characteristics) according to electrode type
"Select welding parameters" button
This button is used to select the welding parameters depending on the welding process
and operating mode used.
Result
MMA welding signal light
lights up
x x
Main current setting
Result
The corresponding signal light
displays the selection.
x x
Display
The last welding current set in this
procedure is displayed
Welding current is displayed
Display
-
Item No.: 099-002032-EWM01
