12.8

PICO 300 CEL PWS

Item No.: 099-002032-EWM01
X6/1
X1/1 WR1 WR1 X2/1
X1/2 RD RD X2/2
X1/3 CS1 CS1 X2/3
X1/4 CS2 CS2 X2/4
X1/5 CLK CLK X2/5
X1/6 CLK CLK X2/6
X1/7 NC NC X2/7
X1/8 Drehg.-A Drehg.-A X2/8
X1/9 NC NC X2/9
X1/10 Drehg.-A Drehg.-A X2/10
X1/11 NC NC X2/11
X1/12 NC NC X2/12
X1/13 NC NC X2/13
X1/14 OE OE X2/14
X1/15 0V 0V X2/15
X1/16 0V 0V X2/16
X1/17 NC NC X2/17
X1/18 NC NC X2/18
X1/19 0V 0V X2/19
X1/20 0V 0V X2/20
X1/21 +5V +5V X2/21
X1/22 +5V +5V X2/22
X1/23 +15V +15V X2/23
X1/24 +15V +15V X2/24
X1/25 NC NC X2/25
X1/26 NC NC X2/26
Uref. 10V X5/1
1
Poti IH X5/2
2
FR-Typ2 X5/3
3
X5/4
0V
4
X5/5
PWS
5
X5/6
FR-Typ1
6

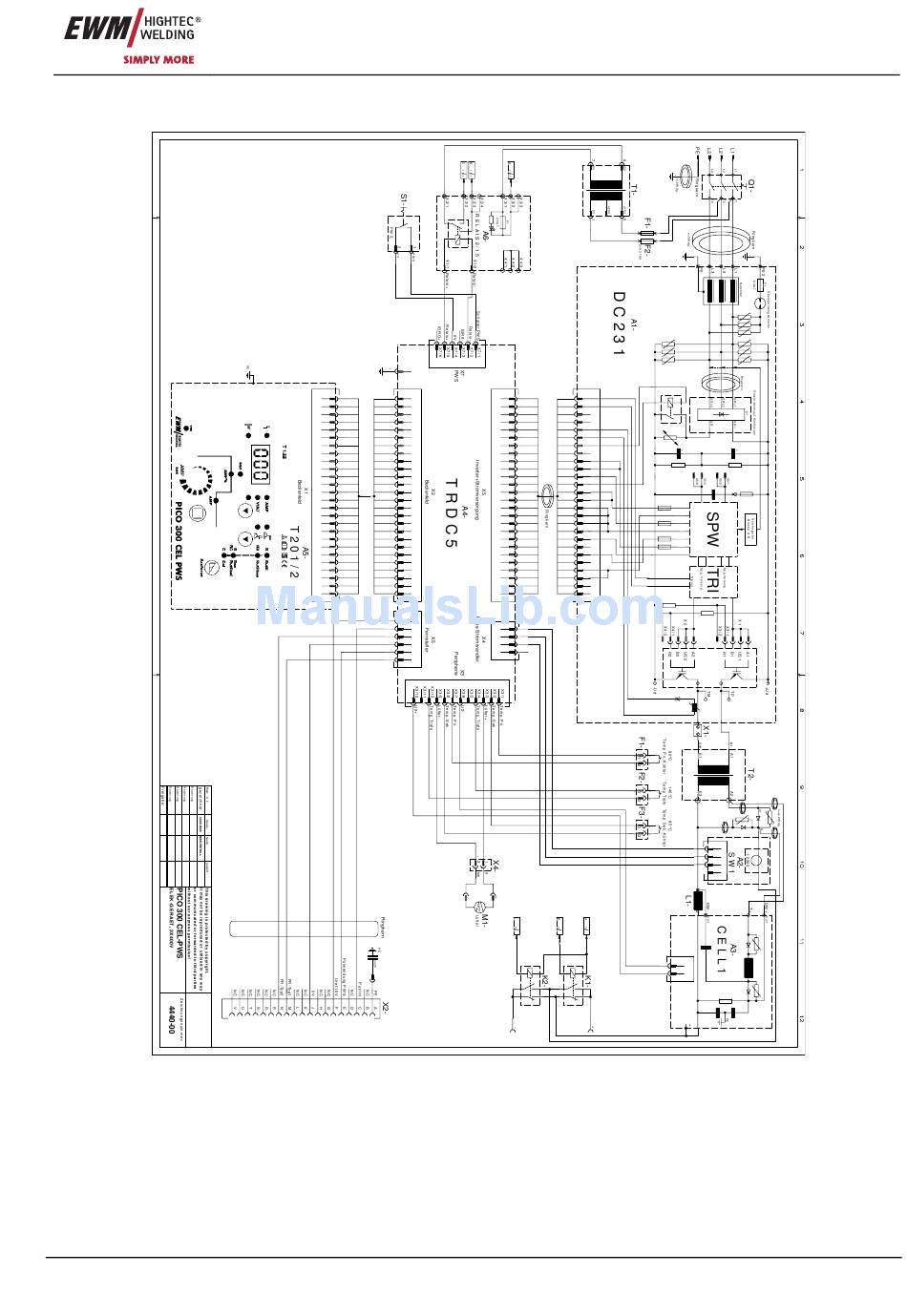

Figure 12-8
X1/1 TDW1+ TDW1+ X6/1
X1/2 TDW1- TDW1- X6/2
X1/3 TDW2+ NC X6/3
X1/4 TDW2- NC X6/4
X1/5 Iprim+ IPrim+ X6/5
X1/6 Iprim- IPrim- X6/6
X1/7 Relais Relais X6/7
X1/8 NC NC X6/8
X1/9 +8V +8V X6/9
X1/10 +8V +8V X6/10
X1/11 +15V +15V X6/11
X1/12 +15V +15V X6/12
X1/13 +24V +24V X6/13
X1/14 +24V +24V X6/14
X1/15 0V/15 0V/15 X6/15
X1/16 0V/15 0V/15 X6/16
X1/17 0V/15 0V/15 X6/17
X1/18 0V/15 0V/15 X6/18
X1/19 UZWK UZWK X6/19
X1/20 NC NC X6/20
X1/21 -15V -15V X6/21
X1/22 NC NC X6/22
X1/23 0V/24 0V/24 X6/23
X1/24 0V/24 0V/24 X6/24
X1/25 NC NC X6/25
X1/26 NC NC X6/26
X4/1 +15V
X4/2 M
X4/3
-15V
X4/4
0V
U2-
U2+
Circuit diagrams
PICO 300 CEL PWS
+24V
0V/24
+15V
0V
-15V
+8V
UZWK
+15V X1/1
M X1/2
-15V X1/3
X1/4
X1/1
X1/2
51
