PICO 260; 300 CEL PWS

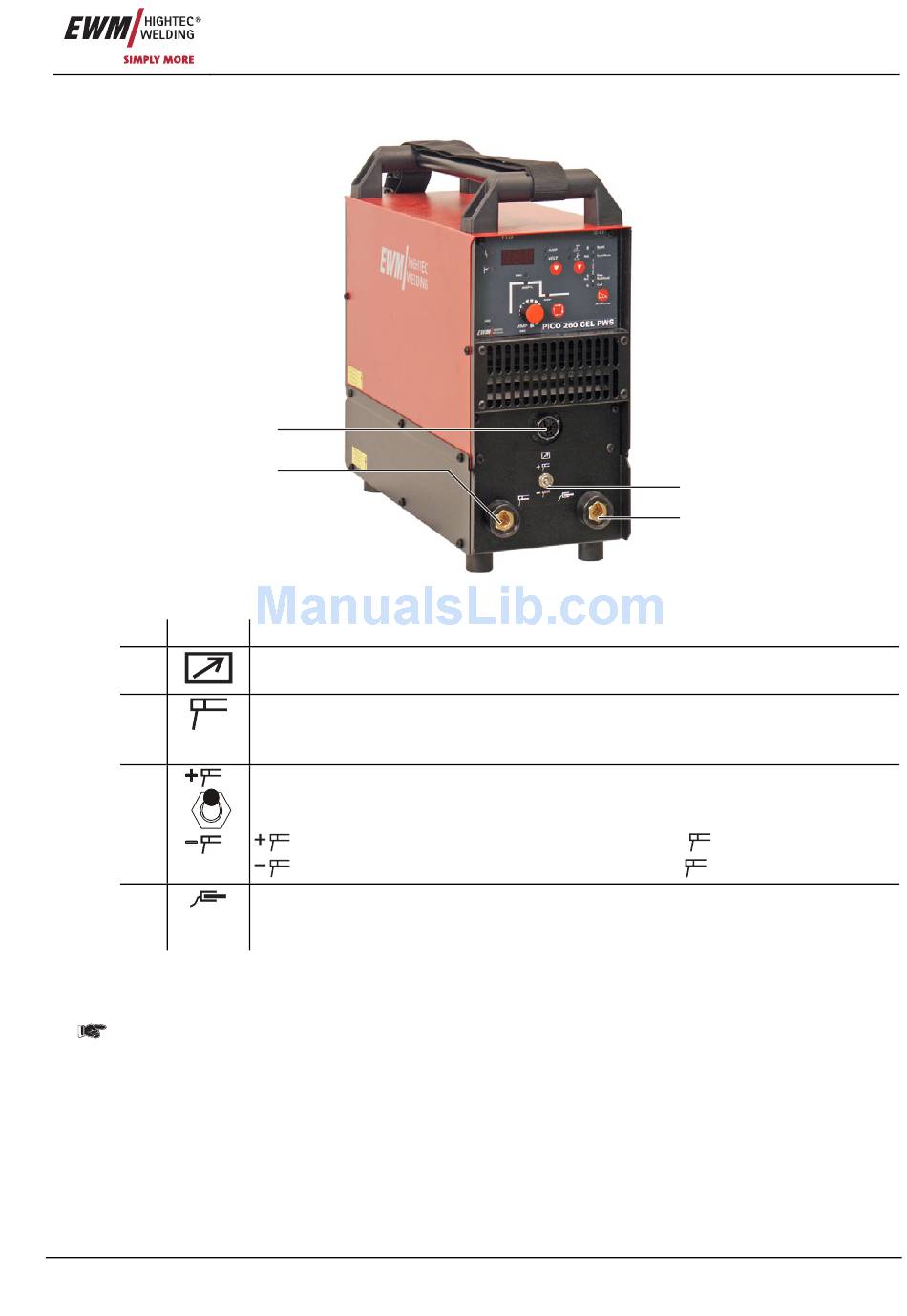

Item Symbol Description
1
2
3
4
6.8.1.1

Pole reversal changeover switch

This allows the welding current polarity (+/-) to be changed without unplugging the electrode holder or
workpiece leads.
The polarity cannot be changed during welding!
The polarity can also be changed over to an appropriate remote control with pole reversal switch.
Item No.: 099-002032-EWM01
1
2
0
Connection socket, 19-pole
Remote control connection
Connection socket, electrode holder
The welding current polarity ("+" or "-") are based on the setting of the "Welding current
polarity changeover switch".
Welding current potential changeover switch
The changeover switch is used to switch over the welding current polarity ("+" or "-" ) of
the electrode holder and workpiece lead connection sockets.
= Welding current polarity "+" on connection socket
= Welding current polarity "-" on connection socket
Connection socket, workpiece lead
The welding current polarity ("+" or "-") are based on the setting of the "Welding current
polarity changeover switch".
Figure 6-3
Commissioning
PICO 260; 300 CEL PWS
