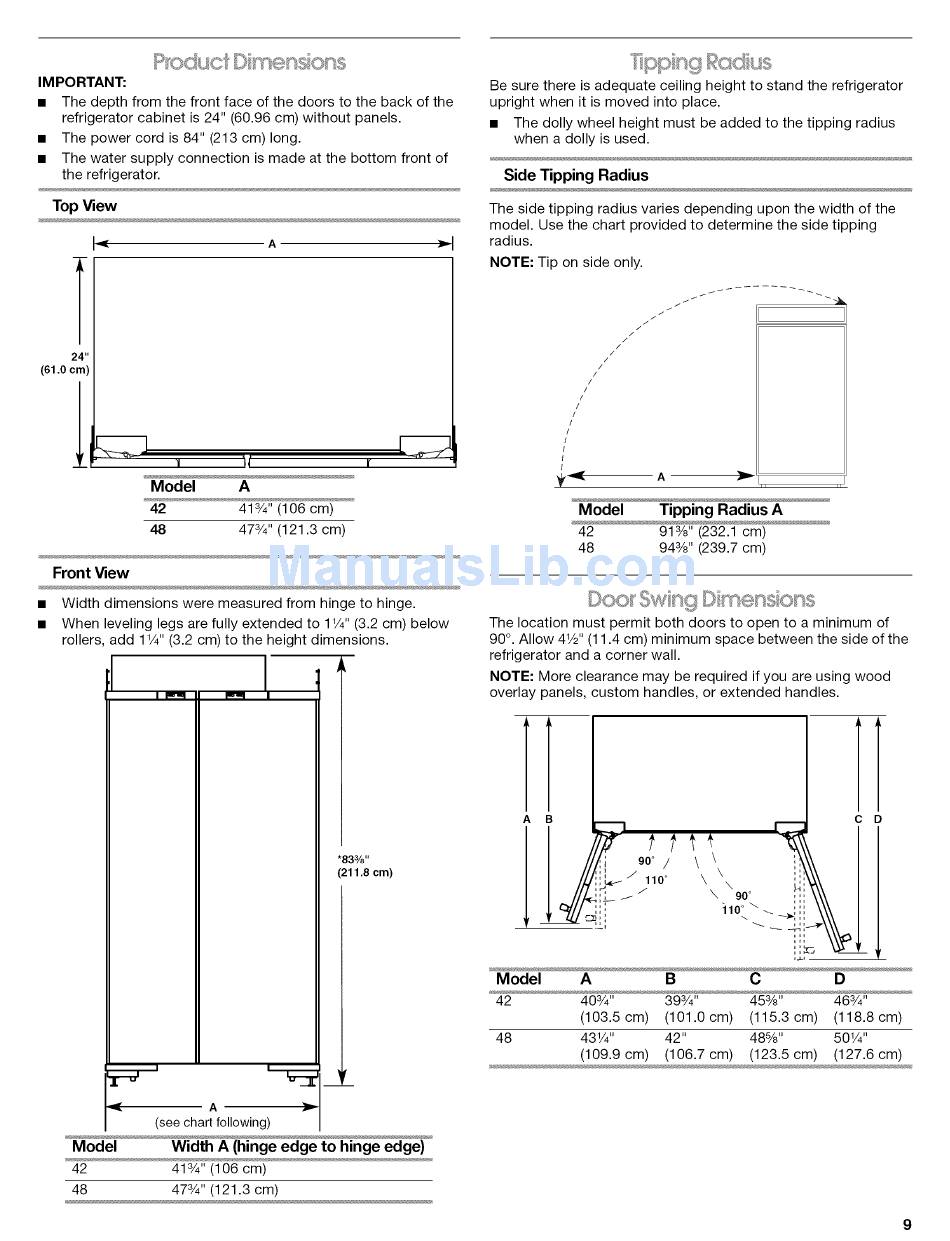

Jenn-Air JS42NXFXDW Installation Manual page 9

IM PORTANT:
The depth from the front face of the doors to the back of the
refrigerator cabinet is 24" (60.96 cm) without panels.
The power cord is 84" (213 cm) long.
The water supply connection is made at the bottom front of
the refrigerator.
Top View
T
24"
(61.0 cm)
Model A
42 41¾" (106 cm)
48 473/4 ' ' (121.3 cm)
Front View
• Width dimensions were measured from hinge to hinge.
• When leveling legs are fully extended to 11/4"(3.2 cm) below
rollers, add 1V4" (3.2 cm) to the height dimensions.
I
*83%"
(211.8 cm)
._L
A
(see chart following)
Model Width A (hinge edge to hinge edge)
42 413/4" (106 cm)
48 473/4 '' (121.3 cm)
Tqpp ng ky d t s
Be sure there is adequate ceiling height to stand the refrigerator
upright when it is moved into place.
• The dolly wheel height must be added to the tipping radius
when a dolly is used.
Side Tipping Radius
The side tipping radius varies depending upon the width of the
model. Use the chart provided to determine the side tipping
radius.
NOTE: Tip on side only.
!
/
i I
I
1
i/
I
I
I
f
I
/
/
/
/
/
/
s" II
ii ii
Model Tipping Radius A
42 913/8" (232.1 cm)
48 943/8" (239.7 cm)
The location must permit both doors to open to a minimum of
90 °. Allow 41/2 '' (11.4 cm) minimum space between the side of the
refrigerator and a corner wall.
NOTE: More clearance may be required if you are using wood
overlay panels, custom handles, or extended handles.
A B c
I°L\ --- i! \\\
Model A B C D
42 40¾" 39¾" 453/8'' 46¾"
(103.5cm) (101.0cm) (115.3cm) (118.8cm)
48 431/4 '' 42" 48%" 501/4 ''
(109.9 cm) (106.7 cm) (123.5 cm) (127.6 cm)
