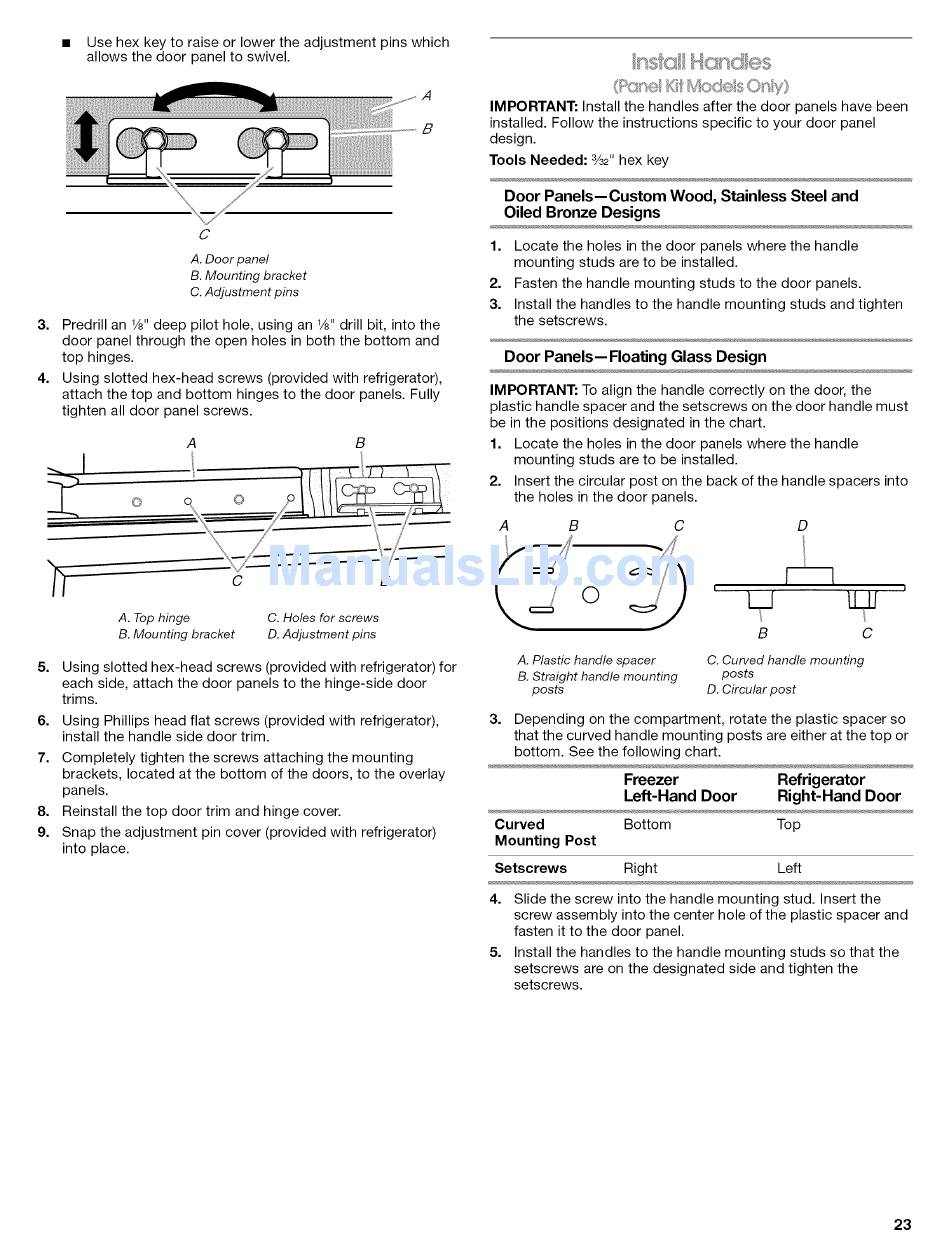

Use hex key to raise or lower the adjustment pins which
allows the door panel to swivel.
.4
B
C
A. Door panel
B. Mounting bracket
C. Adjustment pins
3. Predrill an 1/8"deep pilot hole, using an 1/8"drill bit, into the
door panel through the open holes in both the bottom and
top hinges.
4. Using slotted hex-head screws (provided with refrigerator),
attach the top and bottom hinges to the door panels. Fully
tighten all door panel screws.
A B
©
C D
A. Top hinge
B. Mounting bracket
C. Holes for screws
D. Adjustment pins
5. Using slotted hex-head screws (provided with refrigerator) for
each side, attach the door panels to the hinge-side door
trims.
6. Using Phillips head flat screws (provided with refrigerator),
install the handle side door trim.
7. Completely tighten the screws attaching the mounting
brackets, located at the bottom of the doors, to the overlay
panels.
8. Reinstall the top door trim and hinge cover.
9. Snap the adjustment pin cover (provided with refrigerator)
into place.
(xnd es
@'o/qe £1_Modes Ony}
IMPORTANT: Install the handles after the door panels have been
installed. Follow the instructions specific to your door panel
design.
Tools Needed: 3/32"hex key
Door Panels--Custom Wood, Stainless Steel and
Oiled Bronze Designs
1. Locate the holes in the door panels where the handle
mounting studs are to be installed.
2. Fasten the handle mounting studs to the door panels.
3. Install the handles to the handle mounting studs and tighten
the setscrews.
Door Panels--Floating Glass Design
IMPORTANT: To align the handle correctly on the door, the
plastic handle spacer and the setscrews on the door handle must
be in the positions designated in the chart.
1. Locate the holes in the door panels where the handle
mounting studs are to be installed.
2. Insert the circular post on the back of the handle spacers into
the holes in the door panels.
A B C D
o ' LJ
B C
A. Plastic handle spacer
B. Straight handle mounting
posts
C. Curved handle mounting
posts
D. Circular post
3. Depending on the compartment, rotate the plastic spacer so
that the curved handle mounting posts are either at the top or
bottom. See the following chart.
Freezer Refrigerator
Left-Hand Door Right-Hand Door
Curved Bottom Top
Mounting Post
Setscrews Right Left
4. Slide the screw into the handle mounting stud. Insert the
screw assembly into the center hole of the plastic spacer and
fasten it to the door panel.
5. Install the handles to the handle mounting studs so that the
setscrews are on the designated side and tighten the
setscrews.
