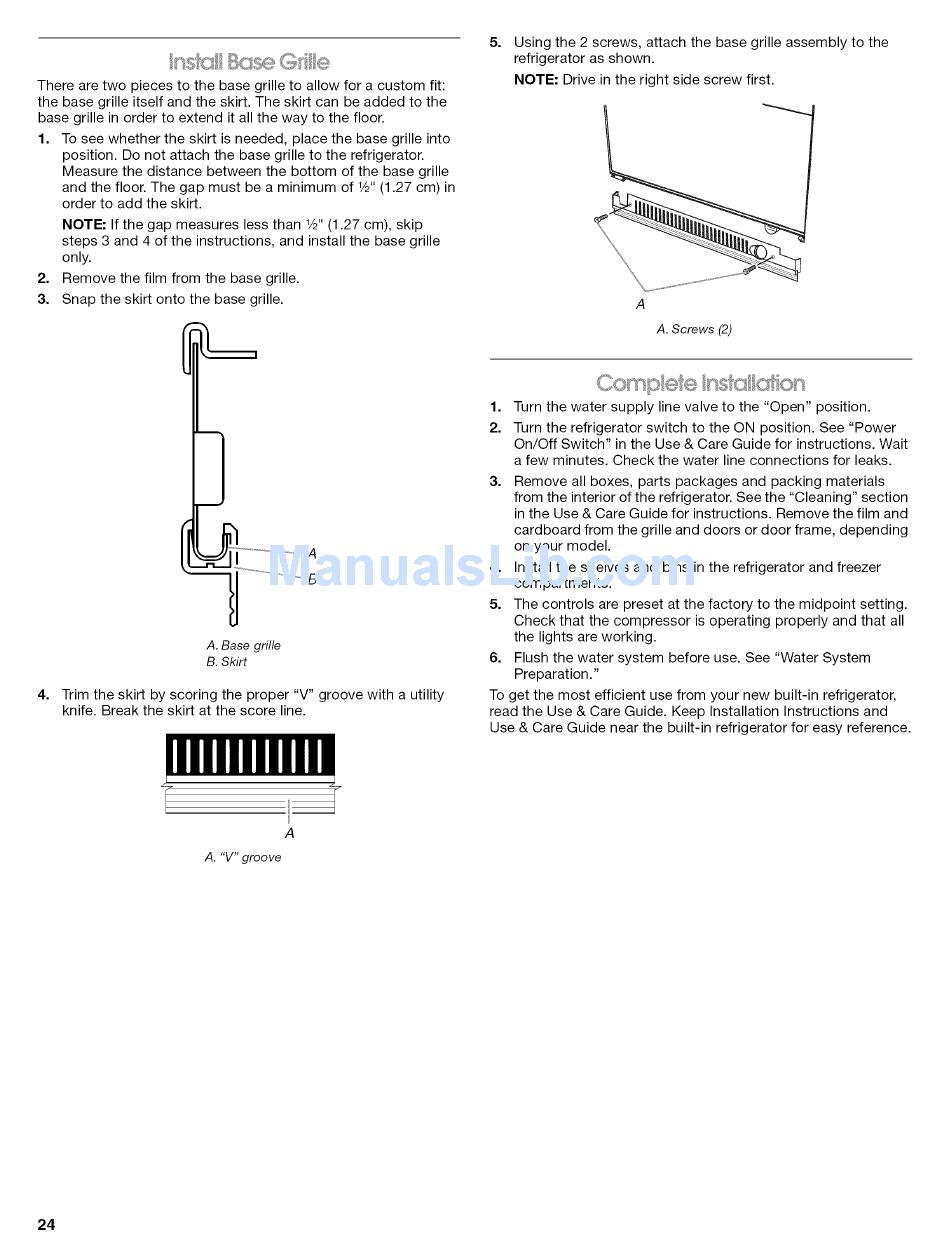

There aretwo piecestothe base grille to allowfora custom fit:
thebase grille itself and the skirt. The skirt c an be added to the
base grille inorderto extend it all theway to thefloor.
I. To see whether theskirt i sneeded, placethe base grille into
position. Do not attach the base grille totherefrigerator.
Measure thedistancebetween thebottom ofthebase grille
and thefloor. The gap must be a minimum of I/2" (I .27cm) in
order to add the skirt.
NOTE: If the gap measures less than 1/2"(1.27 cm), skip
steps 3 and 4 of the instructions, and install the base grille
only.
2. Remove the film from the base grille.
3. Snap the skirt onto the base grille.
A
B
4.
A. Base grille
B. Skirt
Trim the skirt by scoring the proper "V" groove with a utility
knife. Break the skirt at the score line.
A
A. "V" groove
5.
Using the 2 screws, attach the base grille assembly to the
refrigerator as shown.
NOTE: Drive in the right side screw first.
A
A. Screws (2)
1. Turn the water supply line valve to the "Open" position.
2. Turn the refrigerator switch to the ON position. See "Power
On/Off Switch" in the Use & Care Guide for instructions. Wait
a few minutes. Check the water line connections for leaks.
3. Remove all boxes, parts packages and packing materials
from the interior of the refrigerator. See the "Cleaning" section
in the Use & Care Guide for instructions. Remove the film and
cardboard from the grille and doors or door frame, depending
on your model.
4. Install the shelves and bins in the refrigerator and freezer
compartments.
5. The controls are preset at the factory to the midpoint setting.
Check that the compressor is operating properly and that all
the lights are working.
6. Flush the water system before use. See "Water System
Preparation."
To get the most efficient use from your new built-in refrigerator,
read the Use & Care Guide. Keep Installation Instructions and
Use & Care Guide near the built-in refrigerator for easy reference.
