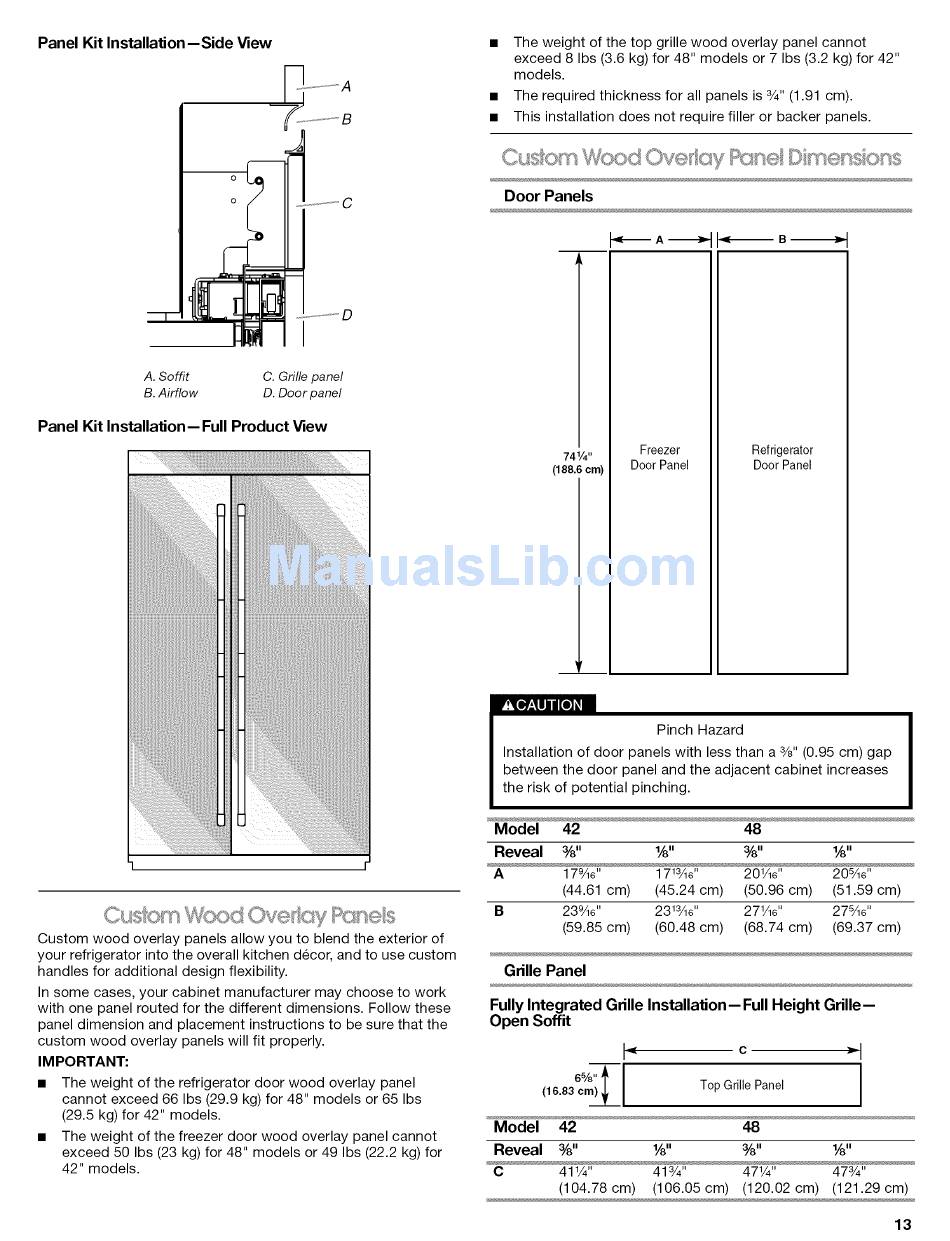

Jenn-Air JS42NXFXDW Installation Manual page 13

• The weight of the top grille wood overlay panel cannot
exceed 8 Ibs (3.6 kg) for 48 = models or 7 Ibs (3.2 kg) for 42 =
models.
• The required thickness for all panels is 3/4"(1.91 cm).
• This installation does not require filler or backer panels.
Door Panels
A. Soffit C. Grille panel
B.Airflow D. Door panel
Panel Kit Installation-- Full Product View
Custom wood overlay panels allow you to blend the exterior of
your refrigerator into the overall kitchen decor, and to use custom
handles for additional design flexibility.
In some cases, your cabinet manufacturer may choose to work
with one panel routed for the different dimensions. Follow these
panel dimension and placement instructions to be sure that the
custom wood overlay panels will fit properly.
IM PORTANT:
• The weight of the refrigerator door wood overlay panel
cannot exceed 66 Ibs (29.9 kg) for 48 =models or 65 Ibs
(29.5 kg) for 42 = models.
• The weight of the freezer door wood overlay panel cannot
exceed 50 Ibs (23 kg) for 48 = models or 49 Ibs (22.2 kg) for
42 =models.
741/4"
(188.6 cm)
Freezer
Door Panel
Refrigerator
Door Panel
Pinch Hazard
Installation of door panels with less than a 3/8" (0.95 cm) gap
between the door panel and the adjacent cabinet increases
the risk of potential pinching.
Model 42 48
Reveal %" 1/&,, 3/8,, W'
A 179/le'' 1713/16 '' 201/le'' 208/1 e''
(44.61 cm) (45.24 cm) (50.96 cm) (51.59 cm)
B 23e/16 '' 2313/16 ' ' 271/16 '' 278/16 ''
(59.85 cm) (60.48 cm) (68.74 cm) (69.37 cm)
Grille Panel
Fully Integrated Grille Installation-- Full Height Grille--
Open Soffit
_{ C )'1
Model 42 48
Reveal 3/8" W' %" W'
C 411/4" 413/4" 471/4 ' ' 473/4 ' '
(104.78 cm) (106.05 cm) (120.02 cm) (121.29 cm)
