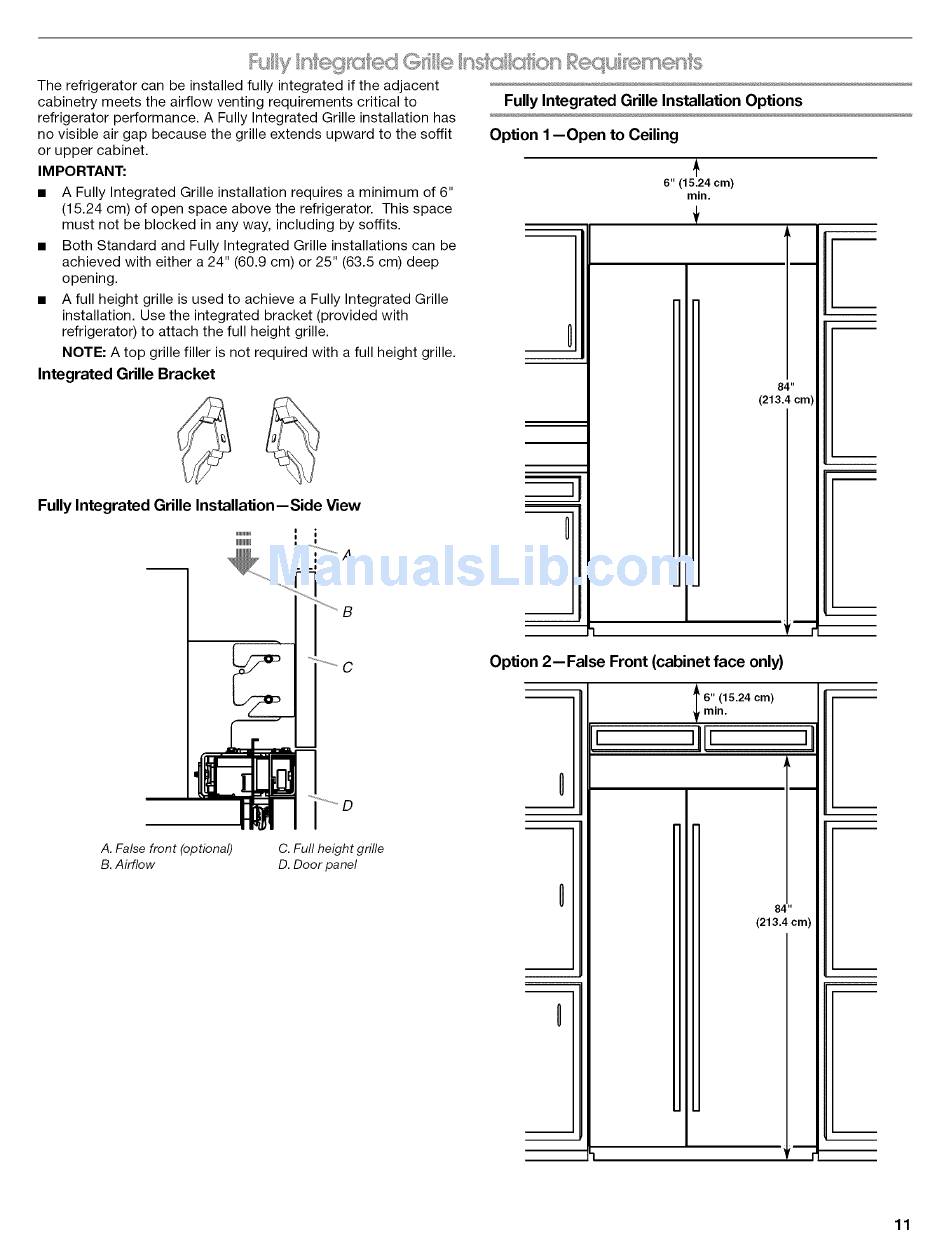

The refrigerator can be installed fully integrated if the adjacent
cabinetry meets the airflow venting requirements critical to
refrigerator performance. A Fully Integrated Grille installation has
no visible air gap because the grille extends upward to the soffit
or upper cabinet.
IM PORTANT:
6" (15,24 cm)
• A Fully Integrated Grille installation requires a minimum of 6" min.
(15.24 cm) of open space above the refrigerator. This space ,I,
must not be blocked in any way, including by soffits.
Y
• Both Standard and Fully Integrated Grille installations can be
achieved with either a 24" (60.9 cm) or 25" (63.5 cm) deep
opening.
• A full height grille is used to achieve a Fully Integrated Grille
installation. Use the integrated bracket (provided with
refrigerator) to attach the full height grille.
NOTE: A top grille filler is not required with a full height grille.
Integrated Grille Bracket
Fully Integrated Grille Installation--Side View
Fully Integrated Grille Installation Options
Option 1 --Open to Ceiling
84"
(213.4 cm)
ri
A. False front (optional)
B. Airflow
C
C. Full height grille
D. Door panel
Option 2-False Front (cabinet face only)
0
6" (15.24 cm)
mln,
111,
84"
(213.4 cm)
11
