Jenn-Air JS42NXFXDW Installation Manual page 10

bel cxx:: Op tons

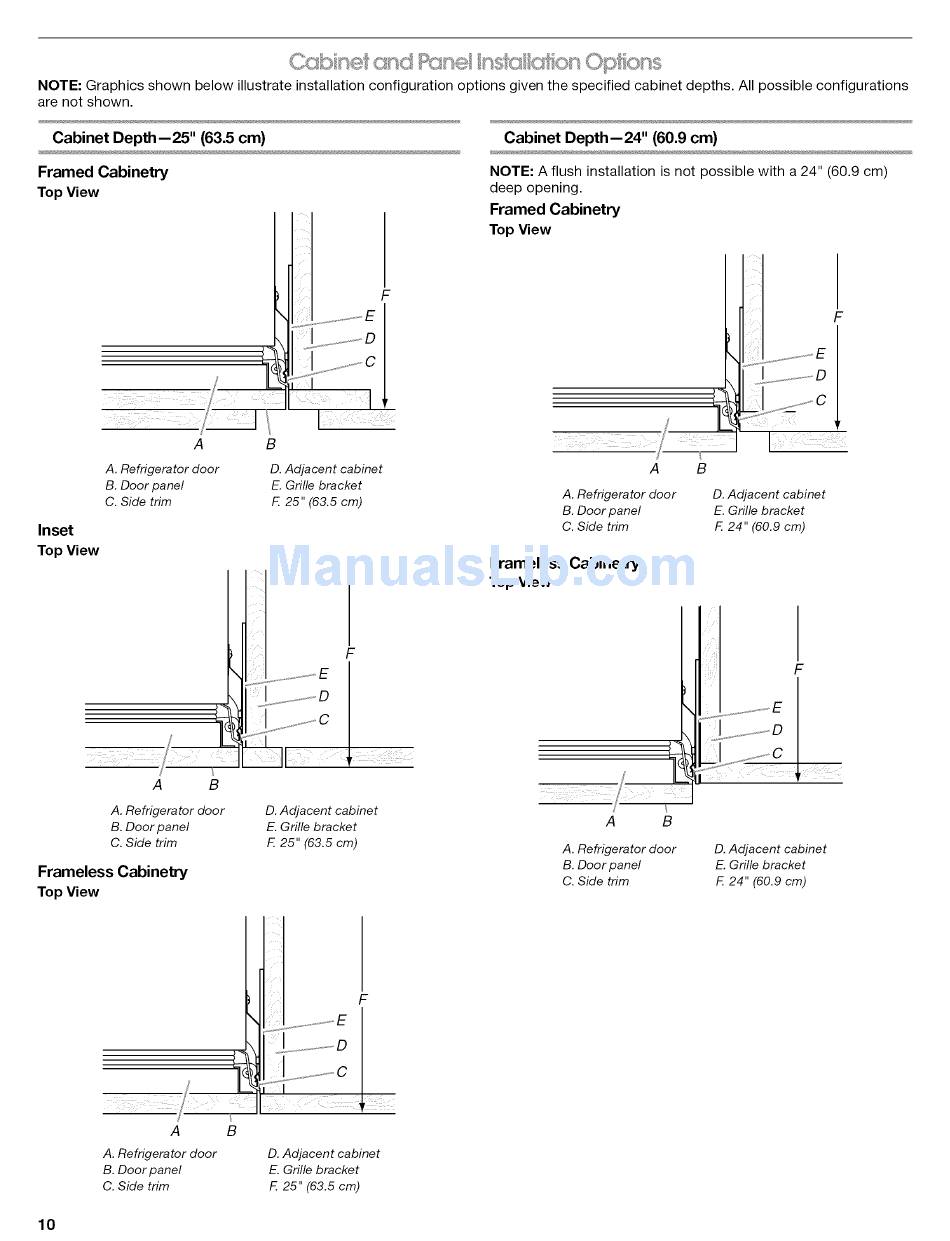

NOTE: Graphics shown below illustrate installation configuration options given the specified cabinet depths. All possible configurations
are not shown.
Cabinet Depth--25" (63.5 cm)
Framed Cabinetry
Top View
F
Inset
Top View
A. Refrigerator door
B. Door panel
C. Side trim
i
B
D. Adjacent cabinet
E. Grille bracket
F. 25" (63.5 cm)
Cabinet Depth--24" (60.9 cm)
NOTE: A flush installation is not possible with a 24" (60.9 cm)
deep opening.
Framed Cabinetry
Top View
A B
A. Refrigerator door
B. Door panel
C. Side trim
D. Adjacent cabinet
E. Grille bracket
F. 24" (60.9 cm)
Frameless Cabinetry
Top View
A B
A. Refrigera tor door
B. Door panel
C. Side trim
Frameless Cabinetry
Top View
D. Adjacent cabinet
E. Grille bracket
F. 25" (63.5 cm)
A B
A. Refrigerator door
B. Door panel
C. Side trim
F
I
D. Adjacent cabinet
E. Grille bracket
F. 24" (60.9 cm)
A B
A. Refrigerator door
B. Door panel
C. Side trim
F
D. Adjacent cabinet
E. Grille bracket
F. 25" (63.5 cm)
