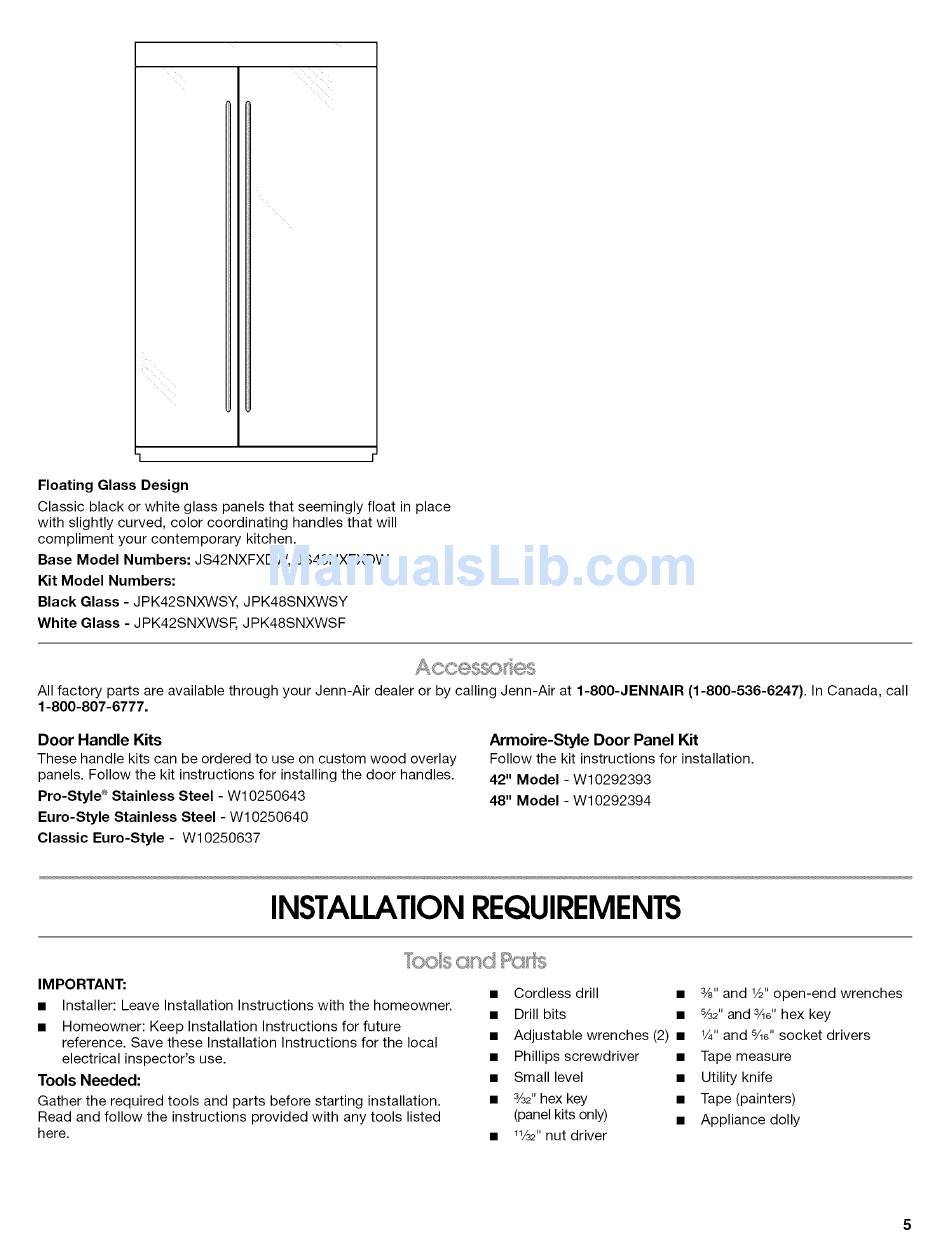

Floating G lass Design
Classic b lack orwhite glass panels t hatseemingly float i nplace
withslightly c urved, color c oordinating handles thatwill
compliment yourcontemporary kitchen.
Base Model N umbers: JS42NXFXDW, JS48NXFXDW
KitModel N umbers:
Black Glass - JPK42SNXWSY, JPK48SNXWSY
White Glass -JPK42SNXWSF, JPK48SNXWSF
Allfactory p arts are available through y our J enn-Air dealer orbycalling J enn-Air at1-800-JENNAIR (1-800-536-6247). InCanada, call
1-800-807-6777.
Door Handle Kits
These handle kits can be ordered to use on custom wood overlay
panels. Follow the kit instructions for installing the door handles.
Pro-Style ® Stainless Steel - W10250643
Euro-Style Stainless Steel - W10250640
Classic Euro-Style - W10250637
Armoire-Style Door Panel Kit
Follow the kit instructions for installation.
42" Model - W10292393
48" Model - W10292394
INSTALLATION REQUIREMENTS
IMPORTANT:
• Installer: Leave Installation Instructions with the homeowner.
• Homeowner: Keep Installation Instructions for future
reference. Save these Installation Instructions for the local
electrical inspector's use.
Tools Needed:
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
• Cordless drill
• Drill bits
• Adjustable wrenches (2)
• Phillips screwdriver
• Small level
• 3/32" h ex key
(panel kits only)
• 11/32"
nut driver
• 3/8"and 1/2"open-end wrenches
• %2" and 3/le" hex key
• 1/4"and %e" socket drivers
• Tape measure
• Utility knife
• Tape (painters)
• Appliance dolly
