6.6.2. Video Configuration

The Video Configuration screen has features for controlling the integrated
graphics controller in the VX11H chipset.

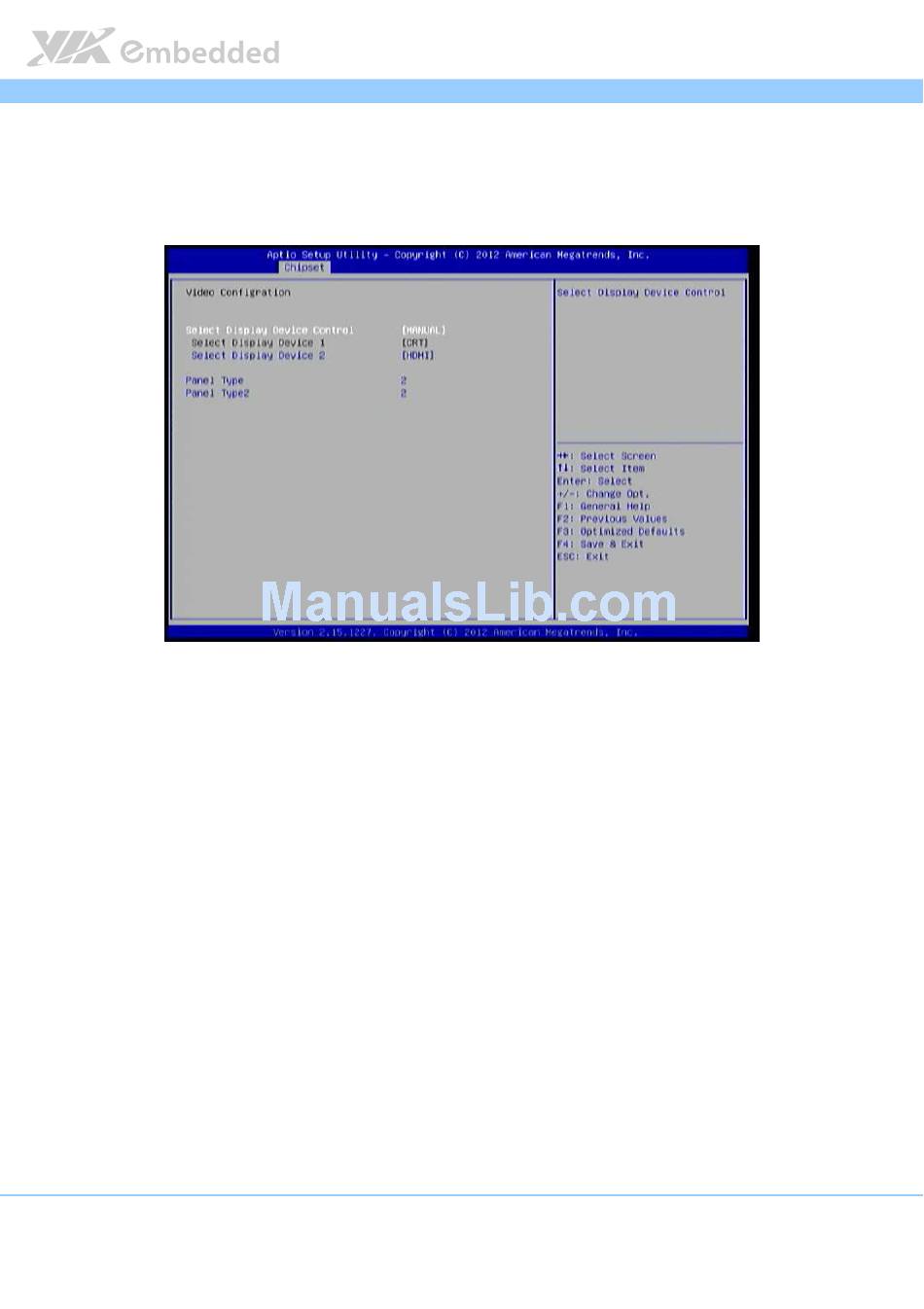

Figure 43 Figure Figure Figure 43 43 43: Illustration of Video Configuration screen : Illustration of Video Configuration screen : Illustration of Video Configuration screen : Illustration of Video Configuration screen
6.6.2.1. Select Display Device Control 6.6.2.1. Select Display Device Control
6.6.2.1. 6.6.2.1. Select Display Device Control Select Display Device Control
Available selections are: Auto and Manual.
6.6.2.2. 6.6.2.2. Select Display Device 1 and 2 Select Display Device 1 and 2
6.6.2.2. 6.6.2.2. Select Display Device 1 and 2 Select Display Device 1 and 2
The Select Display Device feature enables the user to choose a specific
display interface. This feature has four options: CRT, LCD, LCD2 and HDMI. If
both Select Display Device 1 and Select Display Device 2 are set to the same
interface, then any display device connected to the other interface will not
function. For example, if both Select Display 1 and 2 are set to CRT, then no
data will be sent to the HDMI, LCD and LCD2 port.
6.6.2.3. 6.6.2.3. Panel Type Panel Type
6.6.2.3. 6.6.2.3. Panel Type Panel Type
The Panel Type feature enables the user to specify the resolution of the display
being used with the system. The panel types are predefined in the VGA VBIOS.
